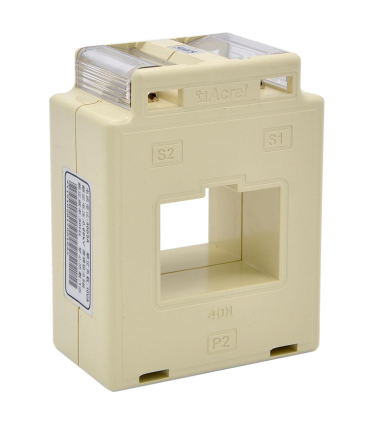

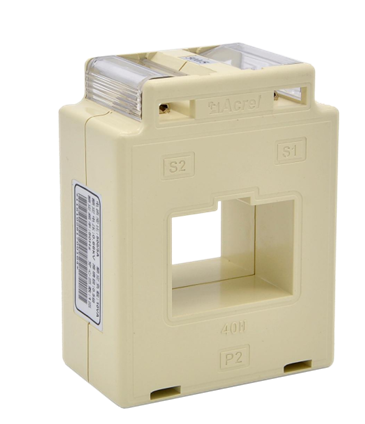

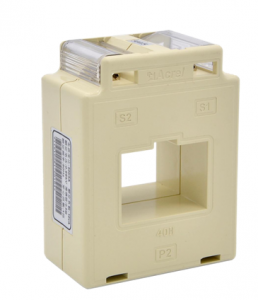

AKH-0.66-II Current Transformer
Technical Indicators
● Security factor: FS＜5
● Maximum system voltage: 720V AC
● Test voltage: 3kV AC(1min)
● Rated frequency: 50/60Hz
● Rated short-time thermal current: Ith=40~60In
● Rated dynamic current: Idyn=2.5Ith
● Rated secondary current: X/5A (X/1A upon request)
● Rated primary current: Ranging up to 6000A
● Continuous overload: 120%In
● Protection level: IP30
● Casing: Non-flammable, polycarbonate self-extinguishing ABS
● Environment:
Operating temperature: -25℃-+50℃
Storage temperature: -40℃-+80℃
Humidity (no condensation) ≤90%RH

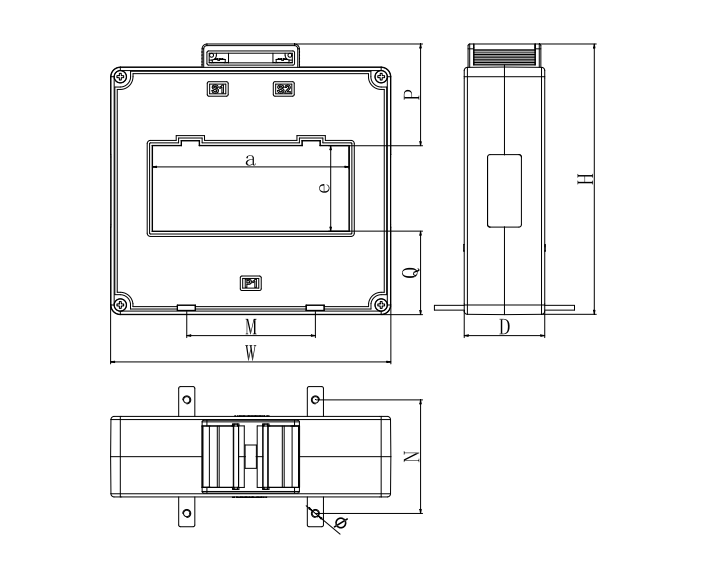

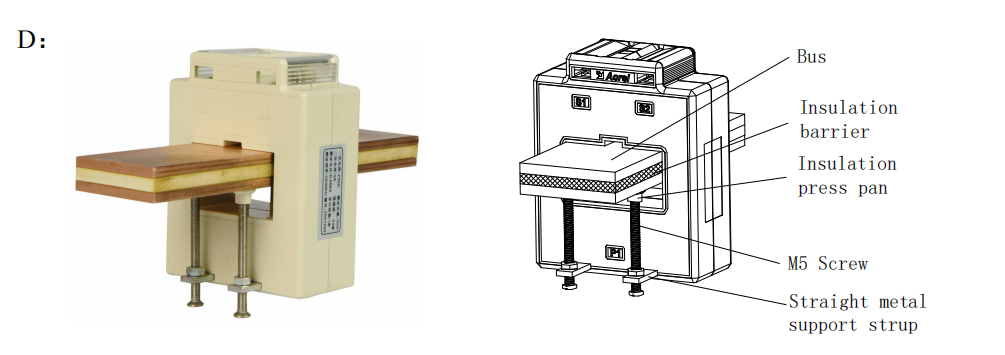

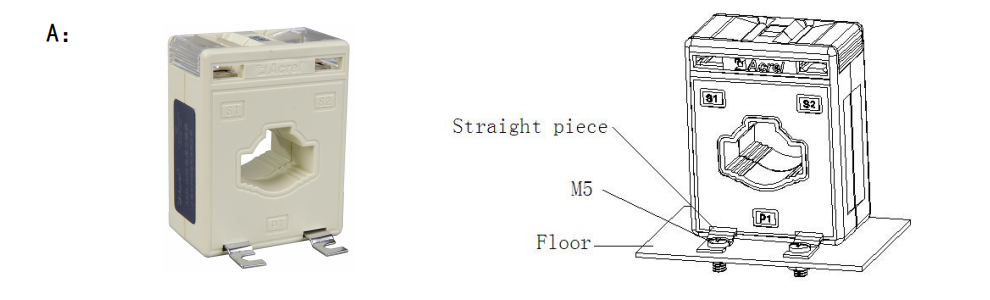

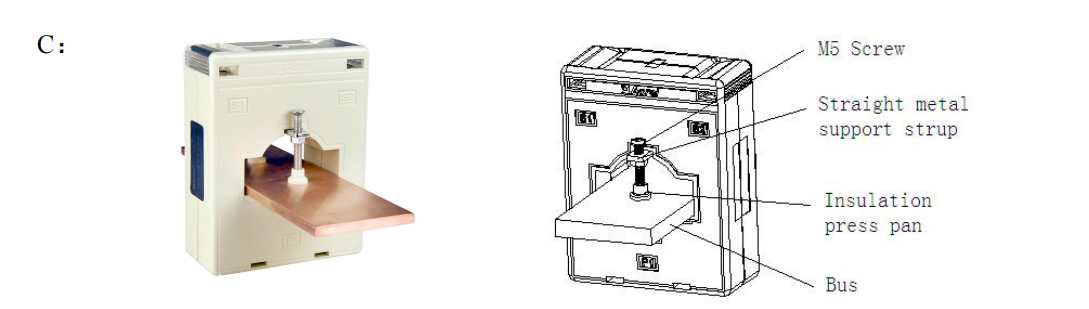

Installation Instruction
Product Feature

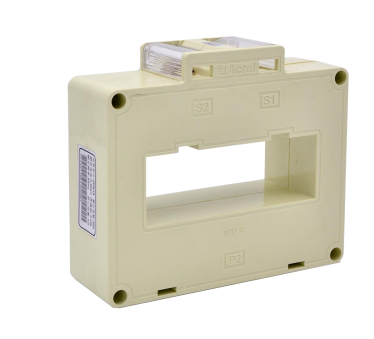

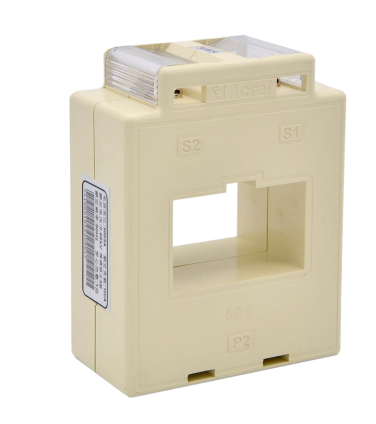

Horizontal square hole type, they can pass through 1-6 bar bus and also pass through multiple cables. They are generally used with electrical measuring instruments, widely used in electrical sets.
This product meet the requirements of GB20840.2-2014(Equivalent IEC61869-2:2012, MOD), and have achieved CE certificate.
Security factor: FS＜5
Technical data
| Parameter | Value |
|---|---|
| Rated frequency | 50/60Hz Rated short-time thermal current: Ith=40~60In Rated dynamic current: Idyn=2.5Ith |
| Rated secondary current | X/5A (X/1A upon request) |
| Rated primary current | Ranging up to 6000A |
| Storage temperature | -40℃-+80℃ Humidity (no condensation) ≤90%RH |
Built-in functions
- Maximum system voltage: 720V AC
- Test voltage: 3kV AC(1min)
- Continuous overload: 120%In
- Protection level: IP30
