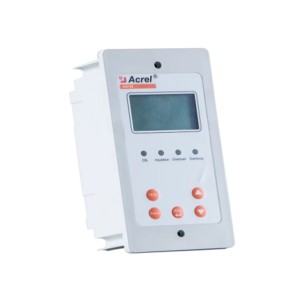

AID150 medical IT Isolated system (alarm and display instrument)
Characteristic

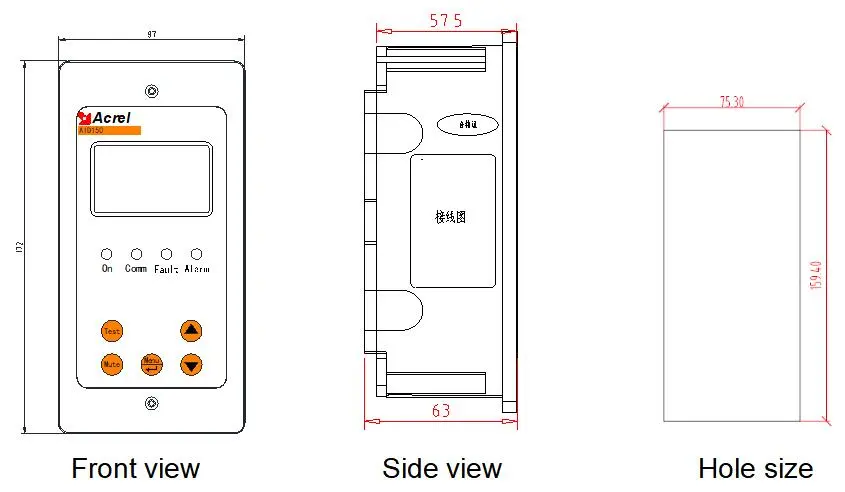

Dimension
Wiring
Typical connection
Function

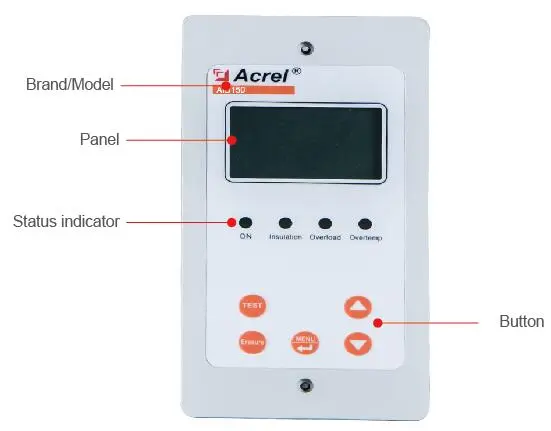

Alarm and display unit
Display
128 × 64 LCD
Insulation alarm
50–999 kΩ
Load current alarm
14–45 A
Supply
DC 24 V
Protocol
Modbus-RTU

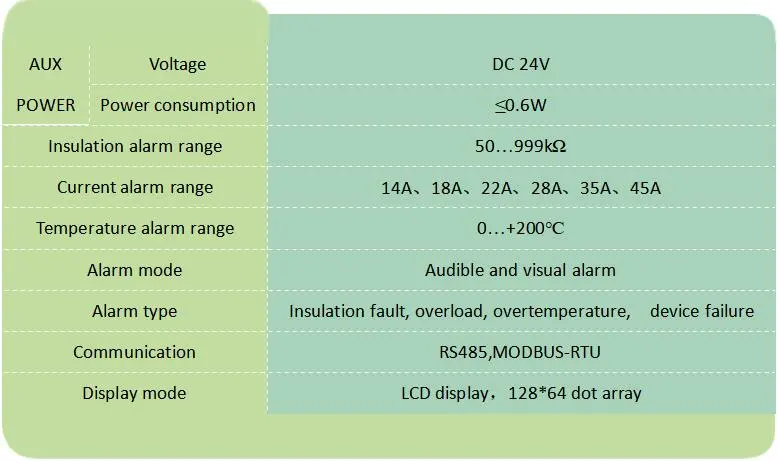

Specifications
| General | Product type | Alarm and display instrument for medical IT systems |
| Standard | GB 16895.24-2005 / IEC 60364-7-710:2002 | |
| Supply | Auxiliary supply | DC 24 V |
| Power consumption | < 0.6 W | |
| Measurement | Insulation resistance alarm | 50–999 kΩ, settable |
| Load current alarm | 14 / 18 / 22 / 28 / 35 / 45 A | |
| Temperature alarm | 0 ~ +200 °C | |
| Alarm | Alarm type | Acoustic and optic alarm |
| Display | 128 × 64 LCD | |
| Communication | Interface | RS485, Modbus-RTU |
| Mounting | Installation | Flush mounting |
| Cut-out size | 75.3 × 159.4 mm |
Functions
| Monitoring | Insulation resistance of the IT system | ■ |
| Load current of the isolation transformer | ■ | |
| Transformer winding temperature | ■ | |
| Alarm | Acoustic and optic alarm | ■ |
| Settable alarm thresholds | ■ | |
| Communication | RS485 Modbus-RTU to the monitoring system | ■ |
| Display | 128 × 64 LCD with background light | ■ |

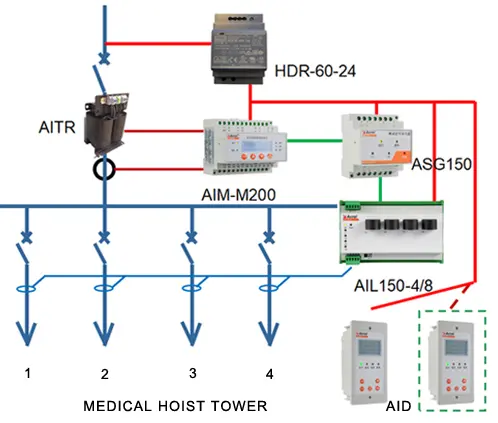

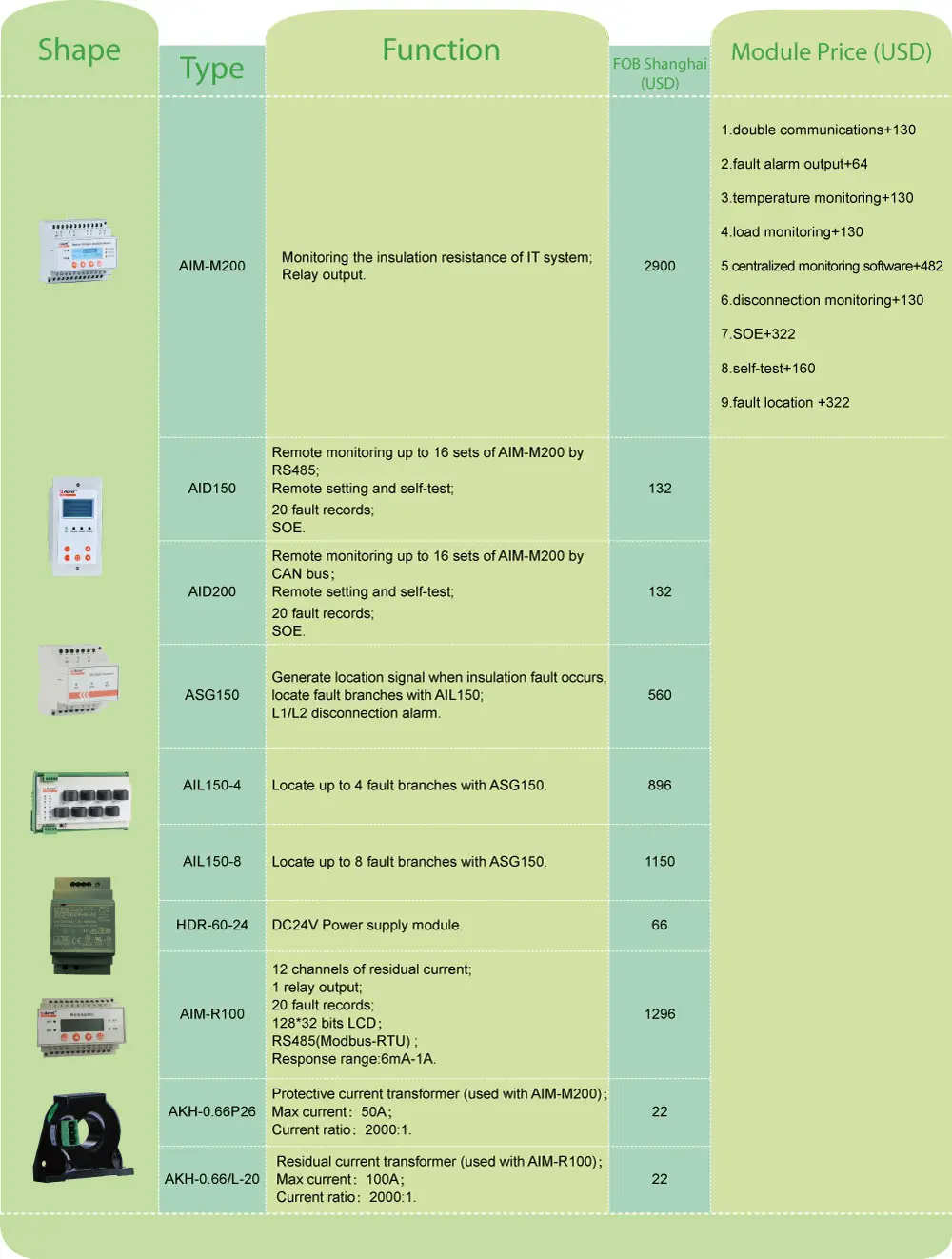

System role
| AIM-M200 | Insulation monitoring device |
| ASG150 | Test signal generator |
| AIL150-4/-8 | Insulation fault locator |
| AID150 | Alarm and display instrument |
| GGF | Medical IT isolated power distribution cabinet |
