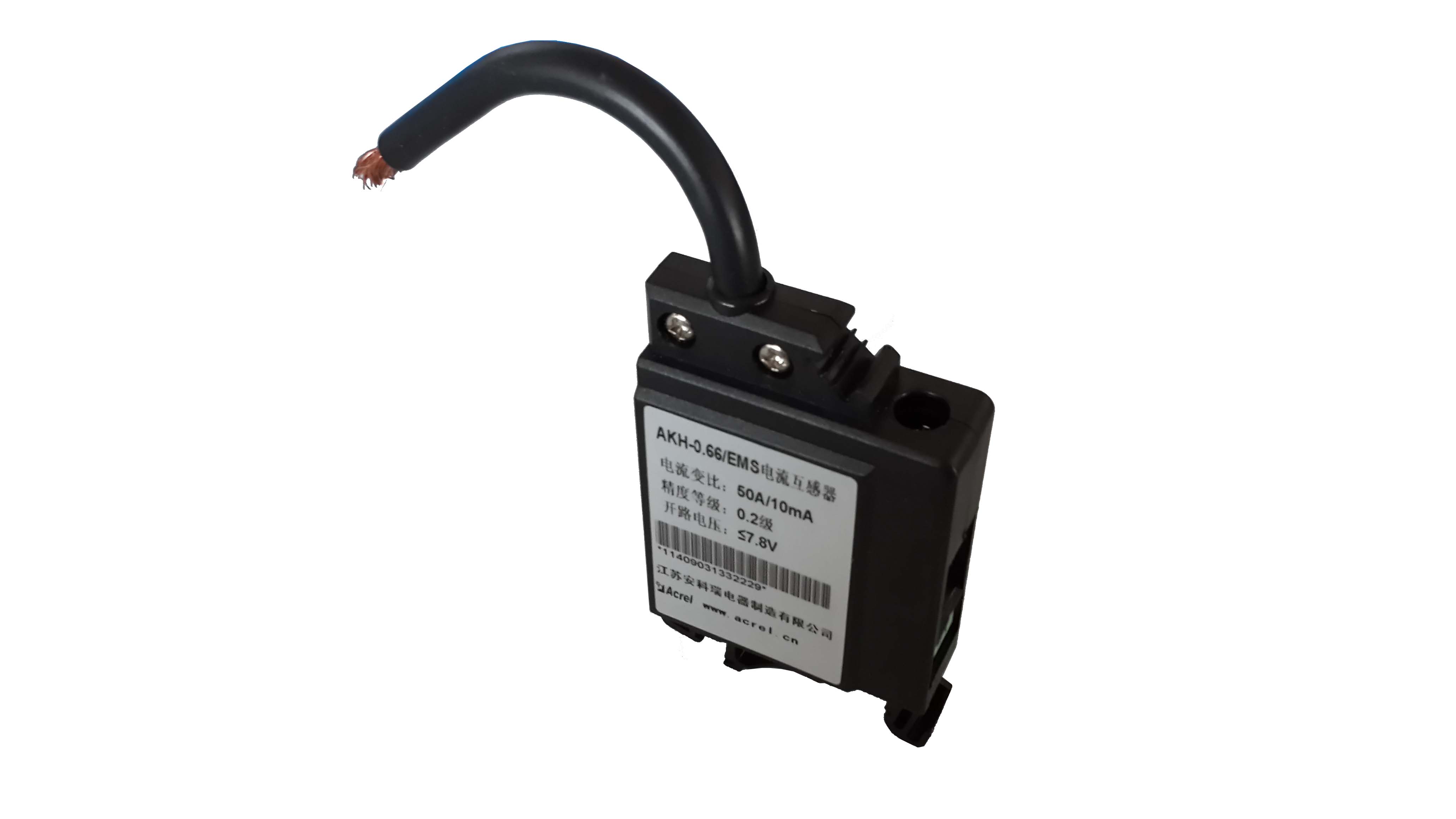

AKH-0.66/EMS DIN-Rail Current Transformer

Application

(1) AC current signal acquisition
(2) Multi-circuit power monitoring
(3) AMC16 multi-circuit monitoring system
(4) Electrical measuring instruments

Basic Parameters

(1) Rated voltage: 0.66kV
(2) Accuracy: Class 0.2
(3) Secondary output: 10mA / 20mA / 50mA
(4) Rated burden: 10Ω
(5) DIN-rail installation

Send email to us

Information

Parameter

Download

Technical Indicators

Rated Working Voltage: AC 0.66kV
Power-Frequency Withstand Voltage: 3kV
Open-Circuit Voltage: ≤7.8V

Current Ratio: (10–50)A/10mA, (20–60)A/20mA, (50–60)A/50mA
Accuracy Class: Class 0.2
Rated Burden: 10Ω
Secondary Output: 10mA / 20mA / 50mA

DIN-Rail Installation
18mm Slim Width
Primary Lead: 10mm², 10cm
Push-In Secondary Terminal
Built-In Open-Circuit Protection
Housing Material: PC+ABS

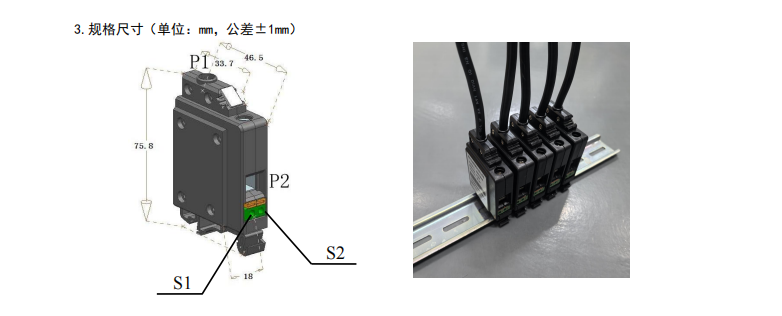

Installation Instruction

Product Feature

AKH-0.66/EMS is a compact DIN-rail current transformer designed for AC current signal acquisition. It features Class 0.2 accuracy, mA secondary output and built-in open-circuit protection, and can be used with AMC16 multi-circuit monitoring meters or other electrical measuring instruments.

Previous: ADL400W Three-Phase Wireless Energy Meter

Next: AKH-0.66/P-M8 Protection Current Transformer

Item	Parameter
Model	AKH-0.66/EMS
Rated Voltage	0.66kV
Current Ratio 1	(10–50)A / 10mA
Current Ratio 2	(20–60)A / 20mA
Current Ratio 3	(50–60)A / 50mA
Accuracy Class	Class 0.2
Rated Burden	10Ω
Withstand Voltage	3kV
Open-Circuit Voltage	≤7.8V
Installation	DIN rail
Housing Material	PC+ABS
Primary Lead	10mm², length 10cm
Width	18mm
