ATE Series Wireless Temperature Monitoring System(Sensor)
General

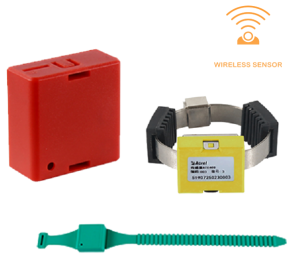

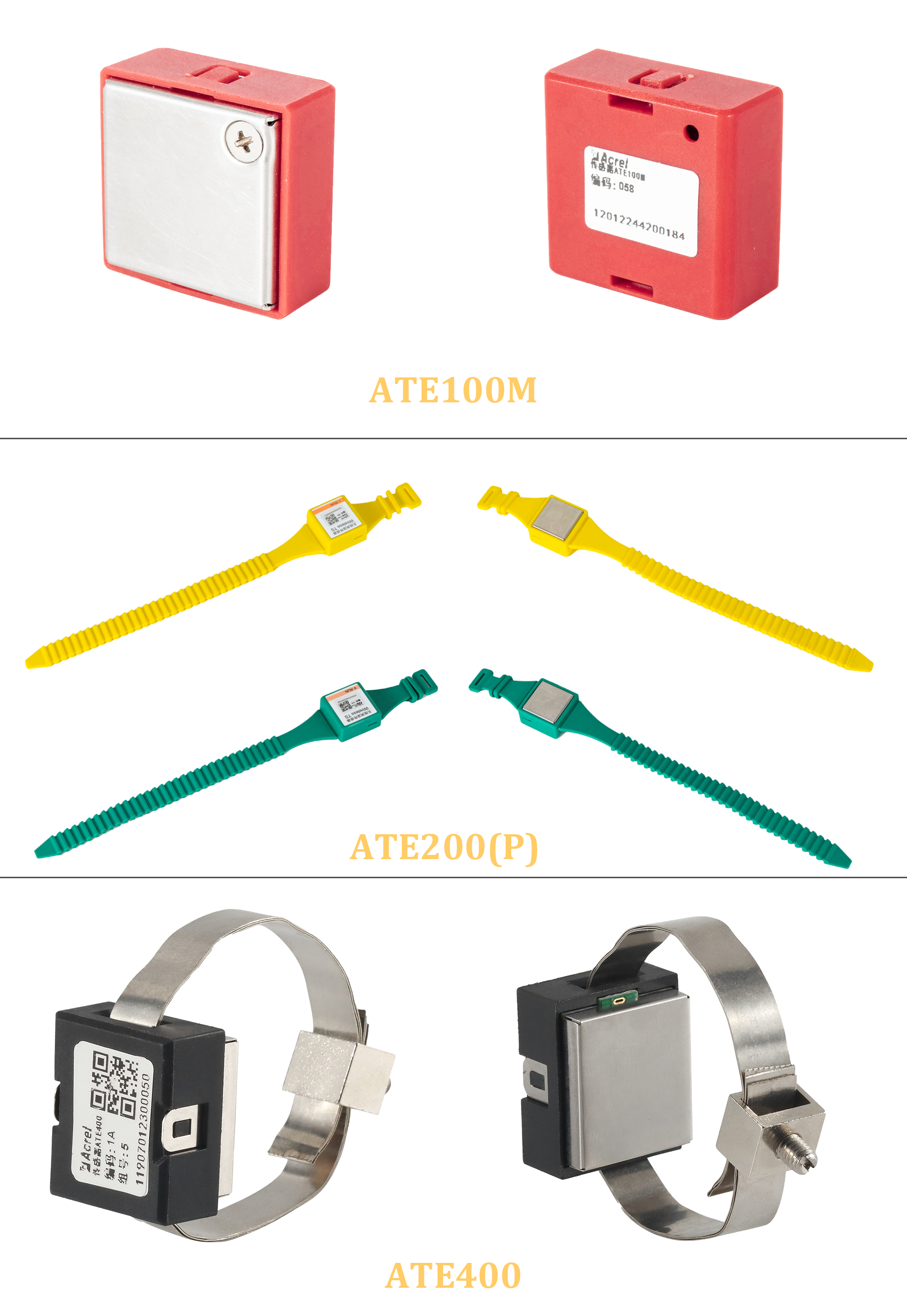

Appearance & Parameter

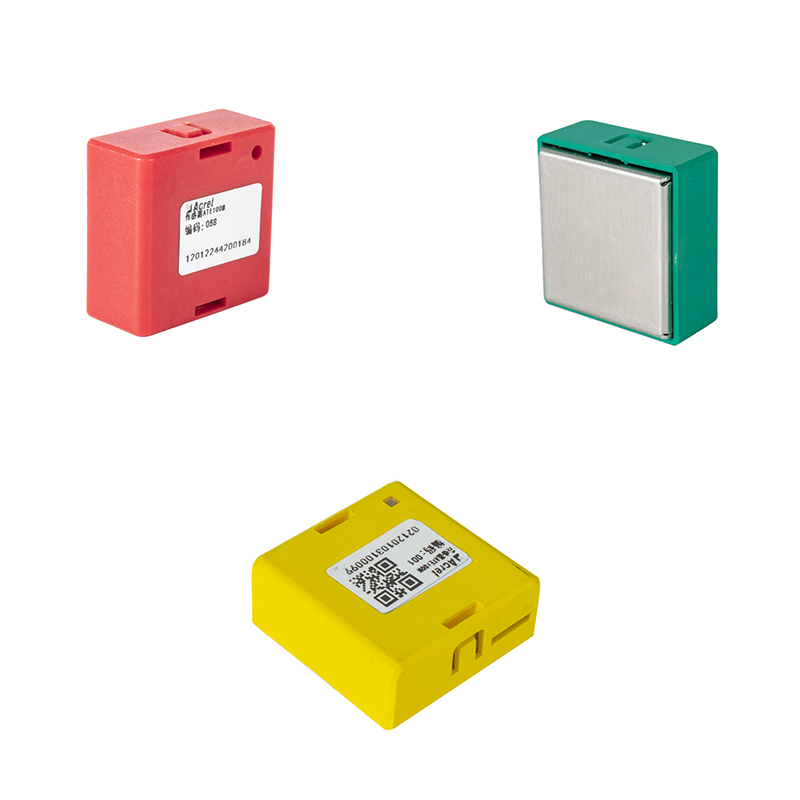

Installation: Magnetic
Power Supply: Battery (<5 years)
Range of Temperature: -50℃~+125℃
Communication Distance: 150m in open area

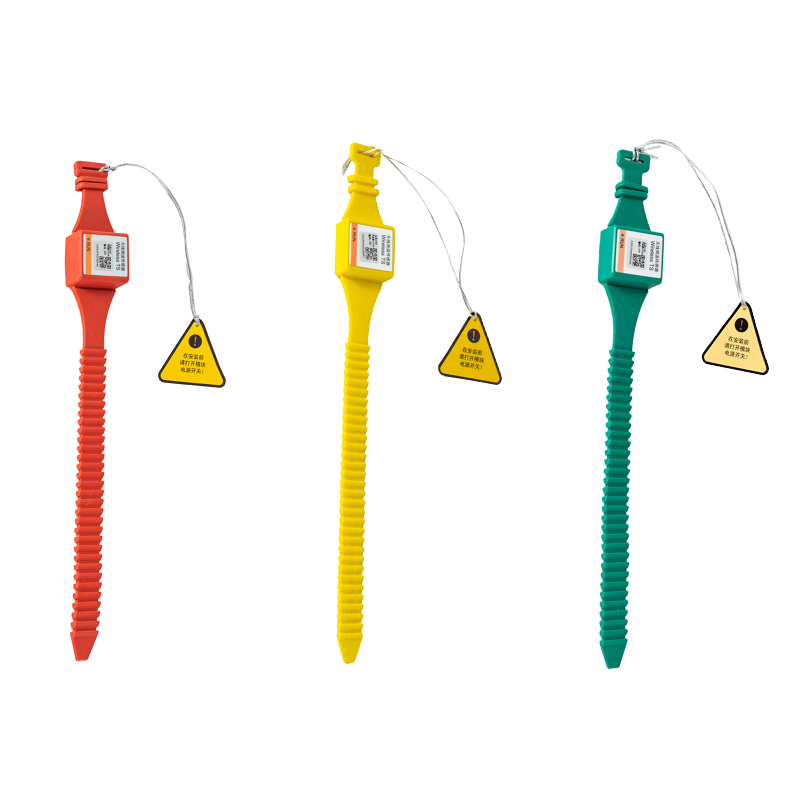

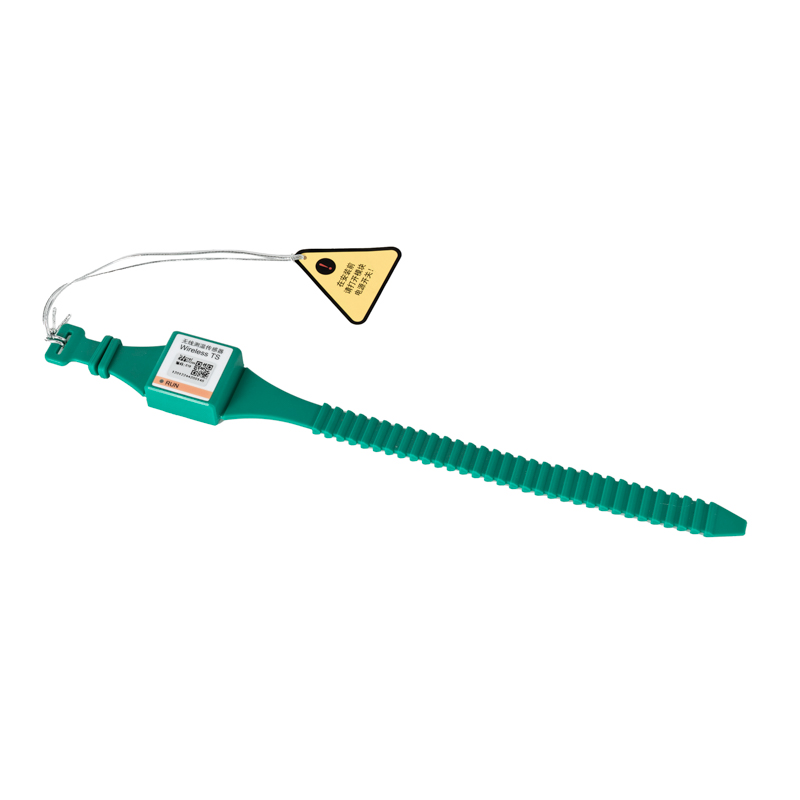

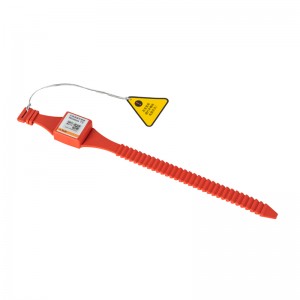

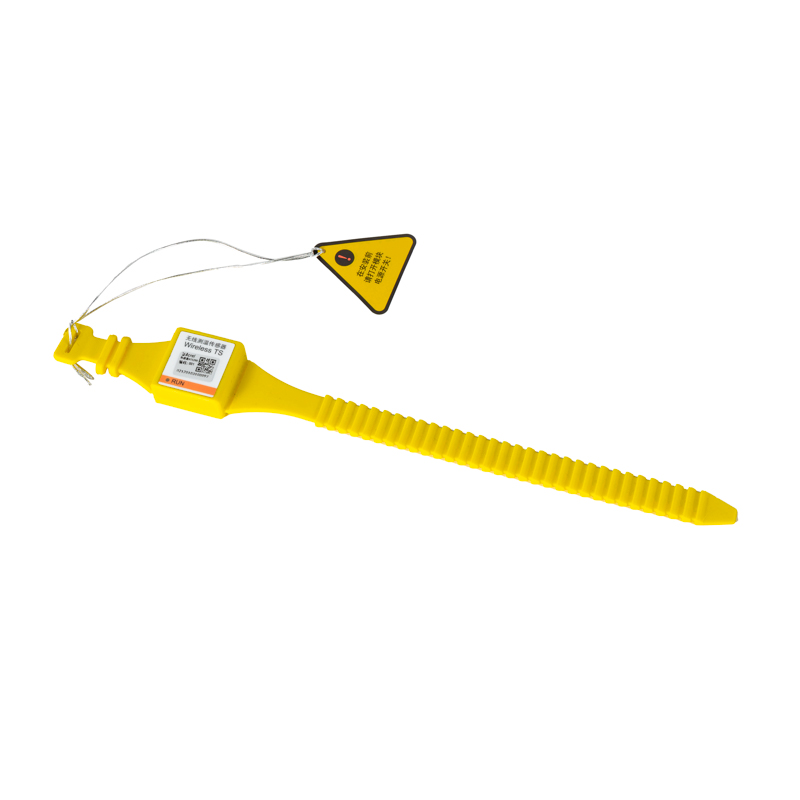

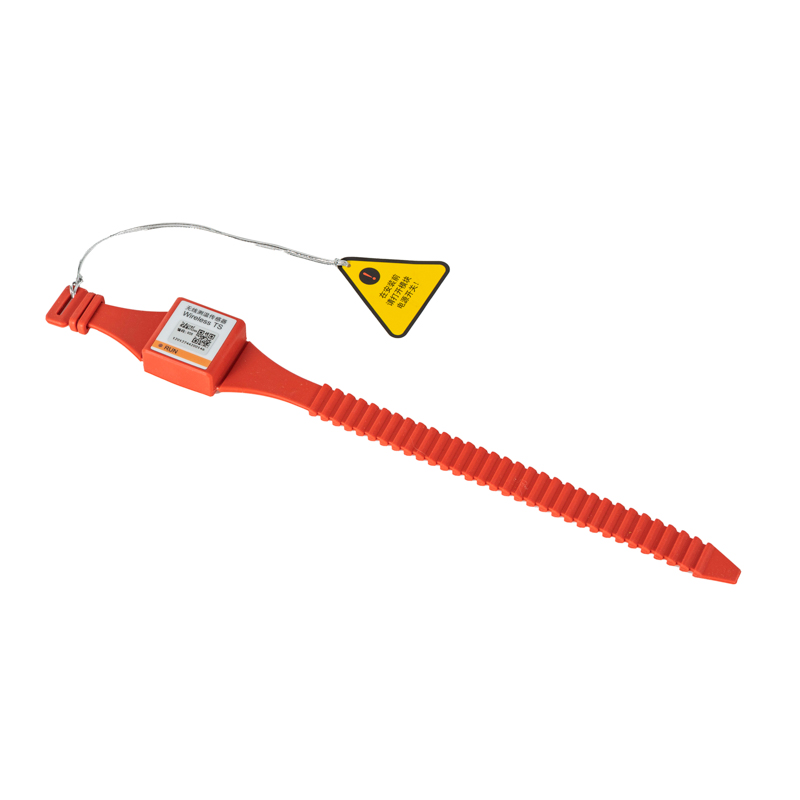

Installation: Belt
Power Supply: Battery (<5 years)
Range of Temperature: -50℃~+125℃
Communication Distance: 150m in open area
Protection level: IP68 (ATE200P)

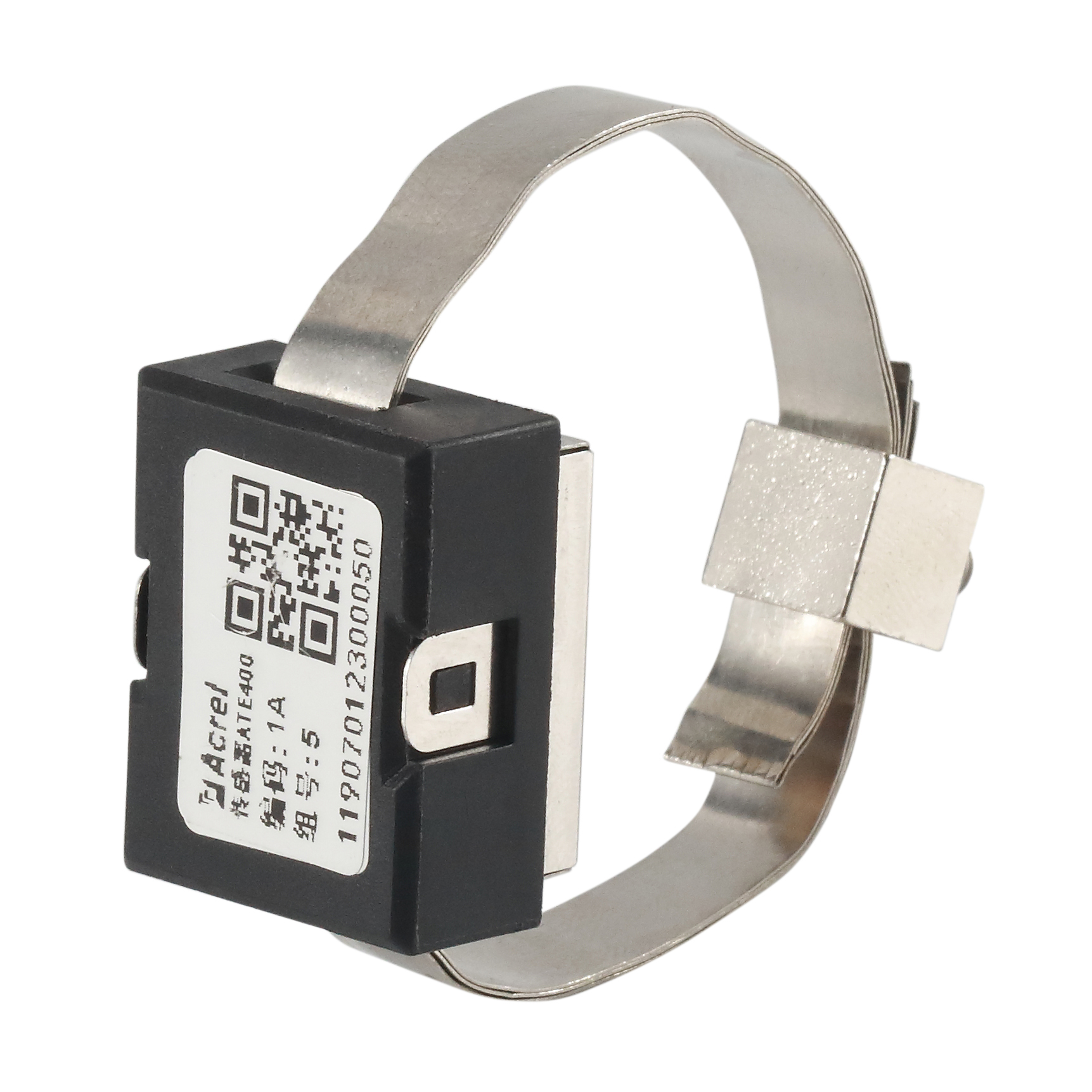

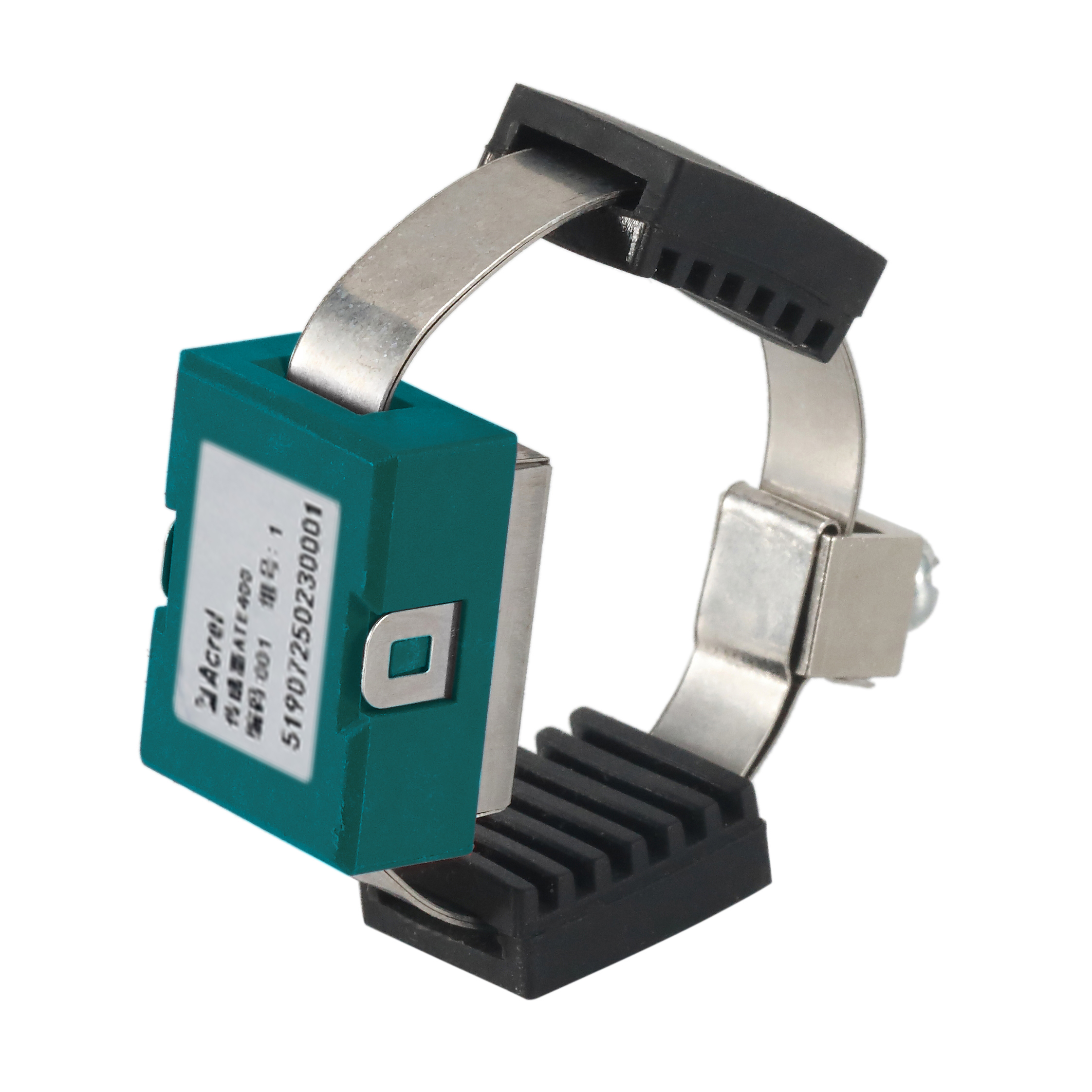

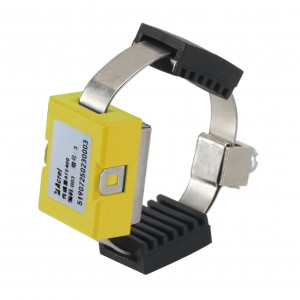

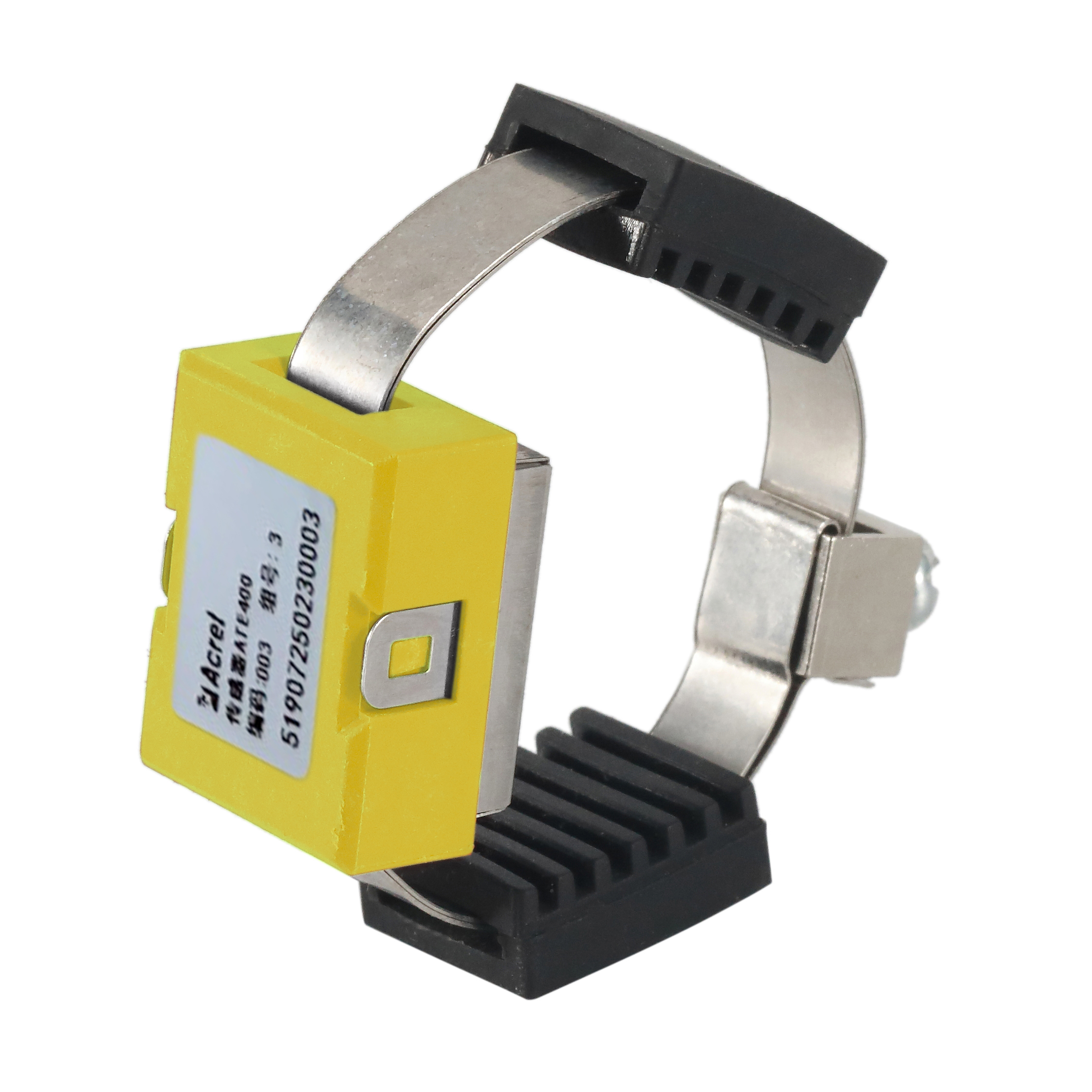

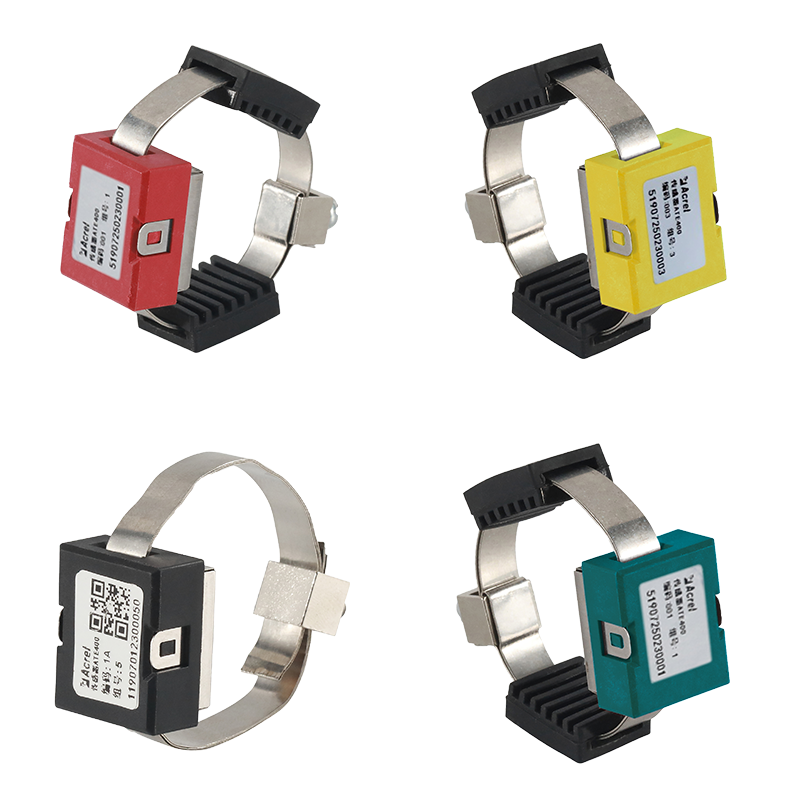

Installation: Alloy chip fixing
Power Supply: CT-powered, starting current≥5A
Range of Temperature: -50℃~+125℃
Communication Distance: 150m in open area

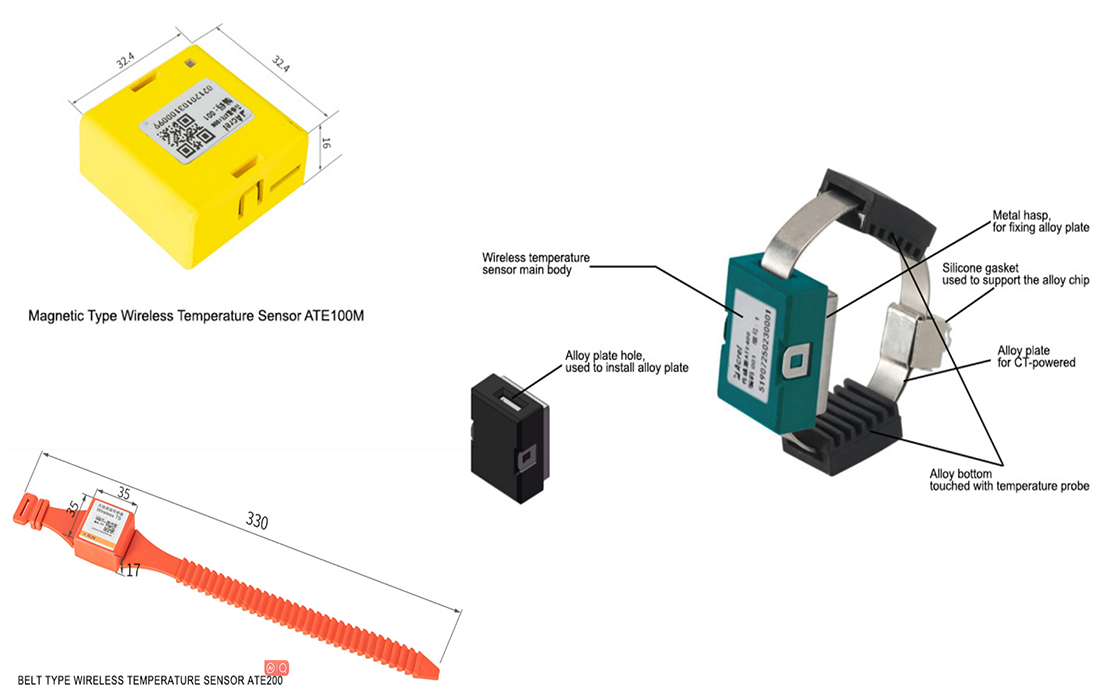

Dimension

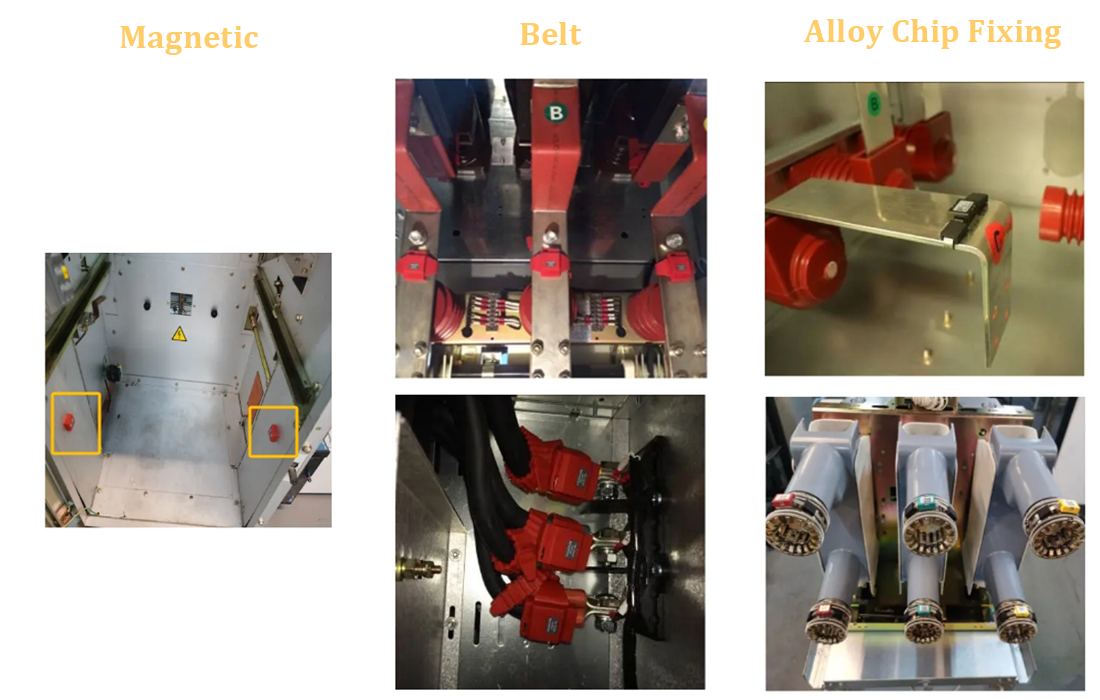

Installation

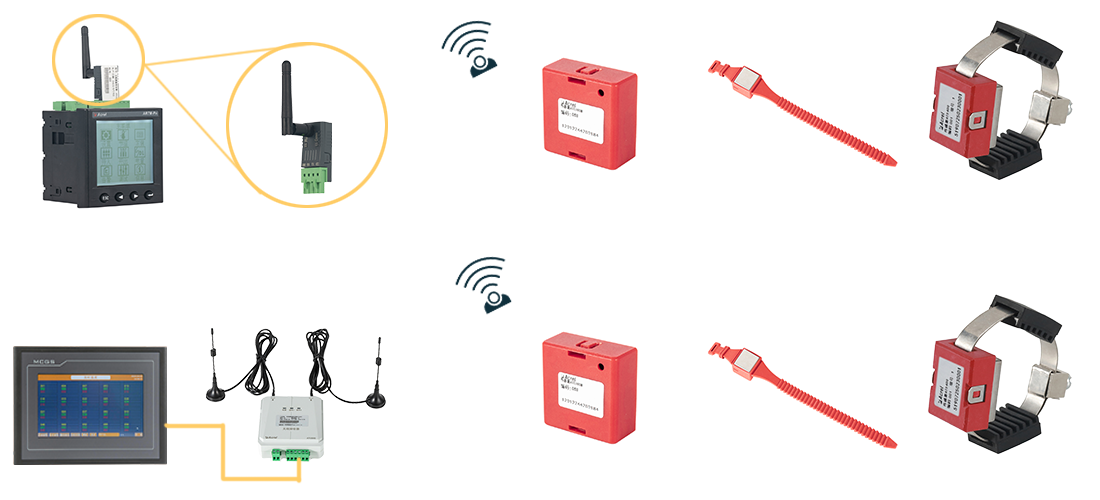

Typical Diagram
ATE series wireless temperature measuring sensor has been developed in compliance with Specification for Wireless Temperature Measuring equipment, NB/T 42086-2016. It is suitable for 3~35kV indoor switchgears, including built-in switchgears, handcart switchgears, fixed switchgears and loop-net switchgears.
Mounting
Magnetic
Technical data
| Parameter | Value |
|---|---|
| Power Supply | Battery (<5 years) Range of Temperature: -50℃~+125℃ Communication Distance: 150m in open area |
Communication wireless M-Bus / RF. Send us the rated values of your circuit and the supply voltage; we confirm the ordering code, wiring diagram and register list within one working day.
1.Technical parameter
1.1 Electrical performance
|
ATE100M/100/200 Active wireless temperature sensor |
Wireless frequency |
470MHz |
|
Communication distance |
150m in open area |
|
|
Sampling frequency |
25s |
|
|
Transmitting frequency |
25s-5min |
|
|
Power source |
Battery |
|
|
Installation |
Magnetic / bolted /Belt |
|
|
Range of temperature |
-50℃~+125℃ |
|
|
Precision |
±1 ℃ |
|
|
Application |
Joints in high or low voltage switchgears |
|
|
Battery life |
≥5 years |
|
|
ATE400 Passive wireless temperature sensor |
Wireless frequency |
470MHz |
|
Communication distance |
150m in open area |
|
|
Sampling frequency |
15s |
|
|
Transmission frequency |
15s |
|
|
Power source |
CT-powered, starting current≥5A |
|
|
Installation |
alloy chip fixing |
|
|
Sensor probe |
alloy bottom |
|
|
Range of temperature |
-50℃~125℃ |
|
|
Precision |
±1 ℃ |
|
|
Application |
Joints in high or low voltage switchgears |
|
|
ATE100P/200P Outdoor wireless temperature sensor |
Wireless frequency |
470MHz |
|
Communication distance |
150m in open area |
|
|
Sampling frequency |
25s |
|
|
Transmitting frequency |
25s-5min |
|
|
Power source |
Battery |
|
|
Installation |
bolted /Belt |
|
|
Range of temperature |
-50℃~+150℃ |
|
|
Precision |
±0.5℃ |
|
|
Application |
Voltage switchgears |
|
|
Battery life |
≥5 years |
|
|
Protection level |
IP68 |
1.2 Work environment
|
Environment |
Temperature |
-40℃~125℃ |
|
Humidity |
≤95% |
|
|
atmospheric pressure |
86kPa~106kPa |
