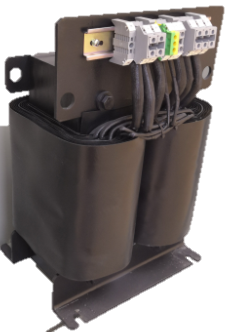

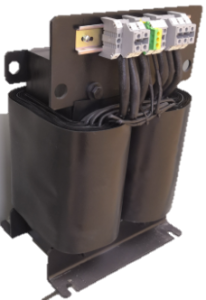

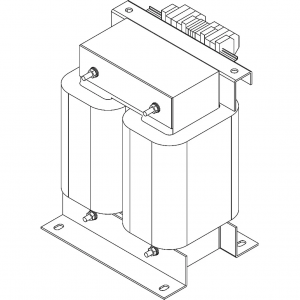

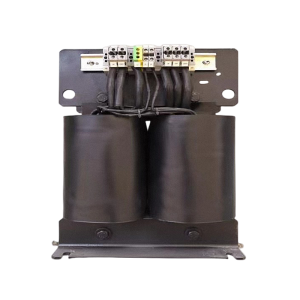

AITR medical IT Isolated system (power transformer)

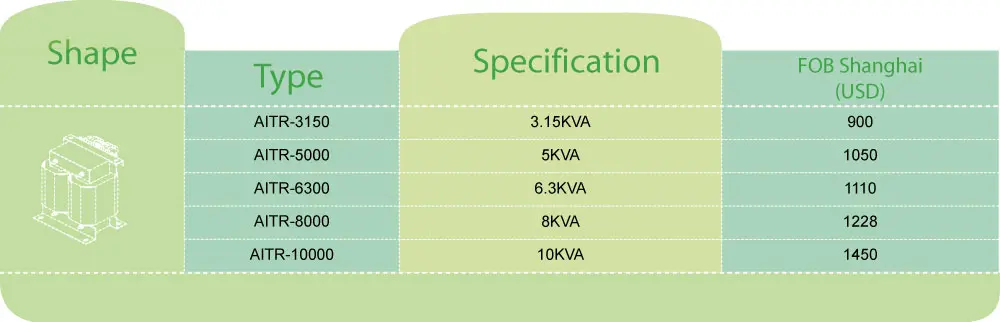

Characteristic
Dimension(Unit: mm)

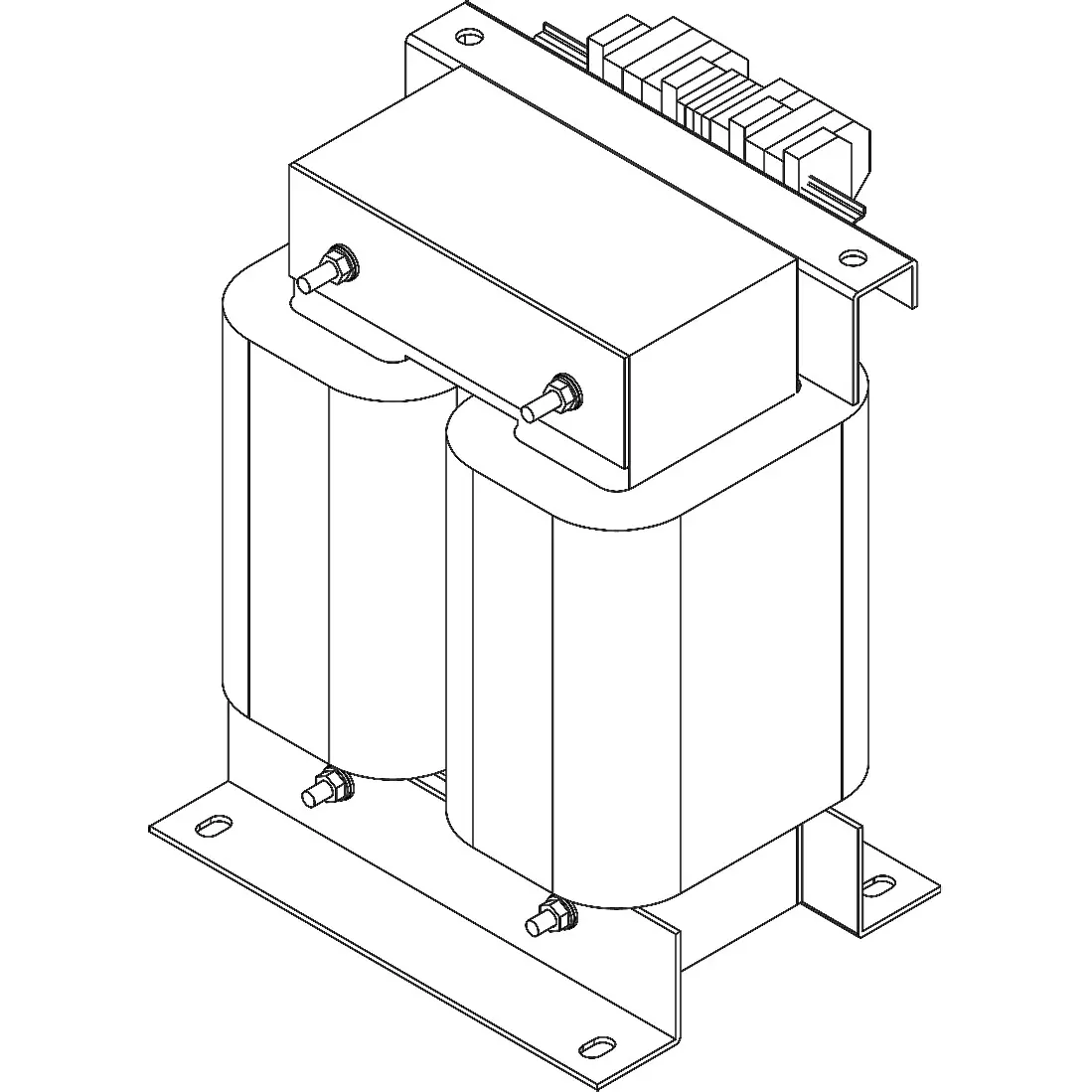

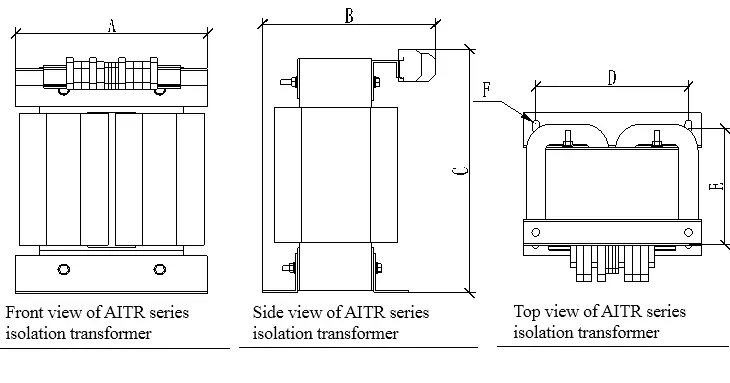

External dimensions of AITR series medical isolation transformer
| Type | Capacity (VA) | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | Total weight (kg) |
| AITR10000 | 10000 | 280 | 275 | 427 | 240 | 190 | φ11 | 92 |
| AITR8000 | 8000 | 280 | 265 | 427 | 240 | 190 | φ11 | 90 |
| AITR6300 | 6300 | 280 | 255 | 427 | 240 | 175 | φ11 | 75 |
| AITR5000 | 5000 | 280 | 255 | 427 | 240 | 175 | φ11 | 73 |
| AITR3150 | 3150 | 280 | 225 | 427 | 240 | 175 | φ11 | 53 |

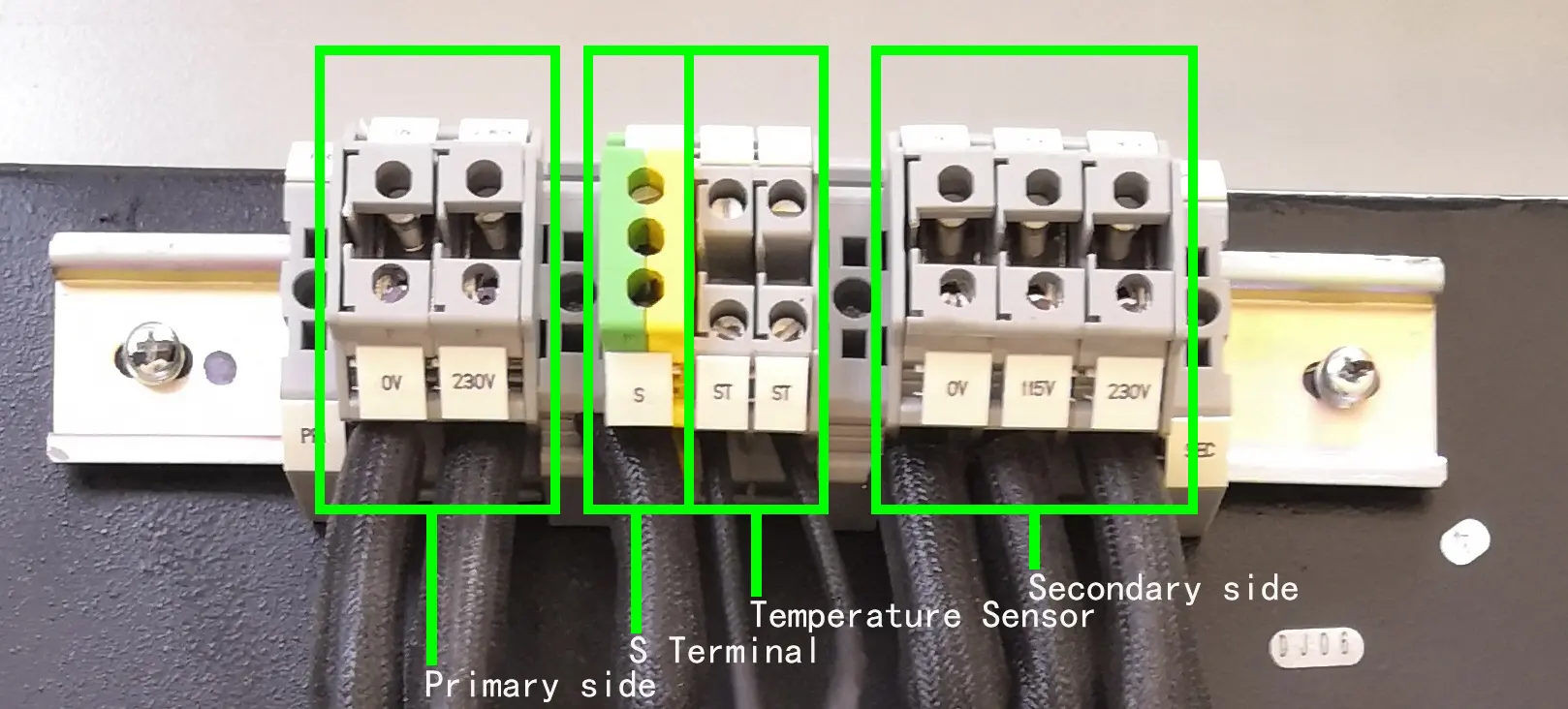

Wiring

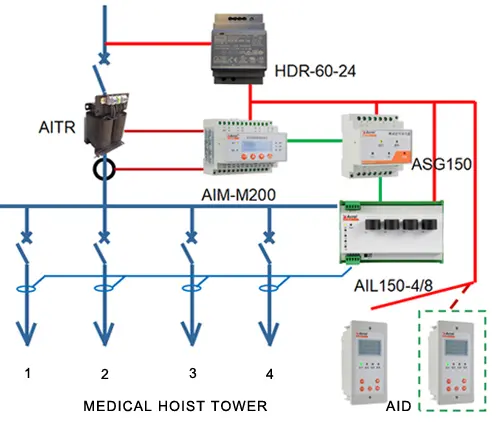

Typical connection
External dimensions of AITR series medical isolation transformer Type Capacity (VA) A(mm) B(mm) C(mm) D(mm) E(mm) F(mm) Total weight (kg) AITR10000 10000 280 275 427 240 190 φ11 92 AITR8000 8000 280 265 427 240 190 φ11 90 AITR6300 6300 280 255 427 240 175 φ11 75 AITR5000 5000 280 255 427 240 175 φ11 73 AITR3150 3150 280 225 427 240 175 φ11.

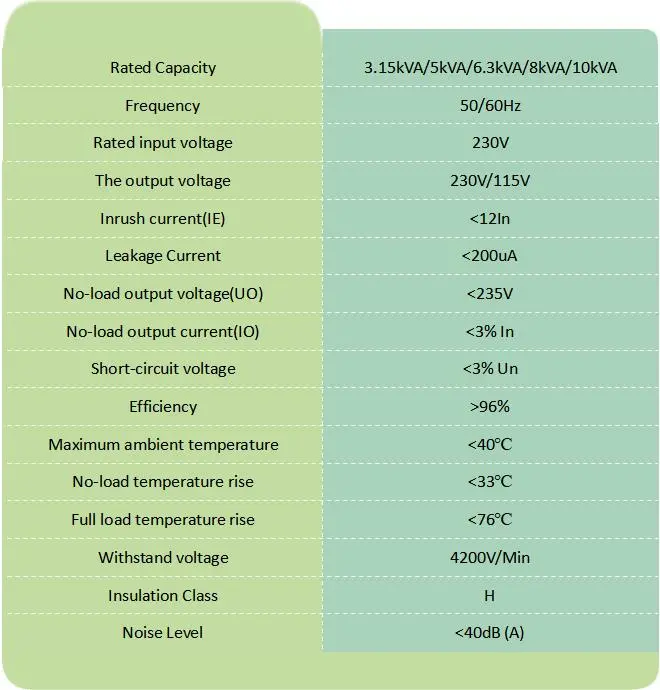

Technical data
