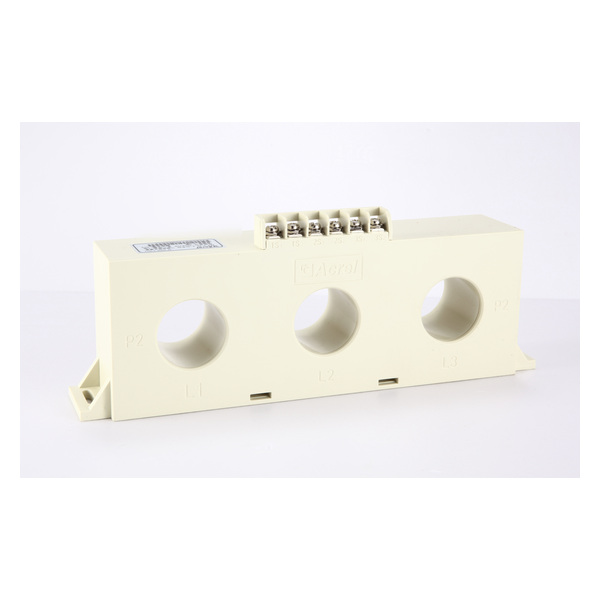

AKH-0.66/Z Series Three-Phase Combined Current Transformer

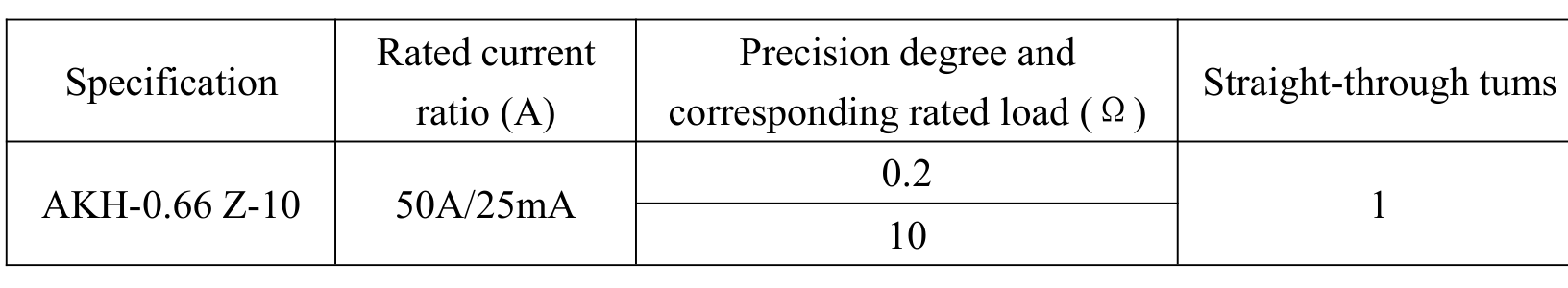

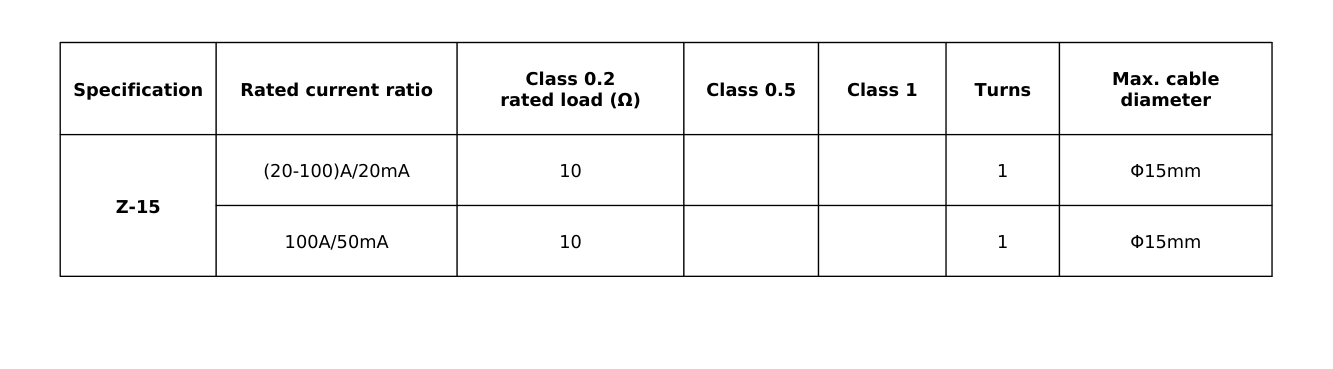

Technical Indicators
● Rated working voltage: AC 0.66kV
● Power-frequency withstand voltage: 3000V/1min, 50Hz
● Maximum cable diameter: Φ10mm, Φ15mm, Φ20mm or Φ35mm
● Rated frequency: 50-60Hz

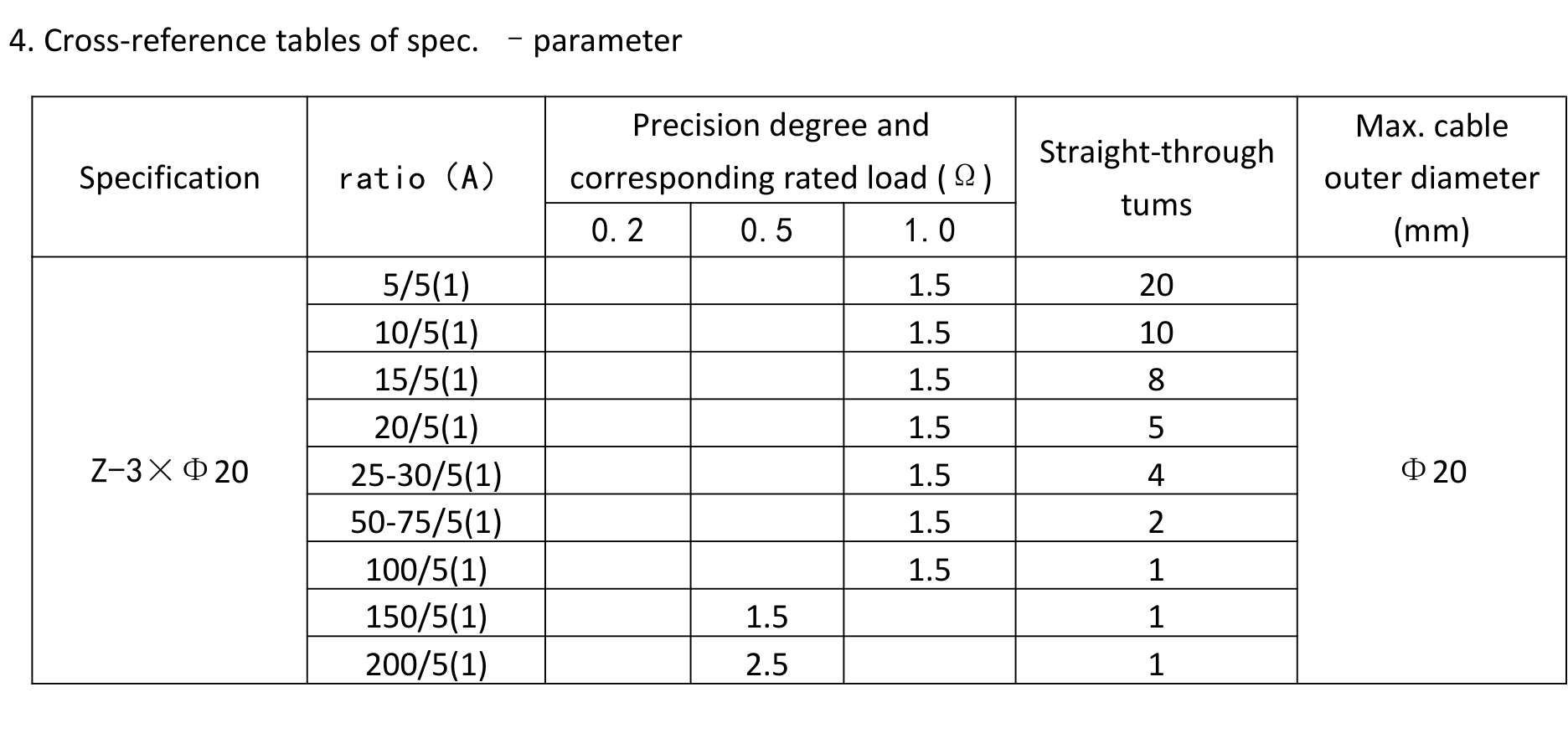

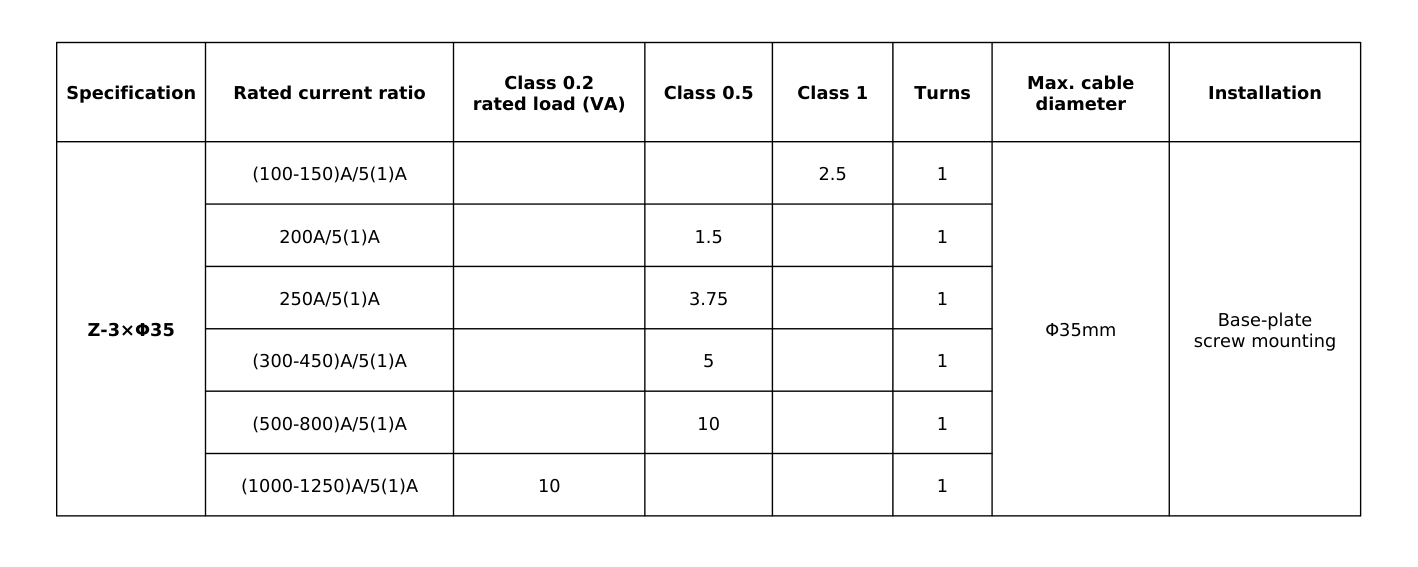

● Primary current: 5-1250A, depending on model and ratio
● Secondary output: 1A, 5A, 20mA, 25mA or 50mA, depending on model
● Accuracy: Class 0.2, Class 0.5 or Class 1, depending on model and ratio
● Ambient temperature: -30°C to +70°C
● Altitude: ≤3000m
● Installation environment: Indoor locations without direct rain or snow, severe pollution or strong vibration

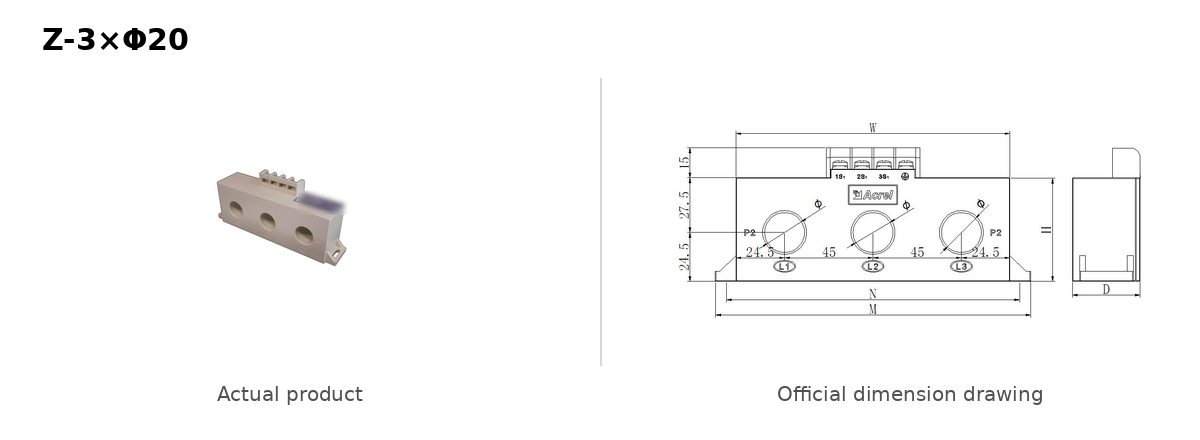

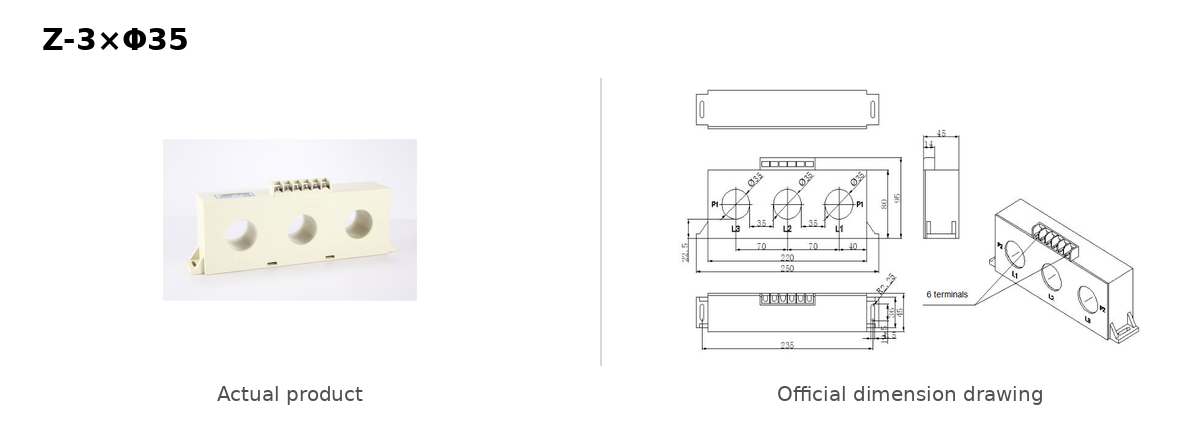

Installation Instruction

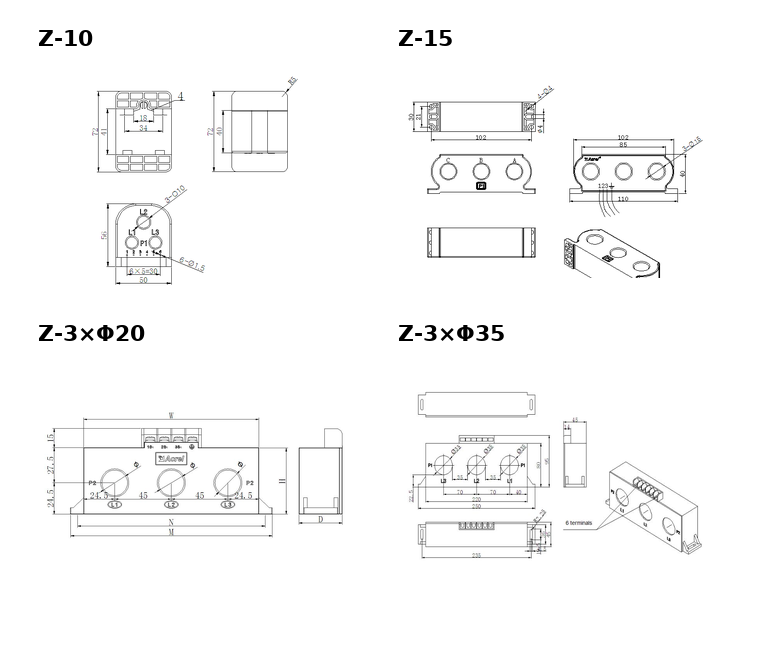

Product Feature
The AKH-0.66/Z series has an attractive appearance and convenient wiring. The housing uses high-temperature-resistant material. As a current signal acquisition component, it is generally used with AMC16, PZ300 and moulded-case circuit breakers. It can reduce current-transformer installation space and simplify wiring, helping reduce user cost.
