AKH-0.66/P Low-Voltage Protection Current Transformer

Application

● Low-voltage distribution and relay-protection circuits
● Short-circuit fault current detection
● Suitable for one or more busbars and protection devices such as ARD3T and ALP

Basic Parameters

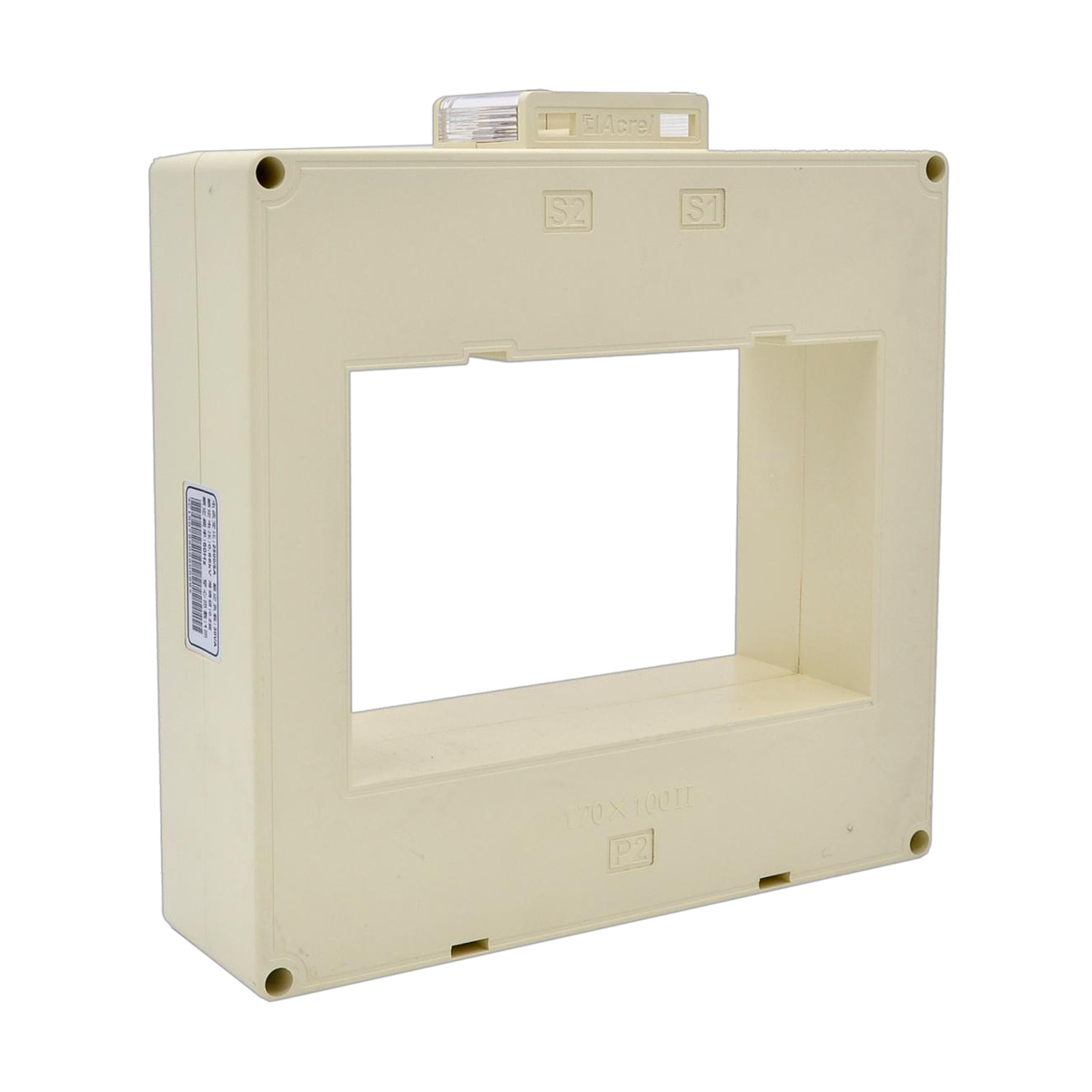

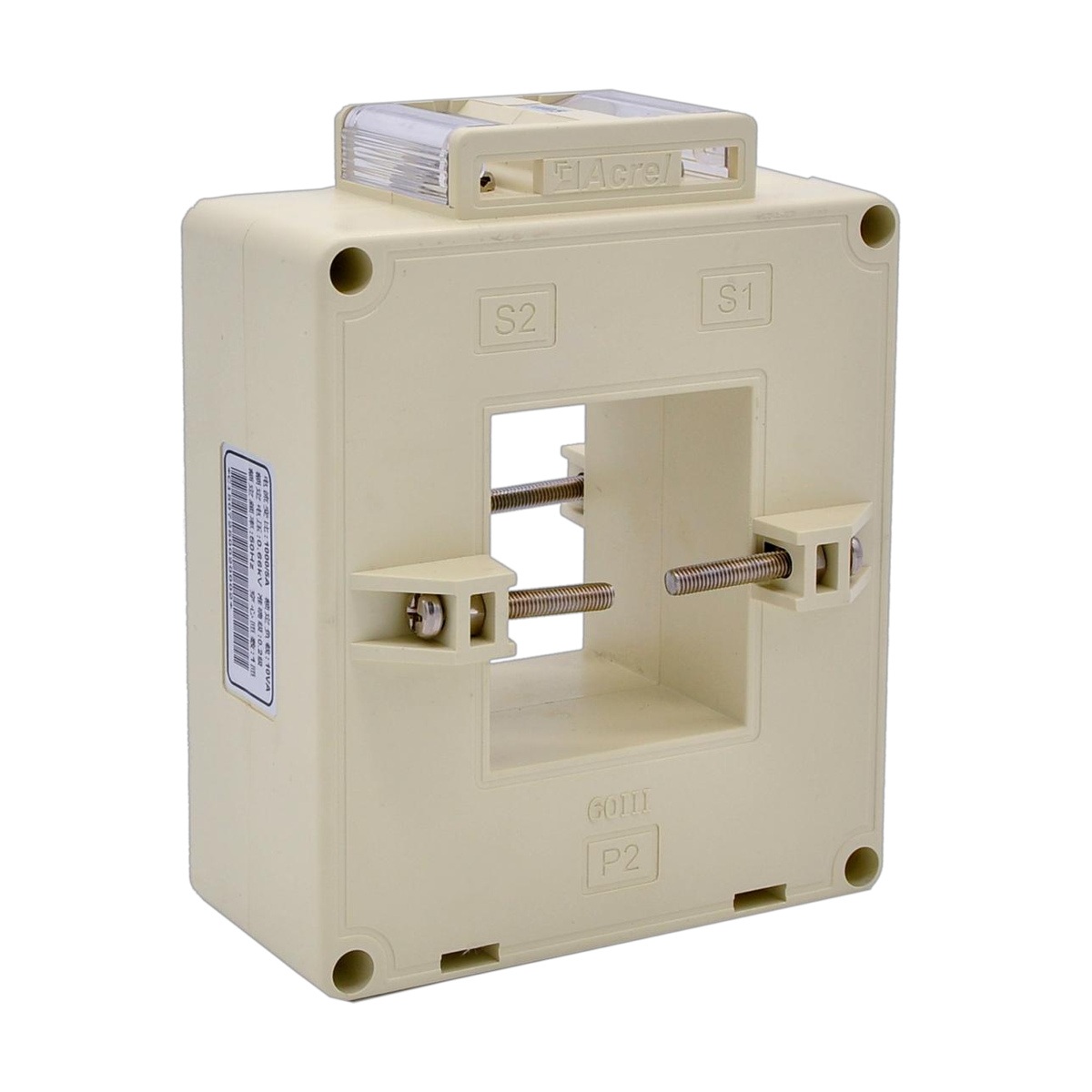

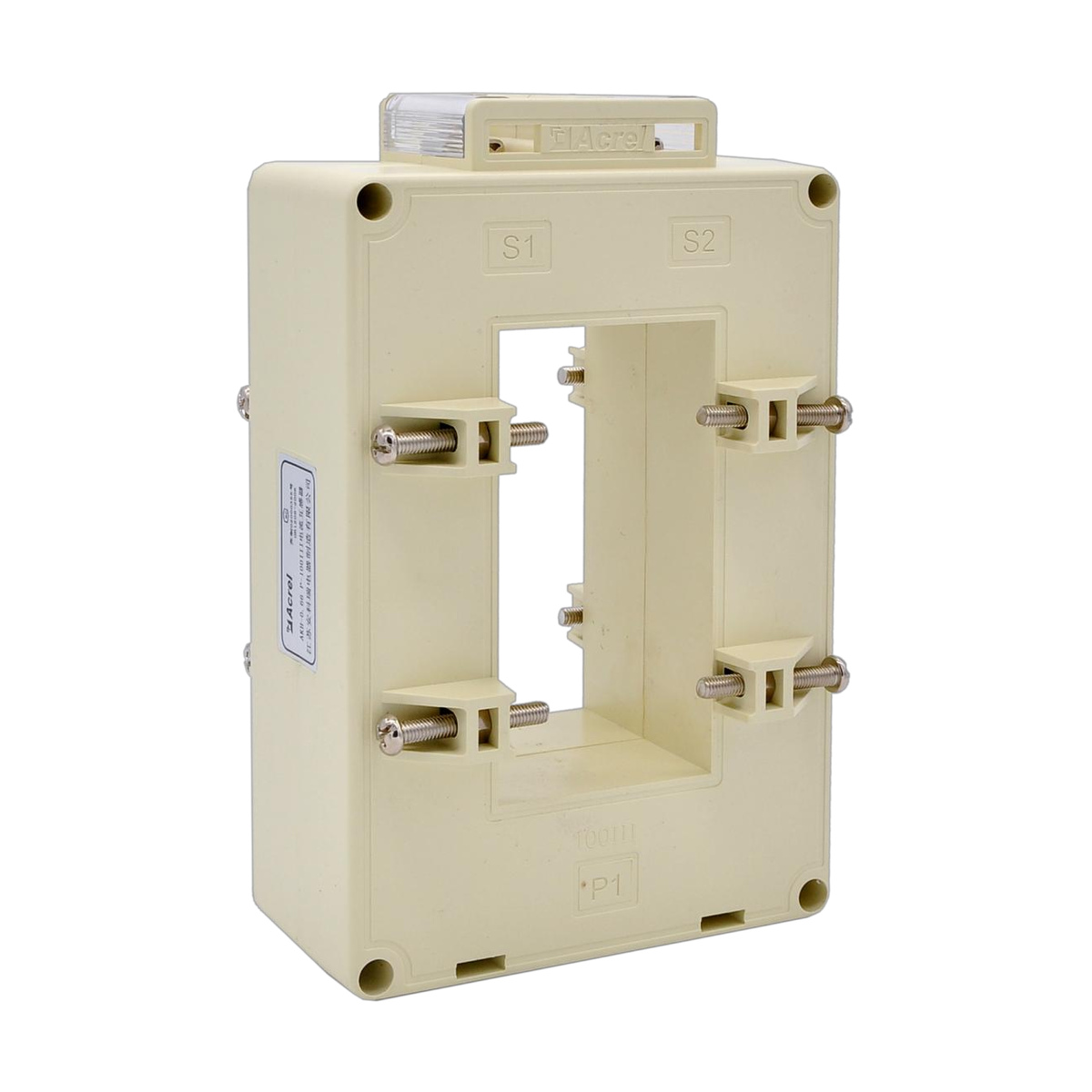

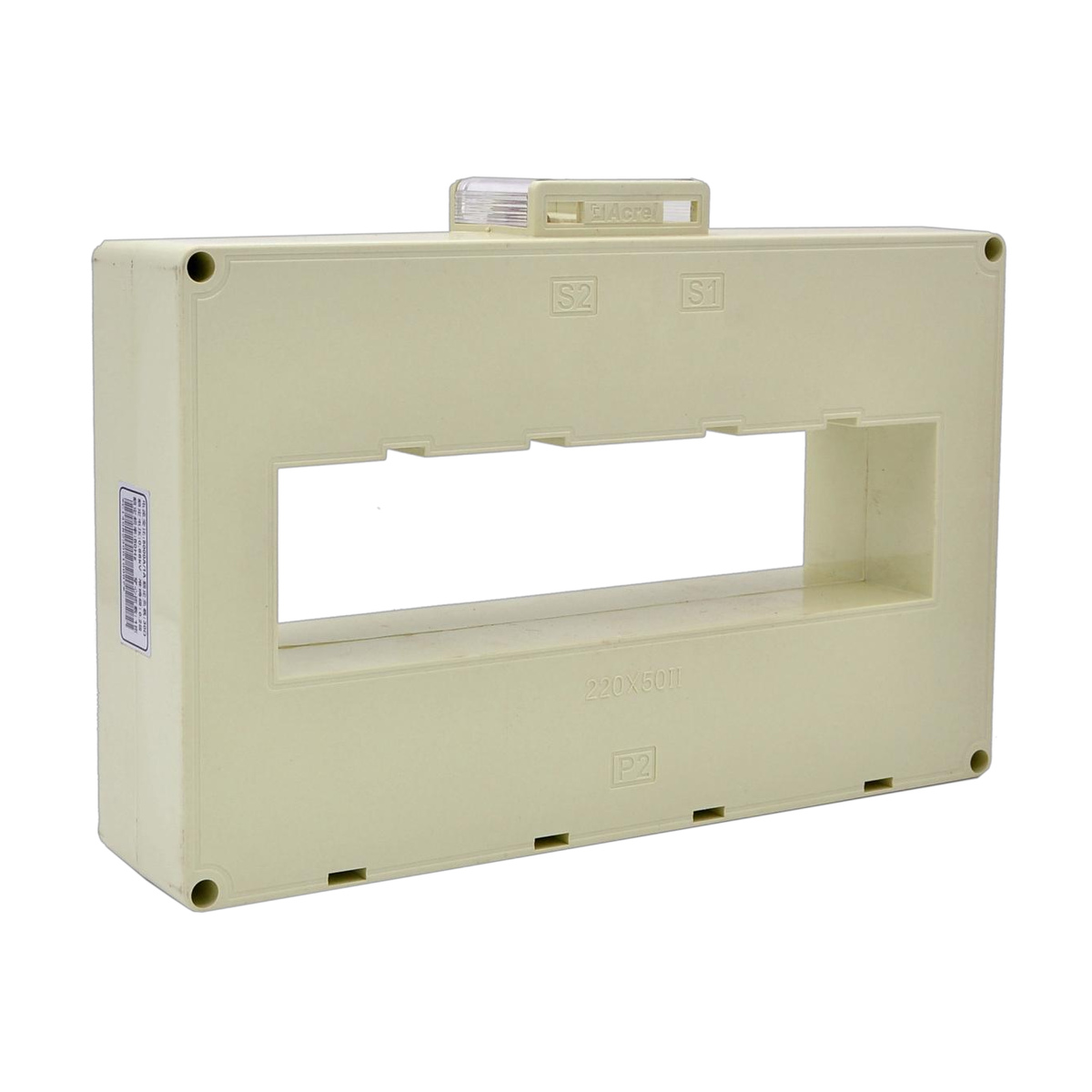

● Models: P-60III / P-80III / P-100III / P-130III / P-60x50II / P-80x50II / P-100x50II / P-120x50II / P-120x50II-H / P-130x50II / P-170x100II / P-220x50II
● Primary current: 100-6300A
● Secondary output: 5A or 1A

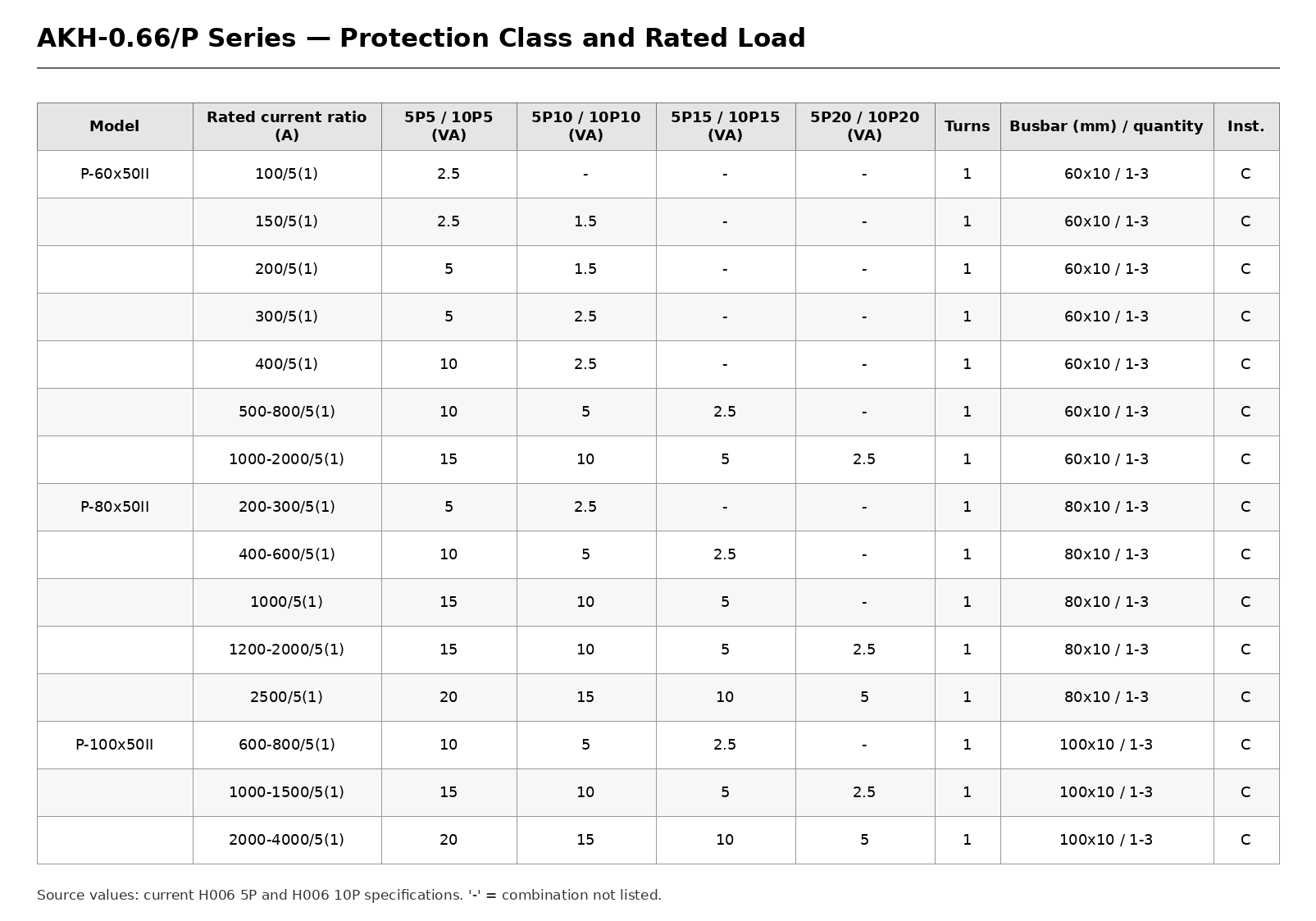

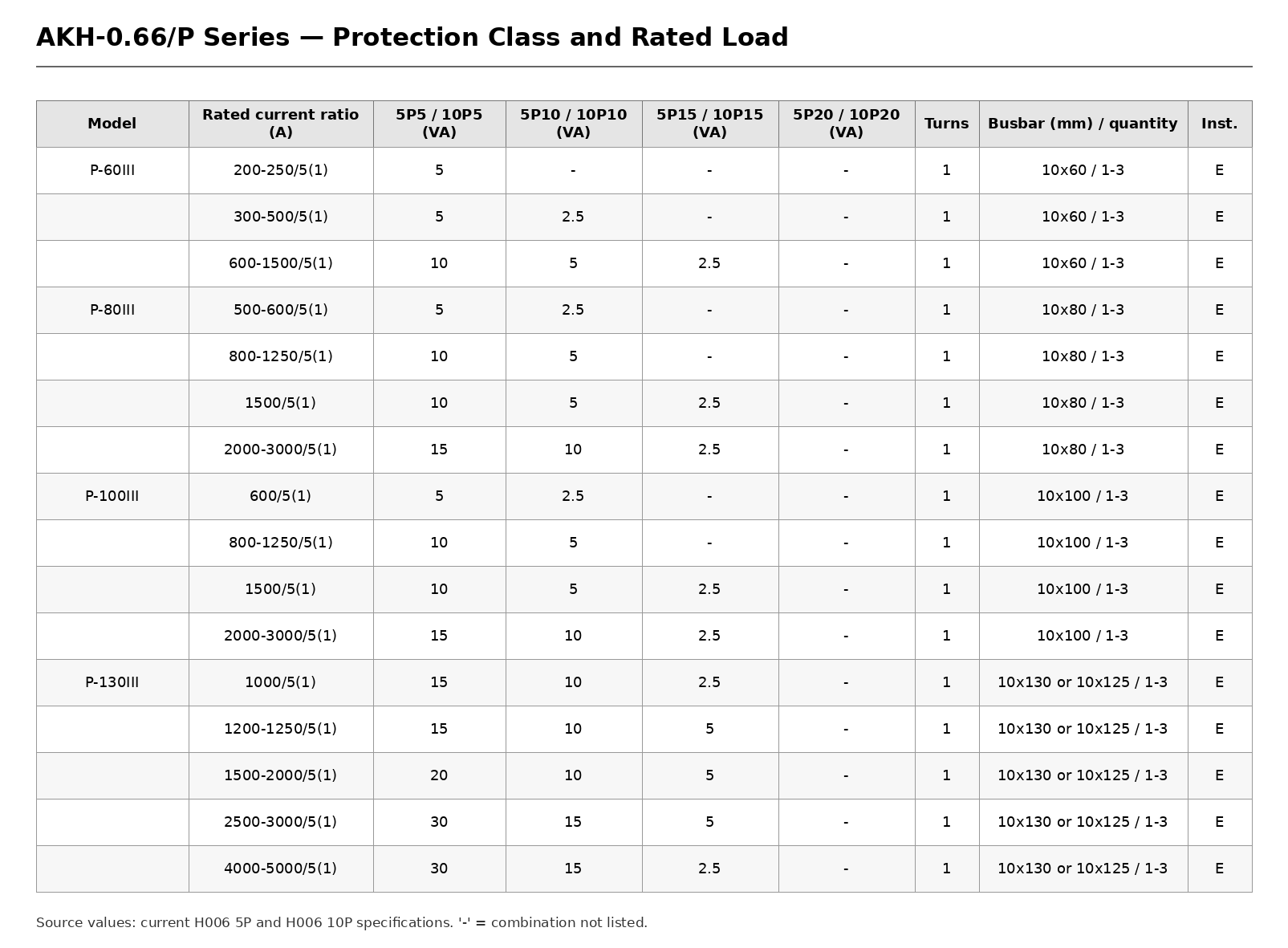

● Protection accuracy classes: 5P or 10P

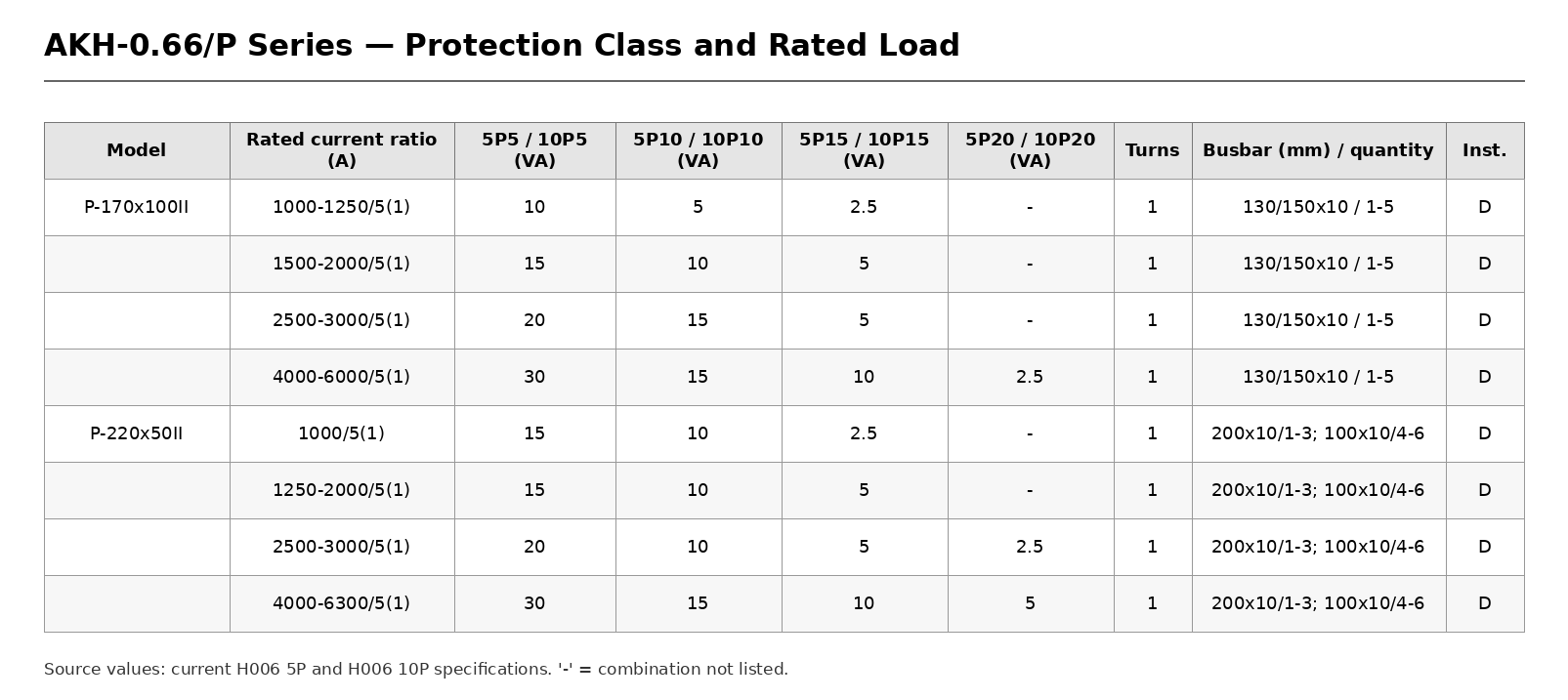

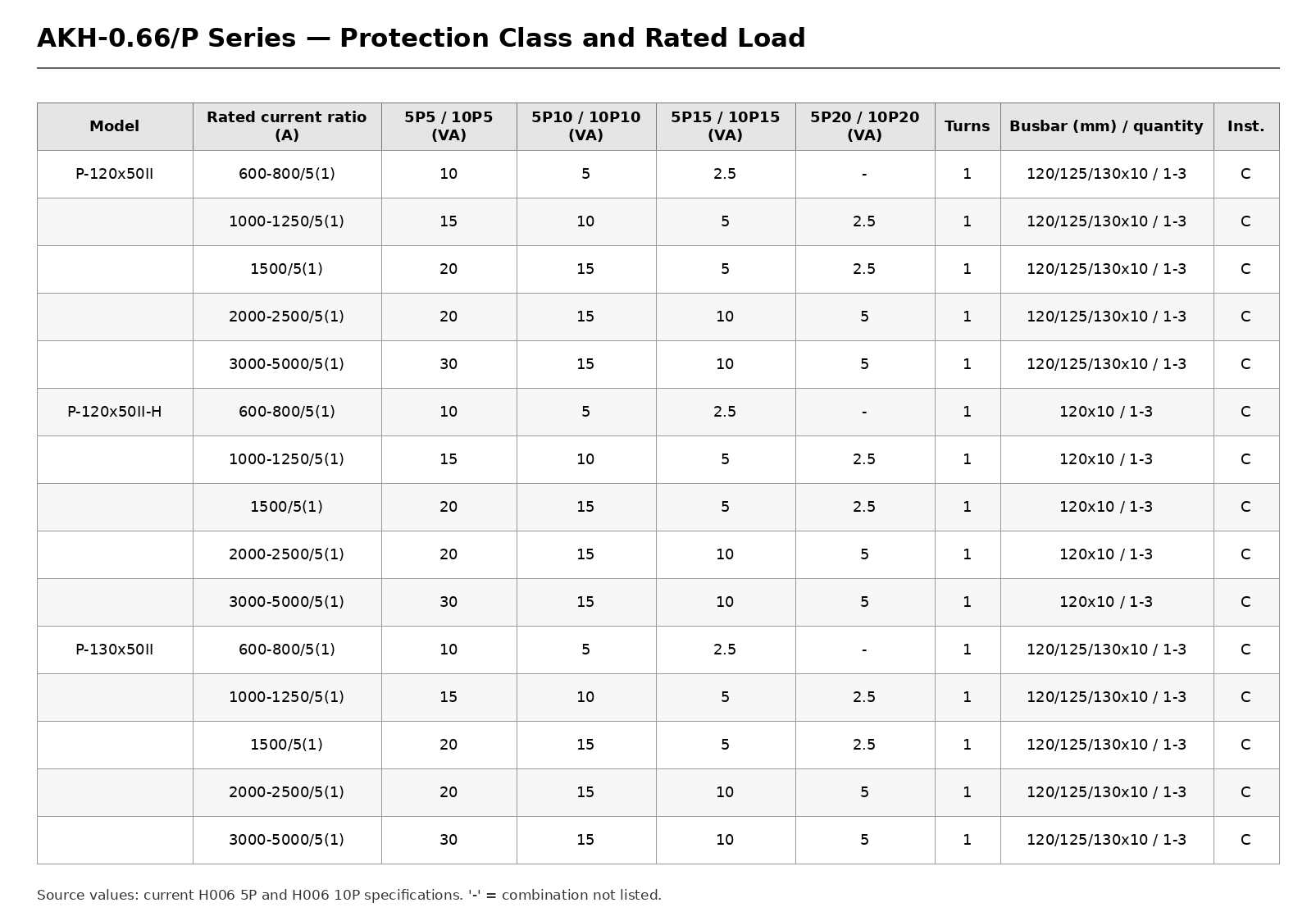

● Accuracy limit factors: 5 / 10 / 15 / 20, depending on model and current ratio
● Rated load: 1.5-30VA, depending on model and current ratio
● Rated operating voltage: AC 0.66kV
● Rated frequency: 50-60Hz
