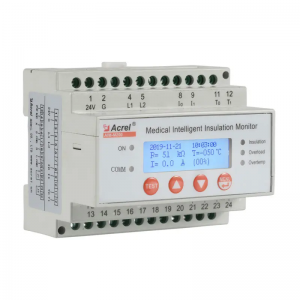

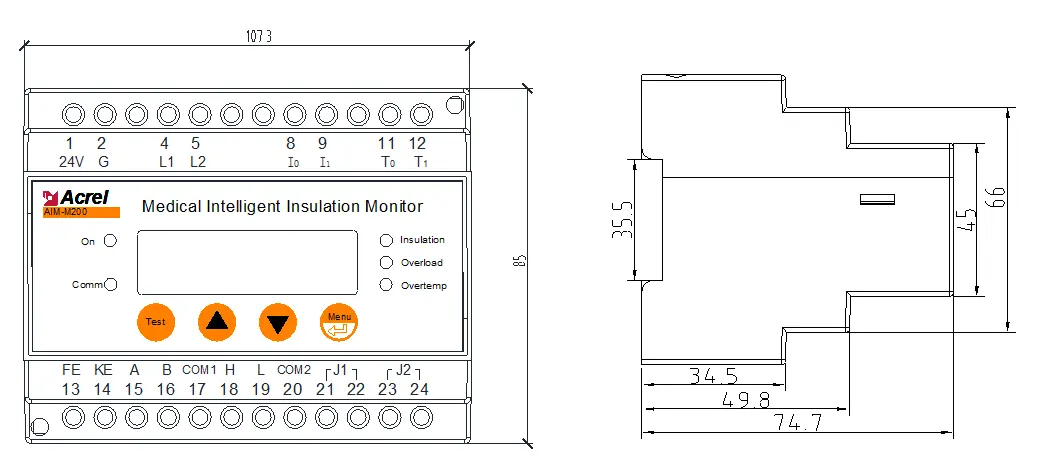

AIM-M200 medical IT Isolated system (monitoring instrument)
Characteristic

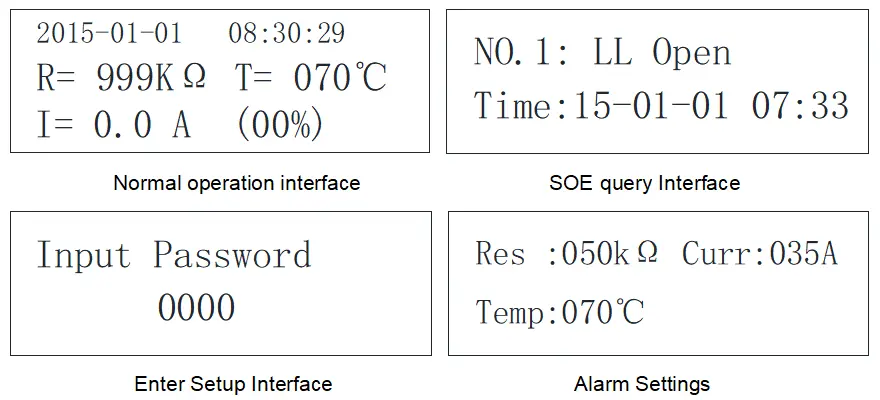

Display
Display

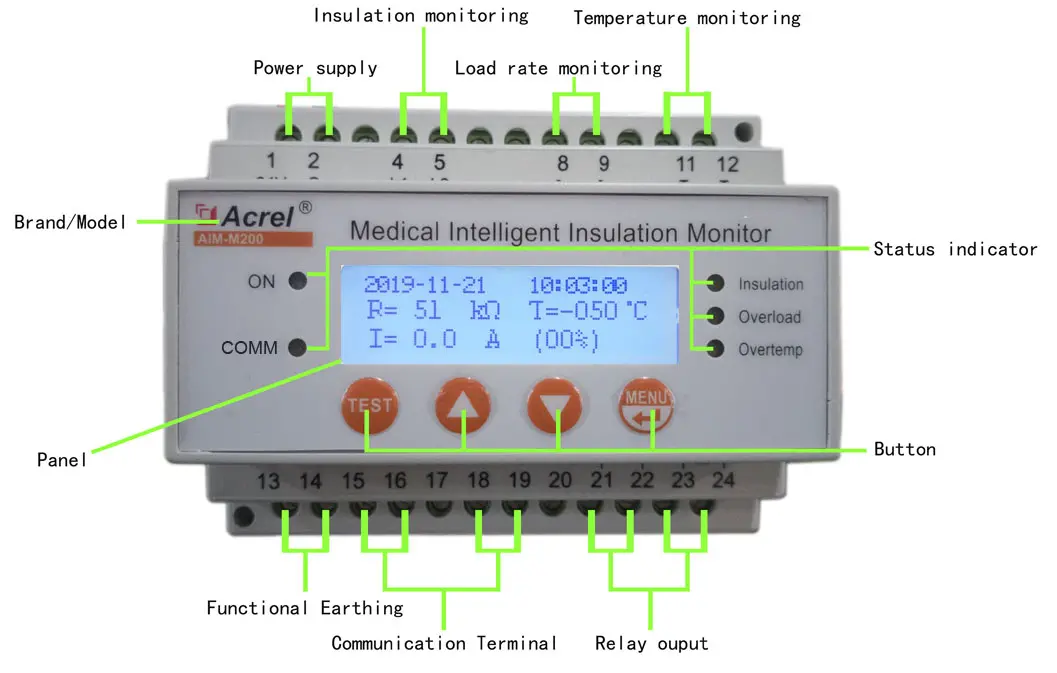

Wiring

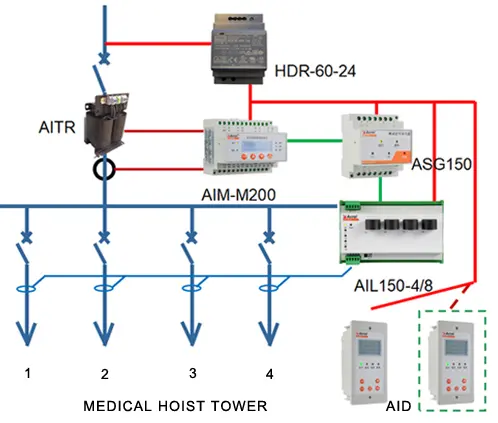

Typical connection
Type
Medical IT insulation monitor
Insulation range
10–999 kΩ
Load current
2.1–50 A
Temperature
PT100 −50 ~ +200 °C
Supply
DC 24 V
Protocol
Modbus-RTU / CAN
- Certification on file:

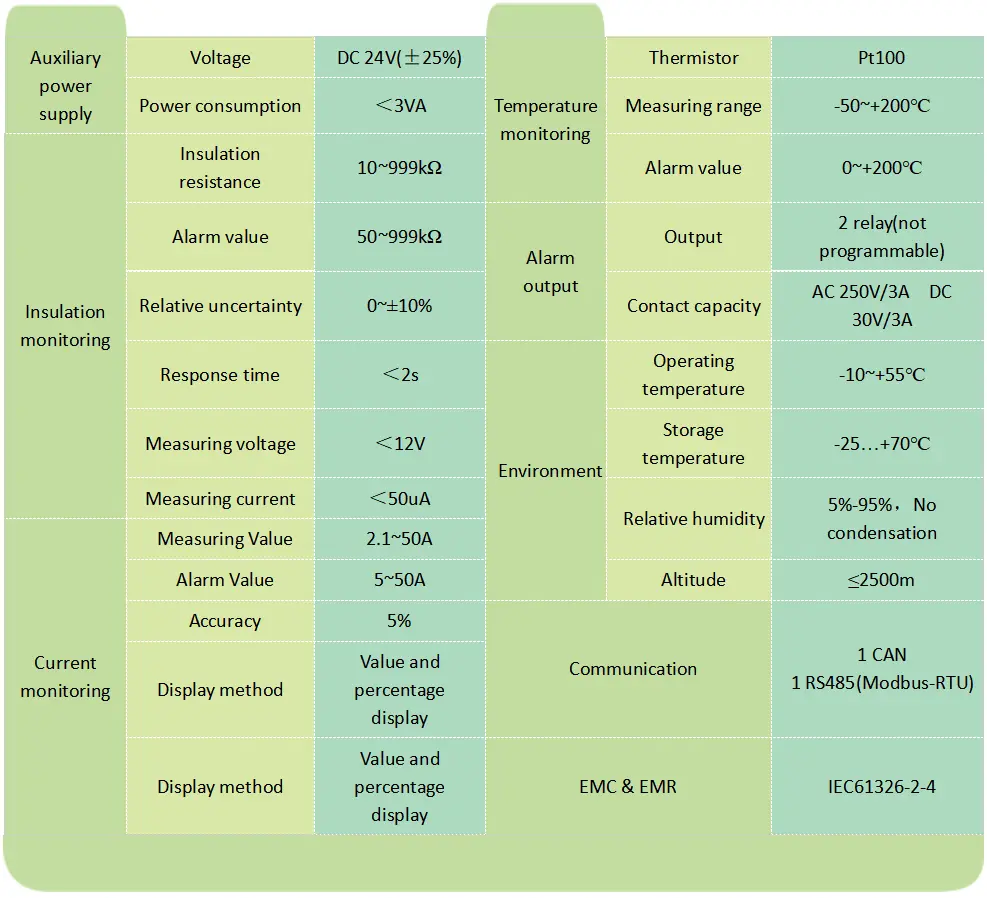

Specifications
| General | Product type | Medical IT system insulation monitoring device |
| Standard | GB 16895.24-2005 / IEC 60364-7-710:2002 | |
| Supply | Auxiliary supply | DC 24 V ±25% |
| Power consumption | < 3 W | |
| Insulation | Measuring range | 10–999 kΩ |
| Measuring error | 0 to ±10% | |
| Alarm range | 50–999 kΩ, settable | |
| Response time | < 2 s | |
| Measuring voltage | < 12 V | |
| Measuring current | < 50 µA | |
| Load current | Measuring range | 2.1–50 A |
| Alarm range | 5–50 A, settable | |
| Measuring error | ≤±5% | |
| Temperature | Sensor | PT100 |
| Measuring range | −50 ~ +200 °C | |
| Output | Relay outputs | 2, AC 250 V / 3 A |
| Communication | Interface | RS485 Modbus-RTU, CAN |
| Environment | Operating temperature | −10 °C ~ +55 °C |
Functions
| Monitoring | Insulation resistance of the IT system | ■ |
| Load current of the isolation transformer | ■ | |
| Transformer winding temperature (PT100) | ■ | |
| Alarm | Two settable alarm thresholds | ■ |
| Relay outputs for alarm signalling | ■ | |
| Communication | RS485 Modbus-RTU | ■ |
| CAN bus to AID150 and AIL150 | ■ |

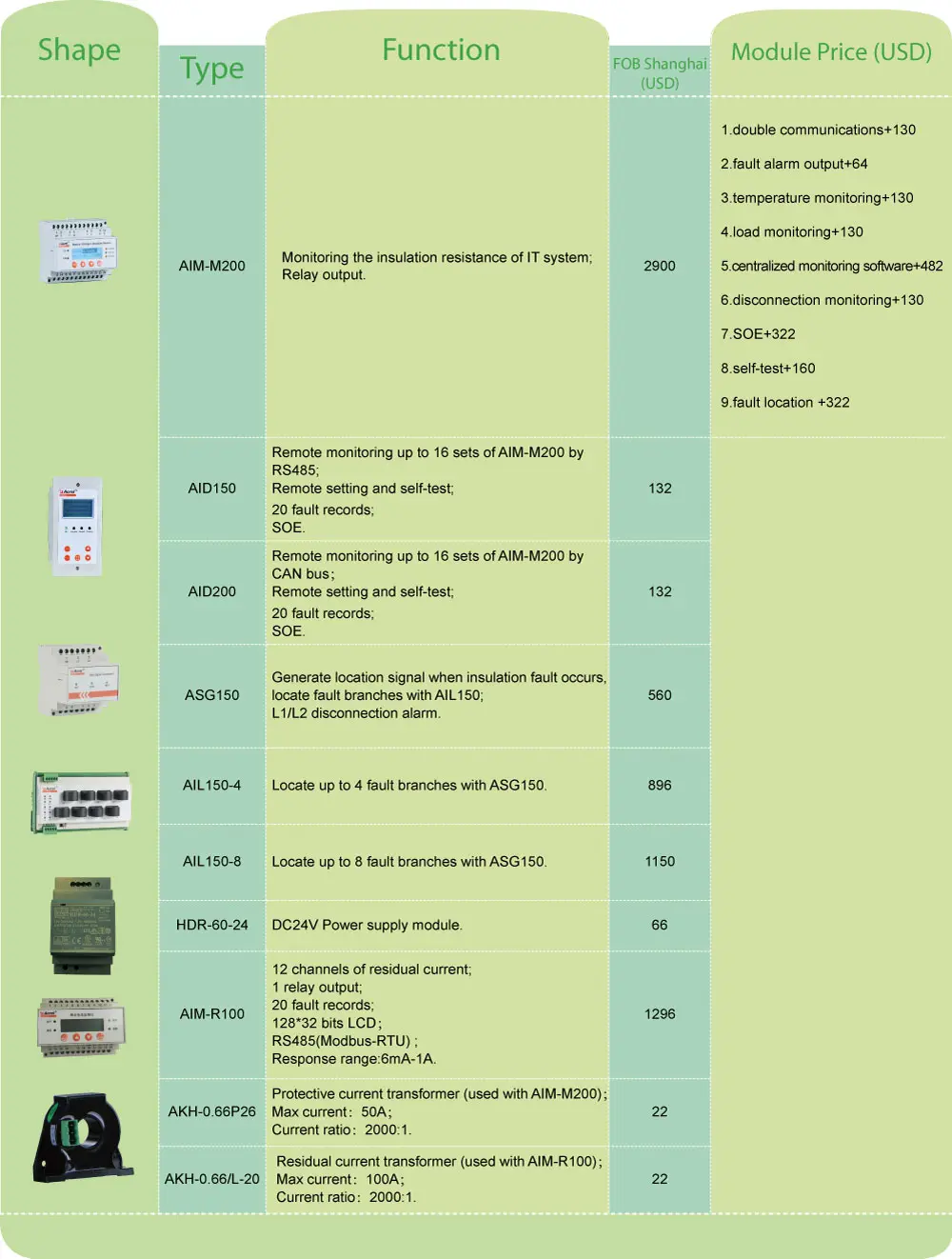

System role
| AIM-M200 | Insulation monitoring device |
| ASG150 | Test signal generator |
| AIL150-4/-8 | Insulation fault locator |
| AID150 | Alarm and display instrument |
| ACLP10-24 | Isolated DC 24 V power supply |
