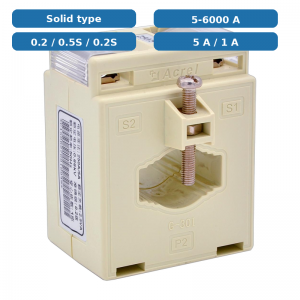

AKH-0.66/G High-Accuracy Measuring Current Transformer Series
Technical Indicators
● Rated operating voltage: AC 0.66kV
● Power-frequency withstand voltage: 3000V/1min, 50Hz
● Rated frequency: 50-60Hz
● Primary current: 5-6000A
● Secondary output: 5A or 1A
● Accuracy: Class 0.2, Class 0.5S or Class 0.2S,
● Ambient air temperature: -30°C to +70°C
● Altitude: ≤3000m
● Installation environment: Indoor locations without direct rain or snow, severe pollution or strong vibration

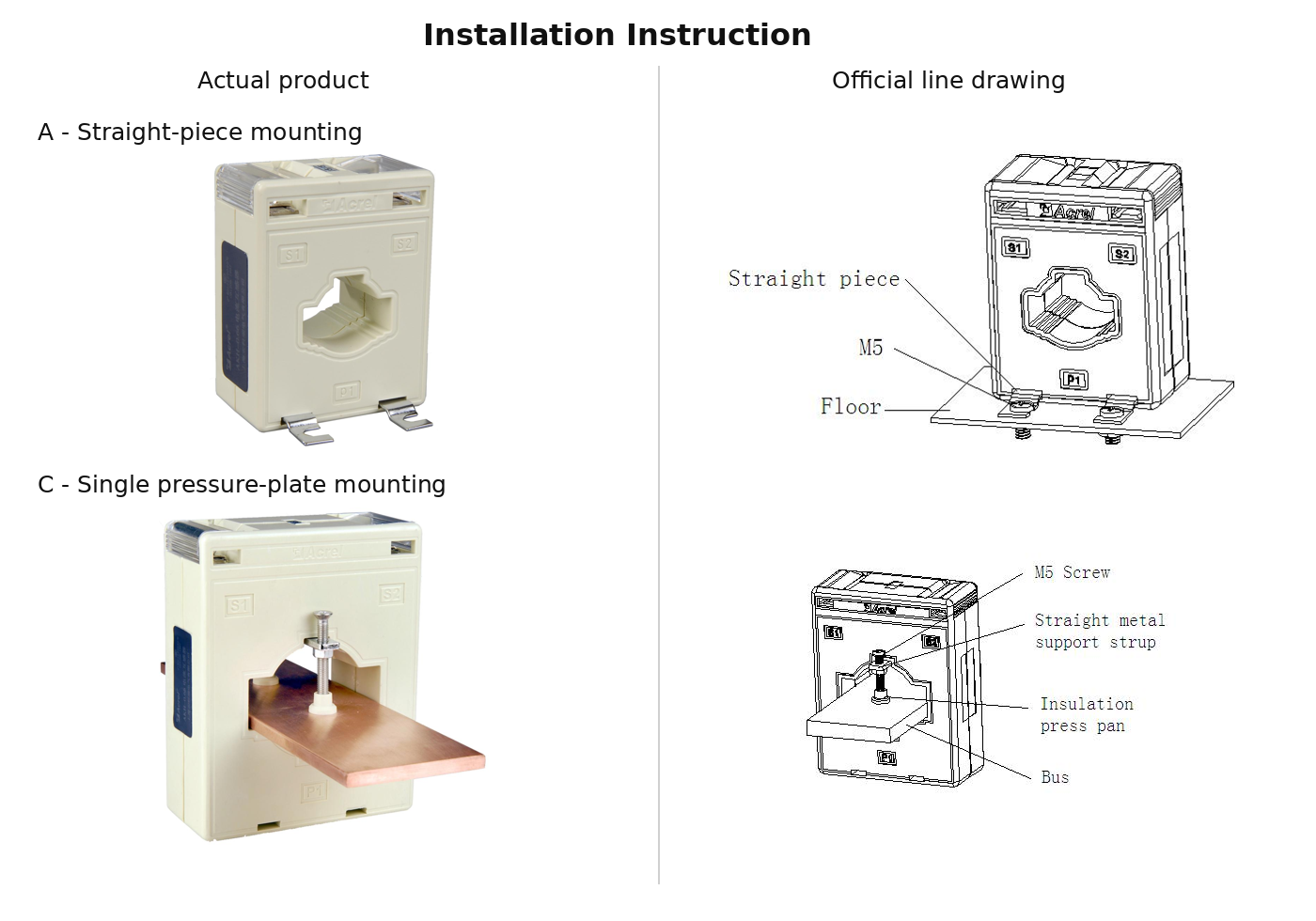

Installation Instruction
Product Feature
The AKH-0.66/G series uses a flip-cover design for convenient wiring. The transparent polycarbonate cover allows the secondary lead connections to be viewed. Designed for industrial AC current measurement, the series is used with energy meters and electrical measuring instruments.
Technical data
| Parameter | Value |
|---|---|
| Rated operating voltage | AC 0.66kV |
| Power-frequency withstand voltage | 3000V/1min, 50Hz |
| Rated frequency | 50-60Hz |
| Primary current | 5-6000A |
| Secondary output | 5A or 1A |
| Accuracy | Class 0.2, Class 0.5S or Class 0.2S |
| Ambient air temperature | -30°C to +70°C |
| Altitude | ≤3000m |
| Installation environment | Indoor locations without direct rain or snow, severe pollution or strong vibration |
Ask us about this model. Send us the rated values of your circuit and the supply voltage; we confirm the ordering code, wiring diagram and register list within one working day.

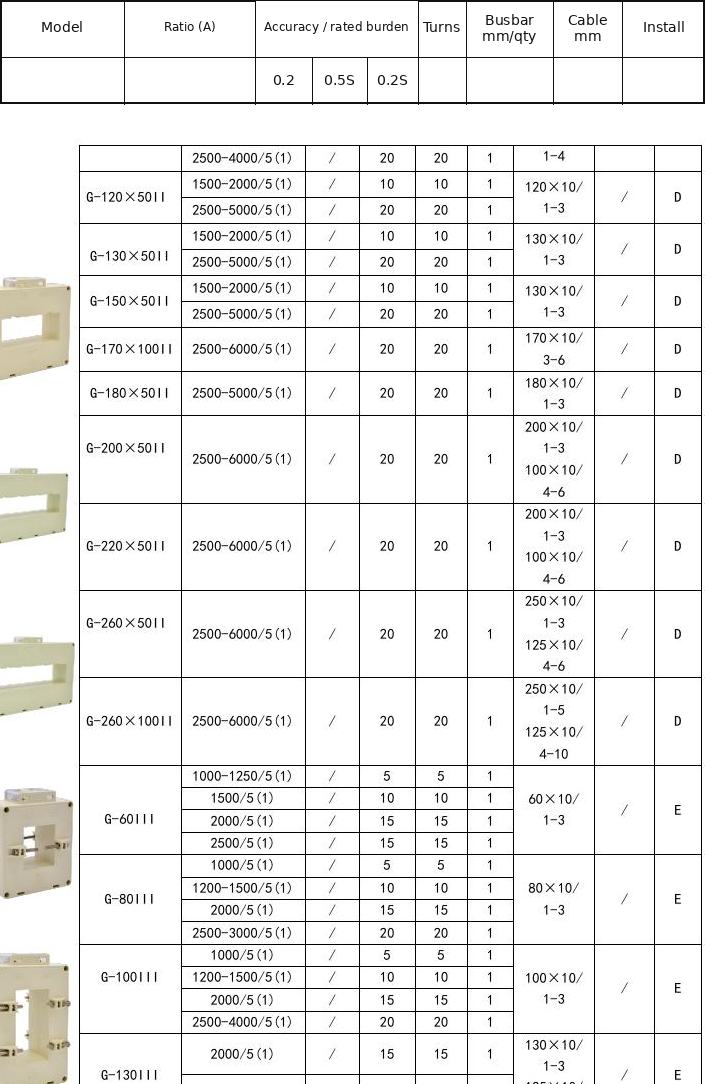

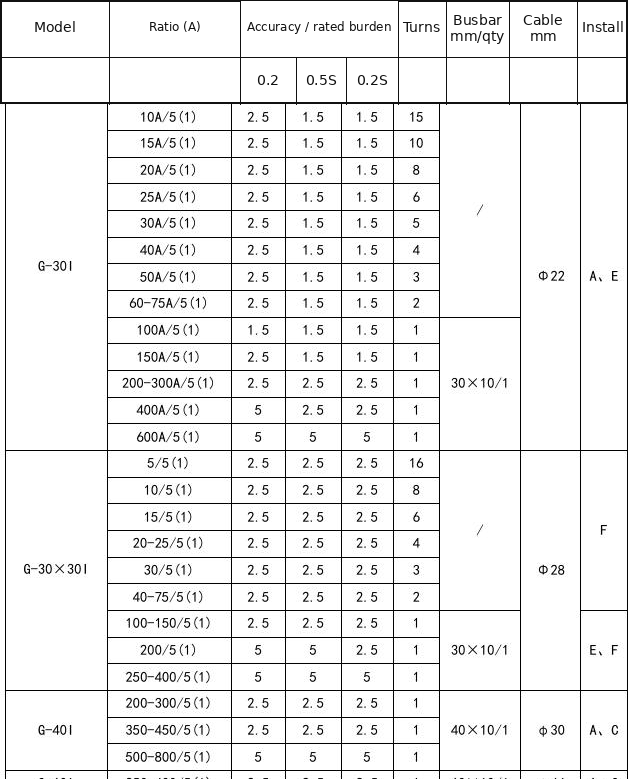

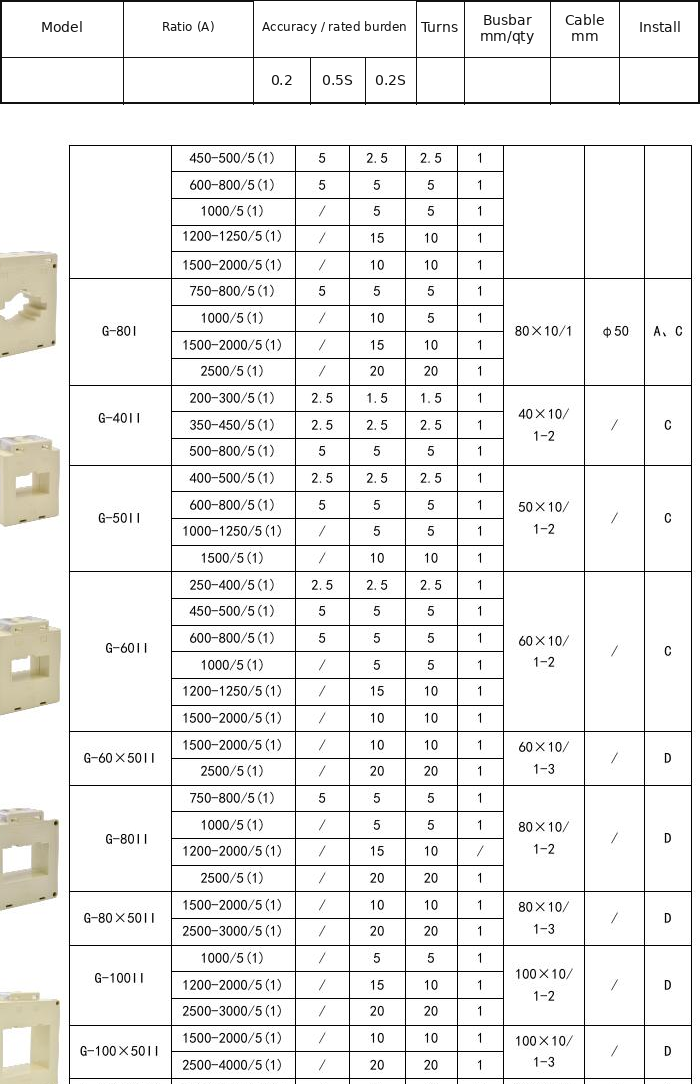

The AKH-0.66/G series uses a flip-cover design for convenient wiring. The transparent polycarbonate cover allows the secondary lead connections to be viewed. Designed for industrial AC current measurement, the series is used with energy meters and electrical measuring instruments. It covers G-I, G-II and G-III constructions, primary currents from 5A to 6000A, 5A or 1A secondary output, and Class 0.2, Class 0.5S or Class 0.2S accuracy depending on the selected model and ratio.
