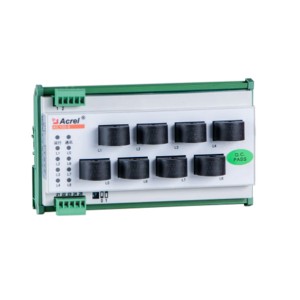

AIL150-4/-8 medical IT Isolated system (fault locator) Featured Image
  • AIL150-4/-8 medical IT Isolated system (fault locator)

AIL150-4/-8 medical IT Isolated system (fault locator)

● Insulation fault location in AC IT systems

● AIL150-4: 4 measuring channels

● AIL150-8: 8 measuring channels

● LED indicators: On, Comm

● CAN bus

● Auxiliary power supply: DC24V

Information

Parameter

Quotation

Download

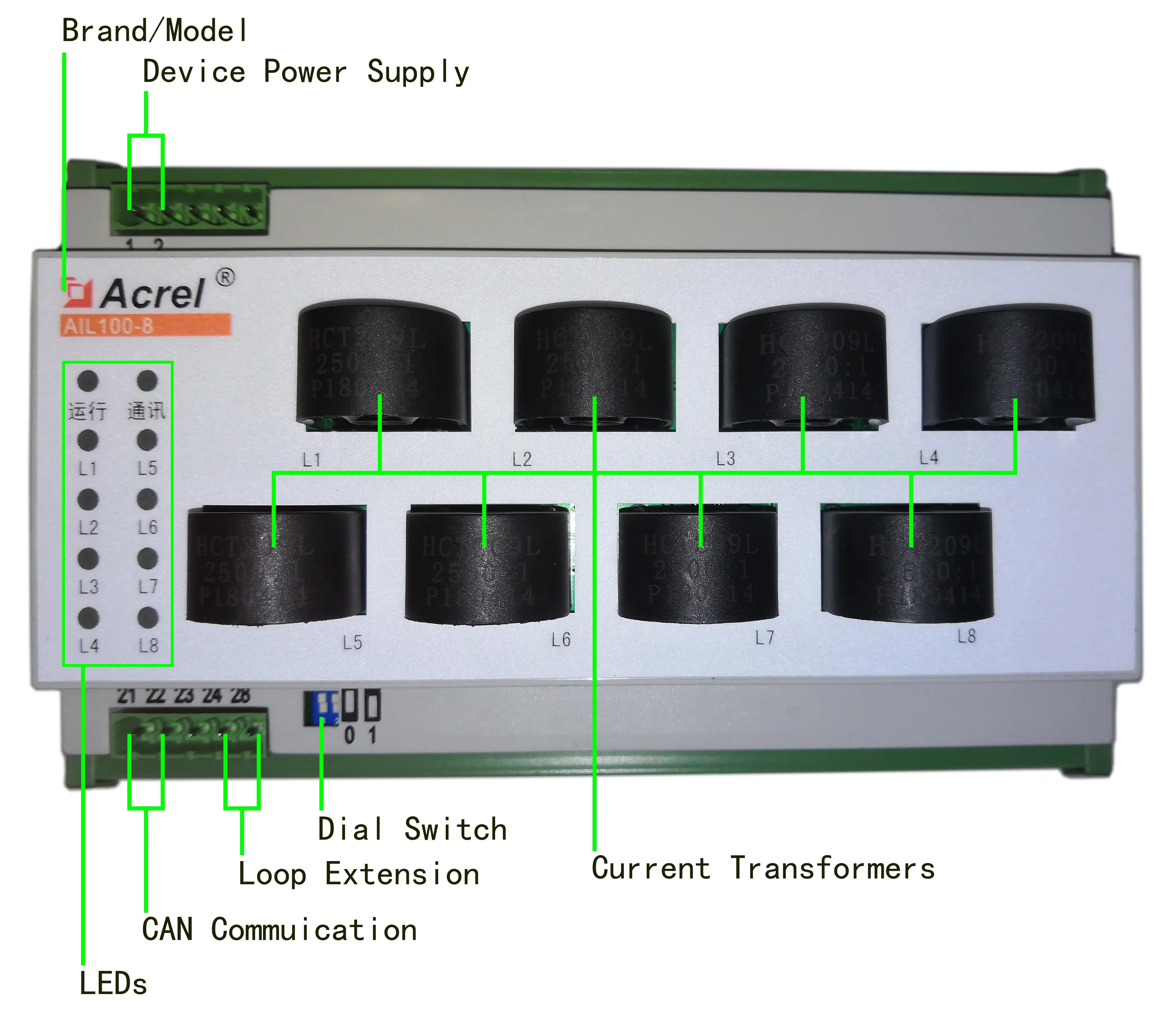

Characteristic

AIL150-4/-8 Characteristic

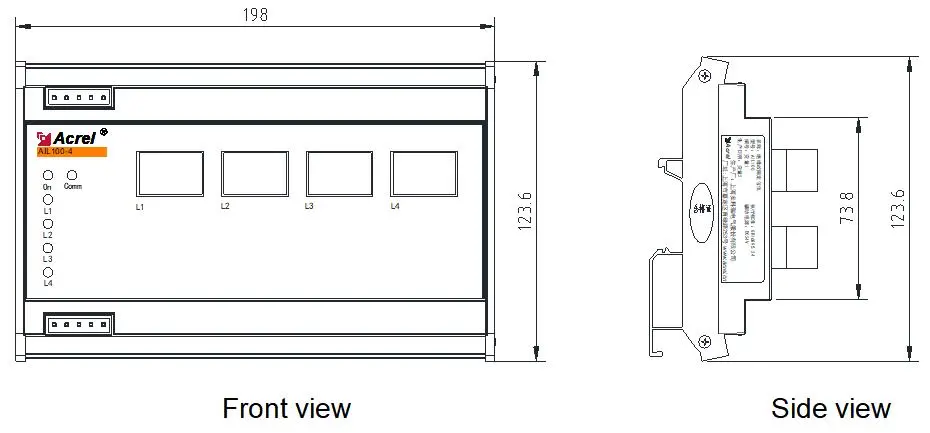

Dimension(Unit: mm)

AIL150-4/-8 DimensionUnit mm

Wiring

AIL150-4/-8 Wiring

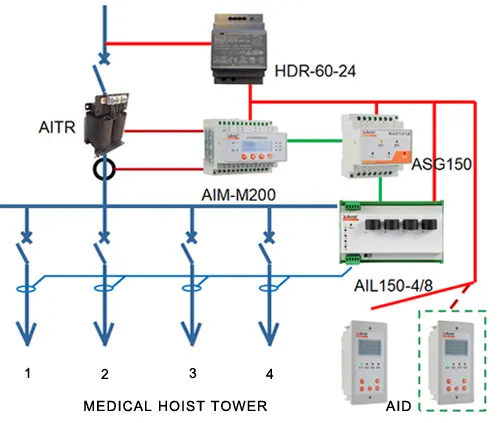

Typical connection

AIL150-4/-8 Typical connection

  • Function

    Insulation fault locator

  • Circuits

    4 or 8

  • Supply

    DC 18–36 V

  • Power

    ≤2 VA

  • Response time

    ≤5 s

  • Bus

    CAN

  • Certification on file:
  • CE certification

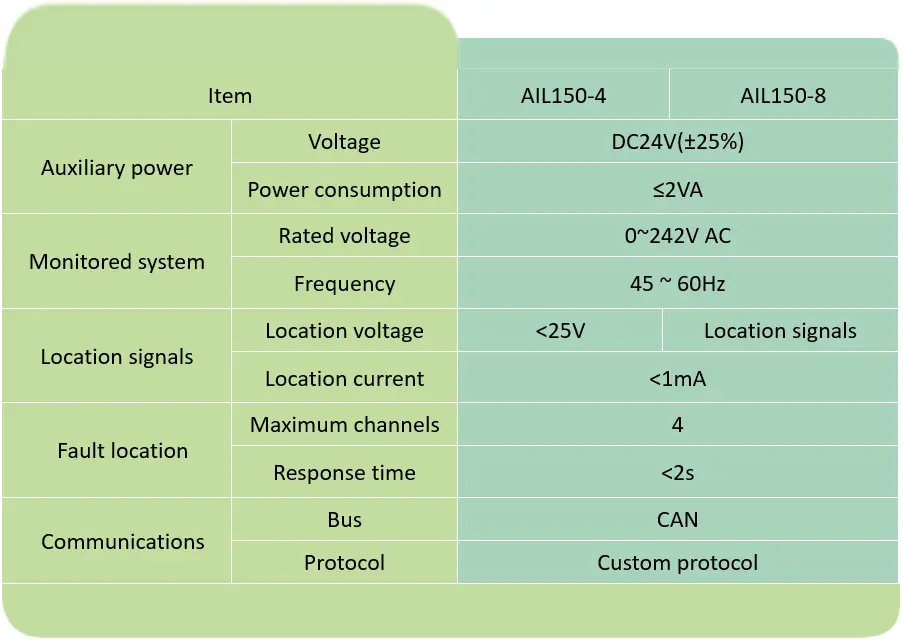

Specifications

GeneralProduct typeInsulation fault locator for medical IT systems
ModelsAIL150-4 (4 circuits), AIL150-8 (8 circuits)
SupplyAuxiliary supplyDC 18–36 V
Power consumption≤2 VA
Monitored systemSystem voltageAC 220 V ±10%
System frequency45–60 Hz
Number of circuits4 or 8
Response time≤5 s
CommunicationInterfaceCAN bus, custom protocol
Termination120 Ω

Functions

Fault locationLocates the faulty outgoing circuit■
4 or 8 current transformers per device■
Works with the ASG150 locating signal■
AlarmIndicates the faulty circuit■
CommunicationCAN bus to AIM-M200 and AID150■

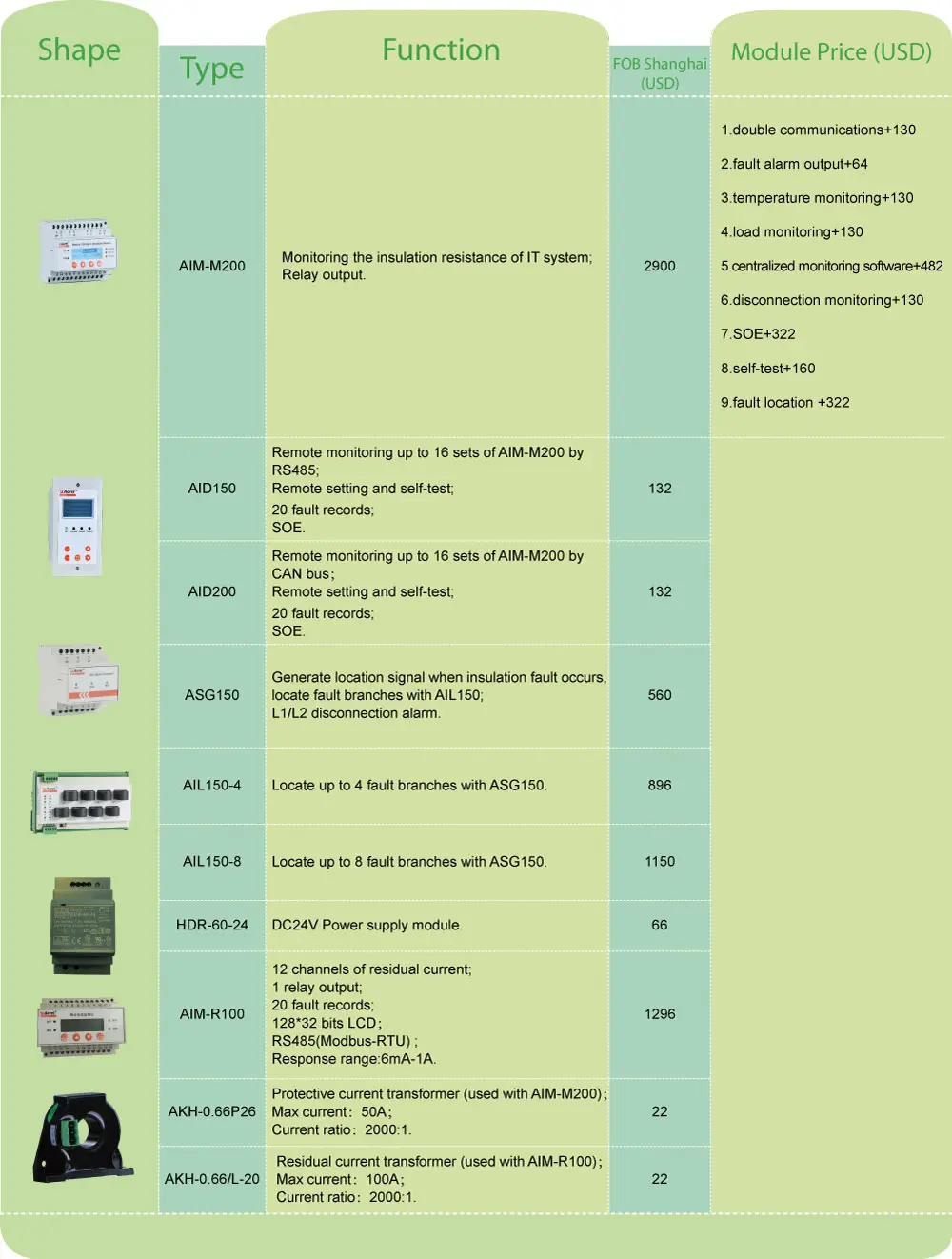

System role

AIL150-4/-8Insulation fault locator
ASG150Test signal generator
AIM-M200Insulation monitoring device
AID150Alarm and display instrument
ACLP10-24Isolated DC 24 V power supply

Need the user manual, a wiring diagram or a quotation for your project? Ask us — we reply within one working day.
