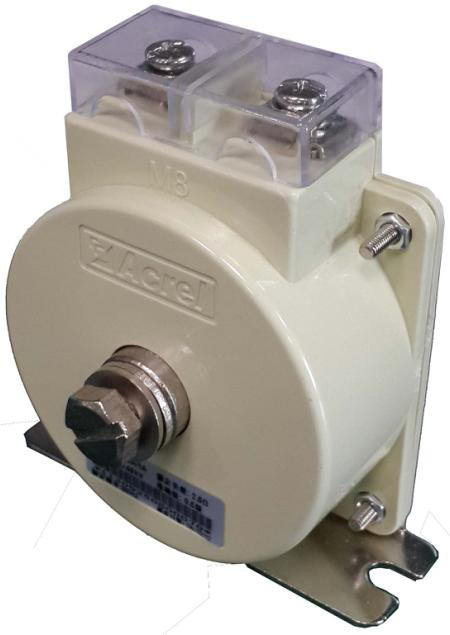

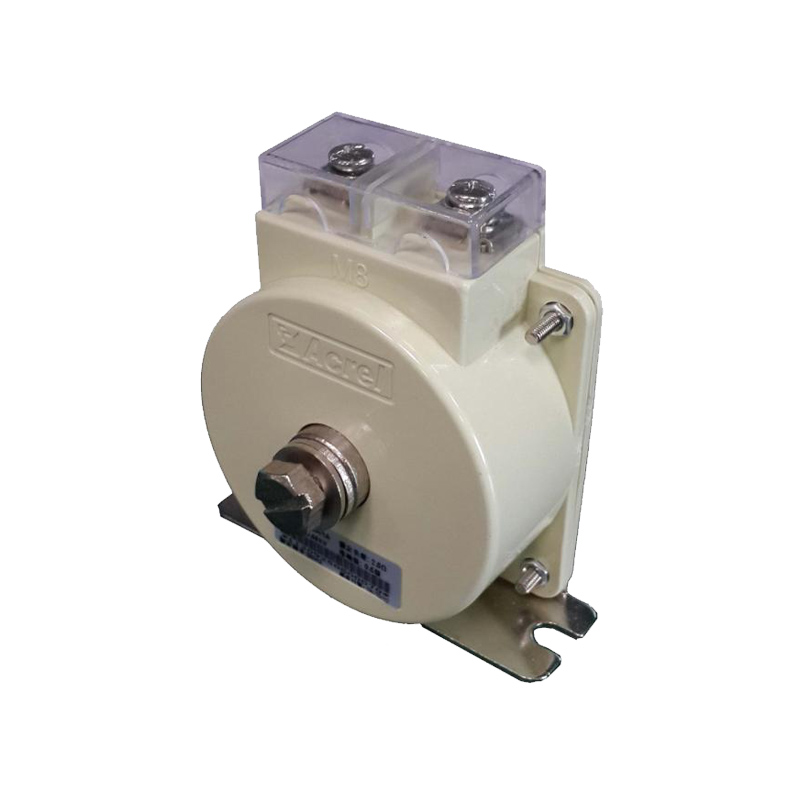

AKH-0.66/P-M8 Protection Current Transformer
Technical Indicators
Rated Working Voltage: AC 0.66kV
Rated Frequency: 50-60Hz
Power-Frequency Withstand Voltage: 3000V/1min 50Hz
Current Ratio: 100-400/1A
Protection Class: 10P10
Rated Burden: 1VA
Ambient Temperature: -30°C to +70°C
Altitude: ≤3000m
Installation: Mounting Plate Fixing
Installation Instruction
Product Feature
AKH-0.66/P-M8 is a compact low-voltage protection current transformer designed for relay protection circuits. It is suitable for short-circuit and overload current detection, and is widely used in low-voltage drawer cabinets, compact switchgear and low-voltage distribution protection systems. The product features a 100-400/1A current ratio, 10P10 protection class, 1VA rated burden and a compact 67 × 86 × 30 mm structure.
| Parameter | AKH-0.66/P-M8 |
|---|---|
| Product Type | Protection Current Transformer |
| Rated Current Ratio | 100-400/1A |
| Protection Class | 10P10 |
| Rated Burden | 1VA |
| Rated Voltage | 0.66kV |
| Overall Dimensions | 67 × 86 × 30 mm |
| Main Application | Relay Protection |
