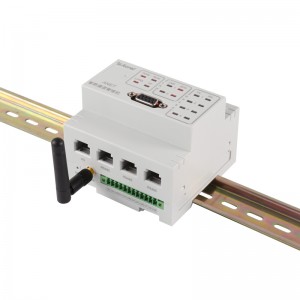

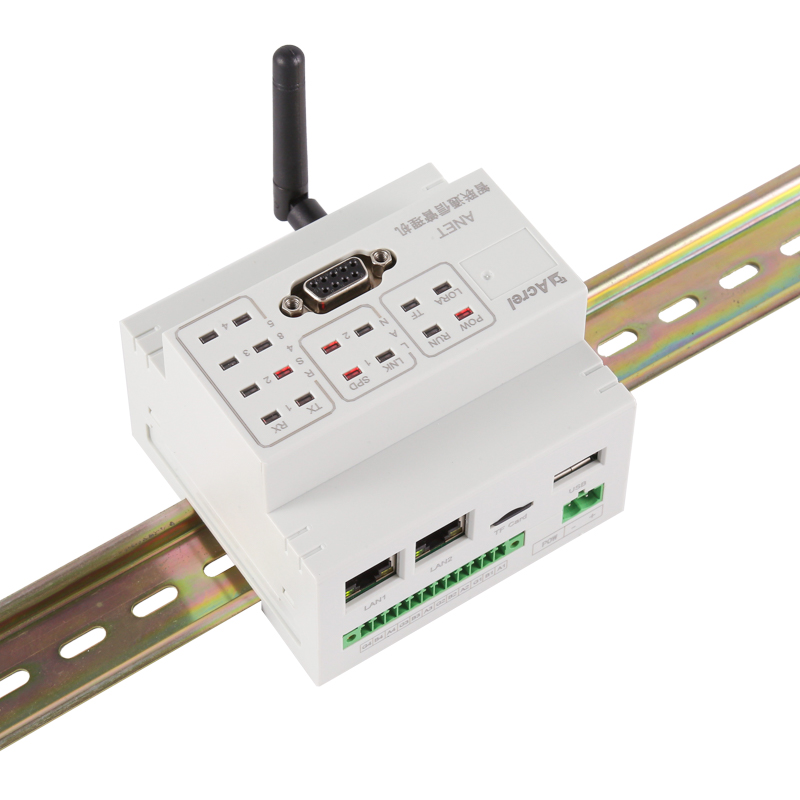

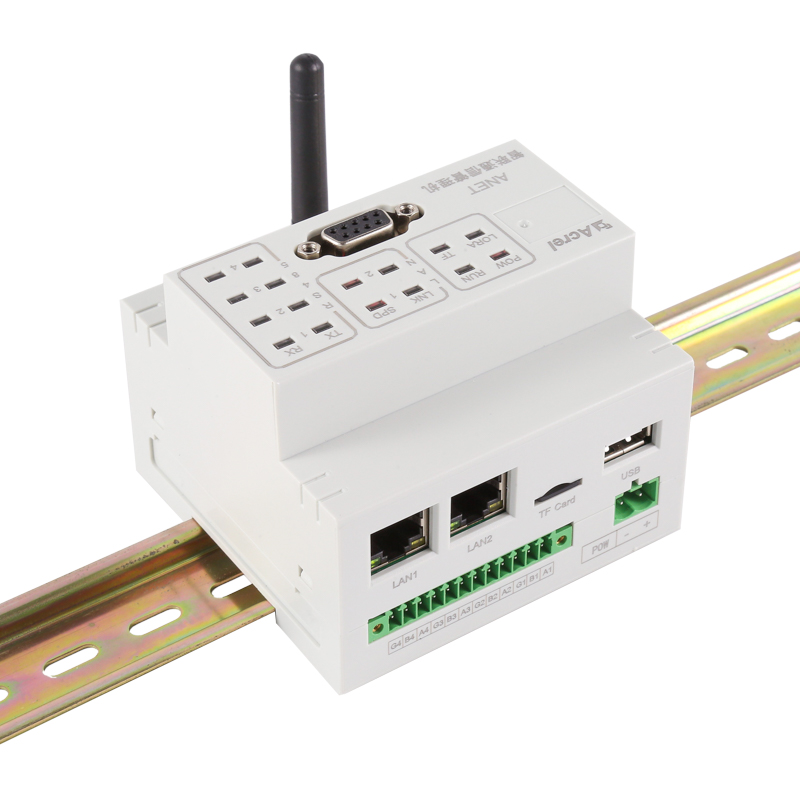

ANet-2E4S1 Smart IoT Gateway
Overview
ANet-1E2S1 is a universal intelligent communication management machine developed by Acrel Electric Co., Ltd., which has Full-Netcom wireless networking function. It is suitable for the national public authorities, enterprises and institutions, public institutions, residential commercial buildings, hotels and restaurants, etc. It can meet the requirements of water, electricity, gas, oil,cooling capacity, heat and other forms of consumption and energy consumption measurement data collection.
· Double wide voltage(DC/AC 85V~265 V) with opposite connectionprotection.
.Support 2G/3G/4G.
· Support local and remote maintenance, data monitoring in real time.
· Support breakpoint continuation,Xml, Json for data transmit.
· Max. 64 sets devices can be connected, support device with ModbusRTU orModbus RTU.
· Support standard 8GB SD card (Max. 32GB).
· Multiple alarm setting for each device.
Characters
· Kernel optimization makes ARM CORTEX-A7 performance powerful
·The whole gateway has passed the electromagnetic compatibility level 4 test
· All communication terminals have passed 2kv withstand voltage test
· One-key automatic generation of instrument information points
· Support optional and full selection single table structure forwarding data set
· Supports efficient configuration methods such as batch operation and canbe equipped with step filling
Wiring diagram
Networking plan
| Parameter | ANet-2E4S1 |
|---|---|
| Uplink Communication | 2 × Ethernet |
| Downlink Communication | 4 × RS485 |
| Connected Devices | Up to 128 devices |
| Power Supply | AC/DC 220V (85–265V) |
| Frequency | 45–65 Hz |
| Power Consumption | ≤10 W |
| Protocols | Modbus-RTU, Modbus-TCP, DLT645, IEC103, IEC104, CJT188 |
| Data Forwarding | HTTP(S), XML, JSON |
| Storage | Standard 8 GB SD card, max. 32 GB |
| Dielectric Strength | 2 kV / 1 min between power and communication terminals |
| Insulation Resistance | >100 MΩ |
