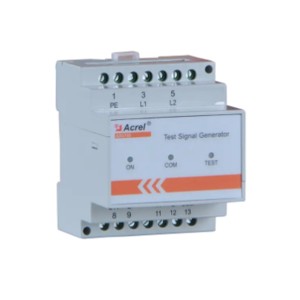

ASG150 medical IT Isolated system (test signal generator)
Characteristic

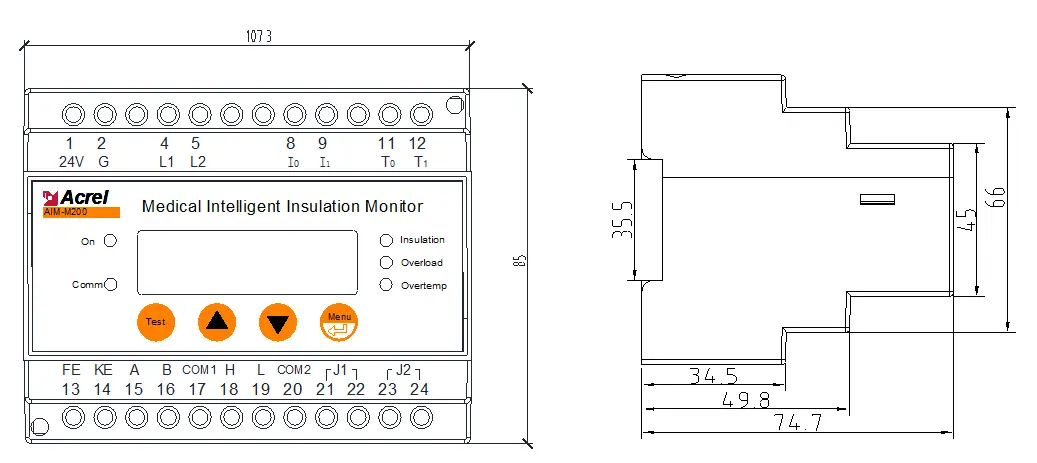

Dimension(Unit: mm)

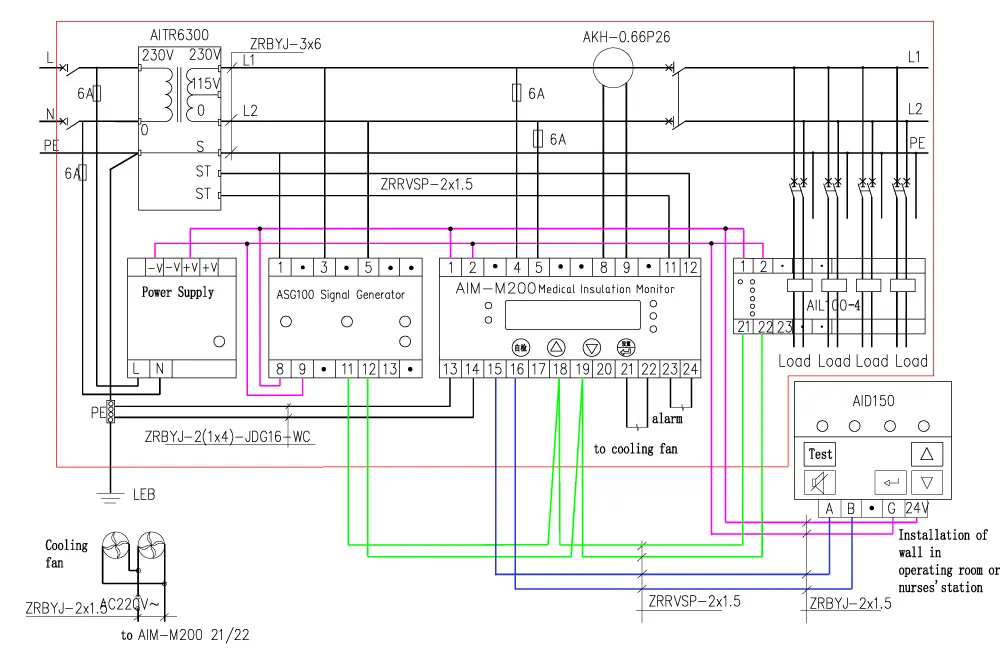

Wiring

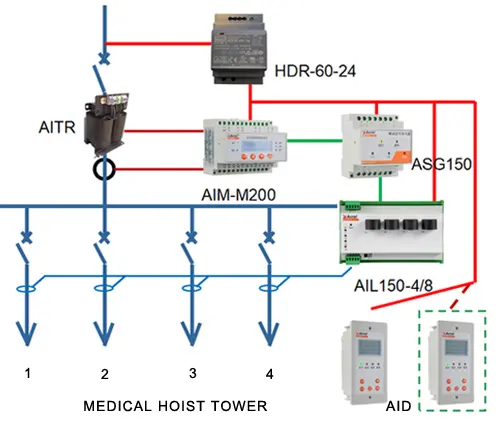

Typical connection
Function
Test signal generator
Supply
DC 24 V ±25%
Power
≤2 VA
System voltage
0–242 V AC
Locating signal
< 25 V / < 1 mA
Bus
CAN
- Certification on file:

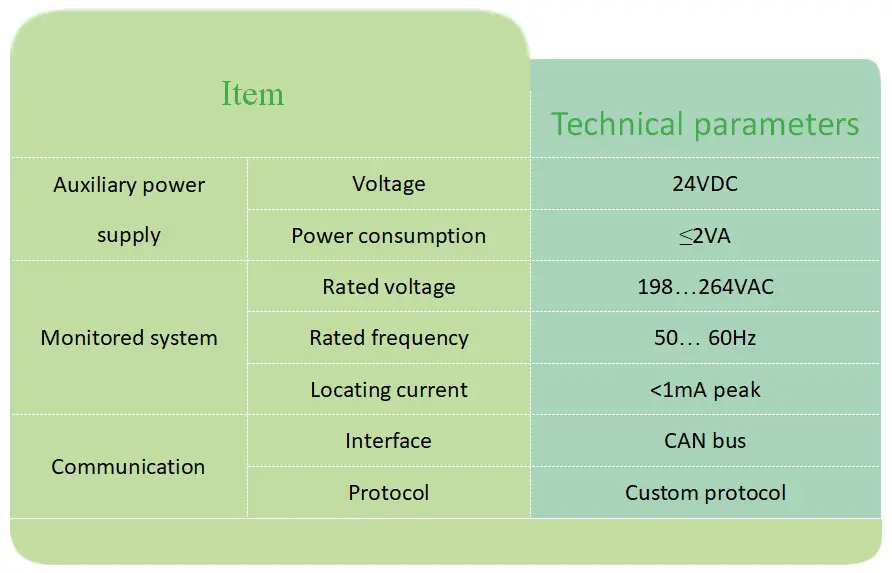

Specifications
| General | Product type | Test signal generator for medical IT systems |
| Function | Injects a locating signal for fault location | |
| Supply | Auxiliary supply | DC 24 V ±25% |
| Power consumption | ≤2 VA | |
| Monitored system | System voltage | 0–242 V AC |
| System frequency | 45–60 Hz | |
| Locating signal | Voltage | < 25 V |
| Current | < 1 mA | |
| Communication | Interface | CAN bus, custom protocol |
| Termination | 120 Ω | |
| Monitoring | L1 / L2 line break detection | ■ |
Functions
| Fault location | Injects a locating signal into the IT system | ■ |
| Works with AIL150-4/-8 fault locators | ■ | |
| Line break detection on L1 and L2 | ■ | |
| Communication | CAN bus to AIM-M200 and AID150 | ■ |

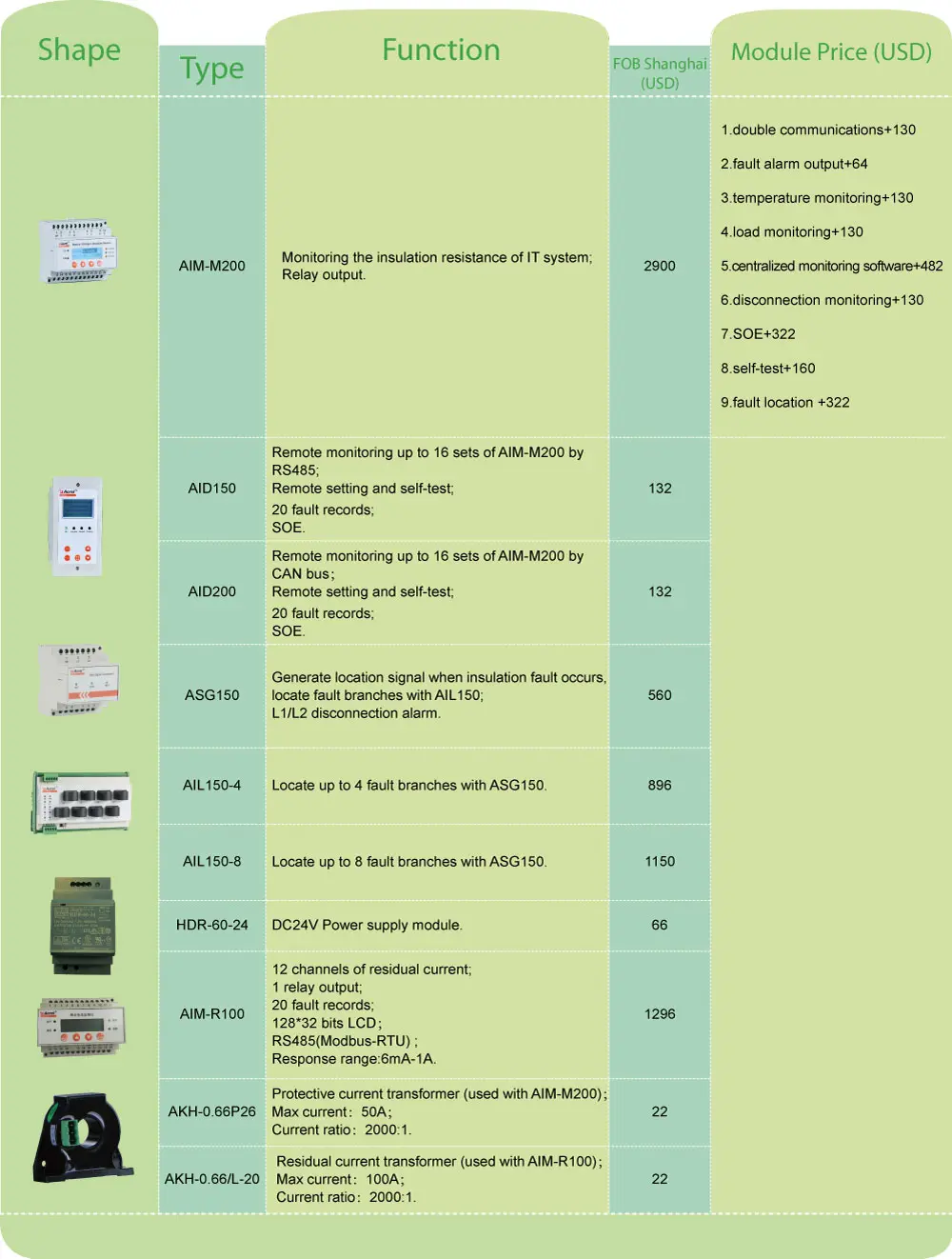

System role
| ASG150 | Test signal generator |
| AIM-M200 | Insulation monitoring device |
| AIL150-4/-8 | Insulation fault locator |
| AID150 | Alarm and display instrument |
| ACLP10-24 | Isolated DC 24 V power supply |
