AKH-0.66/MP Measuring and Protection Current Transformer Series
Technical Indicators
● Rated working voltage: AC 0.66 kV
● Power-frequency withstand voltage: 3000 V/1 min, 50 Hz
● Rated frequency: 50–60 Hz
● Primary current: 400–5000 A, depending on model and ratio
● Secondary current: 5 A or 1 A
● Measurement class: Class 0.5 or Class 0.2
● Protection class: 10P5 / 10P10 / 10P15 / 10P20
● Ambient temperature: -30°C to +70°C
● Altitude: ≤3000 m
● Installation environment: Indoor location without direct rain or snow, severe pollution or strong vibration
Installation Instruction
Product Feature
Rated working voltage: AC 0.66 kV
Technical data
| Parameter | Value |
|---|---|
| Power-frequency withstand voltage | 3000 V/1 min, 50 Hz |
| Rated frequency | 50–60 Hz |
| Primary current | 400–5000 A, depending on model and ratio Secondary current: 5 A or 1 A Measurement class: Class 0.5 or Class 0.2 |
| Protection class | 10P5 / 10P10 / 10P15 / 10P20 |
| Altitude | ≤3000 m |
| Installation environment | Indoor location without direct rain or snow, severe pollution or strong vibration |
Built-in functions
- Ambient temperature: -30°C to +70°C
Ask us about this model. Send us the rated values of your circuit and the supply voltage; we confirm the ordering code, wiring diagram and register list within one working day.

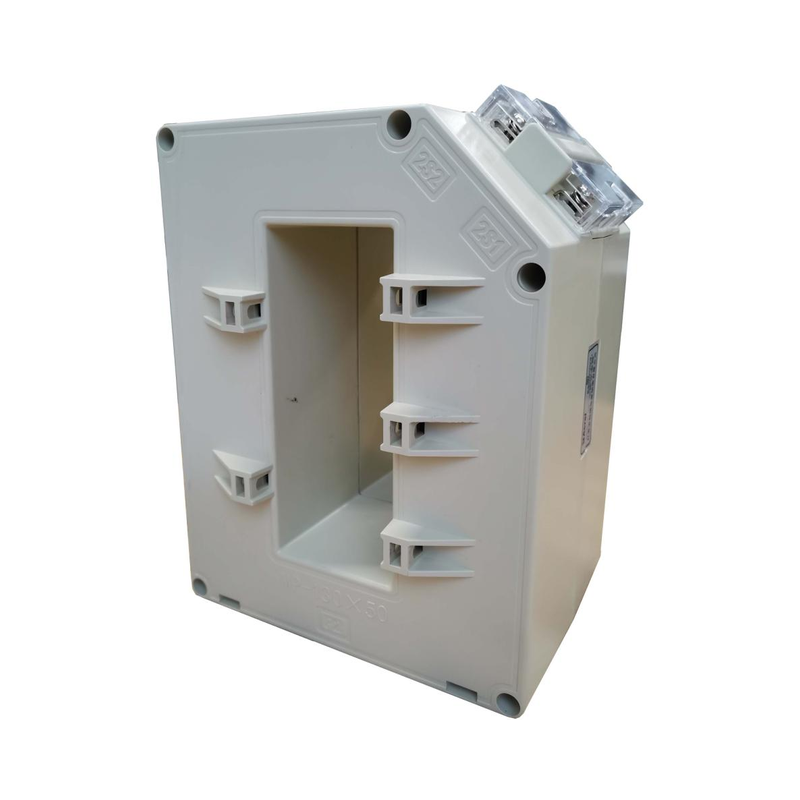

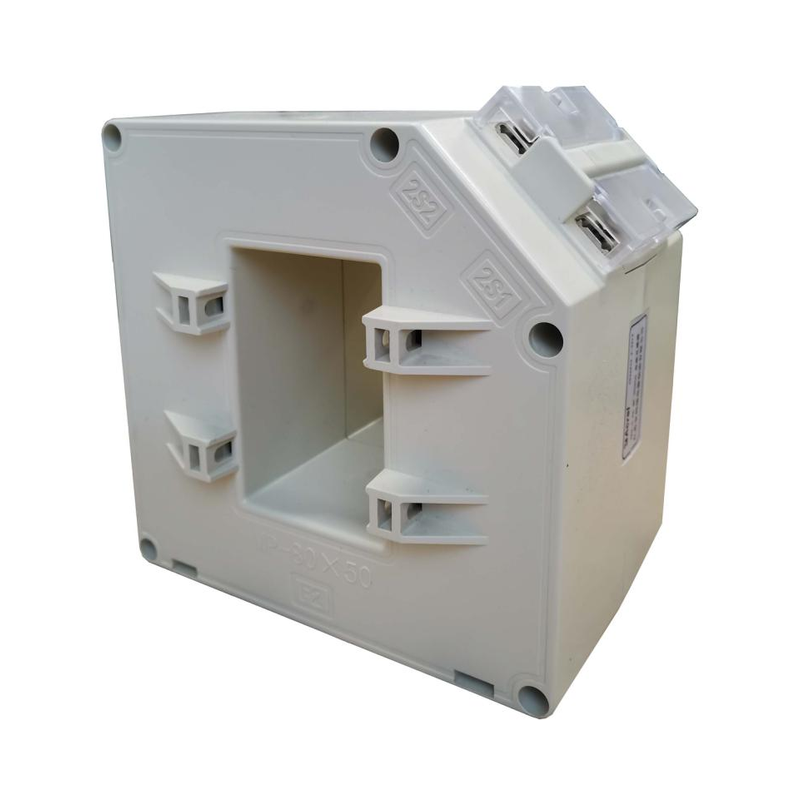

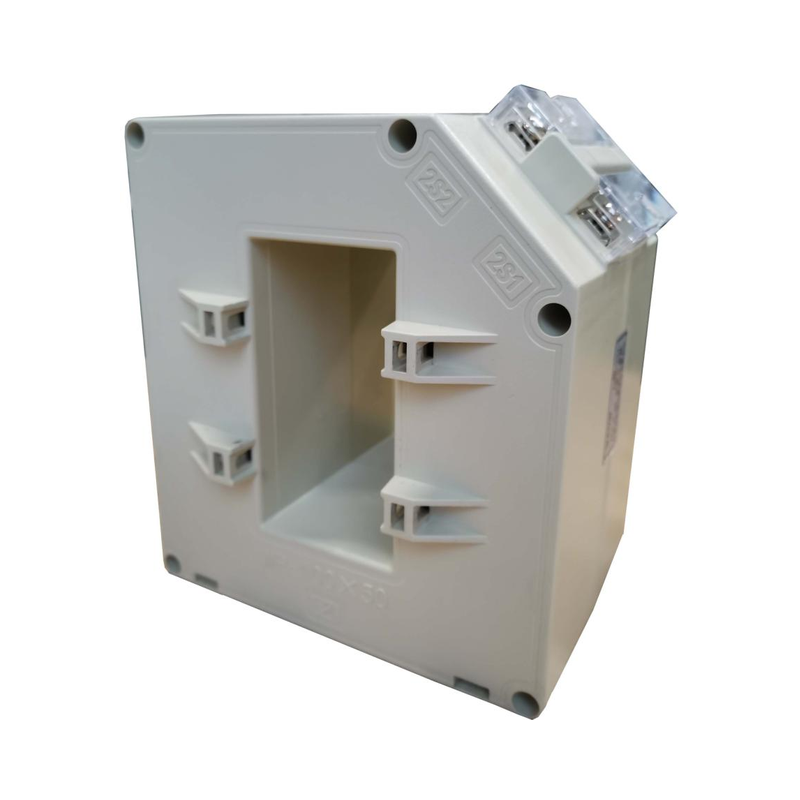

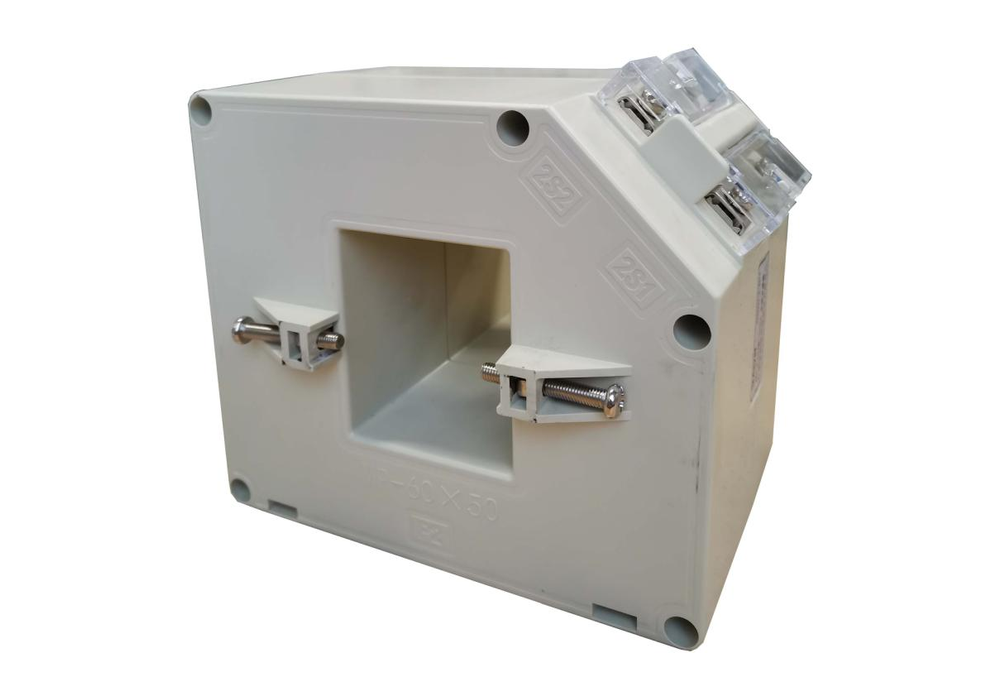

The AKH-0.66/MP series uses a flip-cover design with a transparent polycarbonate terminal cover for visible and convenient secondary wiring. Two windings are provided: one for measurement and one for protection. Its horizontal rectangular aperture can pass one to three busbars or multiple cables and is intended for electrical switchgear and low-voltage distribution protection systems.

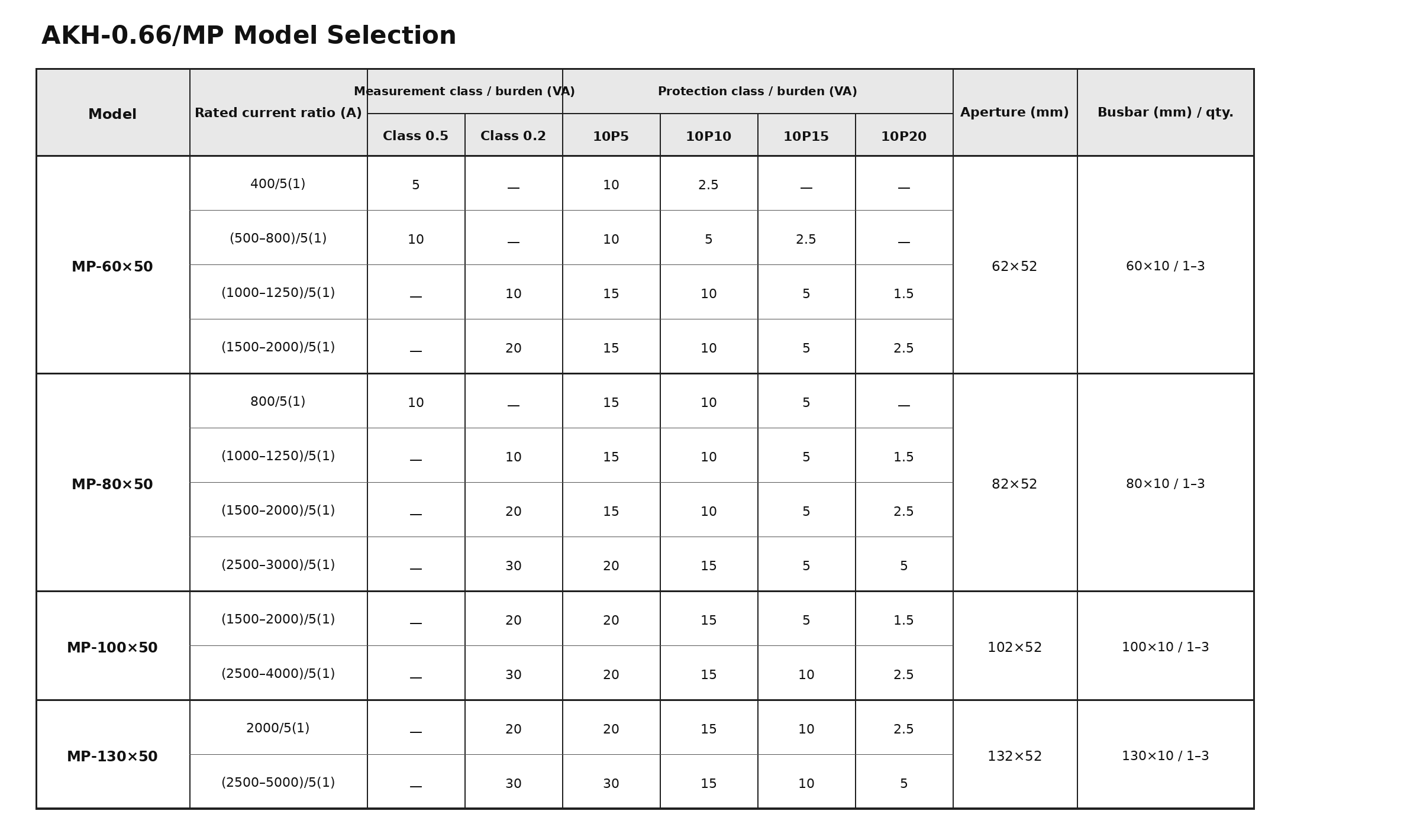

| Model | Rated current ratio (A) | Meas. class 0.5 burden (VA) | Meas. class 0.2 burden (VA) | 10P5 burden (VA) | 10P10 burden (VA) | 10P15 burden (VA) | 10P20 burden (VA) | Aperture (mm) | Busbar (mm) / qty. |

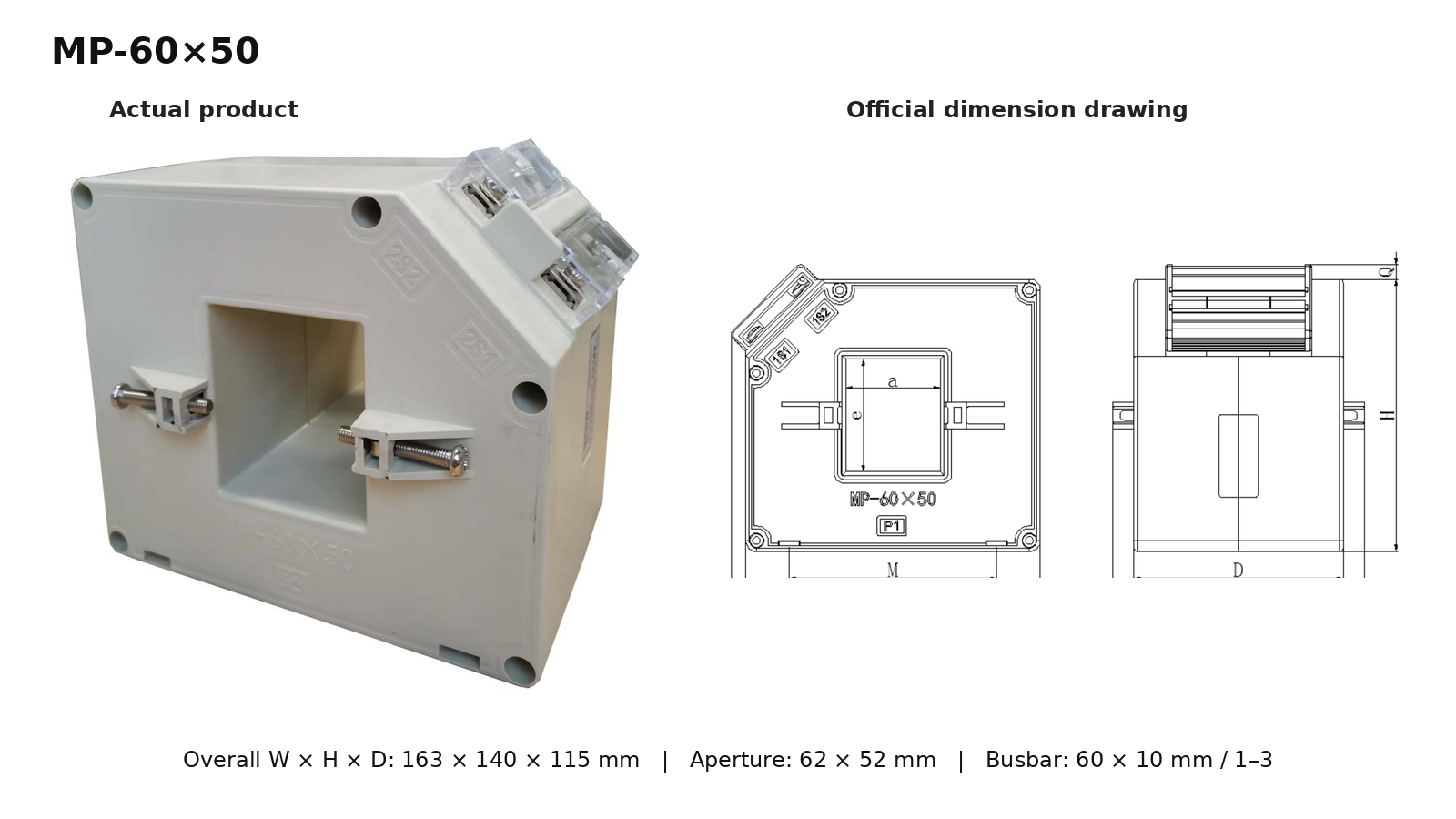

| MP-60×50 | 400/5(1) | 5 | - | 10 | 2.5 | - | - | 62×52 | 60×10 / 1-3 |
| MP-60×50 | (500-800)/5(1) | 10 | - | 10 | 5 | 2.5 | - | 62×52 | 60×10 / 1-3 |
| MP-60×50 | (1000-1250)/5(1) | - | 10 | 15 | 10 | 5 | 1.5 | 62×52 | 60×10 / 1-3 |
| MP-60×50 | (1500-2000)/5(1) | - | 20 | 15 | 10 | 5 | 2.5 | 62×52 | 60×10 / 1-3 |
| MP-80×50 | 800/5(1) | 10 | - | 15 | 10 | 5 | - | 82×52 | 80×10 / 1-3 |
| MP-80×50 | (1000-1250)/5(1) | - | 10 | 15 | 10 | 5 | 1.5 | 82×52 | 80×10 / 1-3 |
| MP-80×50 | (1500-2000)/5(1) | - | 20 | 15 | 10 | 5 | 2.5 | 82×52 | 80×10 / 1-3 |
| MP-80×50 | (2500-3000)/5(1) | - | 30 | 20 | 15 | 5 | 5 | 82×52 | 80×10 / 1-3 |
| MP-100×50 | (1500-2000)/5(1) | - | 20 | 20 | 15 | 5 | 1.5 | 102×52 | 100×10 / 1-3 |
| MP-100×50 | (2500-4000)/5(1) | - | 30 | 20 | 15 | 10 | 2.5 | 102×52 | 100×10 / 1-3 |
| MP-130×50 | 2000/5(1) | - | 20 | 20 | 15 | 10 | 2.5 | 132×52 | 130×10 / 1-3 |
| MP-130×50 | (2500-5000)/5(1) | - | 30 | 30 | 15 | 10 | 5 | 132×52 | 130×10 / 1-3 |
