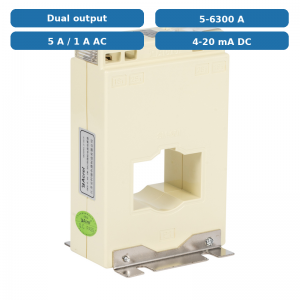

AKH-0.66/SM Dual-Output Current Transformer Series
Technical Indicators
● First output: AC 0-5A or AC 0-1A for measuring and metering devices
● Second output: DC 4-20mA for PLC / DCS
● Auxiliary power: DC 24V supplied by PLC
● Primary current: 5-6300A, depending on model and ratio
● 4-20mA output load: 500Ω

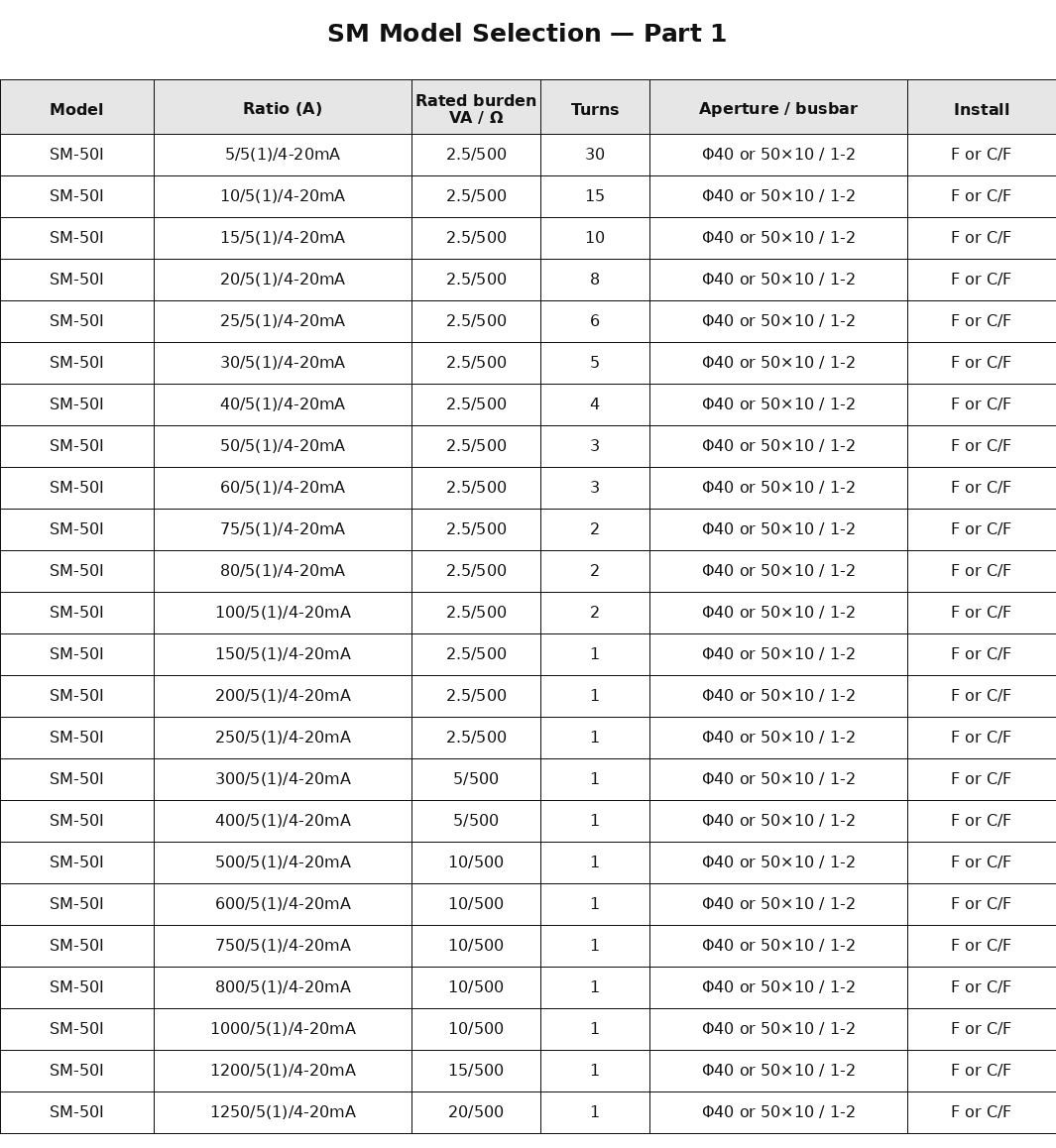

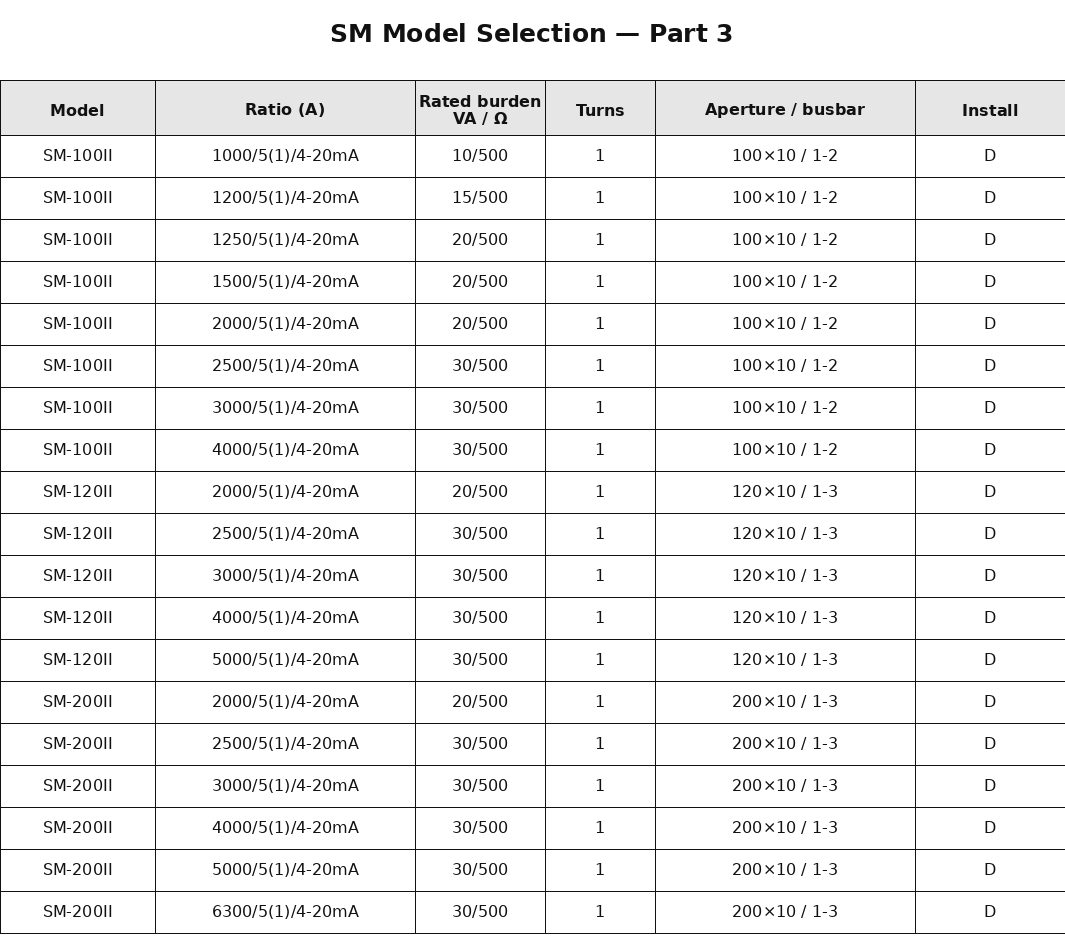

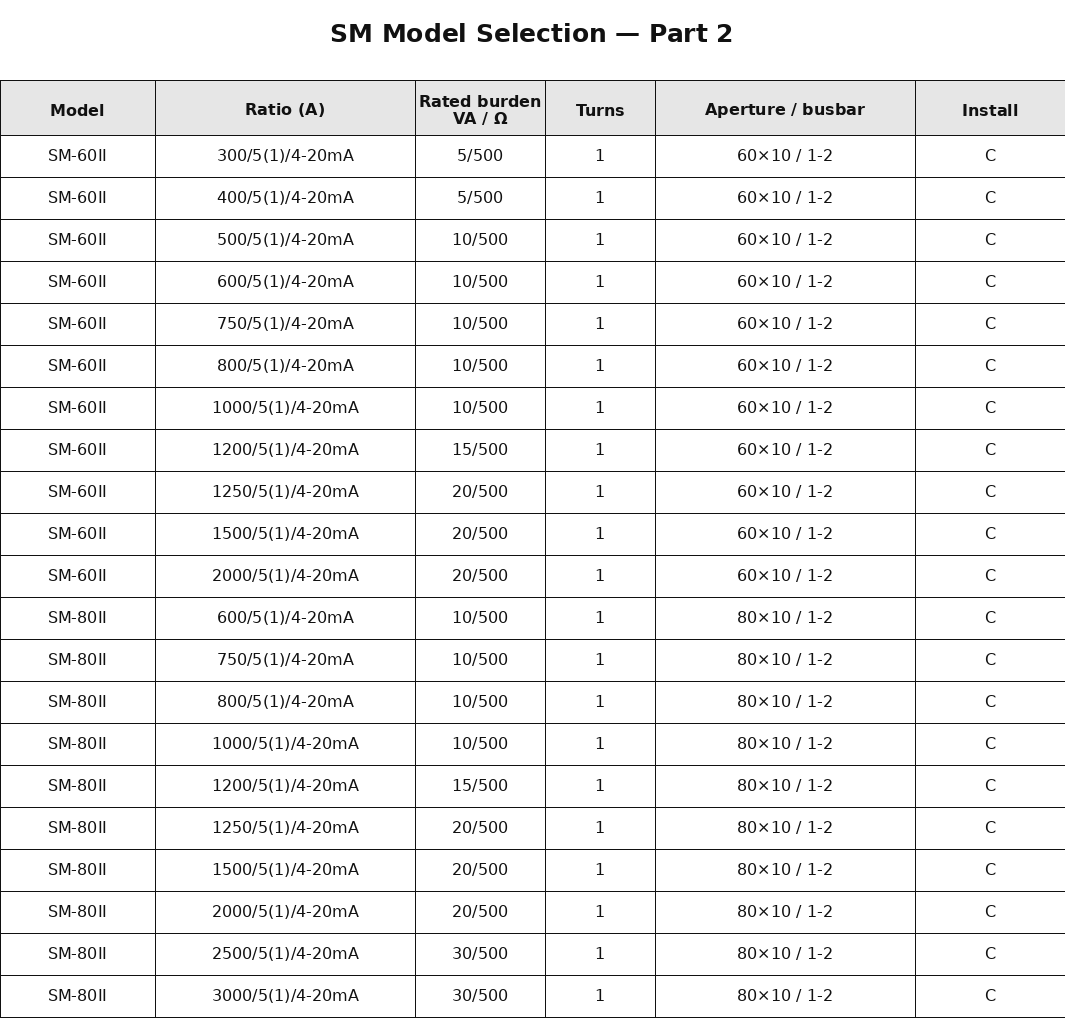

● Accuracy and AC rated burden: ratio-dependent; see model-selection table

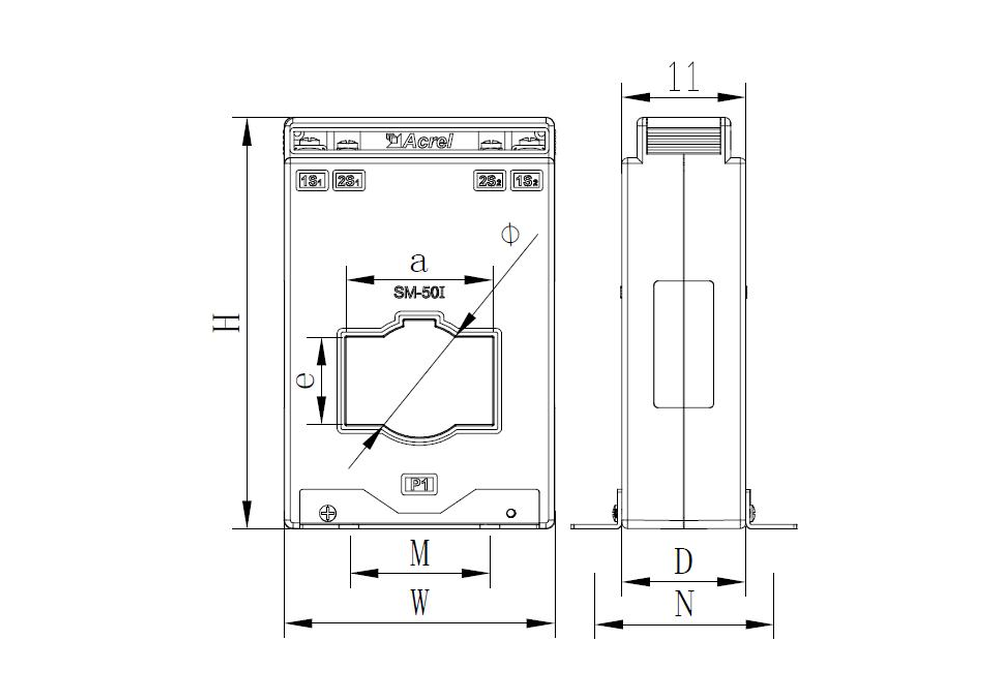

Installation Instruction
Product Feature

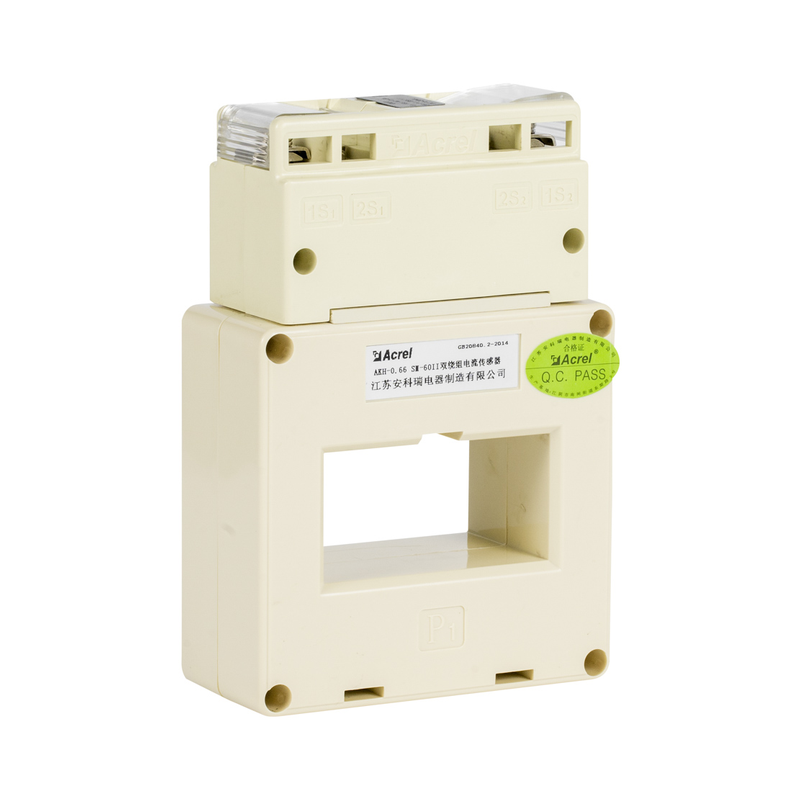

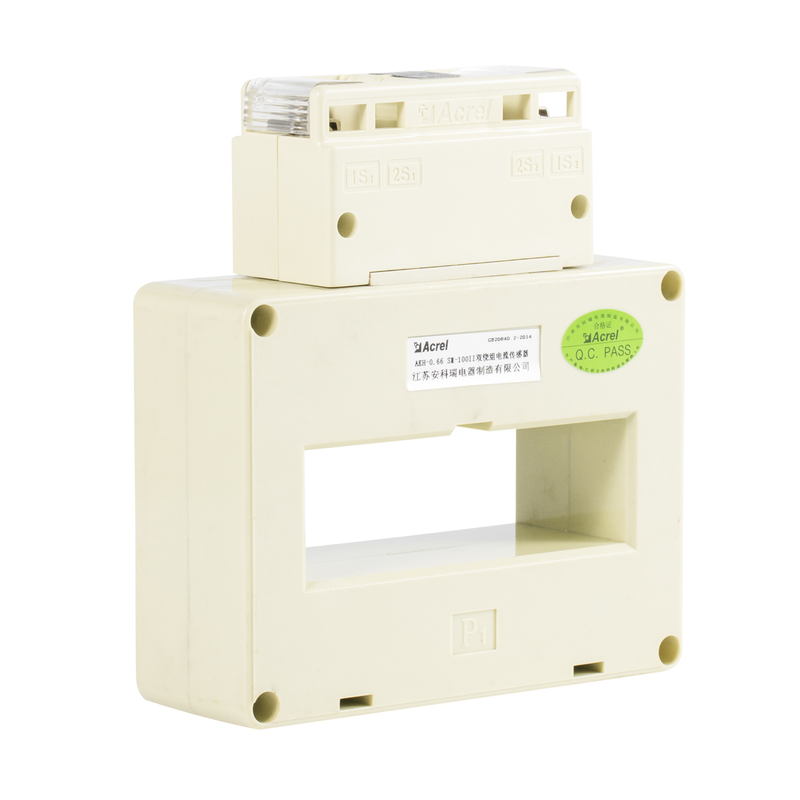

The AKH-0.66/SM series provides two independent outputs from one current transformer. The first output supplies AC 0-5A or AC 0-1A for measuring and metering devices. The second output supplies DC 4-20mA for automation systems such as PLC or DCS, with the DC 24V auxiliary power supplied by the PLC. The series includes SM-50I, SM-60II, SM-80II, SM-100II, SM-120II and SM-200II models, covering primary currents from 5A to 6300A depending on the selected model and ratio.
