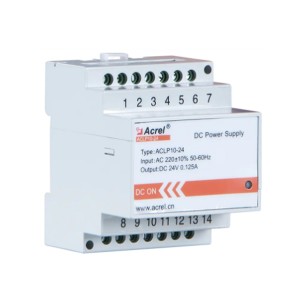

ACLP10-24 medical IT Isolated system (DC power supply)
Characteristic

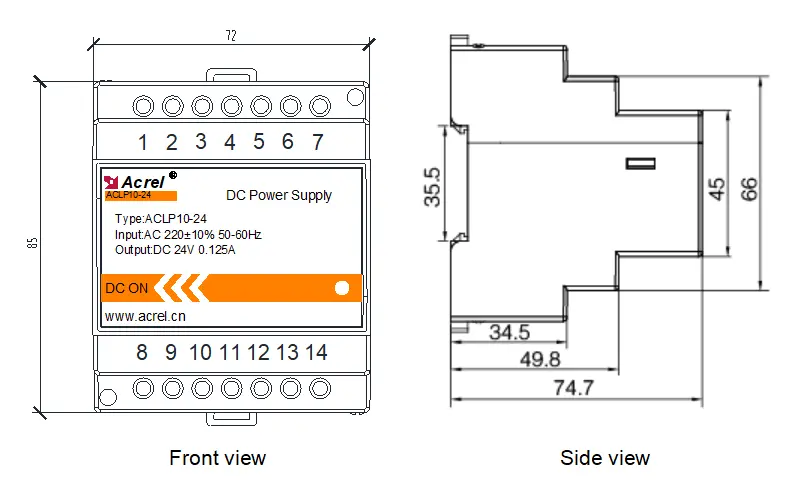

Dimension

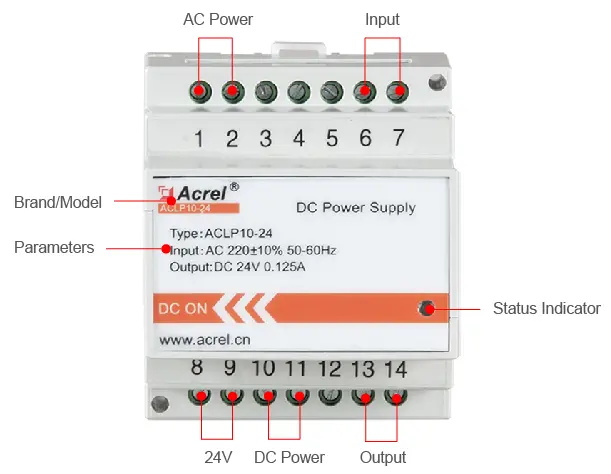

Wiring

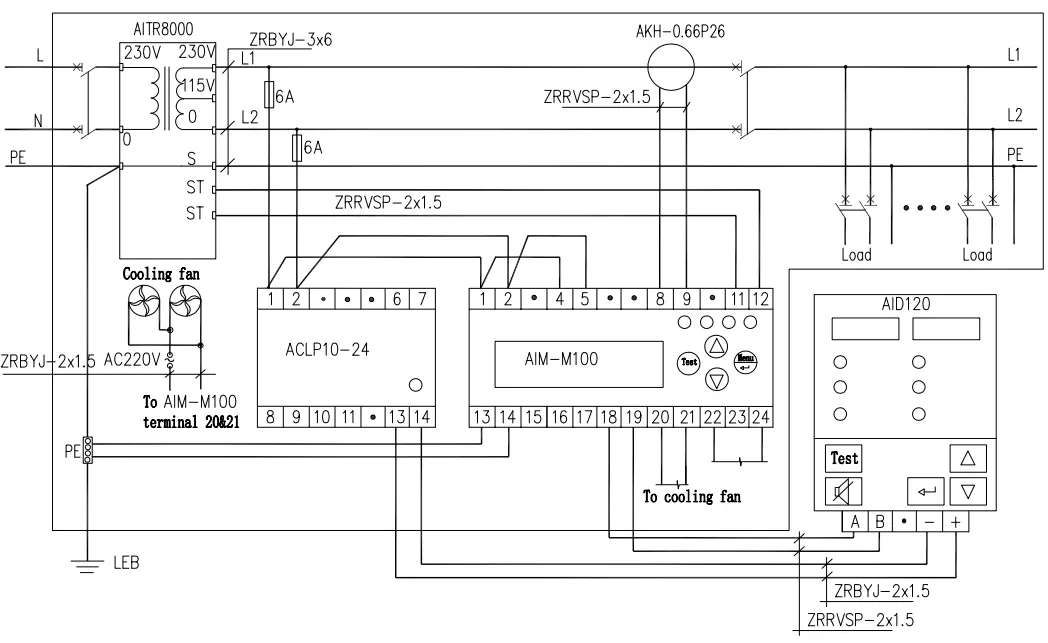

Typical connection
Function
Isolated DC power supply
Input
AC 220 V ±10%
Output
DC 24 V / 0.125 A
Output groups
3 × 24 V
Power
3 W
Mounting
DIN rail
Specifications
| General | Product type | Isolated DC power supply for medical IT systems |
| Application | Supply of AIM-M200, ASG150, AID150, AIL150 | |
| Input | Rated input voltage | AC 220 V (±10%) |
| Rated frequency | 50 / 60 Hz | |
| Output | Rated output voltage | DC 24 V ±5% |
| Rated output current | 0.125 A | |
| Output groups | Three 24 V output groups | |
| Rated power | 3 W | |
| Isolation | Dielectric strength | 4000 V AC / 1 min |
| Mounting | Installation | DIN rail |
Functions
| Supply | Isolated 24 V supply for the monitoring devices | ■ |
| Three separate 24 V output groups | ■ | |
| Safety | Galvanic isolation between input and output | ■ |
| Short-circuit and overload protection | ■ |
Need the user manual, a wiring diagram or a quotation for your project? Ask us — we reply within one working day.

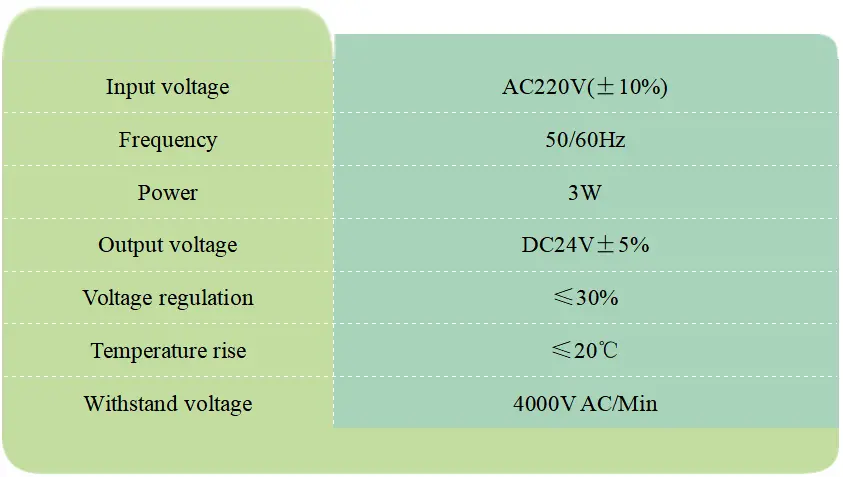

| Input voltage | AC 220 V ±10% |
| Output voltage | DC 24 V ±5% |
| Output power | 3 W |
| Supply frequency | 50 / 60 Hz |
| Voltage regulation | ≤ 30% |
| Temperature rise | ≤ 20 ℃ |
| Withstand voltage | 4000 V AC / 1 min |
