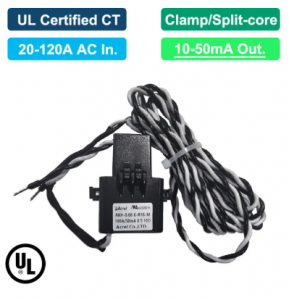

AKH-0.66/K-φ16-M UL Split-core Current Transformer
Series Overview
Dimension
Type
Split-core, mA or mV output
Input
20–120 A
Output
10–50 mA / 100–333 mV
Accuracy
Class 0.5
Hole size
Φ16 mm
Secondary lead
2 m ±10 cm
Specifications
| General | Product type | Split-core current transformer |
| Rated operating voltage | AC 0.66 kV | |
| Frequency | 50–60 Hz | |
| Environment | −30 °C ~ +70 °C | |
| Altitude | ≤3000 m | |
| Power-frequency withstand | 3000 V / 1 min / 50 Hz | |
| Site condition | No direct rain or snow, no severe pollution | |
| Input / output | Input current | (20–120) A |
| Output, M type | (10–50) mA | |
| Output, U type | (100–333) mV | |
| Accuracy class | 0.5 | |
| Burden | 10 Ω | |
| Hole size | Φ16 mm | |
| Secondary | Lead | Black and white twisted pair, 2 m ±10 cm |

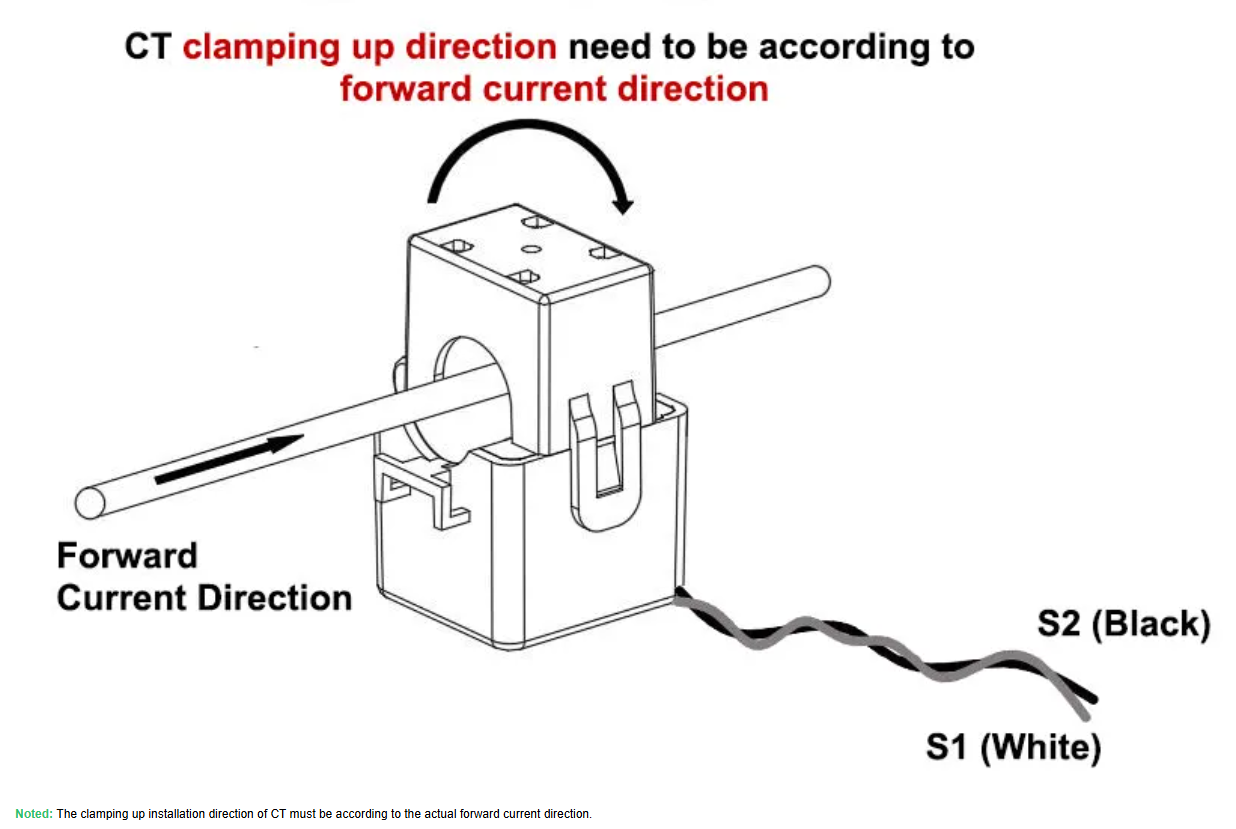

| Polarity | White is S1, black is S2 |

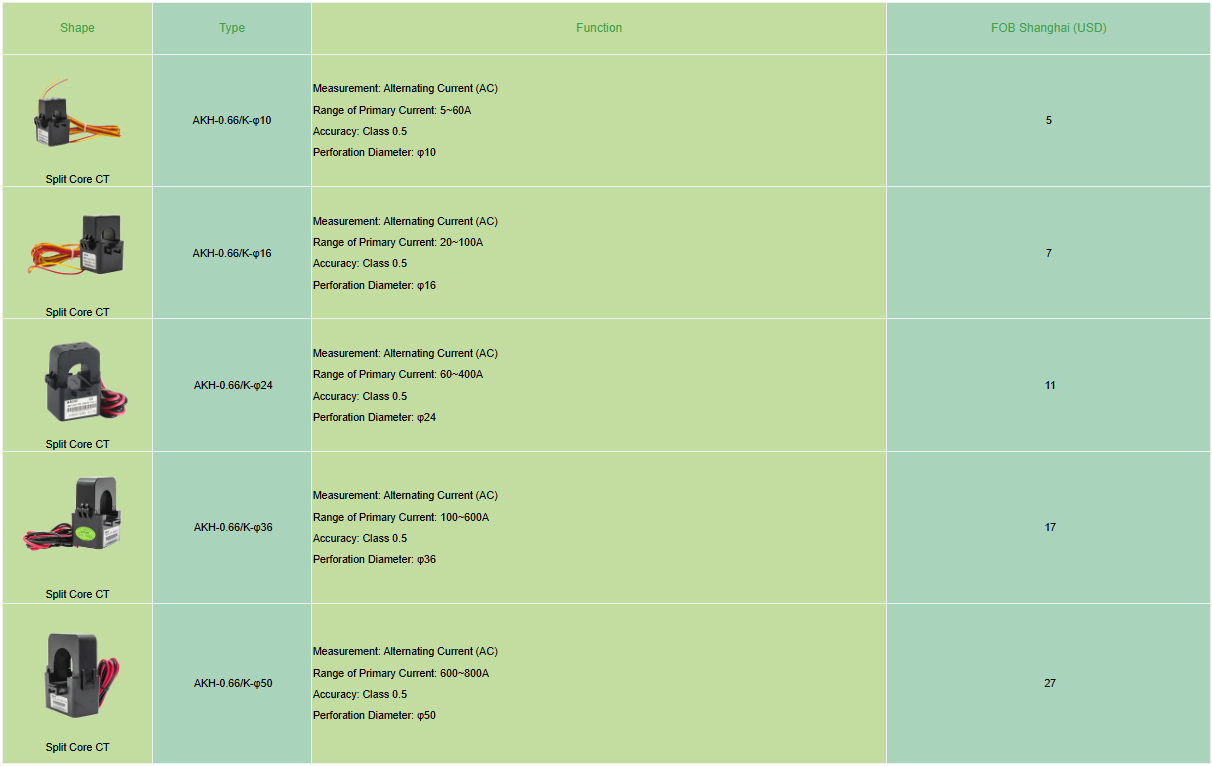

Models
| K-Φ16-M | 20–120 A input · 10–50 mA output · Φ16 hole |
| K-Φ16-U | 20–120 A input · 100–333 mV output · Φ16 hole |
Notes
| Typical pairing | AMC16 series multi-loop monitoring instruments |
| Installation | Clamp on without breaking the primary cable |
Need the user manual, a wiring diagram or a quotation for your project? Ask us — we reply within one working day.
Installation Instruction
1.Series Overview
2.General Technical Specs
● Measurement: Alternating Current (AC)
● Installtion: Split-core type/clamp on installation
● Primary Current Input: 20~120A AC
● Secondary Current Output: 10~50mA
● Secondary Current Output: 10~50mA
● Accuracy: Class 0.5
● Rated Operating Voltage: 660V AC
● Rated Frequency: 50~60Hz
● Operating Temperature: -30℃~+70℃
● Operating Altitude: ≤3000m
● Power Frequency withstand Voltage: 3000V/1min 50Hz
● Power Frequency withstand Voltage: 3000V/1min 50Hz
