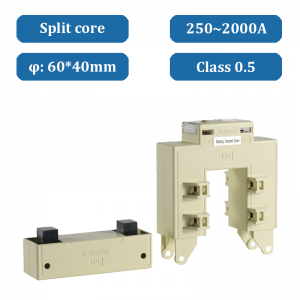

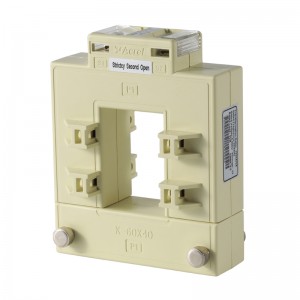

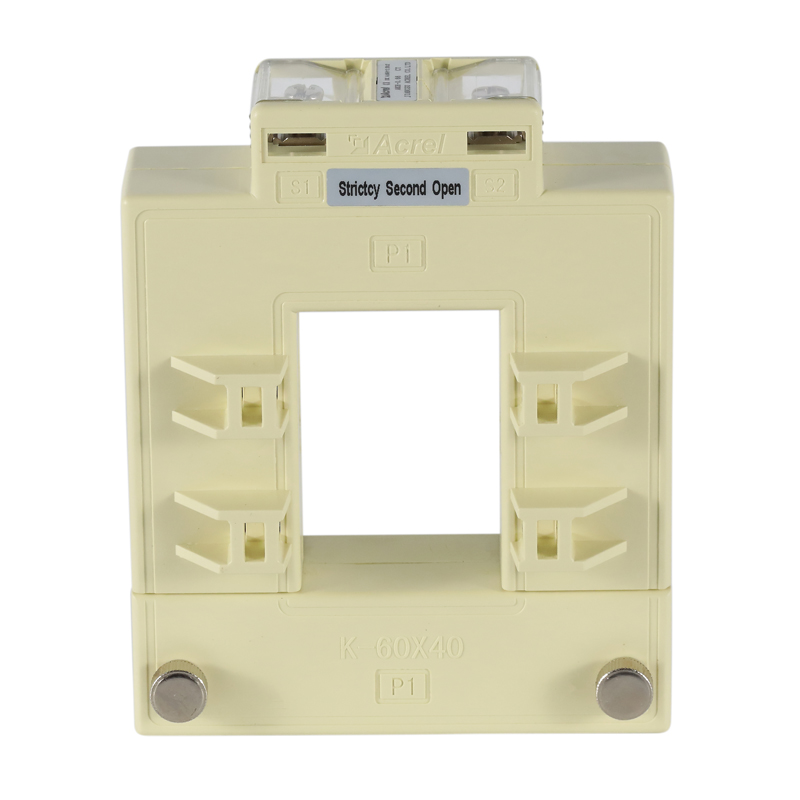

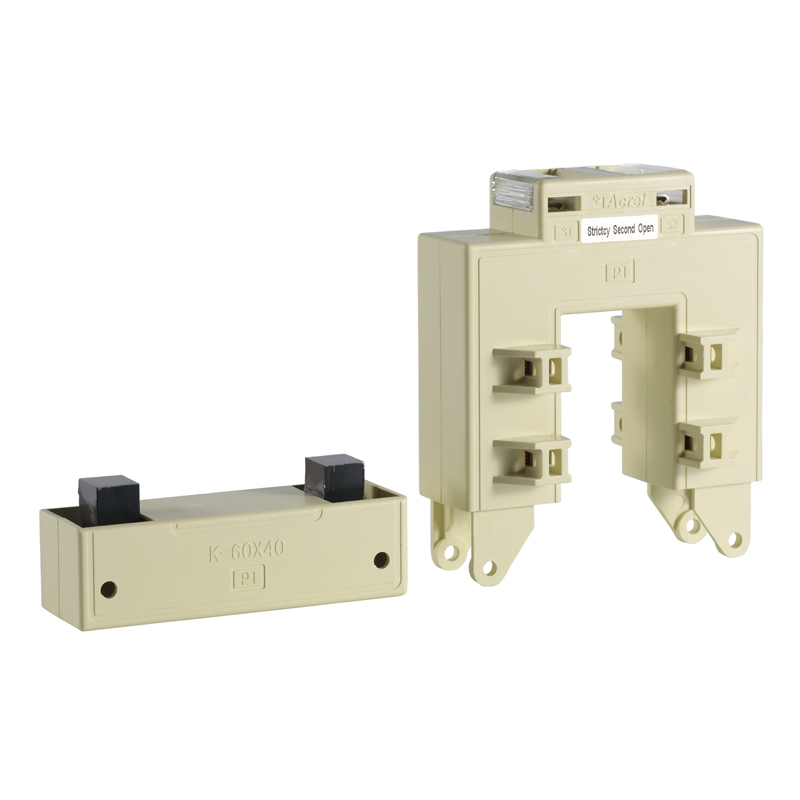

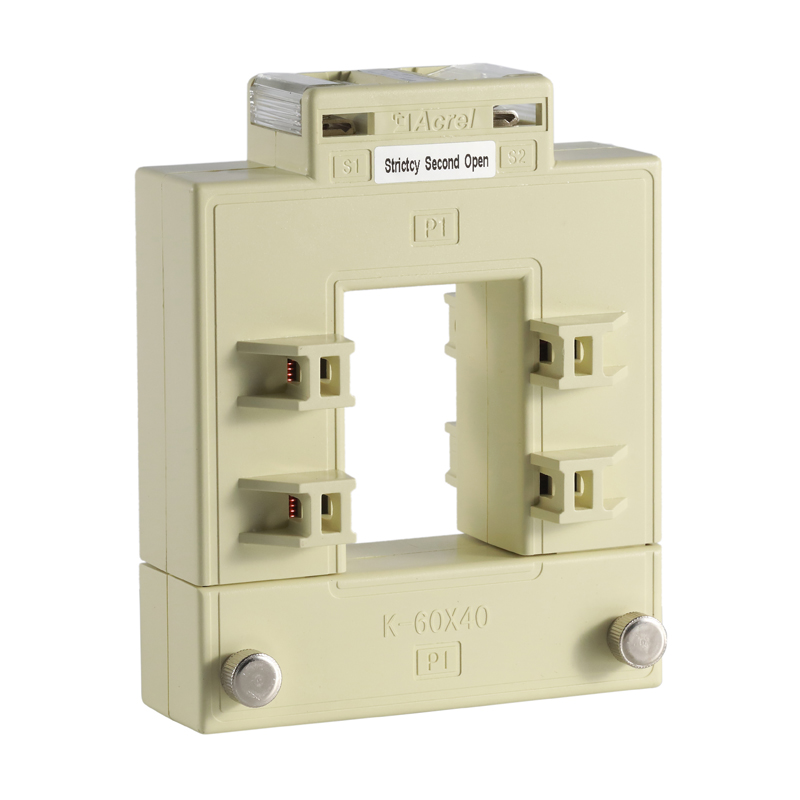

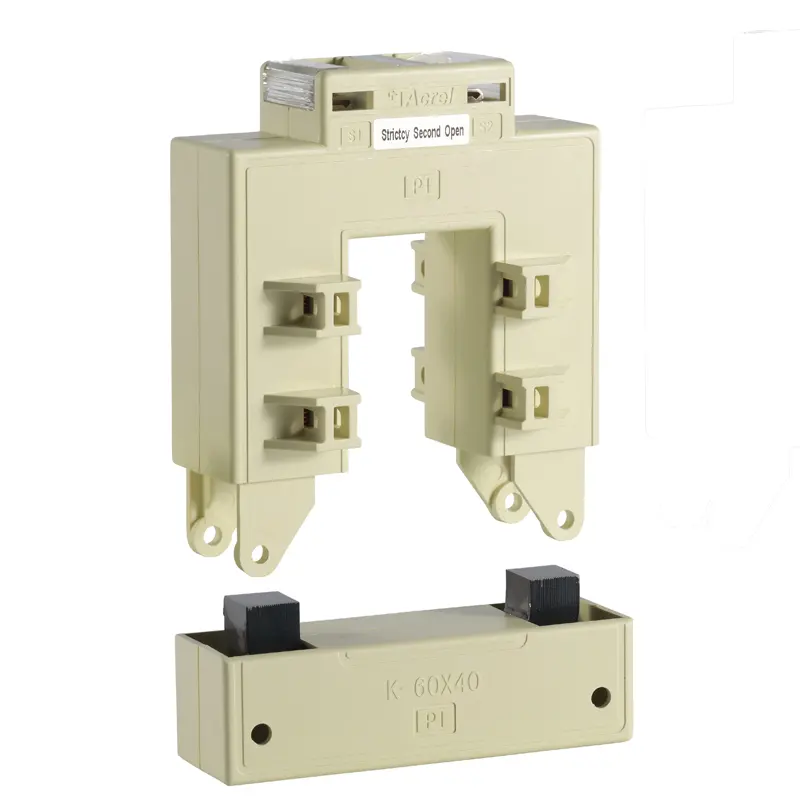

AKH-0.66/K Split-core square type current transformer

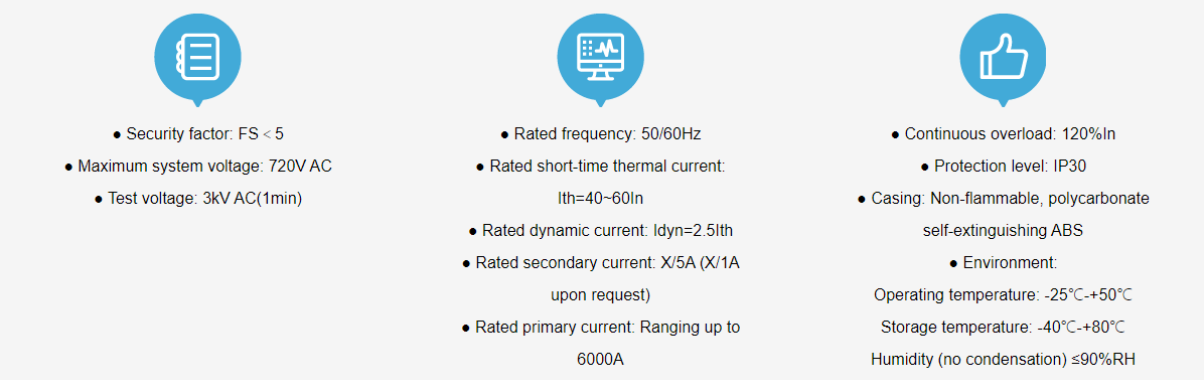

Characteristic

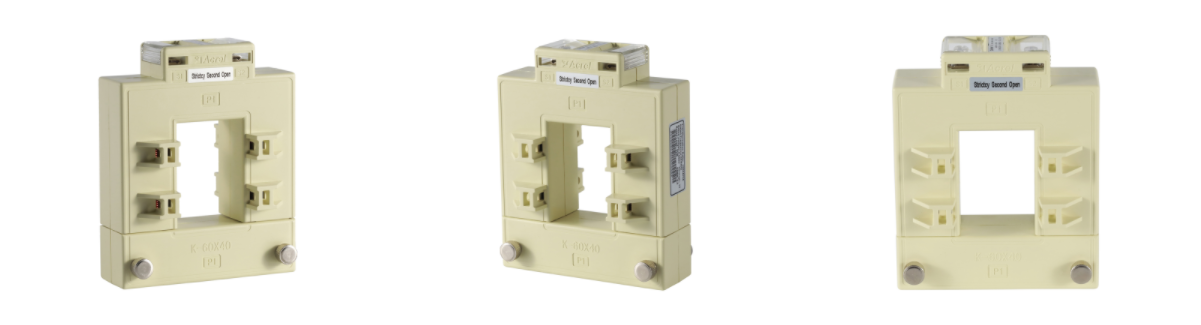

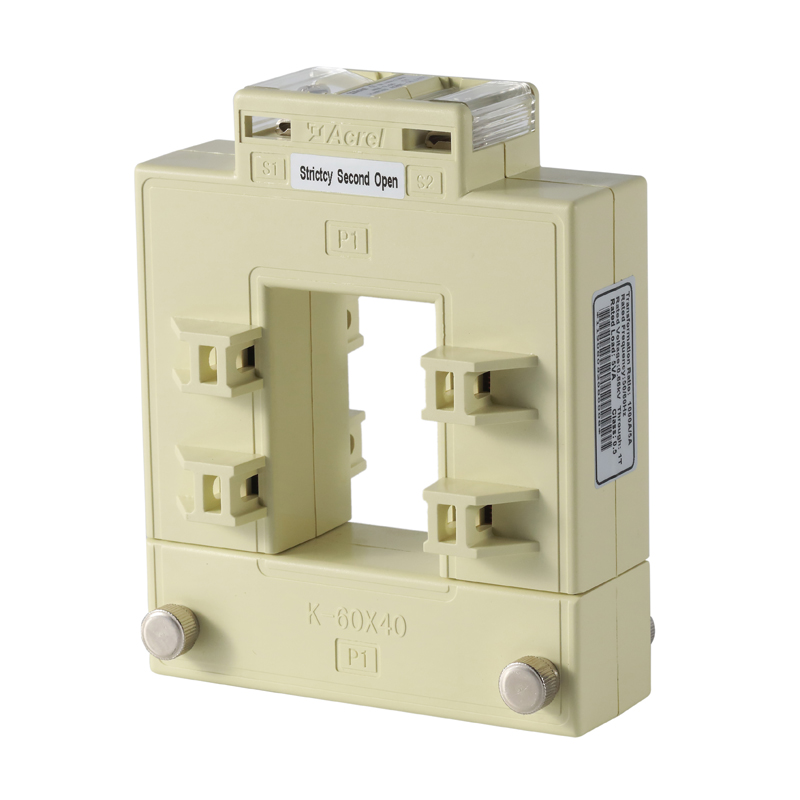

Appearance
Specifications
- Certification on file:

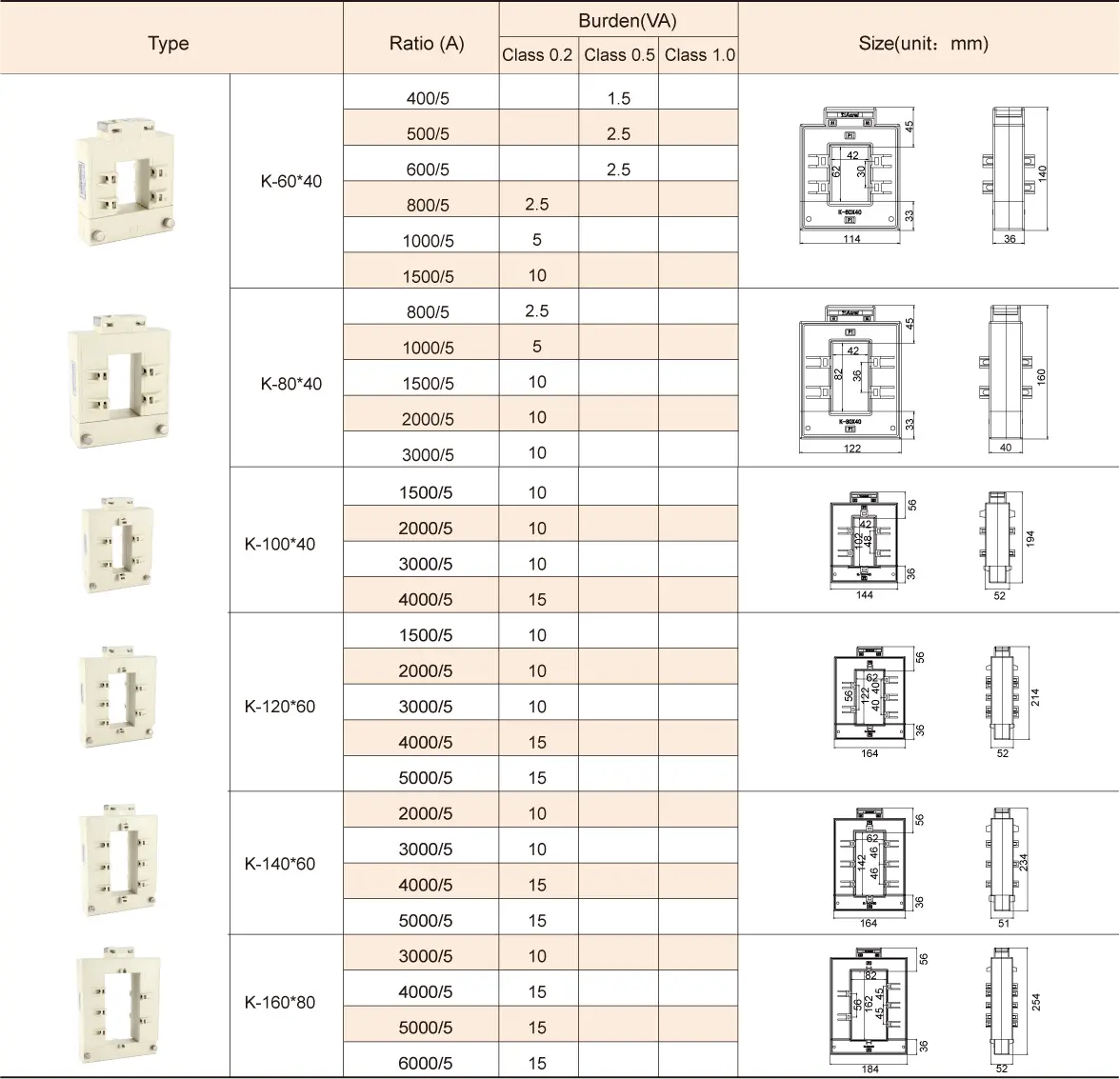

Specifications
| Type | Rated current ratio(A) | Precision degree | Rated load, VA |
| K-30×20 | 20-75/1A | 1 | 0.2 |
| 100-150/5(1)A | 1.0 | ||
| 200/5(1)A | 1.5 | ||
| 250-300/5(1)A | 0.5 | 1.5 | |
| 350-400/5(1)A | 2.5 | ||
| K-60×40 | 250-300/5(1)A | 1 | 1.5 |
| 350-450/5(1)A | 0.5 | 1.5 | |
| 500-800/5(1)A | 2.5 | ||
| 1000-1250/5(1 )A | 5 | ||
| 1500-2000/5(1 )A | 10 | ||
| K-80×40 | 300-450/5(1)A | 0.5 | 2.5 |
| 500-800/5(1)A | 5.0 | ||
| 1000-2000/5(1 )A | 10 | ||
| 2500-3000/5(1 )A | 0.2 | 10 | |
| K-80×50 | 250-300/5(1)A | 1 | 1.5 |
| 400-450/5(1)A | 0.5 | 1.5 | |
| 500-800/5(1)A | 2.5 | ||
| 1000/5(1)A | 5 | ||
| K-80×80 | 250-300/5(1)A | 1 | 1.5 |
| 400-450/5(1)A | 0.5 | 1.5 | |
| 500-800/5(1)A | 2.5 | ||
| 1000/5(1)A | 5 | ||
| K-100×40 | 1000-2000/5(1 )A | 0.5 | 10 |
| 2500-3000/5(1 )A | 0.2 | 10 | |
| 4000-5000A/5(1)A | 15 | ||
| K-120×60 | 400-450/5(1)A | 0.5 | 2.5 |
| 500-800/5(1)A | 5.0 | ||
| 1000-2000/5(1 )A | 10 | ||
| 2500-5000/5(1 )A | 0.2 | 10 | |
| K-120×80 | 500-800/5(1)A | 0.5 | 2.5 |
| 1000-1200/5(1 )A | 5 | ||
| 1250-1500/5(1 )A | 7.5 | ||
| K-130×40 | 1000-2000/5(1 )A | 0.5 | 10 |
| 2500-5000/5(1 )A | 0.2 | 10 | |
| 5000/5(1)A | 0.2 | 15 | |
| K-140×60 | 1000-2000/5(1 )A | 0.5 | 10 |
| 2500-3000/5(1 )A | 0.2 | 10 | |
| 4000-5000/5(1 )A | 15 | ||
| K-160×80 | 1000-2000/5(1 )A | 0.5 | 10 |
| 2500-3000/5(1 )A | 0.2 | 10 | |
| 4000-5000/5(1 )A | 15 | ||
| K-200×80 | 1000-2000/5(1 )A | 0.5 | 10 |
| 2500-3000/5(1 )A | 0.2 | 10 | |
| 4000-5000/5(1 )A | 15 |
Need the user manual, a wiring diagram or a quotation for your project? Ask us — we reply within one working day.
1.Technical parameter
|
Type |
Rated current ratio(A) |
Precision degree |
Rated load, VA |
|
K-30×20 |
20-75/1A |
1 |
0.2 |
|
100-150/5(1)A |
1.0 |
||
|
200/5(1)A |
1.5 |
||
|
250-300/5(1)A |
0.5 |
1.5 |
|
|
350-400/5(1)A |
2.5 |
||
|
K-60×40 |
250-300/5(1)A |
1 |
1.5 |
|
350-450/5(1)A |
0.5 |
1.5 |
|
|
500-800/5(1)A |
2.5 |
||
|
1000-1250/5(1 )A |
5 |
||
|
1500-2000/5(1 )A |
10 |
||
|
K-80×40 |
300-450/5(1)A |
0.5 |
2.5 |
|
500-800/5(1)A |
5.0 |
||
|
1000-2000/5(1 )A |
10 |
||
|
2500-3000/5(1 )A |
0.2 |
10 |
|
|
K-80×50 |
250-300/5(1)A |
1 |
1.5 |
|
400-450/5(1)A |
0.5 |
1.5 |
|
|
500-800/5(1)A |
2.5 |
||
|
1000/5(1)A |
5 |
||
|
K-80×80 |
250-300/5(1)A |
1 |
1.5 |
|
400-450/5(1)A |
0.5 |
1.5 |
|
|
500-800/5(1)A |
2.5 |
||
|
1000/5(1)A |
5 |
||
|
K-100×40 |
1000-2000/5(1 )A |
0.5 |
10 |
|
2500-3000/5(1 )A |
0.2 |
10 |
|
|
4000-5000A/5(1)A |
15 |
||
|
K-120×60 |
400-450/5(1)A |
0.5 |
2.5 |
|
500-800/5(1)A |
5.0 |
||
|
1000-2000/5(1 )A |
10 |
||
|
2500-5000/5(1 )A |
0.2 |
10 |
|
|
K-120×80 |
500-800/5(1)A |
0.5 |
2.5 |
|
1000-1200/5(1 )A |
5 |
||
|
1250-1500/5(1 )A |
7.5 |
||
|
K-130×40 |
1000-2000/5(1 )A |
0.5 |
10 |
|
2500-5000/5(1 )A |
0.2 |
10 |
|
|
5000/5(1)A |
0.2 |
15 |
|
|
K-140×60 |
1000-2000/5(1 )A |
0.5 |
10 |
|
2500-3000/5(1 )A |
0.2 |
10 |
|
|
4000-5000/5(1 )A |
15 |
||
|
K-160×80 |
1000-2000/5(1 )A |
0.5 |
10 |
|
2500-3000/5(1 )A |
0.2 |
10 |
|
|
4000-5000/5(1 )A |
15 |
||
|
K-200×80 |
1000-2000/5(1 )A |
0.5 |
10 |
|
2500-3000/5(1 )A |
0.2 |
10 |
|
|
4000-5000/5(1 )A |
15 |
