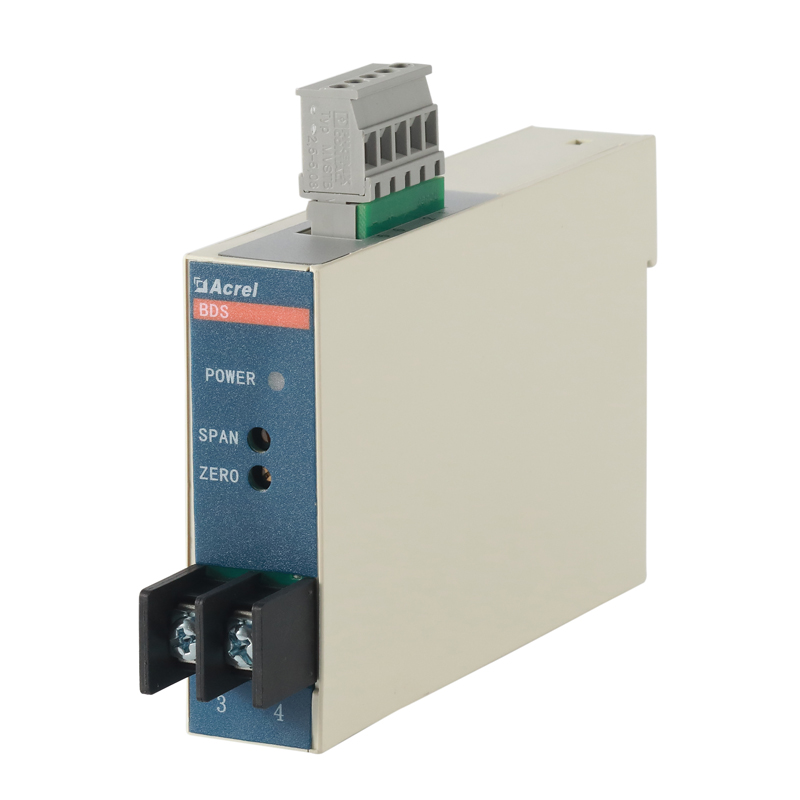

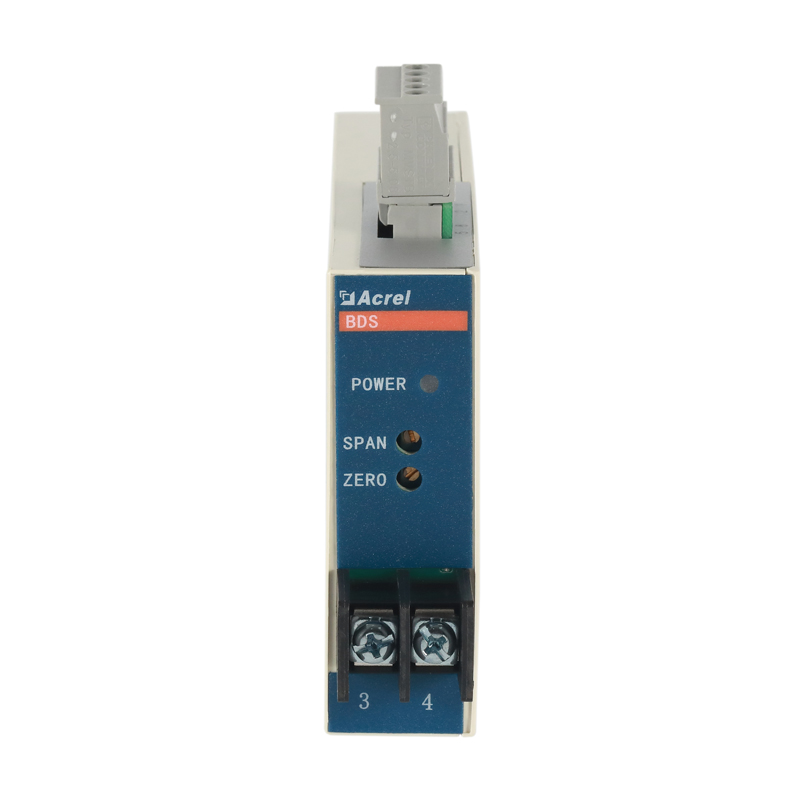

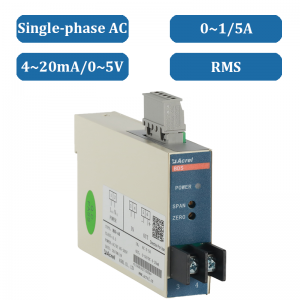

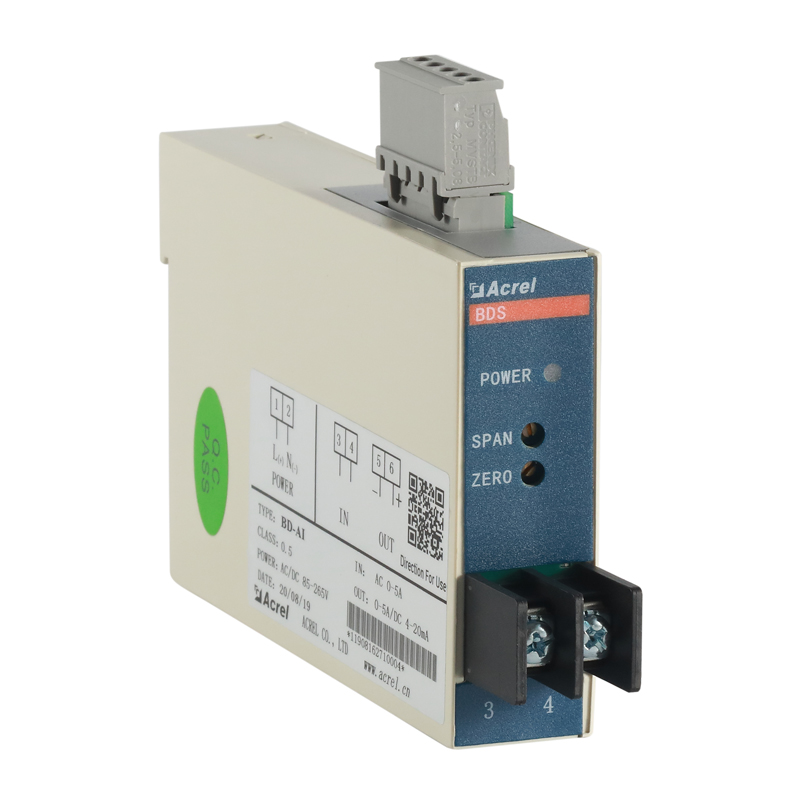

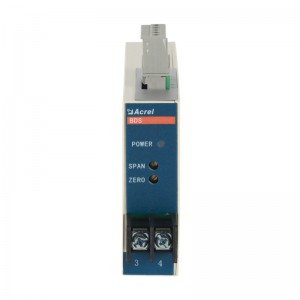

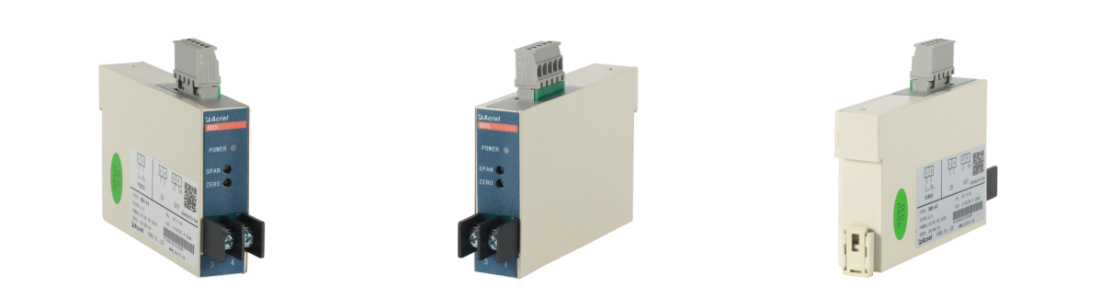

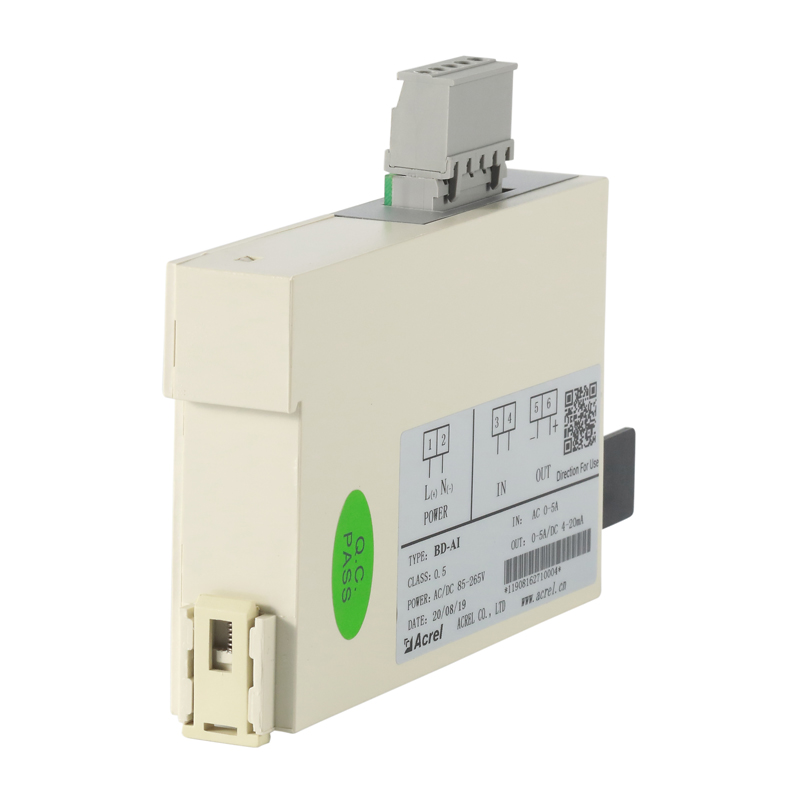

BD-AI single phase AC current transducer

Name: BD-AI single phase AC current transducer
Brand: Acrel
SKU: BD-AI
Availability: InStock

BD-AI Series Single Phase current Transducer

Measurement

- AC current

- Overload: 1.2 times of rated value

- Analog Output DC 0-5V/0-10V/0-20mA/4-20mA

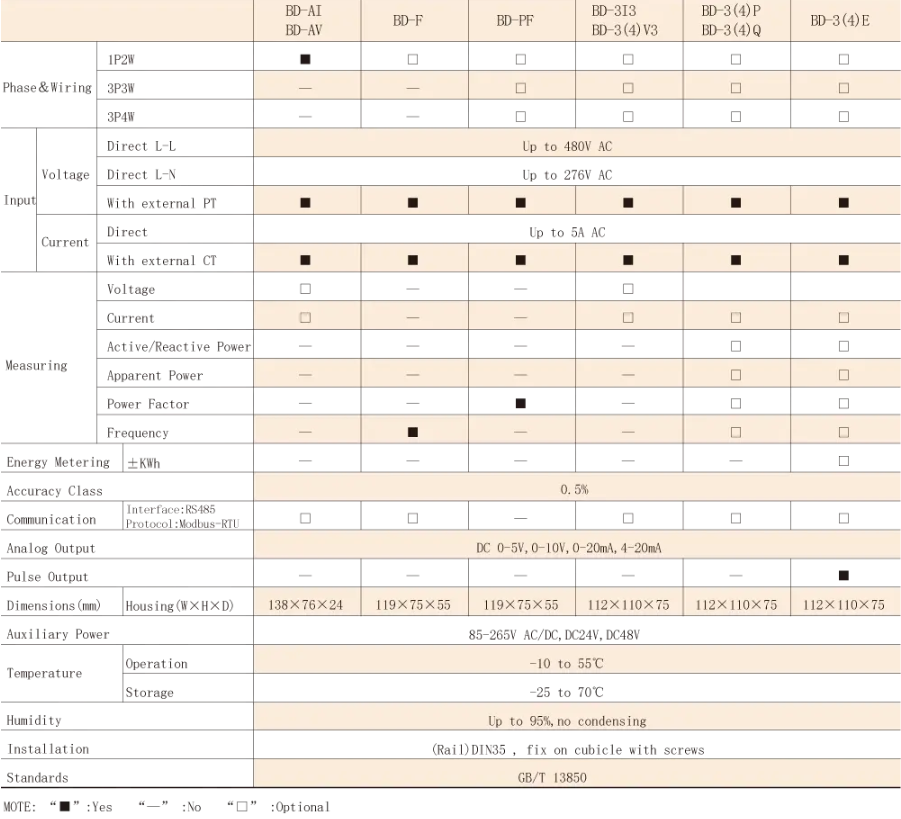

Information

General	Product type	Single-phase AC current transducer
	Function	Isolated analog transmission of AC current
	Accuracy class	0.5
Input	Current input (AC)	1 A / 5 A
	Overload	1.2× continuous, 10×/5 s instantaneous
	Consumption	≤0.3 VA
	Frequency	50 ±5 Hz, 60 ±5 Hz
Output	Nominal output	DC 4–20 mA / 0–20 mA / 0–5 V / 0–10 V
	Load resistance	≤600 Ω current output, ≥1000 Ω voltage output
	Ripple content	< 0.5% peak value
	Response time	≤400 ms
Supply	Supply voltage	AC 85–265 V, DC 100–350 V, DC 24 V / 48 V
Supply	Power consumption	≤3 VA
Isolation	Insulation resistance	≥100 MΩ
Isolation	Withstand voltage	2.0 kV / 1 min / 50 Hz
Environment	Operating temperature	−10 °C ~ +55 °C
	Storage temperature	−25 °C ~ +70 °C
	Humidity	≤90% RH, no condensation
	Altitude	≤2000 m
Mounting	Installation	TS35 rail or screw fixing

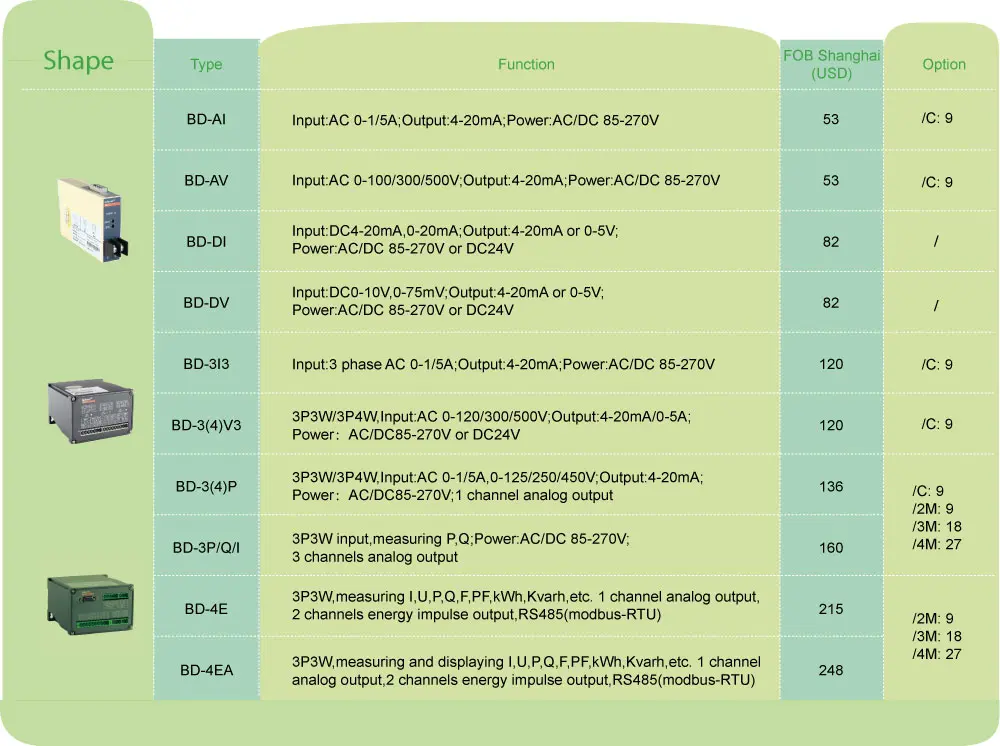

BD-AI	Single-phase AC current transducer
BD-AI/T	True RMS measurement, for non-sine wave and VFD
BD-AI/C	With RS485 communication and dial switch setting
BD-AV	Single-phase AC voltage transducer
BD-DI	DC current transducer
BD-DV	DC voltage transducer

Need the user manual, a wiring diagram or a quotation for your project? Ask us — we reply within one working day.
