BD-3P 3P3W Active power Electrical transducer
Characteristic

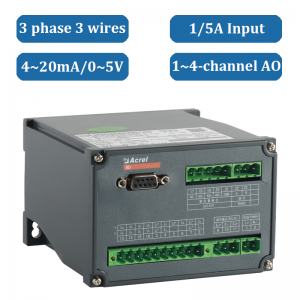

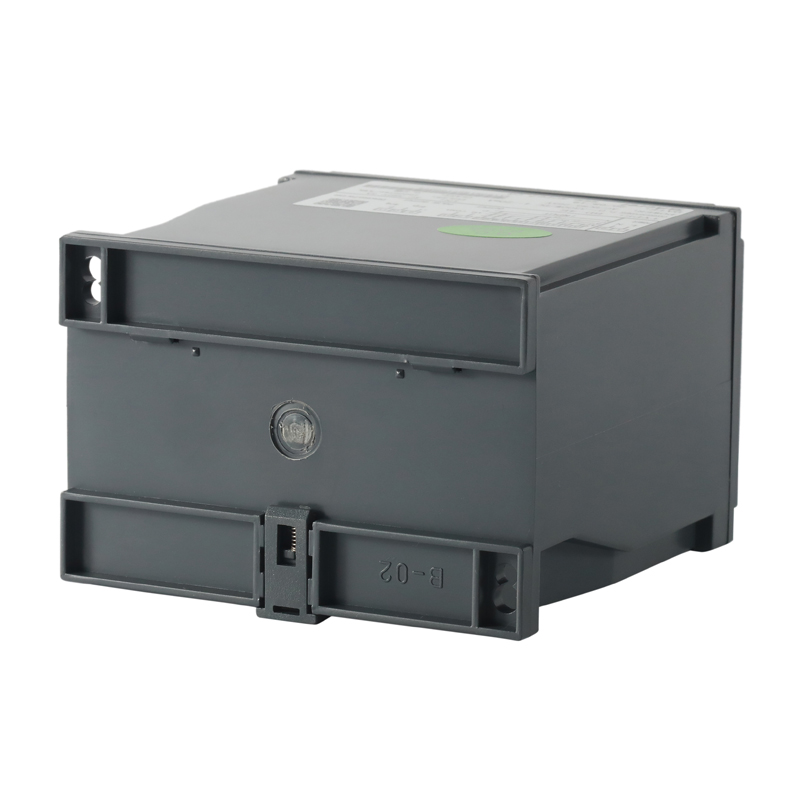

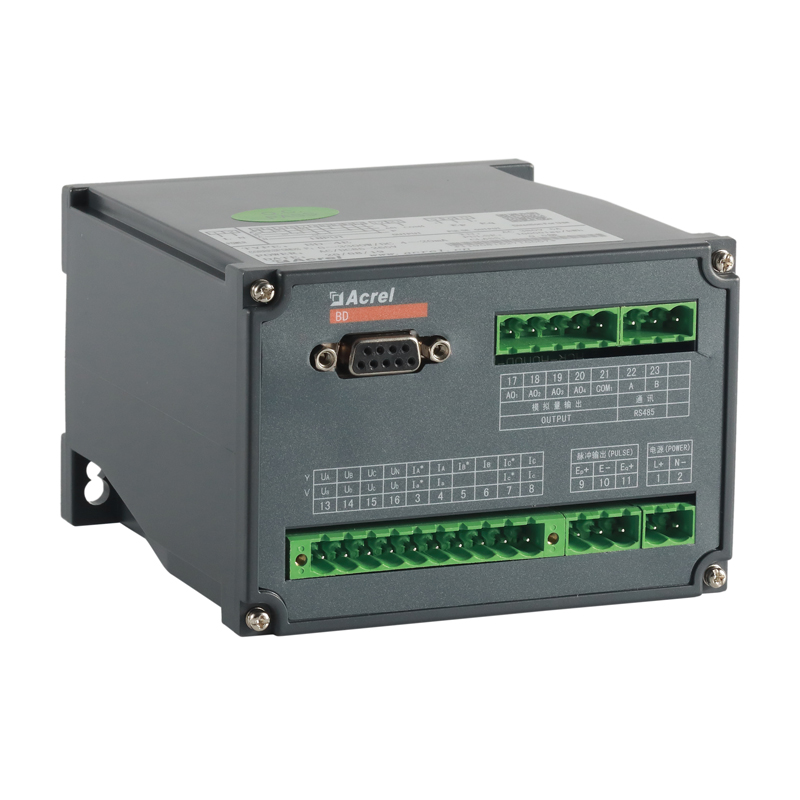

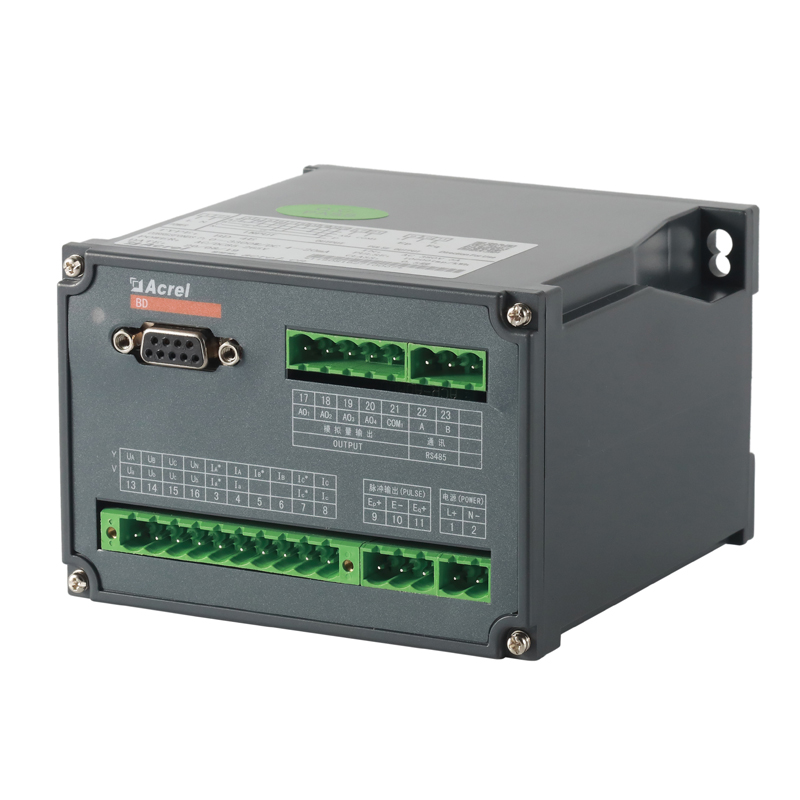

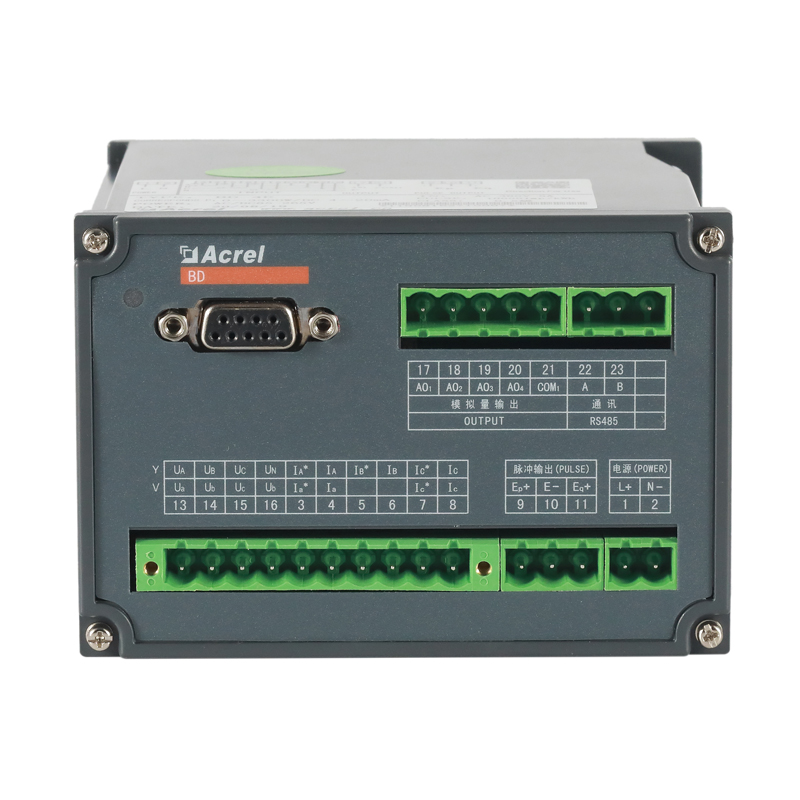

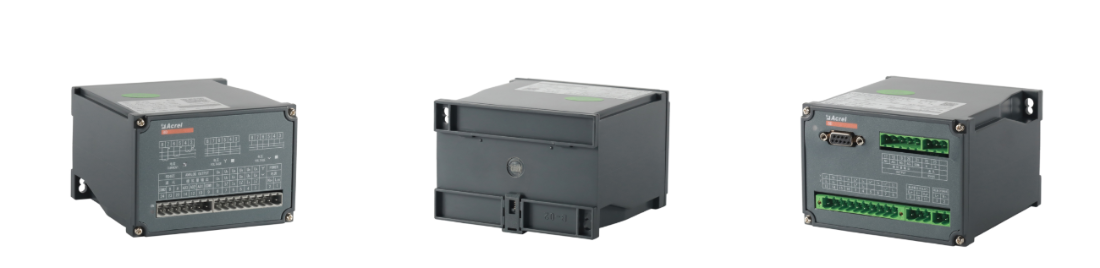

Appearance
Specifications
Type
3P3W active power
Current input
AC 1 A / 5 A
Voltage input
AC 100 / 220 / 380 V
Output
DC 4–20 mA
Accuracy
Class 0.5
Response time
≤400 ms
- Certification on file:
Specifications
| General | Product type | 3-phase 3-wire active power transducer |
| Function | Isolated analog transmission of active power | |
| Accuracy class | 0.5 | |
| Input | Current input (AC) | 1 A / 5 A |
| Voltage input (AC) | 100 V / 220 V / 380 V | |
| Overload | 1.2× continuous, 10×/5 s current, 2×/30 s voltage | |
| Consumption | ≤0.3 VA current input, ≤0.6 VA at 300 V | |
| Frequency | 50 ±5 Hz, 60 ±5 Hz | |
| Output | Nominal output | DC 4–20 mA / 0–20 mA / 0–5 V / 0–10 V |
| Output scaling | Proportional to power, e.g. 4–20 mA = 0–866 W | |
| Load resistance | ≤600 Ω current output, ≥1000 Ω voltage output | |
| Ripple content | < 0.5% peak value | |
| Response time | ≤400 ms | |
| Supply | Supply voltage | AC 85–265 V, DC 100–350 V, DC 24 V / 48 V |
| Power consumption | ≤4 VA | |
| Isolation | Insulation resistance | ≥100 MΩ |
| Withstand voltage | 2.0 kV / 1 min / 50 Hz | |
| Environment | Operating temperature | −10 °C ~ +55 °C |
| Storage temperature | −25 °C ~ +70 °C | |
| Humidity | ≤90% RH, no condensation | |
| Altitude | ≤2000 m | |
| Mounting | Installation | TS35 rail or screw fixing |
Models
| BD-3P | 3-phase 3-wire active power transducer |
| BD-3Q | 3-phase 3-wire reactive power transducer |
| BD-3P/Q/I | 3-phase 3-wire P / Q / I combination transducer |
| BD-4P | 3-phase 4-wire active power transducer |
| BD-4Q | 3-phase 4-wire reactive power transducer |
| BD-4P/Q/I | 3-phase 4-wire P / Q / I combination transducer |
