ADW600 Multi-circuit Wireless Energy Meter
General

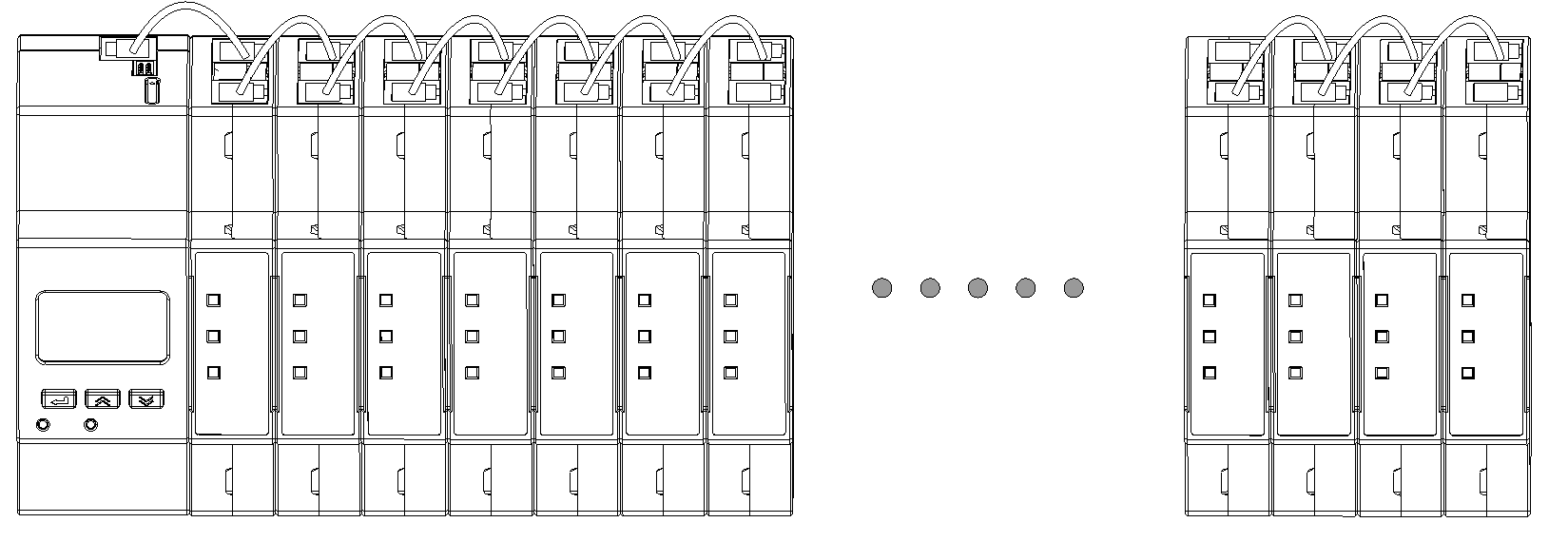

The ADW600 multi circuit power metering module is mainly used to measure three-phase active energy in low-voltage networks, and has the advantages of small size, easy installation, and rich functions. The product adopts a modular design, including voltage module, current module, switch module, temperature measurement and leakage module, etc. The modules are connected by Ethernet cables and can support multi circuit splicing. Suitable for low-voltage side multi circuit metering scenarios, especially for power transformation.
Function
√ Input voltage
3*57.7/100V, 3*220/380V, 3*100V, 3*380V
√ Inputr current
5A, 100A, 400A, 600A
√ Installation
35mm Din-rail method

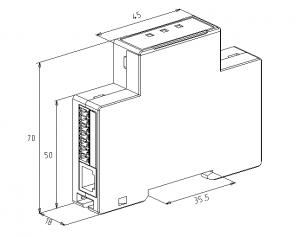

√ Dimension(L*W*H)
45*18*70mm

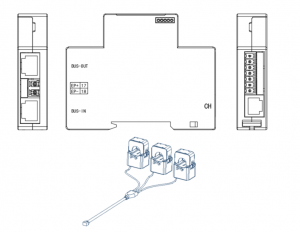

Wiring
1.Technical parameter
| Item | Performance Parameters | |||
| Model Series | ADW600-U | |||
| Rated voltage | 3×57.7/100V，3×220/380V，3×100V, 3×380V | |||
| Accuracy class | 0.5% | |||
| Frequency | 45-65Hz | |||
| Power consumption | <0.5VA | |||
| Item | Performance Parameters | |||
| Model Series | ADW600-I | |||
| Input current | D10：0.03-0.15(6)A，D16：0.8-2(100)A，D24：3.2-8(400)A，D36：4.8-12(600)A | |||
| Accuracy class | 0.5% | |||
| Pulse width | 80±20ms | |||
| Pulse constant | D10：6400imp/kWh，D16：400imp/kWhD24：100imp/kWh，D36：60imp/kWh | |||
| Power consumption | <0.5VA | |||
| Item | Performance Parameters | |||
| Model Series | ADW600-K | ADW600-TL | ||
| Switching output | 4 DI, with build-in 12VDC power supply | / | ||
| Switching input | 2 DO, Max allowed voltage: AC230V/DC30V, 3A | / | ||
| Temperature measurement | / | 12 temperature measurement channels with 12 NTC, accuracy ±2 ℃ | ||
| Residual current measurement | / | 4 measuring channels, maximum input 1mA, accuracy 1% | ||
2.Environmental condition
| Operating temperature | -25℃~55℃ | ||
| Storage temperature | -40℃～+70℃ | ||
| Relative humidity | ≤95℅ (without condensation) | ||
| Altitude | ≤2000m |
