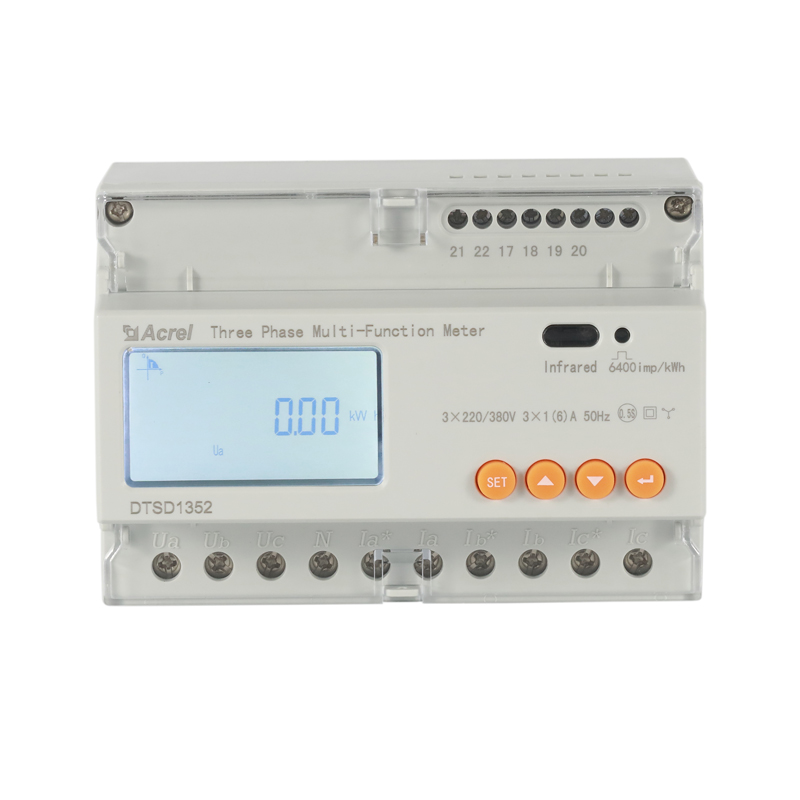

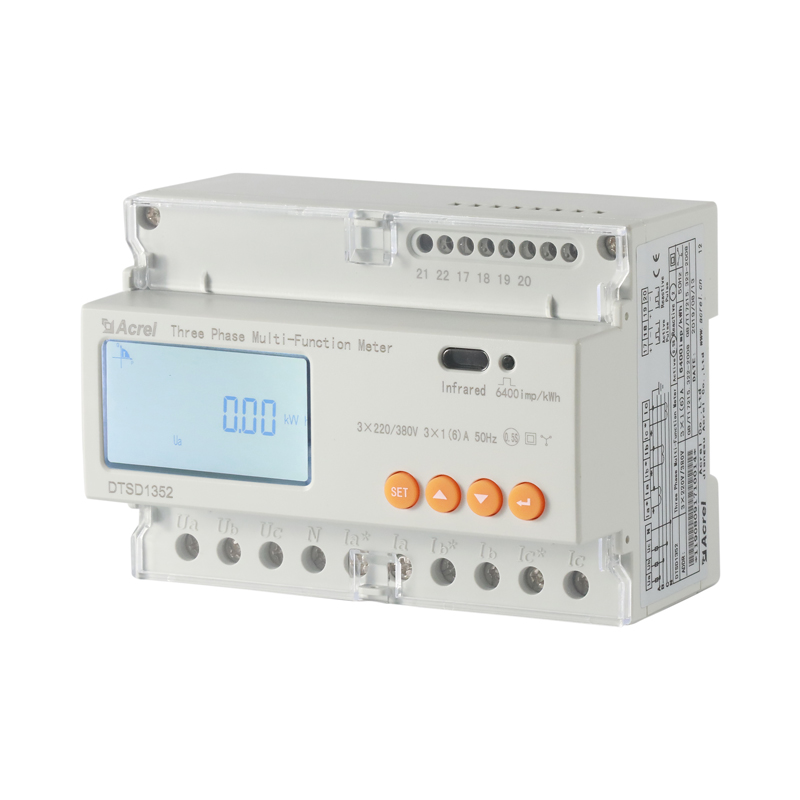

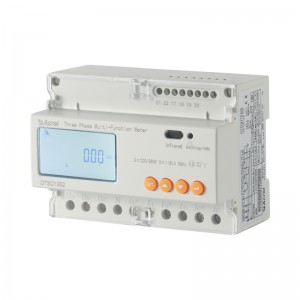

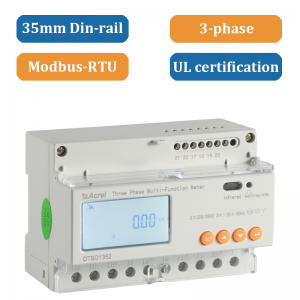

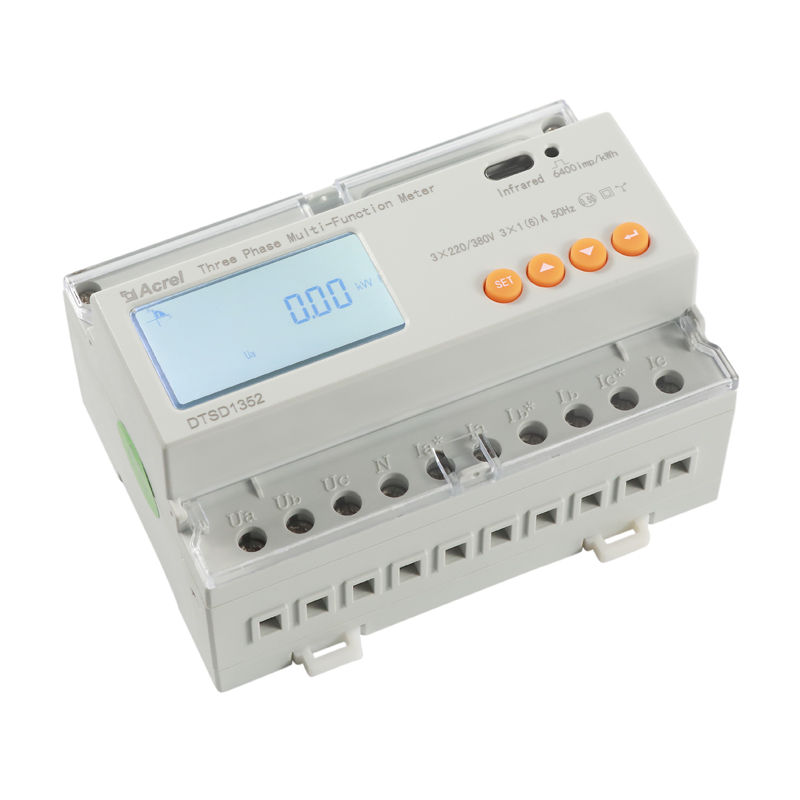

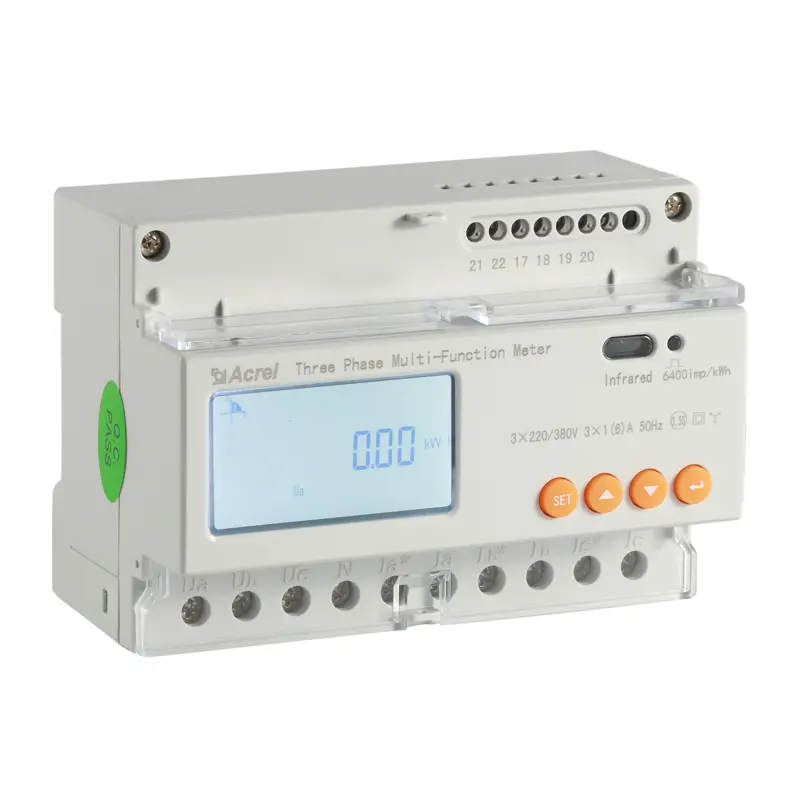

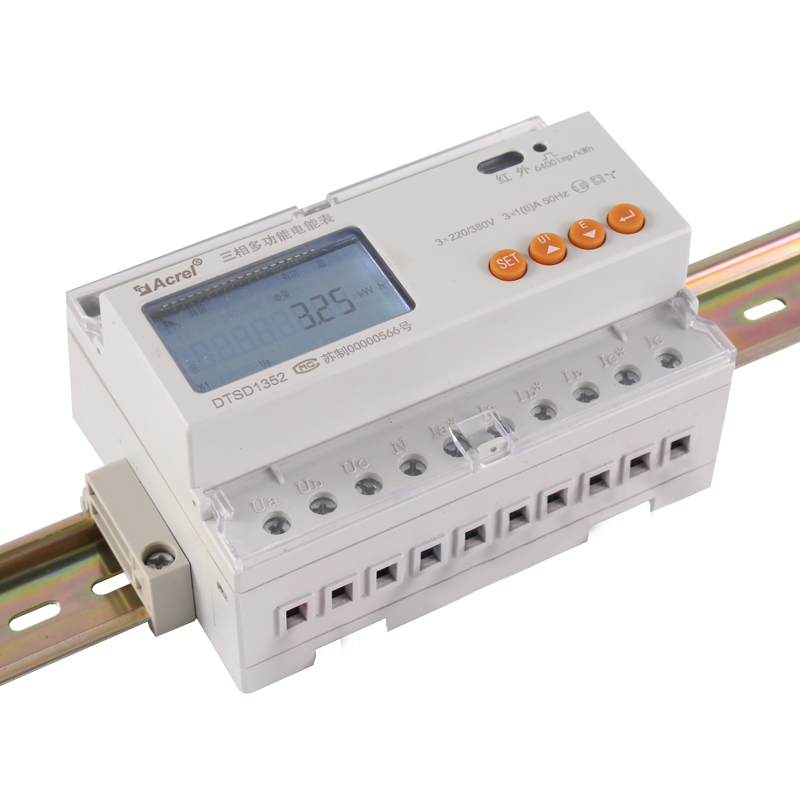

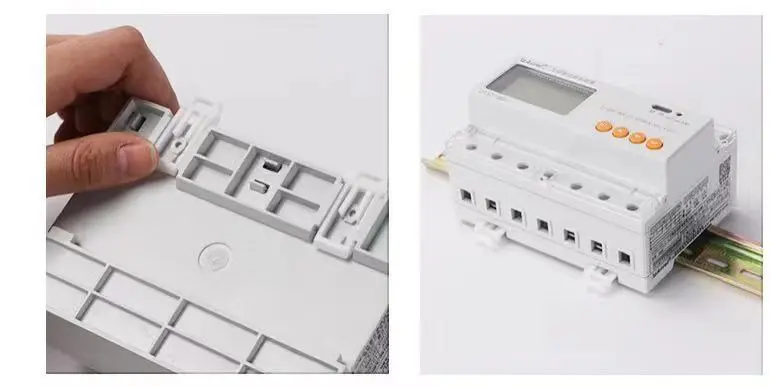

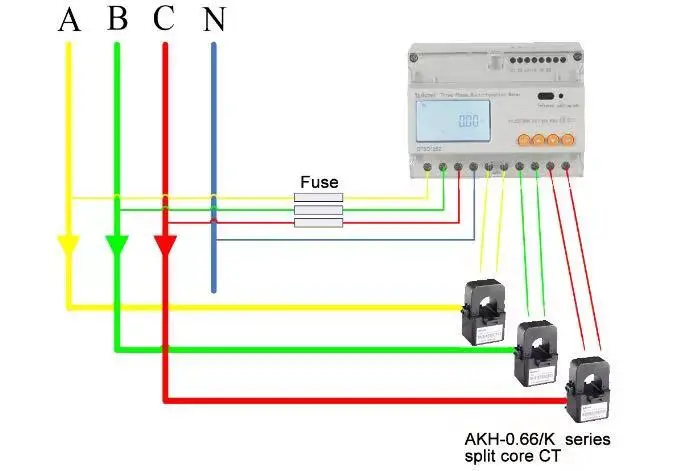

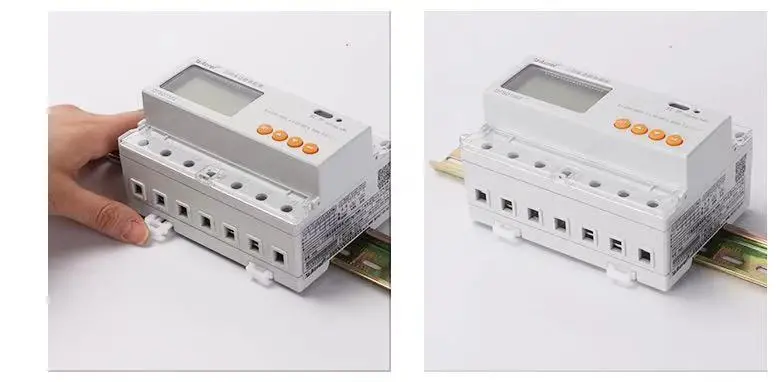

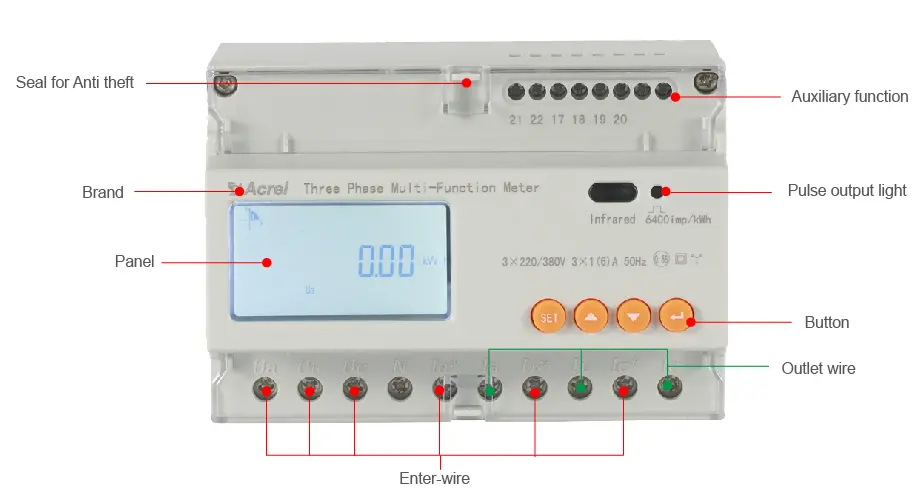

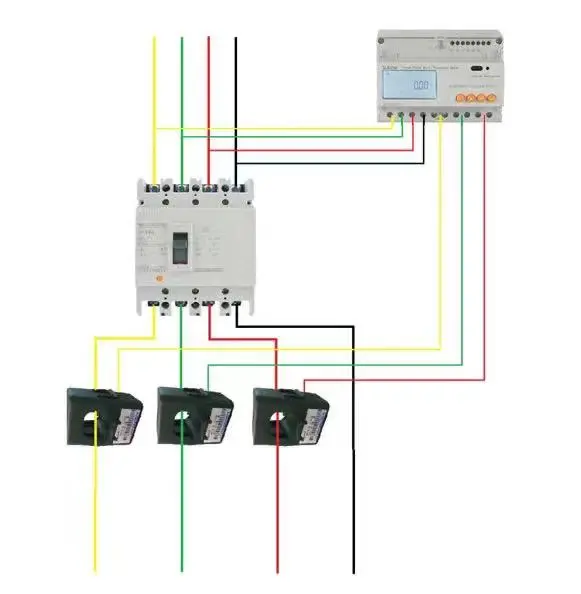

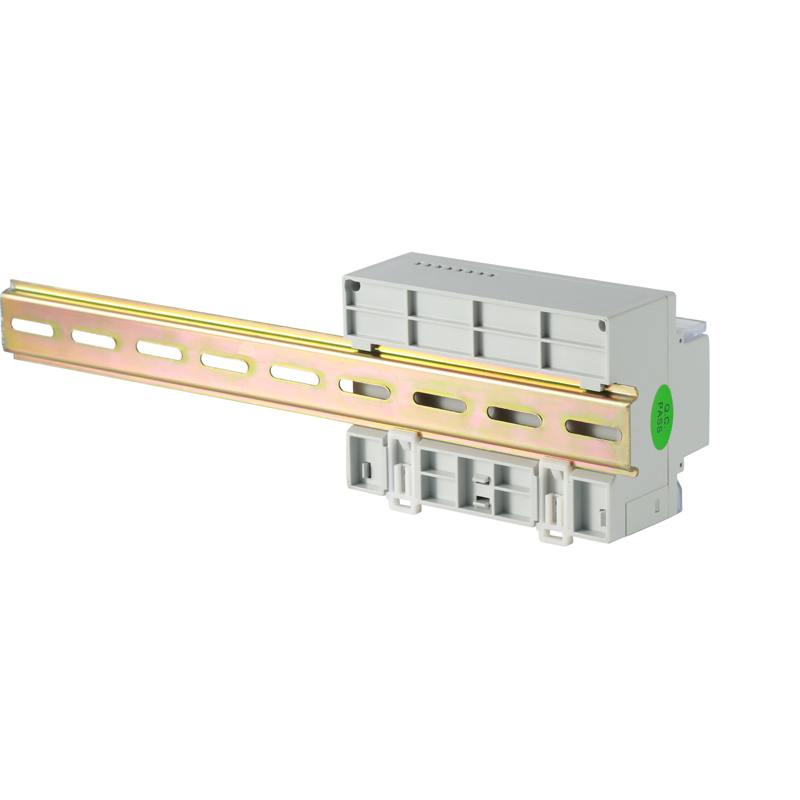

DTSD1352-C Din-rail 3-phase Programmable energy meter

Name: DTSD1352-C Din-rail 3-phase Programmable energy meter
Brand: Acrel
SKU: DTSD1352-C
Availability: InStock

● AC 3×220/380V, 3×380V, 3×57.7/100V, 3×100V

● 3×1(6)A, 3×10(80)A

● U, I, P, Q, S, PF, kWh, kvarh

● RS485(MODBUS-RTU)

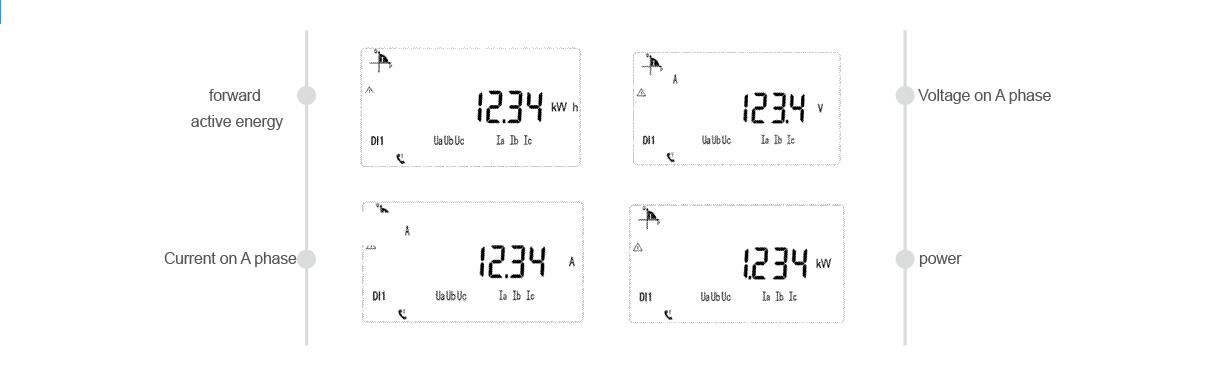

● LCD display

● Frozen data

● 2-31st Harmonics

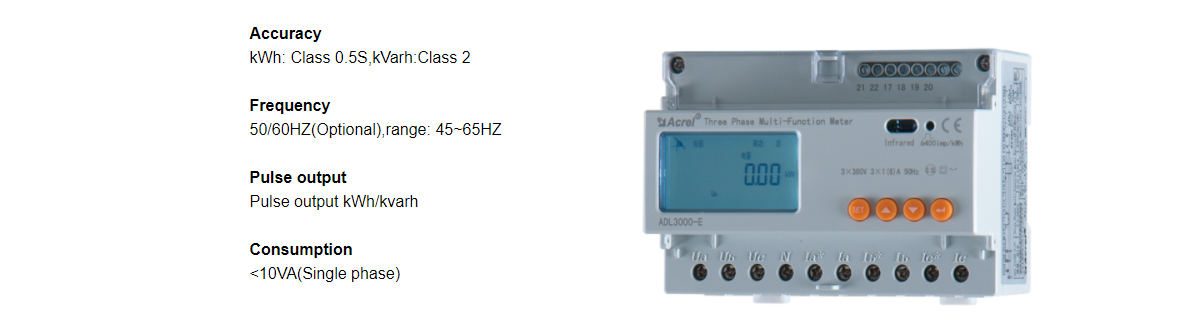

● kWh Class 0.5S, kVarh Class 2

Information

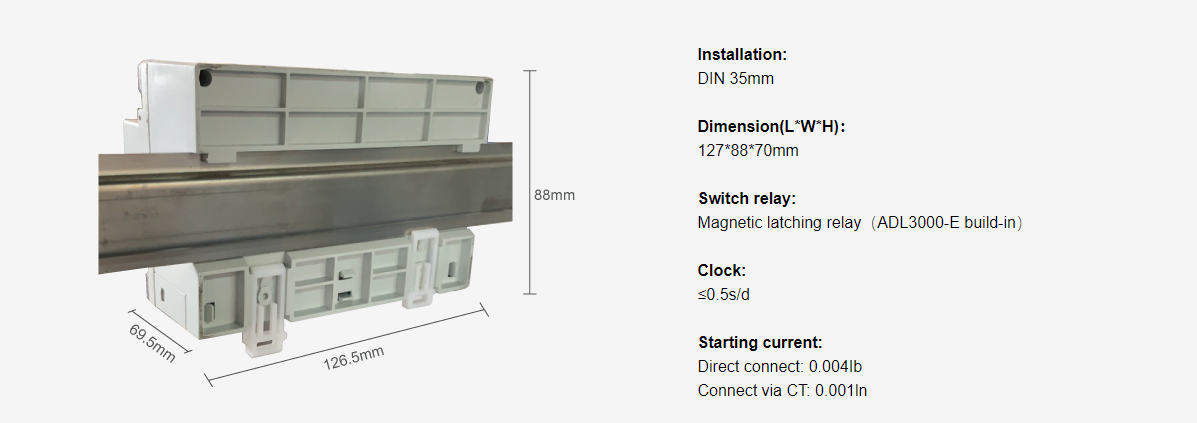

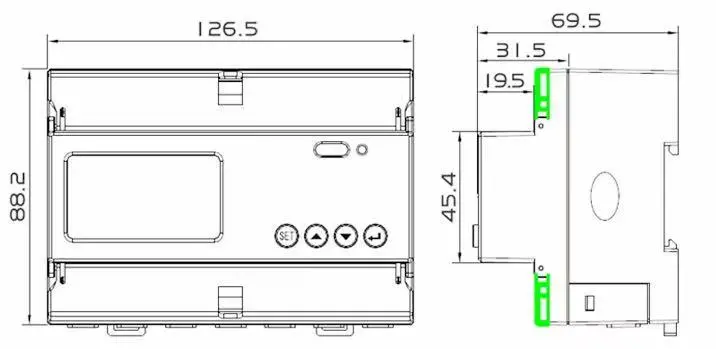

Specification		3 phase 3 wires, 3 phase 4 wires
Voltage	Reference voltage	3×100V, 3×380V, 3×57.7/100V, 3×220/380V
	Consumption	<10VA(Single phase)
	Impedance	>2MΩ
	Accuracy class	Error±0.2%
Current	Input current	3×1(6)A, 3×1(6)A(Outlay transformer), 3×10(80)A, 3×10(100)A(Outlay transformer)
	Consumption	<1VA(Single phase rated current)
	Accuracy class	Error±0.2%
Power		Active, reactive, apparent power, error±0.5%
Frequency		45~65Hz, Error±0.2%
Temperature		-40℃~99℃
Energy		Active energy(Accuracy class: 0.5, 1), reactive energy(Accuracy class 2)
Clock		≤0.5s/d
Energy pulse output		1 active optocoupler output, 1 reactive optocoupler output
Switching output		1 Switching output, Maximum allowed voltage: DC/AC 220V
Switching input		1 optocoupler input, Maximum allowed voltage: DC/AC 220V
Width of pulse		80±20ms
Pulse constant		6400imp/kWh,400imp/kWh(Correspond with the basic current)

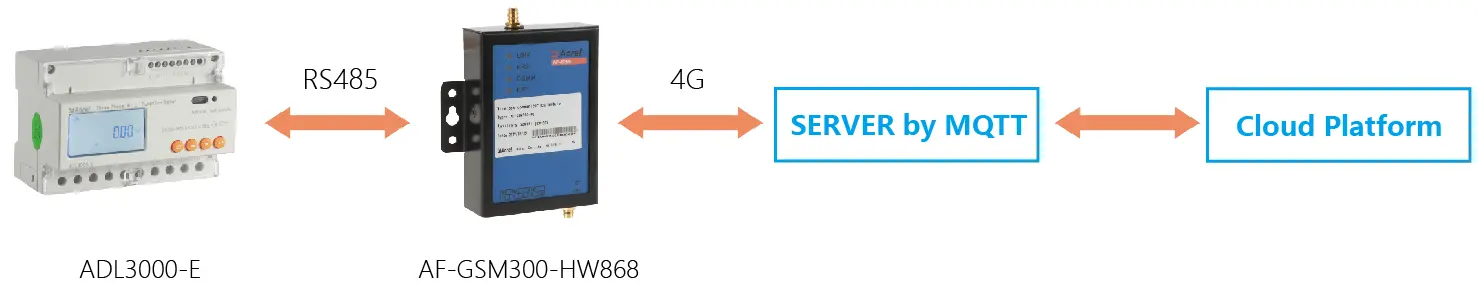

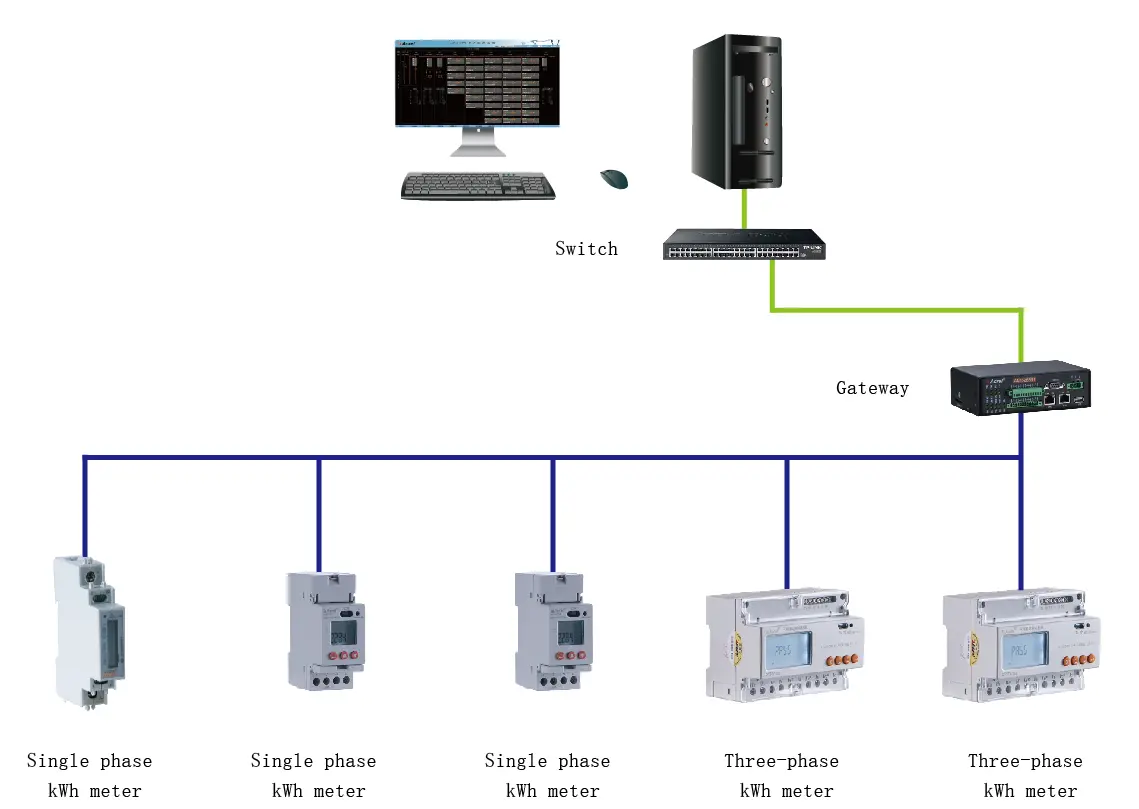

Interface and communication		RS485: Modbus RTU
Range of communication address		Modbus RTU: 1~ 247;
Baud rate		1200bps~19200bps
Relative temperature		-25℃~+55℃
Relative humidity		≤95%(No condensation)

Function	Function description	Function provide
Measurement of kWh	Active kWh (positive and negative)	■
	Reactive kWh (positive and negative)	■
	A, B, C phase positive active kWh	■
Measurement of electrical parameters	U, IP, Q, S, PF, F	■
Measurement of electrical parameters	U, IP, Q, S, PF, F	■
Measurement of	2~31^ST Voltage and current harmonic	■
LCD Display	8 bits section LCD display, background light	■
Key programming	4 keys to communication and set parameters	■
Pulse output	Active pulse output	■
	Reactive pulse output	□Note 1
	Clock pulse output	□Note 1
Multi-tariff and functions	Active switch input	□Note2
	Switch output	□Note 2
	Adapt 4 time zones, 4 time interval lists, 14 time interval by day and 4 tariff rates	□
	Max demanded kWh and time happened	□
	Frozen data on last 48 months, last 90days	□
	Date, time	□
Communication	Infrared communication	■
	The first communication path: Communication interface: RS485, Communication protocol: MODBUS-RTU	□
	The second communication path: Communication interface: RS485, Communication protocol: MODBUS-RTU	□Note 2
Temperature measurement	Support 3 outlay NTC temperature	□Note 3
