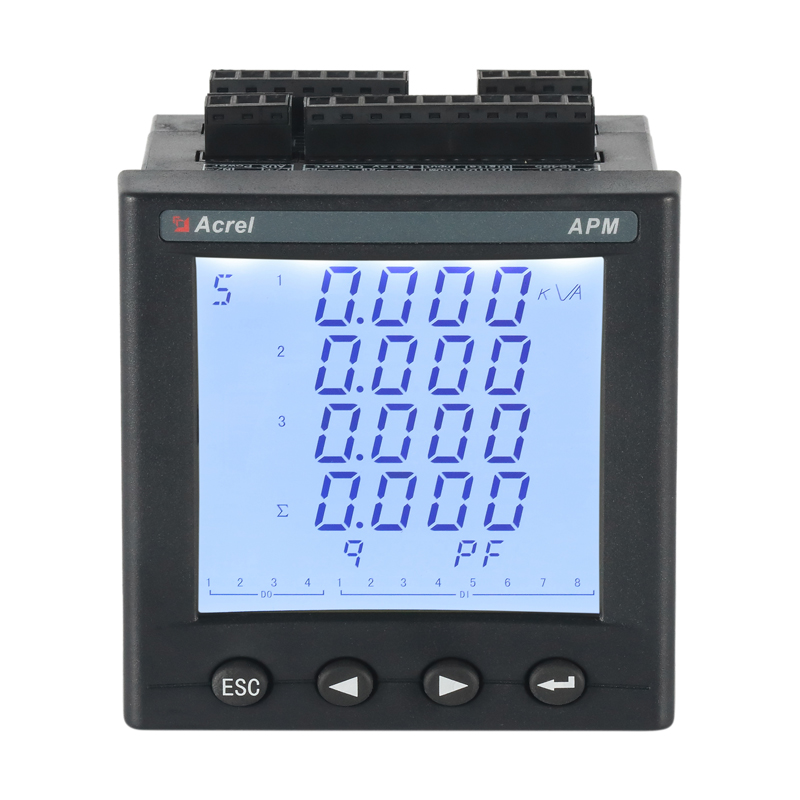

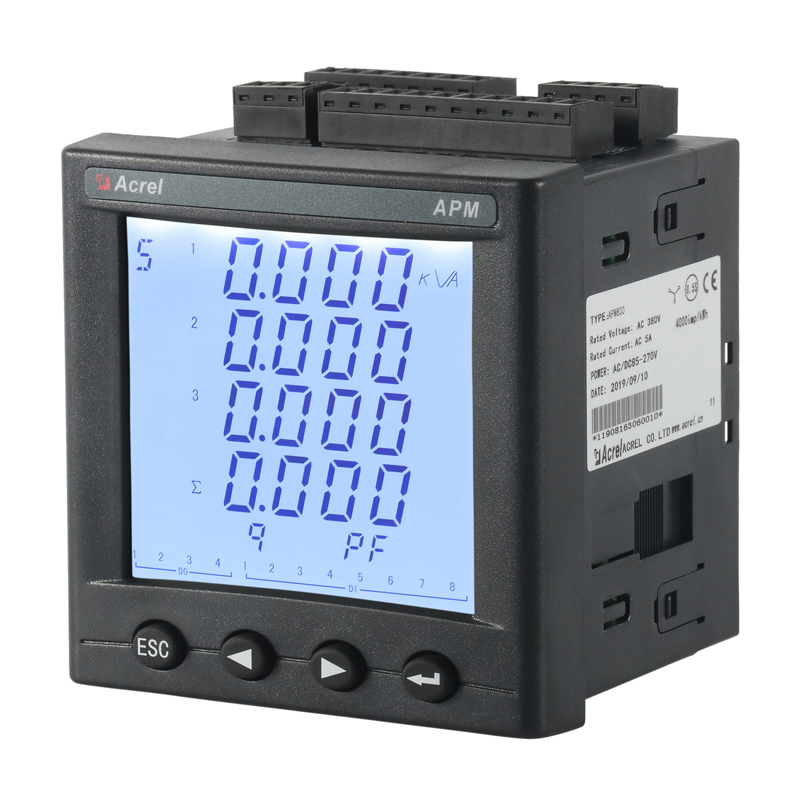

APM810 Pannel Type 3 Phase Multi-function Energy meter
Characteristic

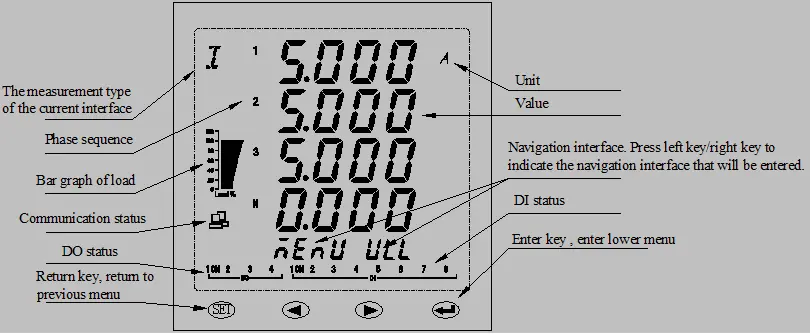

LCD Display

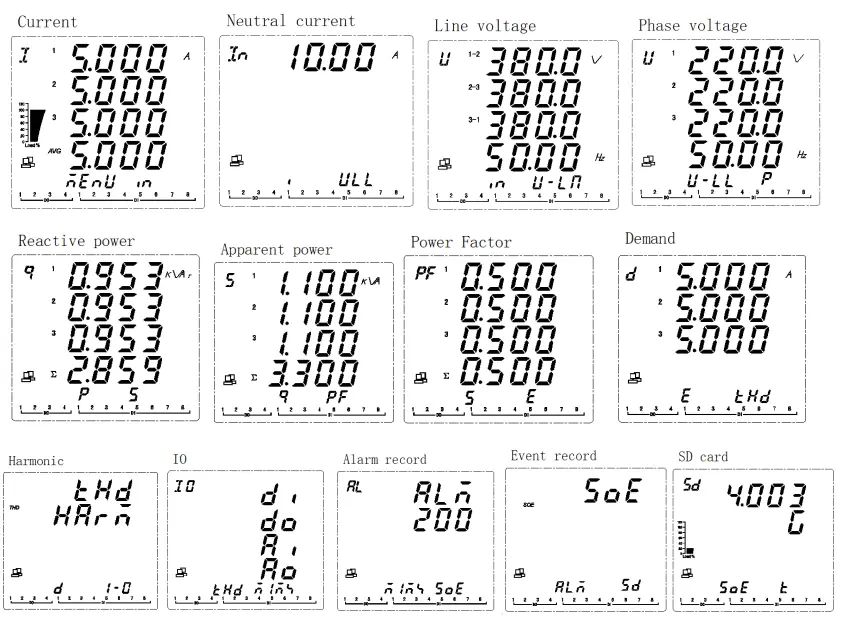

Function

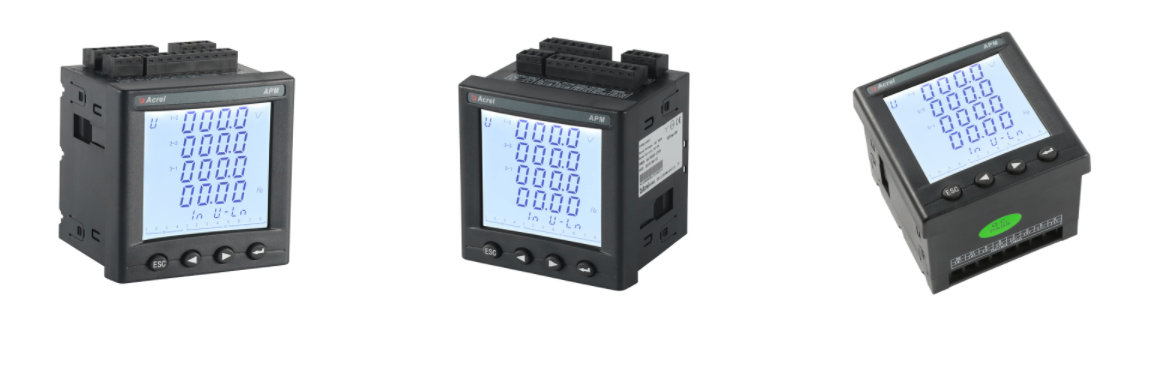

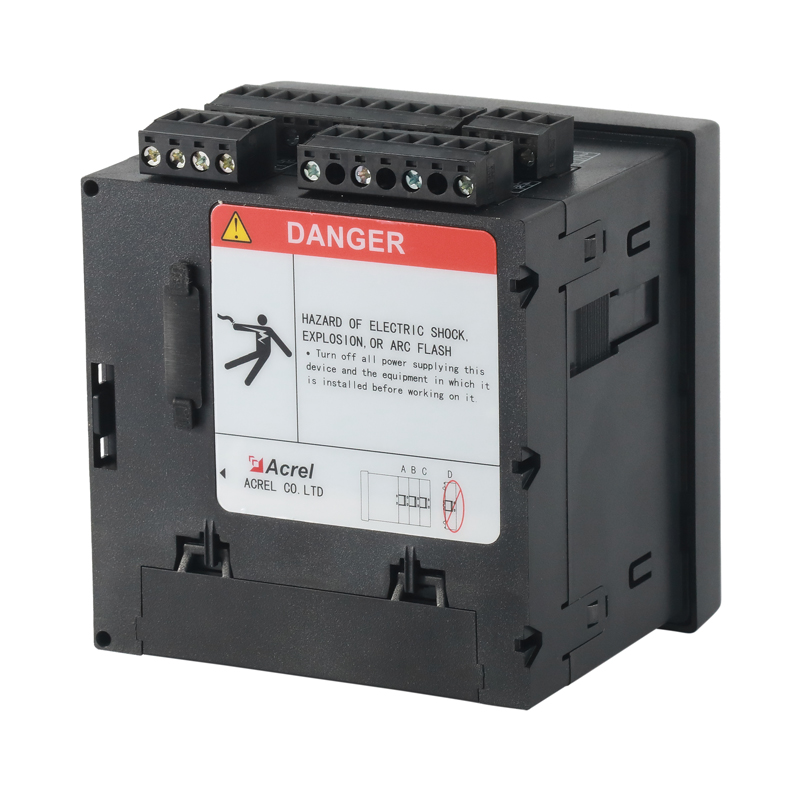

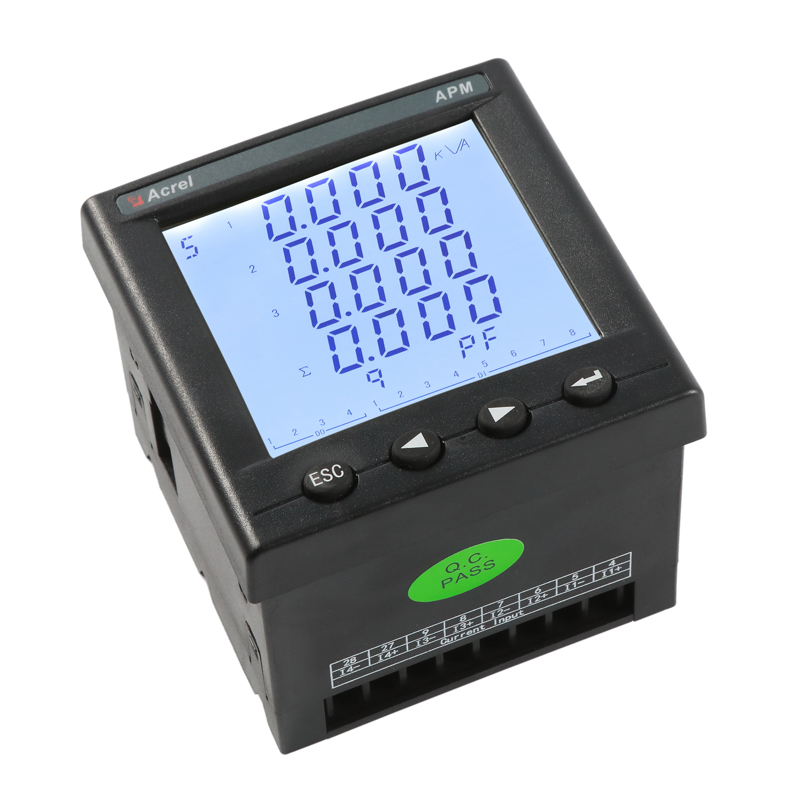

Appearance
Wiring

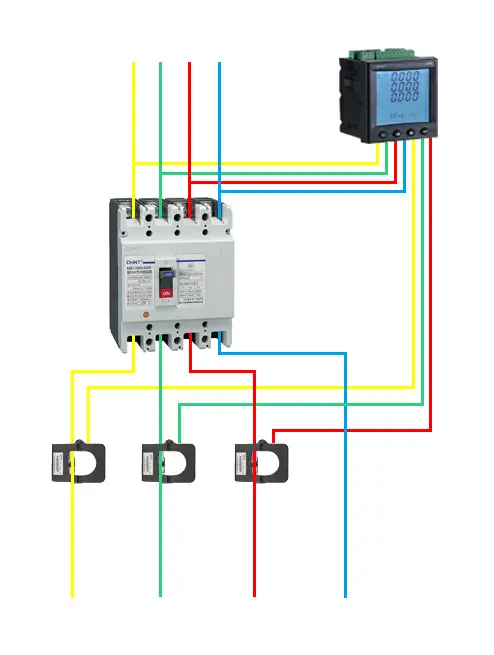

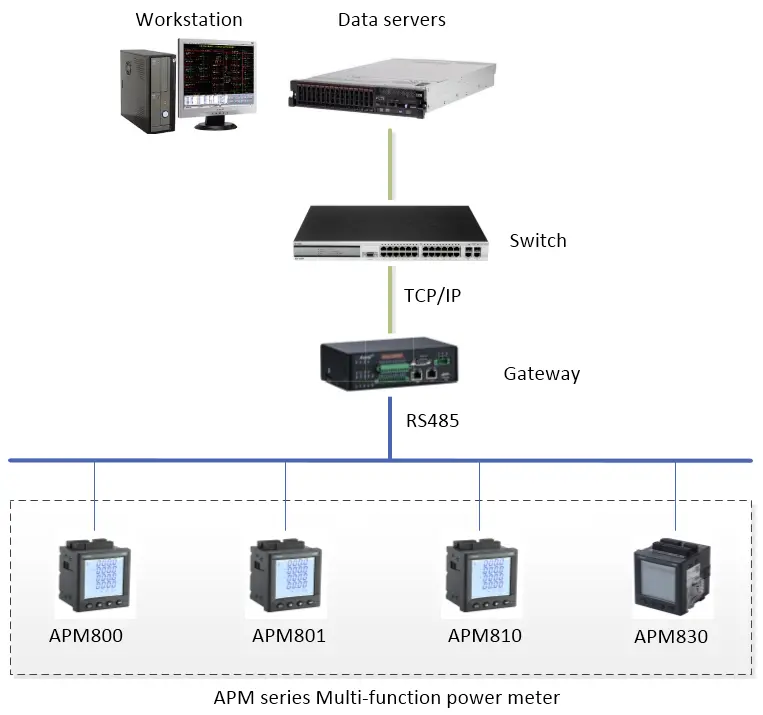

Typical connection

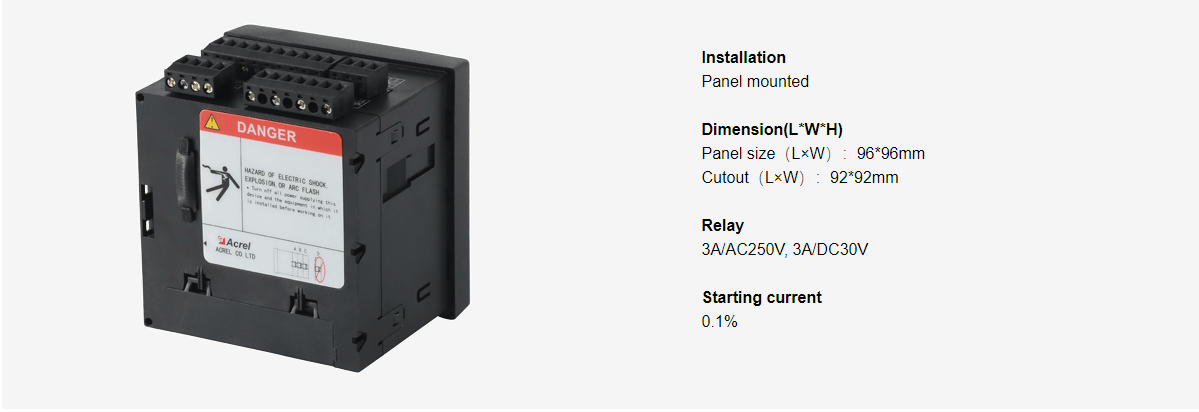

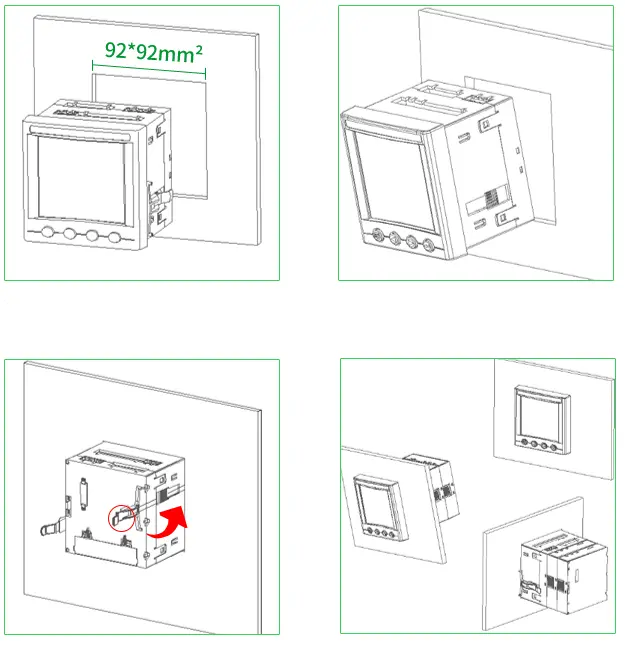

Installation
Type
Panel multi-function meter
Wiring
3-phase 3/4-wire
Voltage
AC 100 / 110 / 400 / 690 V
Current
AC 1 A / 5 A
Accuracy
Class 0.2S
Harmonics
2nd to 63rd
- Certification on file:

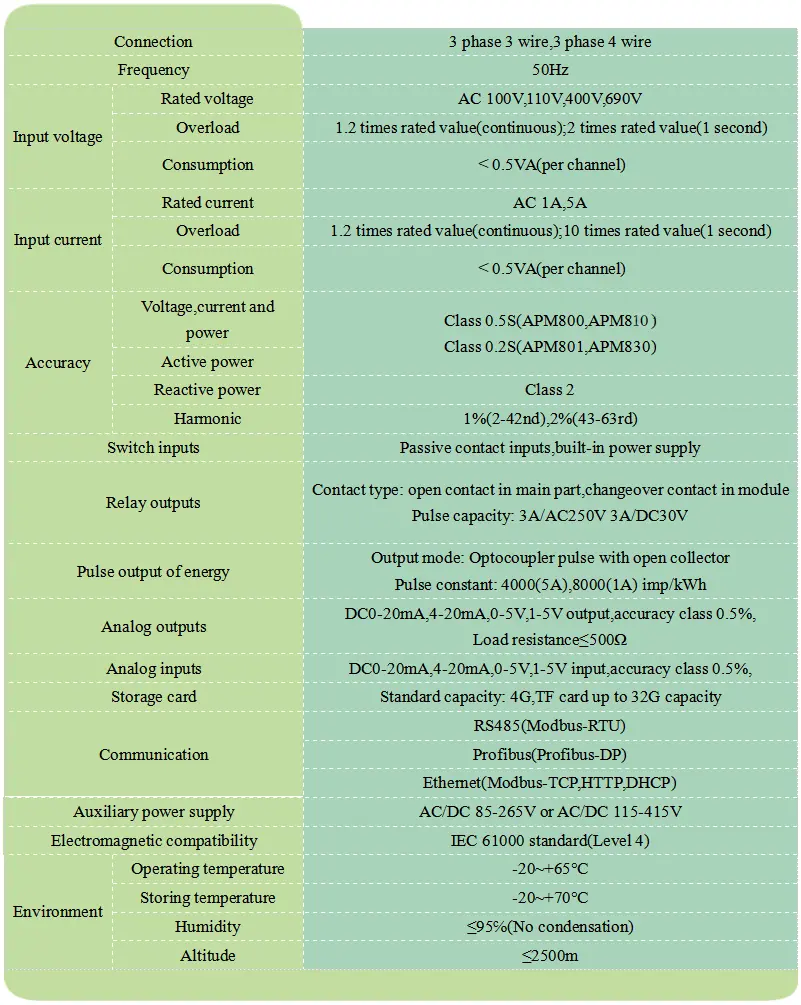

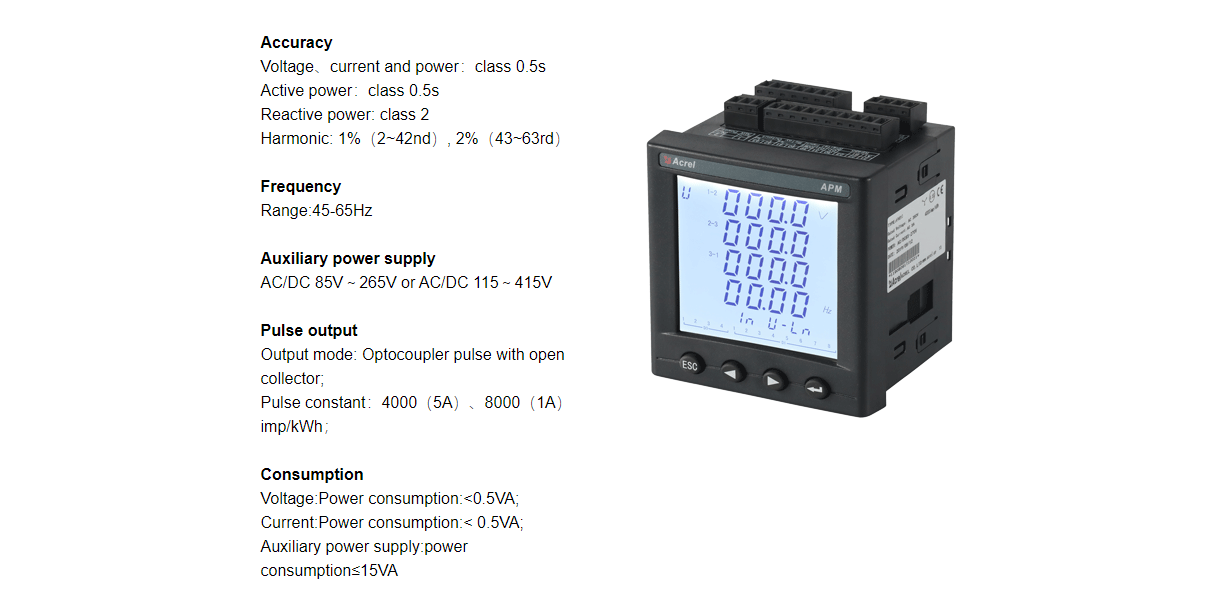

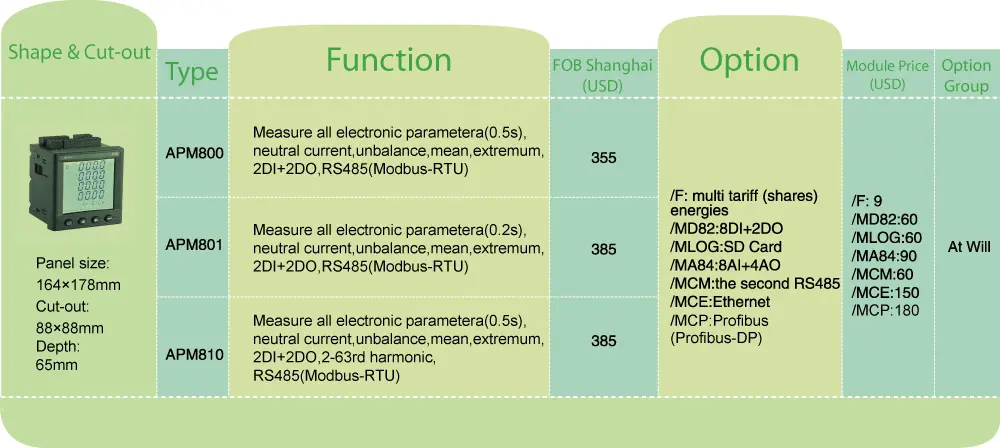

Specifications
| General | Product type | Panel-type multi-function power meter |
| Wiring | 3-phase 3-wire, 3-phase 4-wire | |
| Frequency | 45–65 Hz | |
| Input | Rated voltage (AC) | 100 V / 110 V / 400 V / 690 V |
| Rated current (AC) | 1 A / 5 A, or 100 mV Rogowski coil input | |
| Accuracy | Voltage and current | Class 0.2 |
| Power and energy | Class 0.5S / 0.2S | |
| Rogowski coil input | Class 1 | |
| Harmonics | 1% for 2nd–42nd, 2% for 43rd–63rd | |
| Output | Relay output | AC 250 V / 3 A, DC 30 V / 3 A |
| Analog output | 4–20 mA via optional module | |
| Communication | Interface | RS485, Modbus-RTU |
| Modules | Optional | MLOG, MA84, MCM, MCP, MCE, MTH, MTP |
Functions
| Measurement | U, I, P, Q, S, PF, F, energy | ■ |
| Voltage and current unbalance | ■ | |
| 2nd–63rd voltage and current harmonics | ■ | |
| Total harmonic distortion (THD) | ■ | |
| Demand and maximum demand | ■ | |
| Quality | Waveform capture and transient recording | ■ |
| Voltage sag, swell and interruption | ■ | |
| Statistics | Extreme value statistics | ■ |
| Energy quality reports | ■ | |
| Communication | RS485 Modbus-RTU | ■ |
| Ethernet and Profibus via modules | □ |
