DJSF1352-D DC Energy Meter for Charging Pile
General
The DJSF1352-D rail-mounted DC power meter, specifically designed for DC charging piles, is capable of measuring voltage, current, power, and energy, among other parameters.

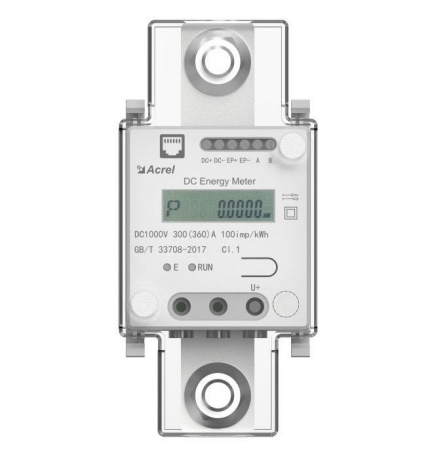

DJSF1352-D-360

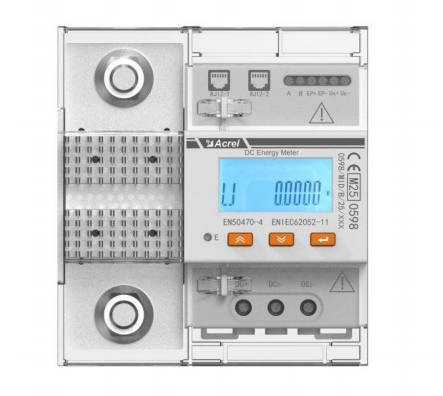

DJSF1352-D-600
Function
√ Input voltage
1000VDC
√ Input current
360A, 600A

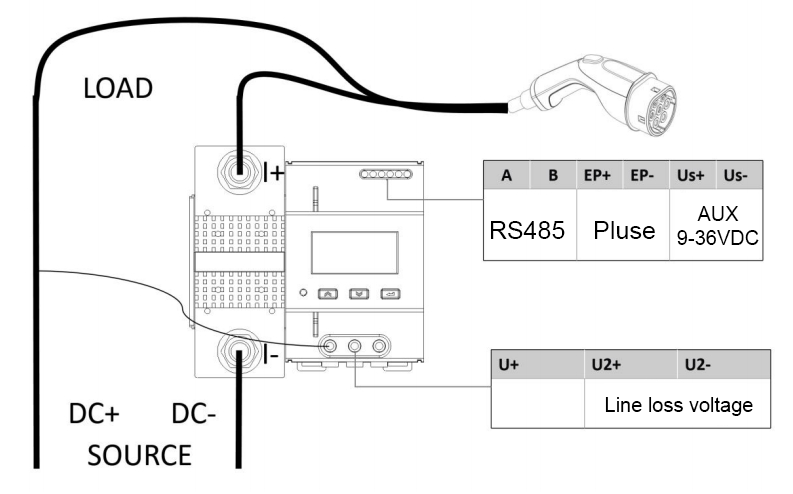

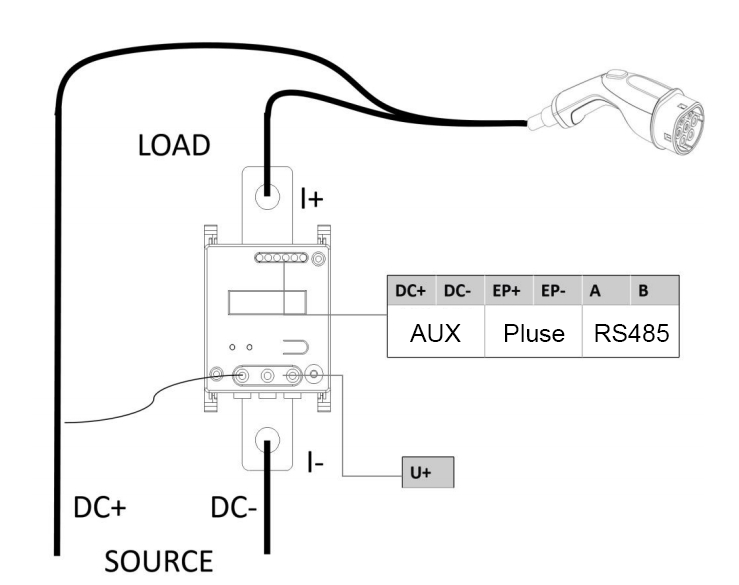

Wiring
Related Products
DJSF1352-D is a DIN-rail DC energy meter for photovoltaic, energy storage, EV charging and DC distribution circuits. It measures voltage up to DC 1000 V with a shunt, records bidirectional energy and offers RS485 plus an energy pulse output.
Voltage input
DC 0-1000 V
Accuracy
0.5 class (360) / 1 class (600)
Current input
shunt 100(360) A or 4-90(600) A
Comms
RS485, Modbus-RTU / DL/T 645 / DL/T 698
Technical data
| Parameter | Value (from the product manual) |
|---|---|
| Models | DJSF1352-D-360, DJSF1352-D-600 |
| Voltage input | DC 0-1000 V |
| Current input | -360: 100(360) A per GB/T 33708-2017 |
| -600: 4-90(600) A per EN 50470-4 | |
| Accuracy class | -360: class C (0.5); -600: class B (1) |
| Power consumption | Voltage circuit 0.2 VA or less, current circuit 0.1 VA or less |
| Display | Segment LCD, class 1 |
| Communication interface | 1 x RS485 |
| Communication protocol | Modbus-RTU, DL/T 645-2007, DL/T 698, baud 1200-38400 bps |
| Pulse output | One energy pulse; constant set in SYS to PLUS menu (100 = 100 imp/kWh) |
| Auxiliary supply | DC 9-36 V, 3 W or less |
| Withstand voltage | Supply, signal input and other circuits 4.4 kV / 1 min |
| Impulse withstand voltage | +/-12.8 kV |
| Insulation resistance | 40 MOhm or more |
| Average continuous operating time | 50000 h or more |
| Environment | -40 to +70 C, 95% RH or less non-condensing, altitude 2000 m or less |

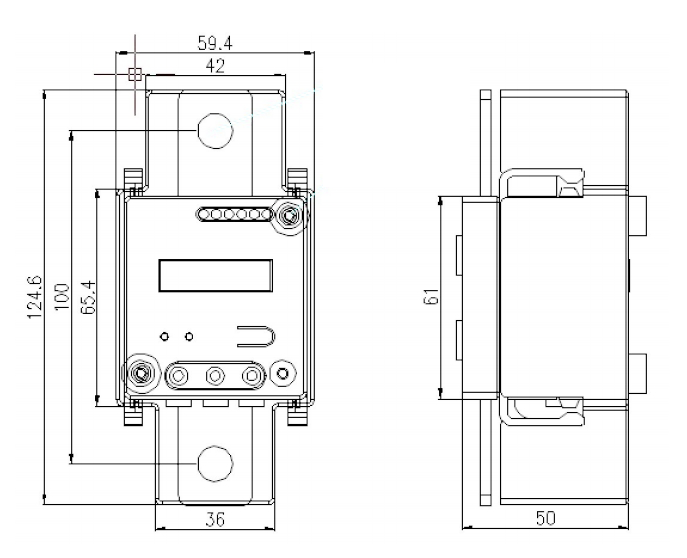

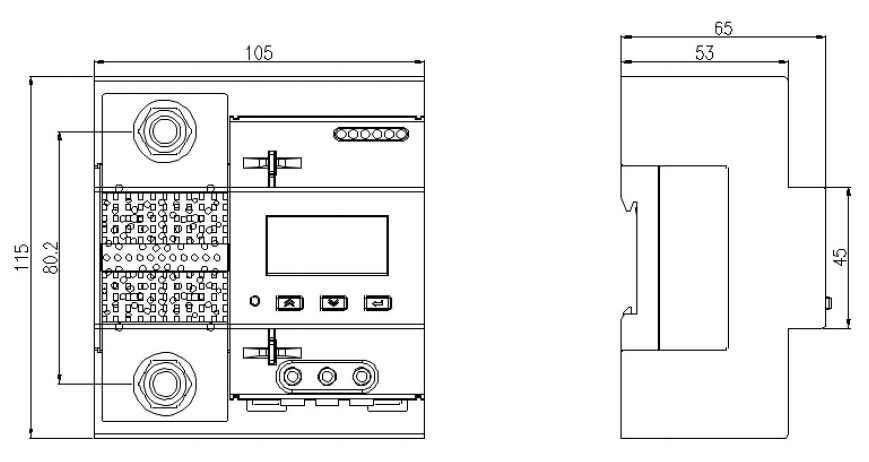

| Overall dimensions | -360: 124.6 x 59.4 x 50 mm; -600: 105 x 115 x 65 mm |
| Terminal torque | M2 0.2 N m (comms, pulse, aux); M3 0.5 N m (voltage); M10 25 N m (shunt) |
| Standards | GB/T 33708-2017, GB/T 29318-2012, DL/T 645-2007, DL/T 698.45 |
Functions by model
| Item | DJSF1352-D-360 | DJSF1352-D-600 |
|---|---|---|
| Energy accuracy | 0.5 class (class C) | 1 class (class B) |
| Current range | 100(360) A | 4-90(600) A |
| Reference standard | GB/T 33708-2017 | EN 50470-4 |
| Case size | 124.6 x 59.4 x 50 mm | 105 x 115 x 65 mm |
What it does
- Bidirectional active energy for charge and discharge accounting
- EV DC charging metering per GB/T 29318-2012 non-onboard charger requirement
- Protocol auto-adaptation between Modbus-RTU, DL/T 645-2007 and DL/T 698
- Energy pulse output for revenue-testing or a second data capture device
- Wide temperature range down to -40 C for outdoor cabinets
Before you request a quote
- Maximum and minimum load current (to size the shunt)
- String or bus voltage, and whether energy is bidirectional
- Which protocol your system expects
The meter measures current through an external shunt, so please state the load current together with the voltage. We then confirm the model, shunt rating, torque sequence and register list within one working day.
1.Technical parameter
|
Technical parameters |
Index |
||
|
Input |
Nominal value |
Voltage input |
Current input |
|
DC 0-1000V |
DJSF1352-D-360:100(360)A |
||
|
DJSF1352-D-600:4-90(600)A |
|||
|
Power consumption |
Voltage: ≤0.2VA, current ≤0.1VA |
||
|
Accuracy class |
Class B(Class 1) |
||
|
Function |
Display |
segment LCD screen (LCD) |
|
|
Communication Interface |
RS485 |
||
|
Communication protocol |
Modbus-RTU, DL/T 645-2007, DLT698 |
||
|
Pulse output |
A second pulse output, a energy pulse output |
||
|
See the SYS->PLUS display in the meter menu settings. For example: The meter displays 100, which is 100imp/kWH |
|||
|
Power Supply |
Voltage range |
DC 9—36V |
|
|
Power consumption |
≤ 3W |
||
|
Power frequency withstand voltage |
Power supply/Signal input/Other circuits 4.4kV/1min |
||
|
Impulse withstand voltage |
±6KV |
||
|
Insulation resistance |
≥ 40M Ω |
||
|
Average barrier-free working hours |
≥50000h |
||
|
Environment |
Temperature |
working temperature: -40 °C ~ +70 °C |
|
|
Storage temperature: -40℃~+70℃ |
|||
|
Humidity |
≤95%RH, no condensation, no corrosive gas |
||
|
Altitude |
≤2000m |
||
