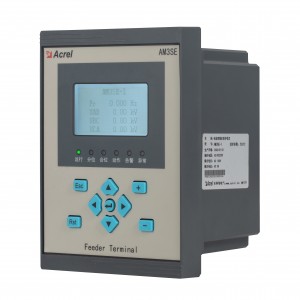

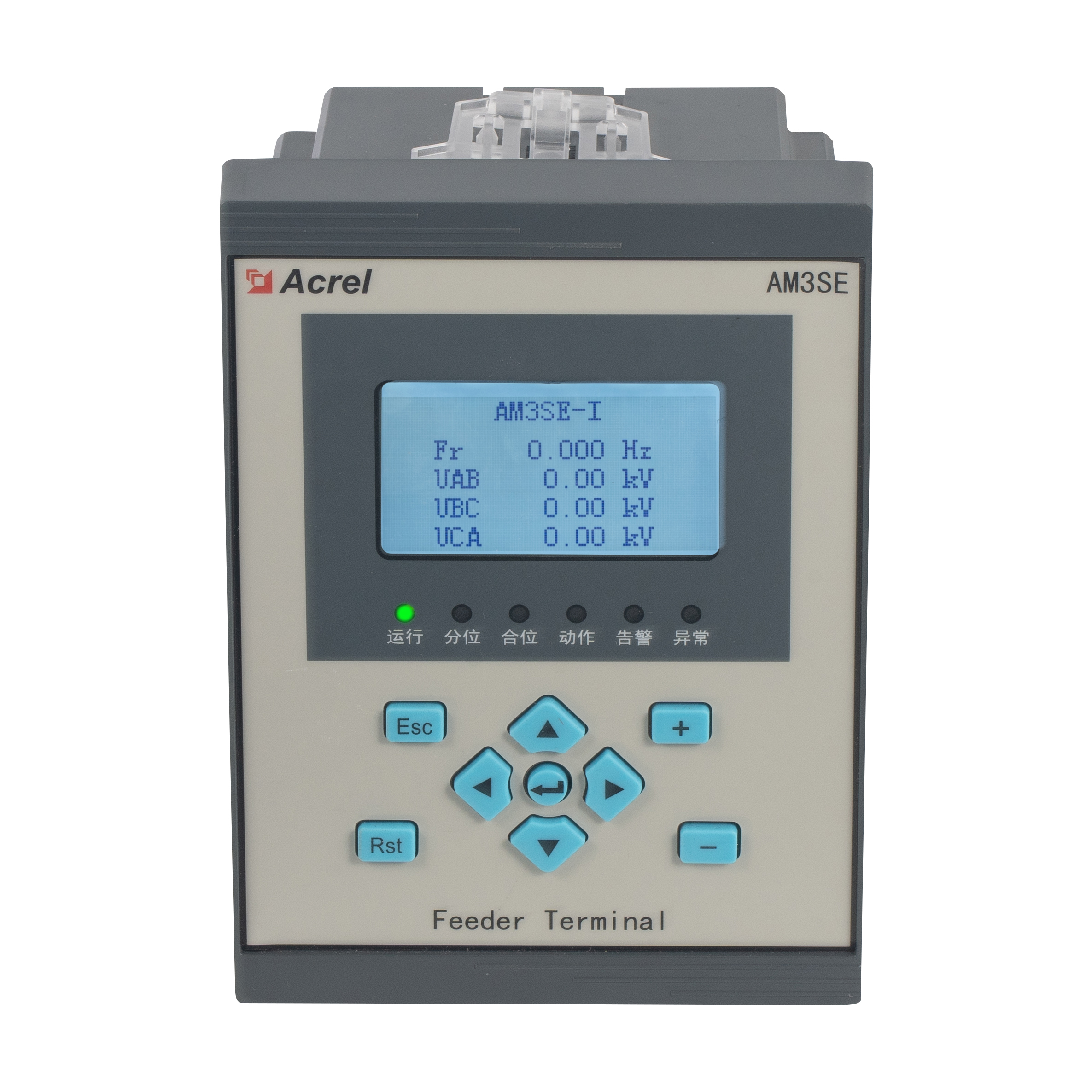

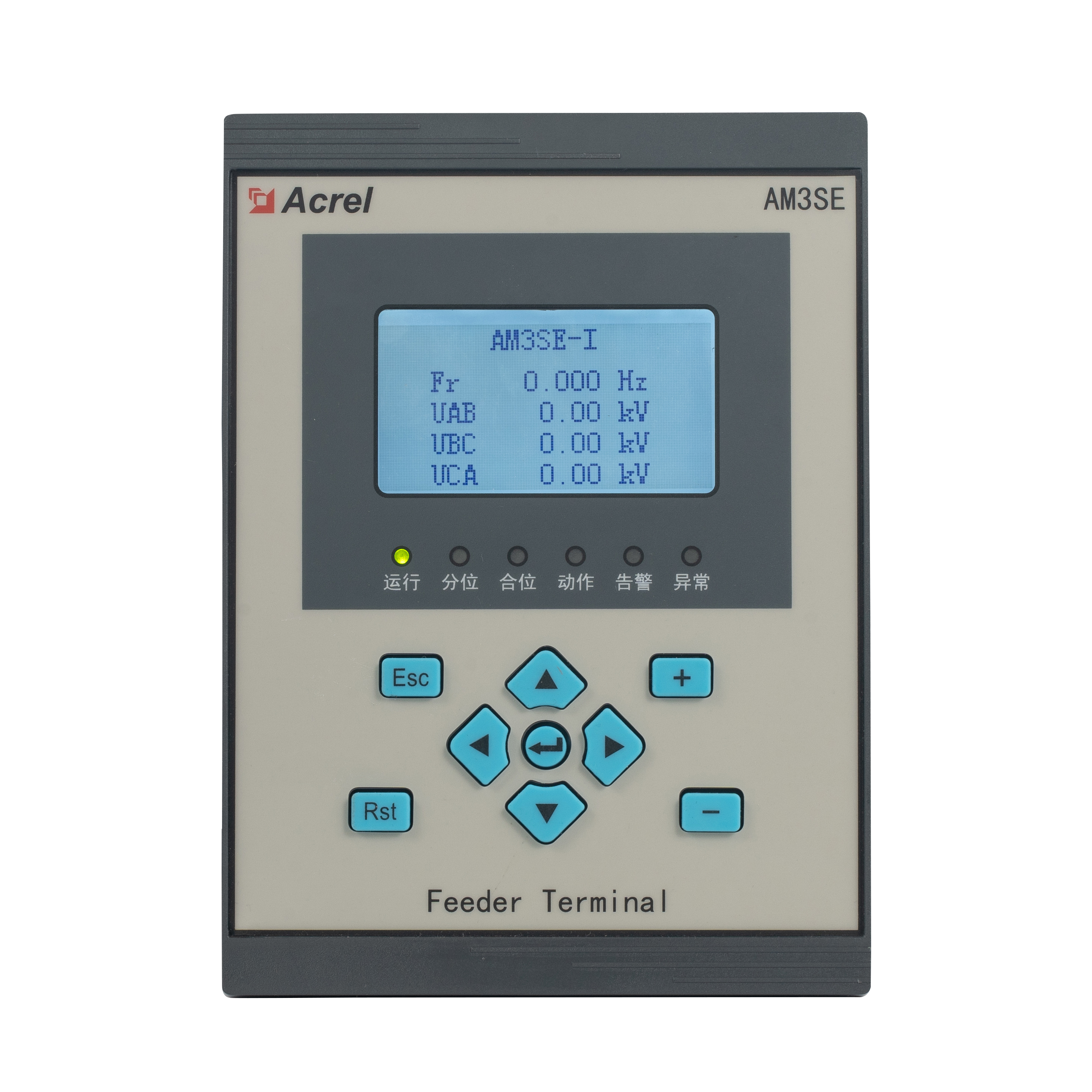

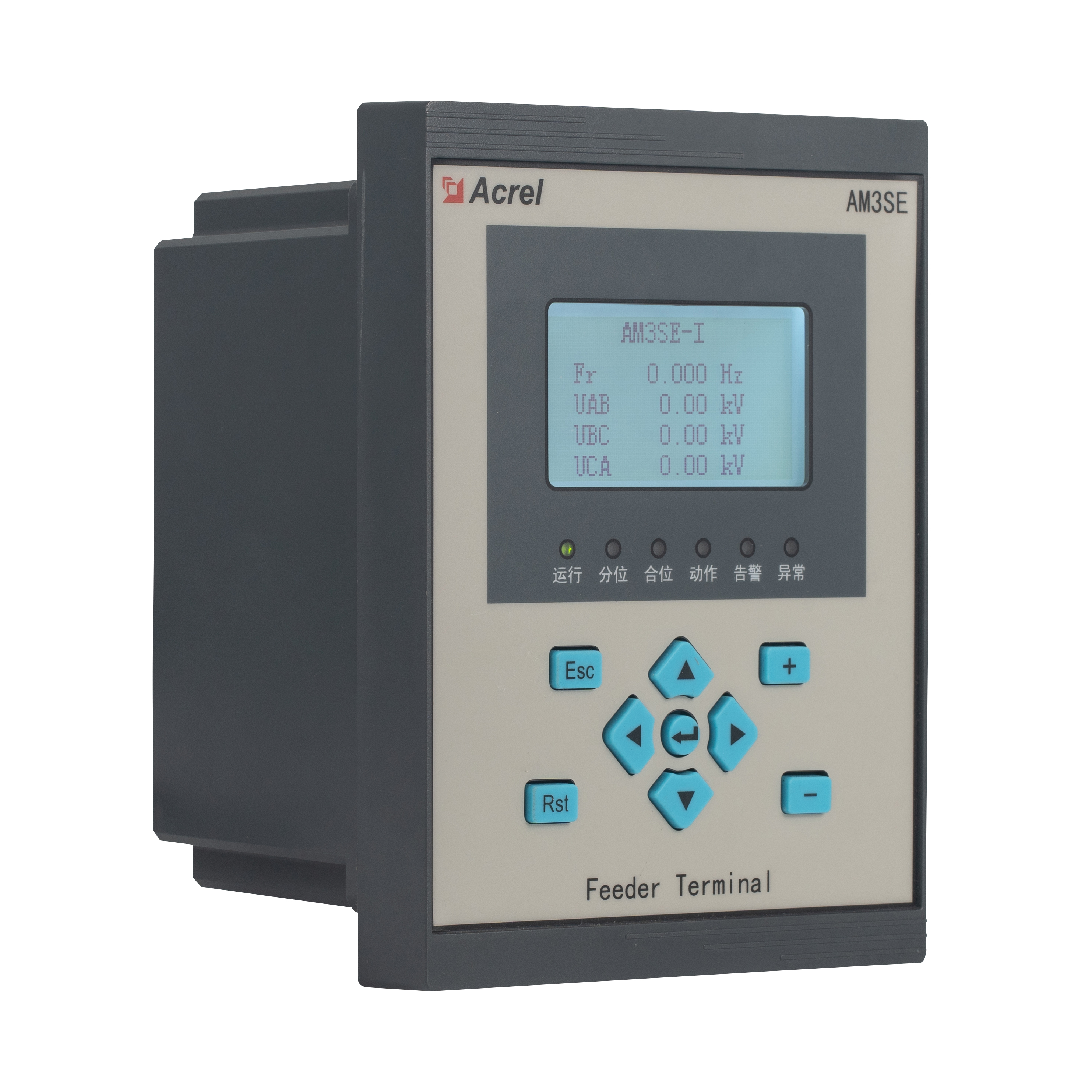

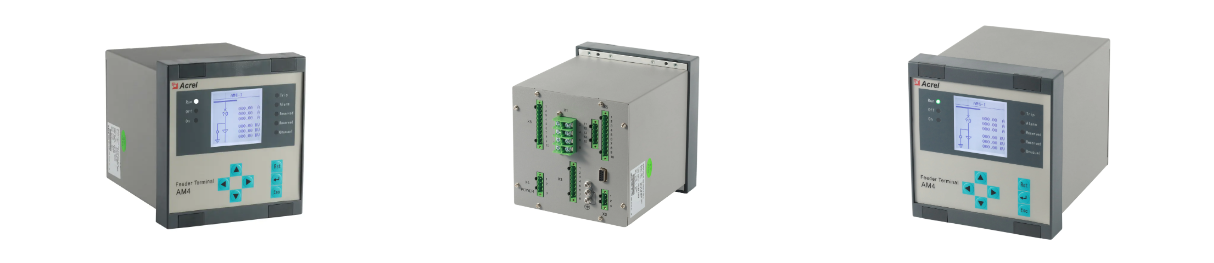

AM3SE Medium Voltage Line&power transformer&PT Protection relay

Name: AM3SE Medium Voltage Line&power transformer&PT Protection relay
Brand: Acrel
SKU: AM3SE
Availability: InStock

● A complete set of protection, related to the application;

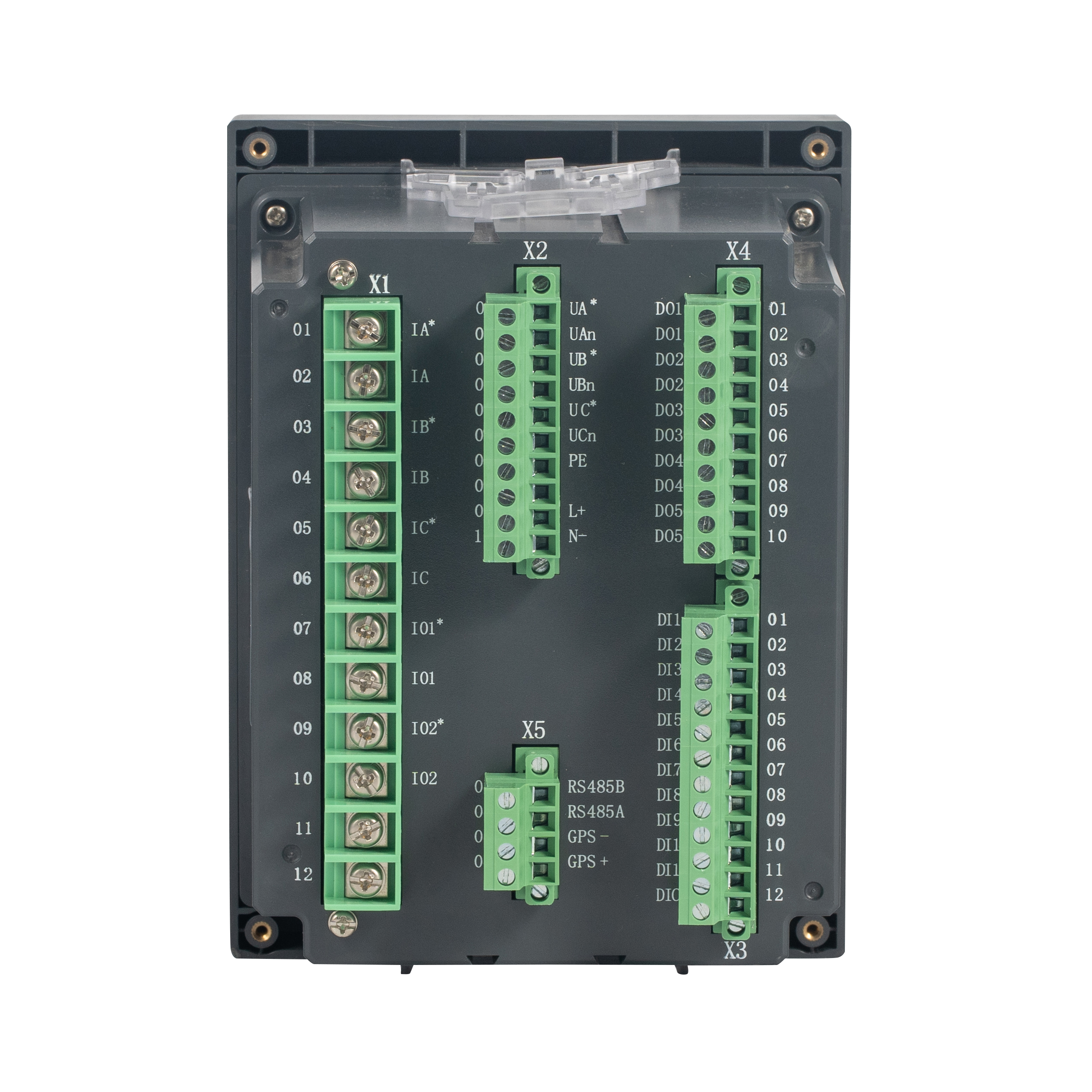

● 4 current input, 4 voltage input, 12DI, 5DO;

● Auxiliary power supply adapts with AC220V, DC220V, DC110V, AC110V;

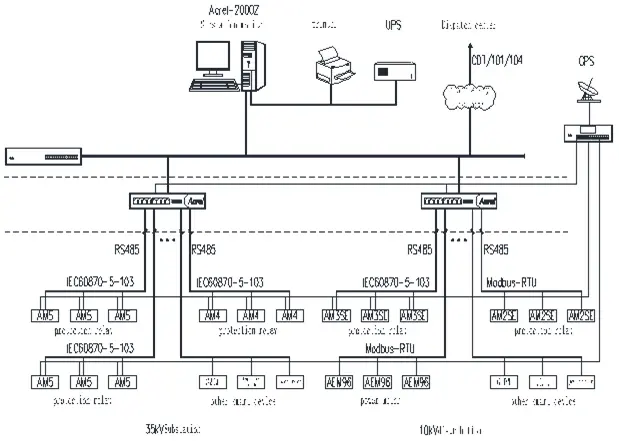

● 1 RS485 serial communication, IEC60870-5-103 and Modbus-RTU;

● 1 RS232 for user update;

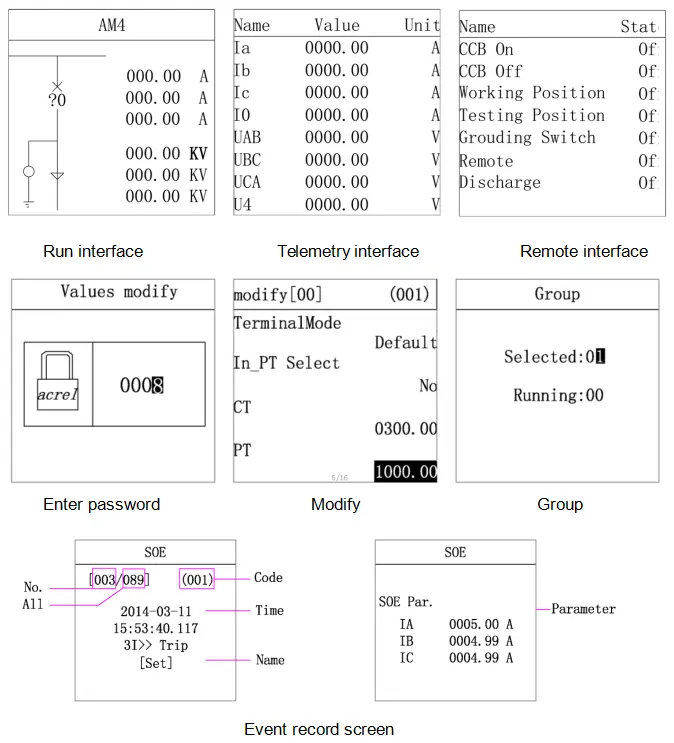

● More than 200 sequence of event records, more than 400 system logs, and more than 10 seconds tripping context records;

● Powerful graphic programmable Logic.

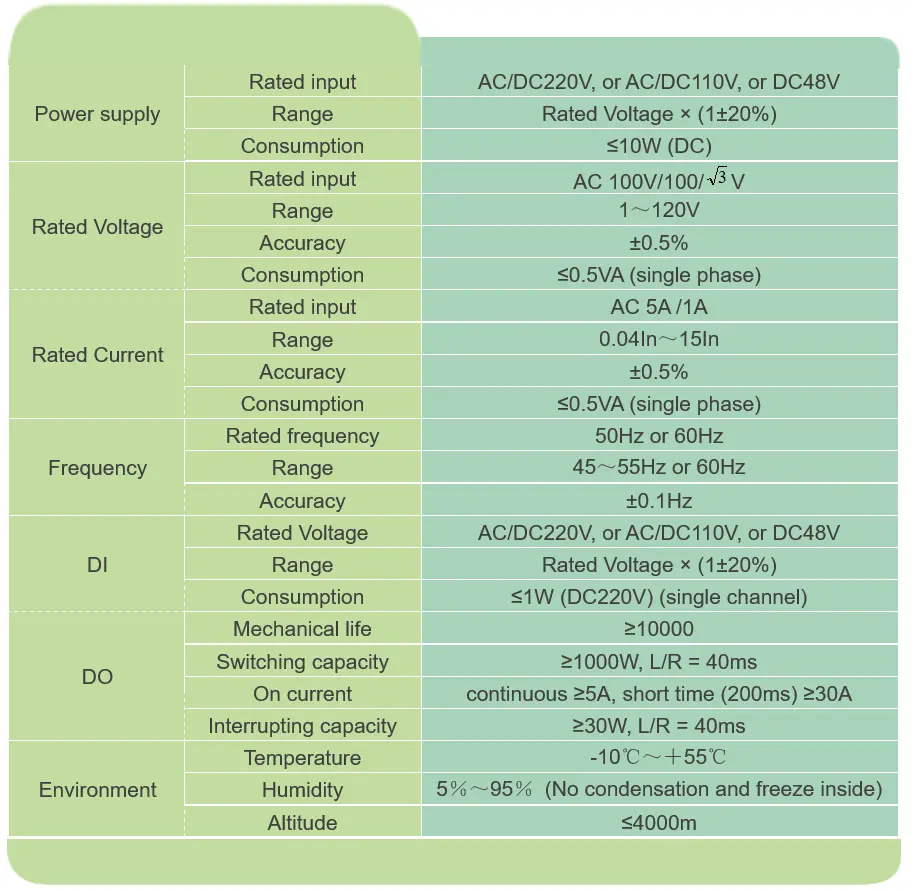

Information

General	Product type	Medium voltage protection device
General	Application	Line, power transformer and PT protection
Supply	Supply voltage	AC/DC 110 V / 220 V, DC 48 V / 24 V
Supply	Power consumption	≤10 W (DC)
Voltage input	Rated PT voltage	AC 100 V
	Measuring range	0.1–120 V
	Accuracy	Class 0.5S
	Burden	≤0.5 VA
Current input	Rated CT current	AC 5 A / 1 A
	Thermal withstand	2 In continuous, 40 In for 1 s
	Dynamic withstand	15 × In
Frequency	Rated frequency	50 / 60 Hz, ±0.1 Hz
Binary input	Switching thresholds	70% / 55% of rated voltage
Binary input	Consumption	≤1 W per input

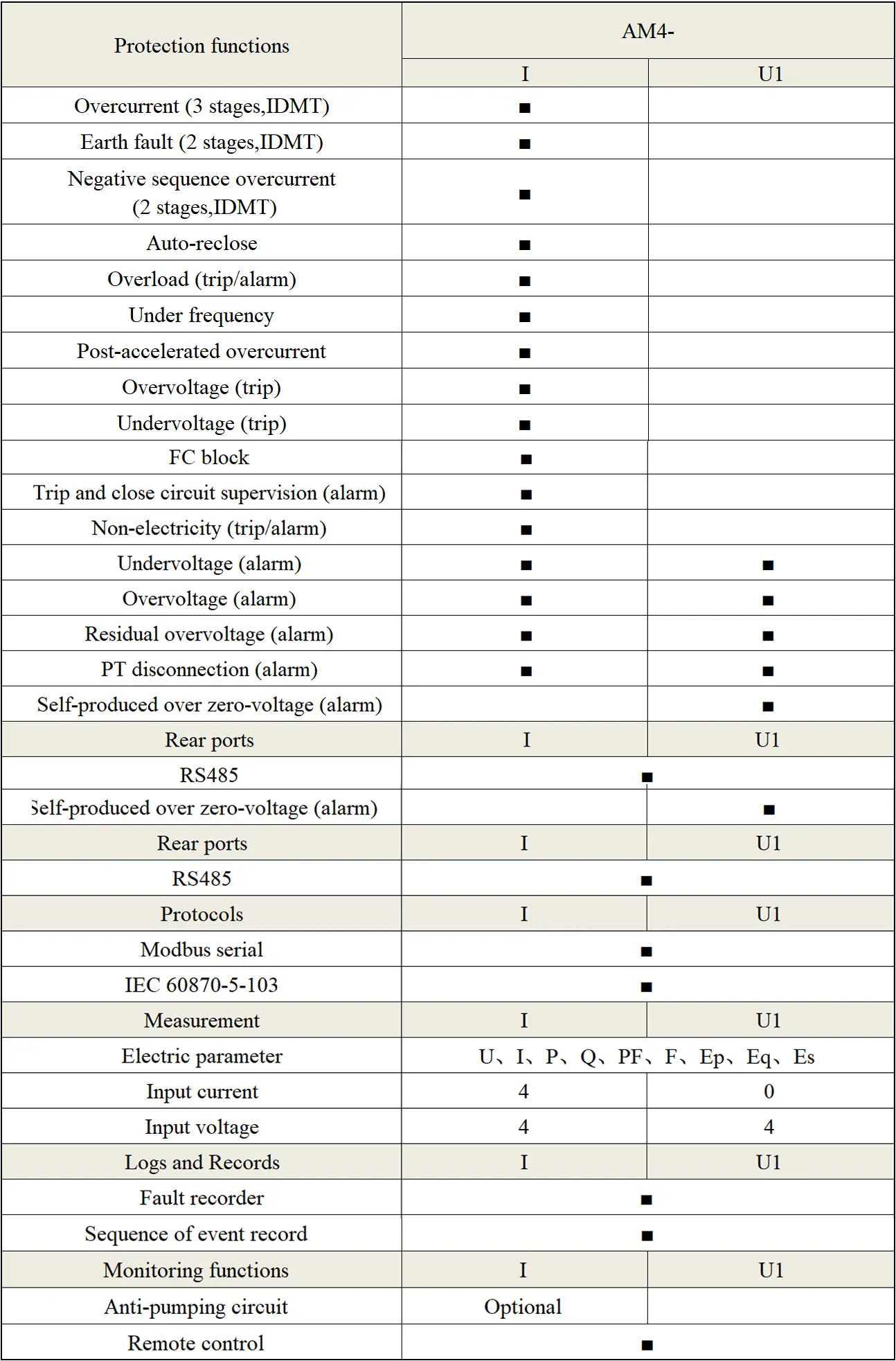

Protection	Overcurrent and earth fault protection	■
	Transformer and line protection	■
	PT monitoring and supervision	■
Measurement	Current, voltage, power measurement	■
Measurement	Fault recording and event log	■
Communication	RS485 Modbus-RTU	■
Signalling	Binary inputs and relay outputs	■
