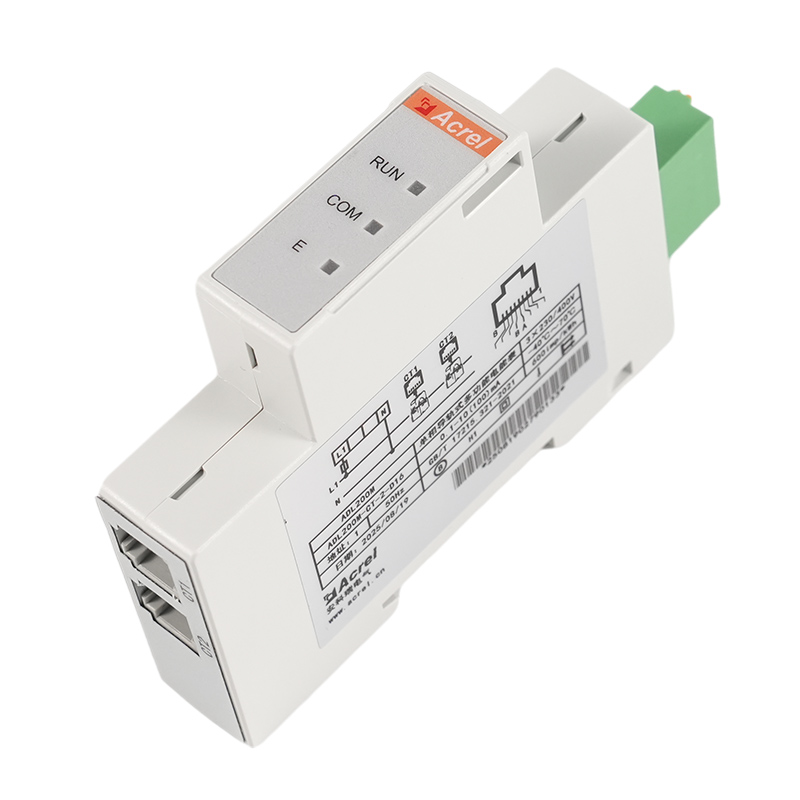

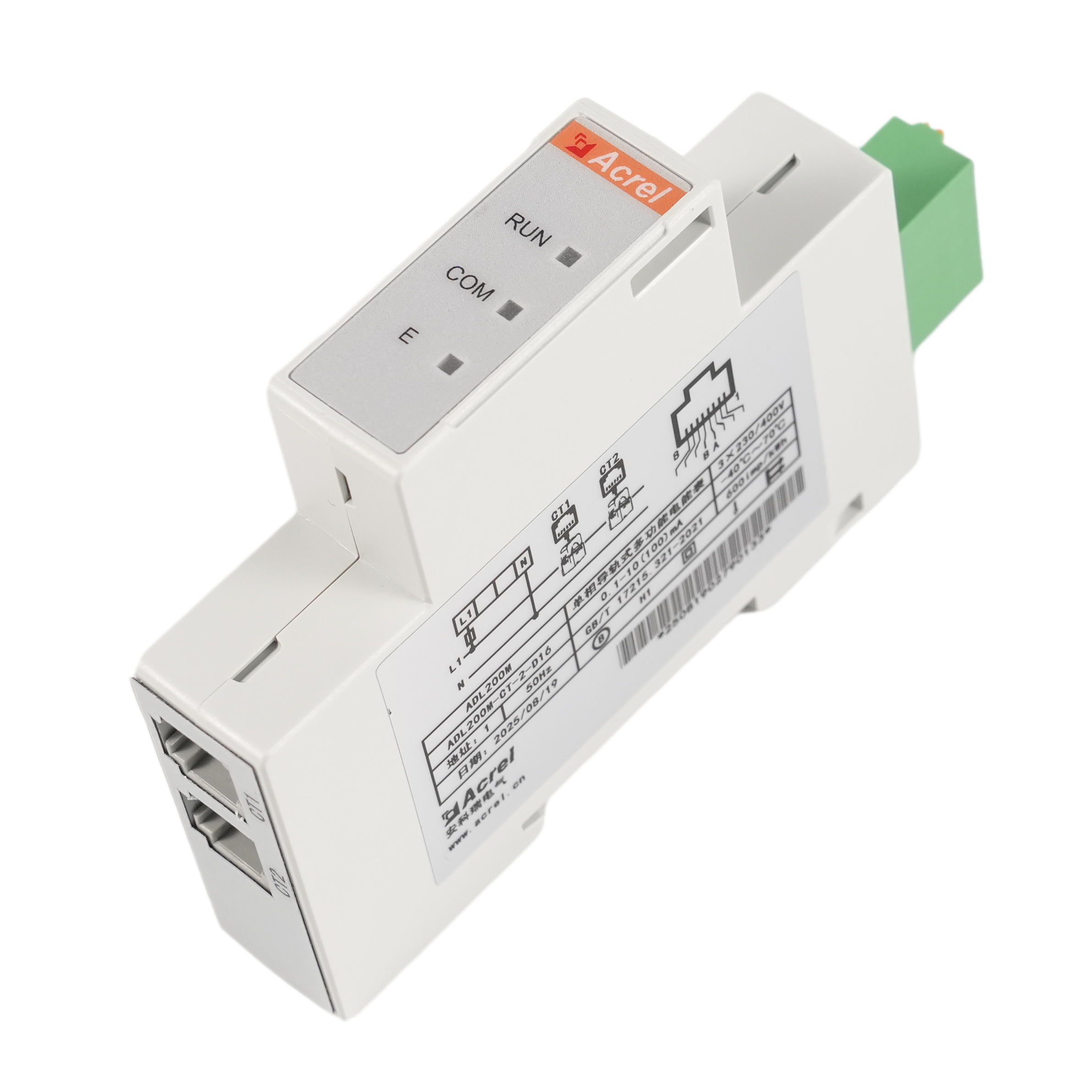

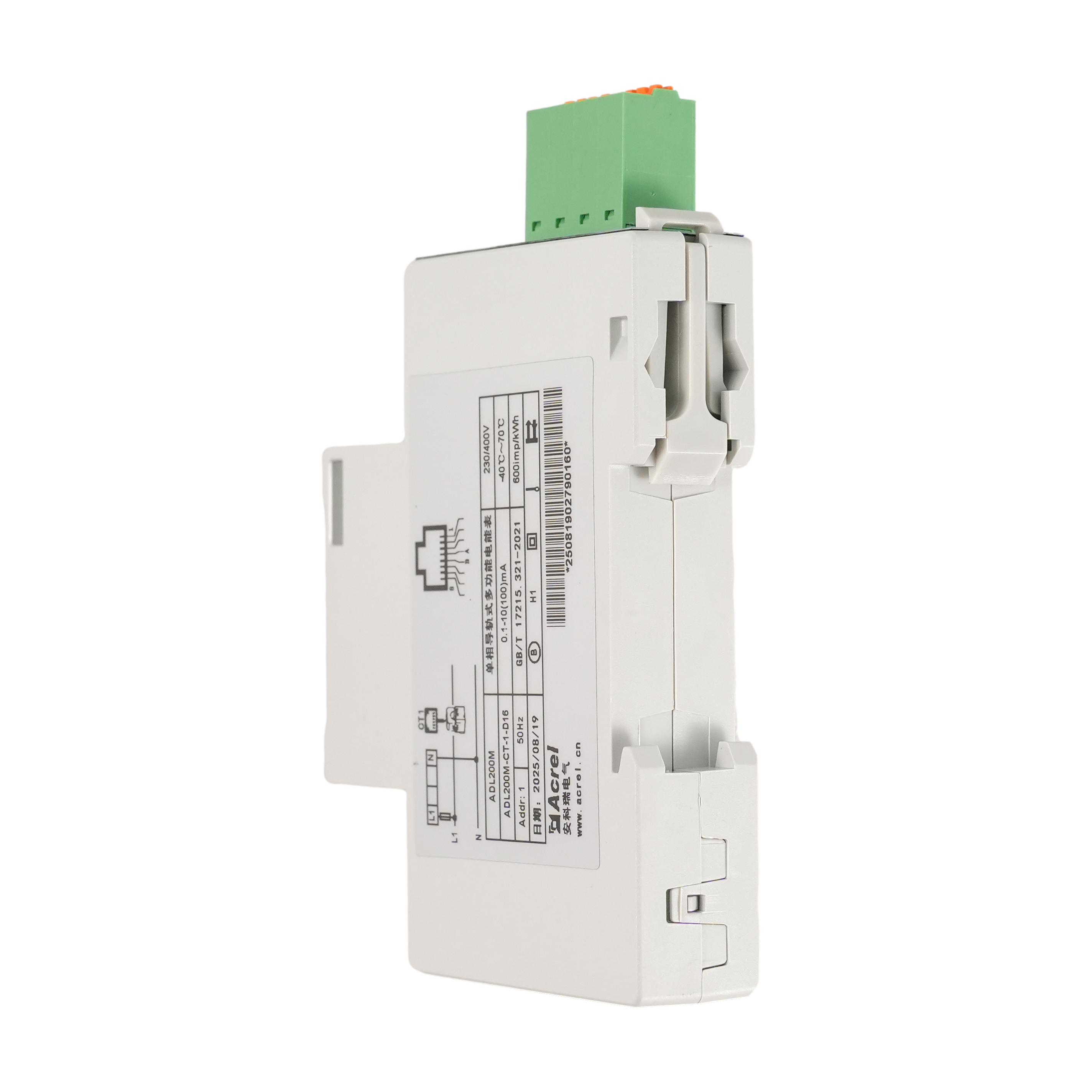

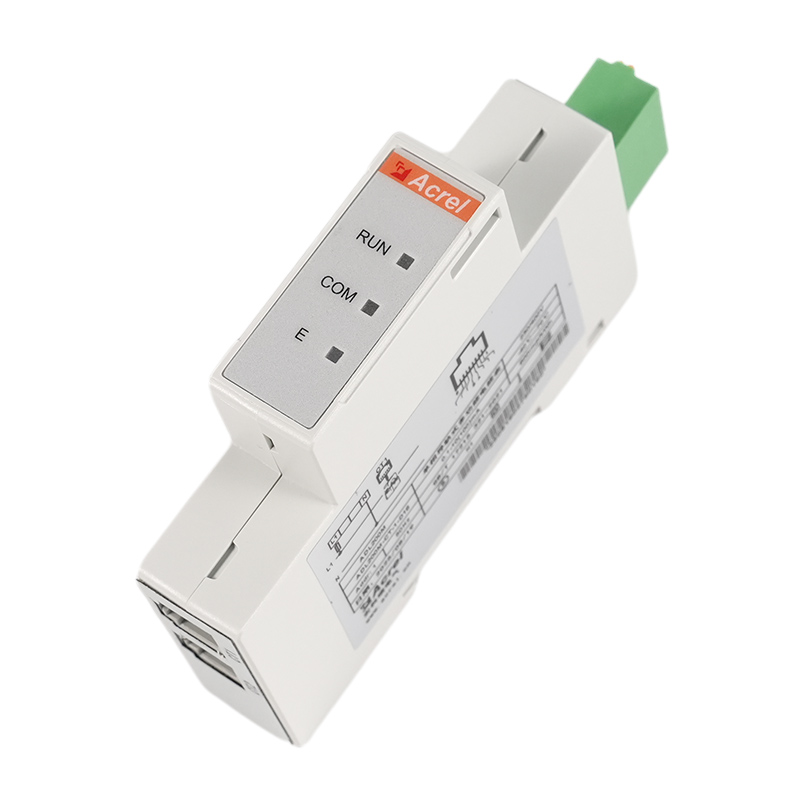

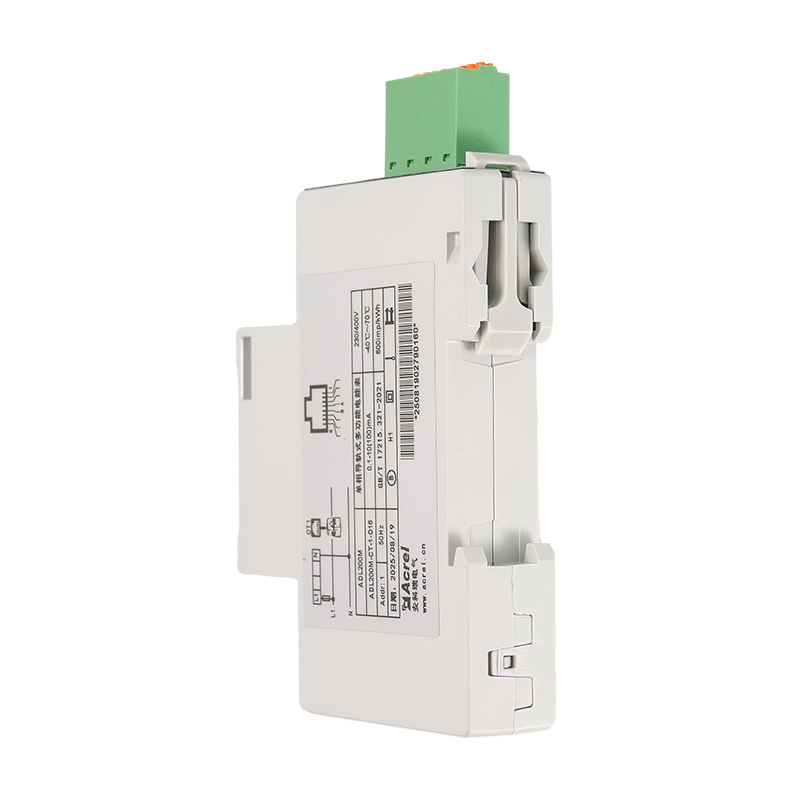

ADL200M Dual-Circuit Energy Meter
Characteristic
Dual-Circuit Metering
Dual-Circuit Energy Metering
Forward & Reverse Energy Metering
U, I, P, Q, S, PF and Frequency
Compact 1P Design
Only 18mm Wide
1P DIN-Rail Design
Compact and Space-Saving
Fast Response
Power Response Time: 50ms
Real-Time Power Monitoring
Suitable for Inverter & EMS Control
General
ADL200M is a single-phase dual-circuit energy meter with external CTs, designed for PV, microinverter, energy storage and AC-coupled systems. It supports bidirectional energy metering, electrical parameter monitoring and RS485 Modbus RTU communication for inverter and EMS integration.
Function
Connection
Single-phase
Frequency
50Hz
Voltage
Nominal Voltage: 230V
Input Range: 0.8Unom–1.2Unom
Current
External CT Input
D10: 80A
D16: 120A
D24: 200A
D36: 300A
Accuracy
Voltage: ±0.5%
Current: ±0.5%
Power: ±1%
Active Energy: Class 1 or B
Frequency: ±0.5%
Communication
RS485, Modbus RTU
Address: 1–247
Baud Rate: 1200–38400bps
Response Rate
50ms (Power)
Environment
Operating Temperature: -25℃ to +55℃
Extreme Operating Temperature: -40℃ to +70℃
Storage Temperature: -40℃ to +85℃
Relative Humidity: ≤95%, Non-condensing
Altitude: ≤2000m
Protection
Installation Category: CAT III
Overvoltage Category: OVC III
Front: IP51
Overall: IP20
Pollution Degree: II
Protection Class: Class II
Indoor Use
Safety
Power Frequency Withstand Voltage: AC 3kV / 1min
Insulation Resistance: >100MΩ

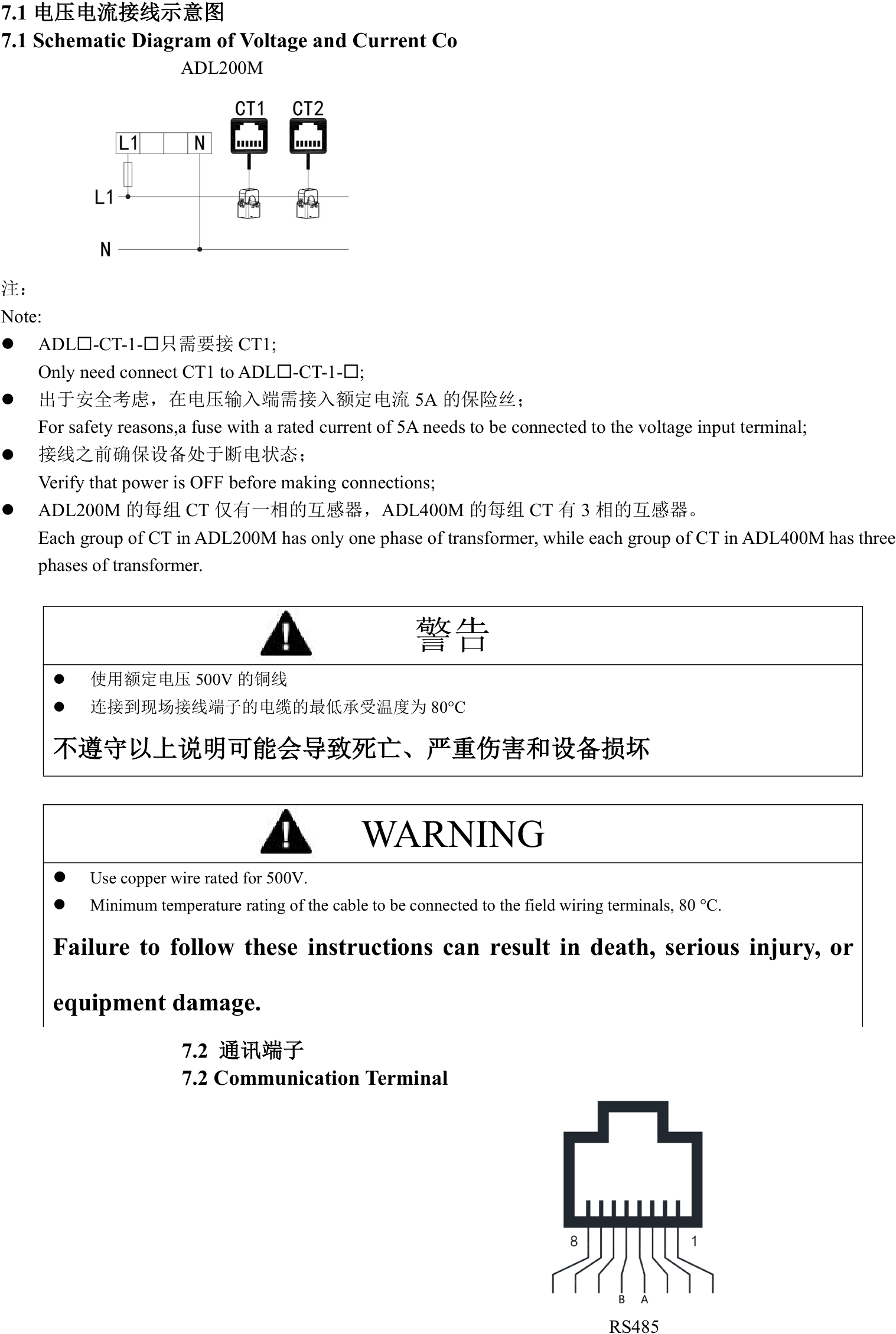

Wiring

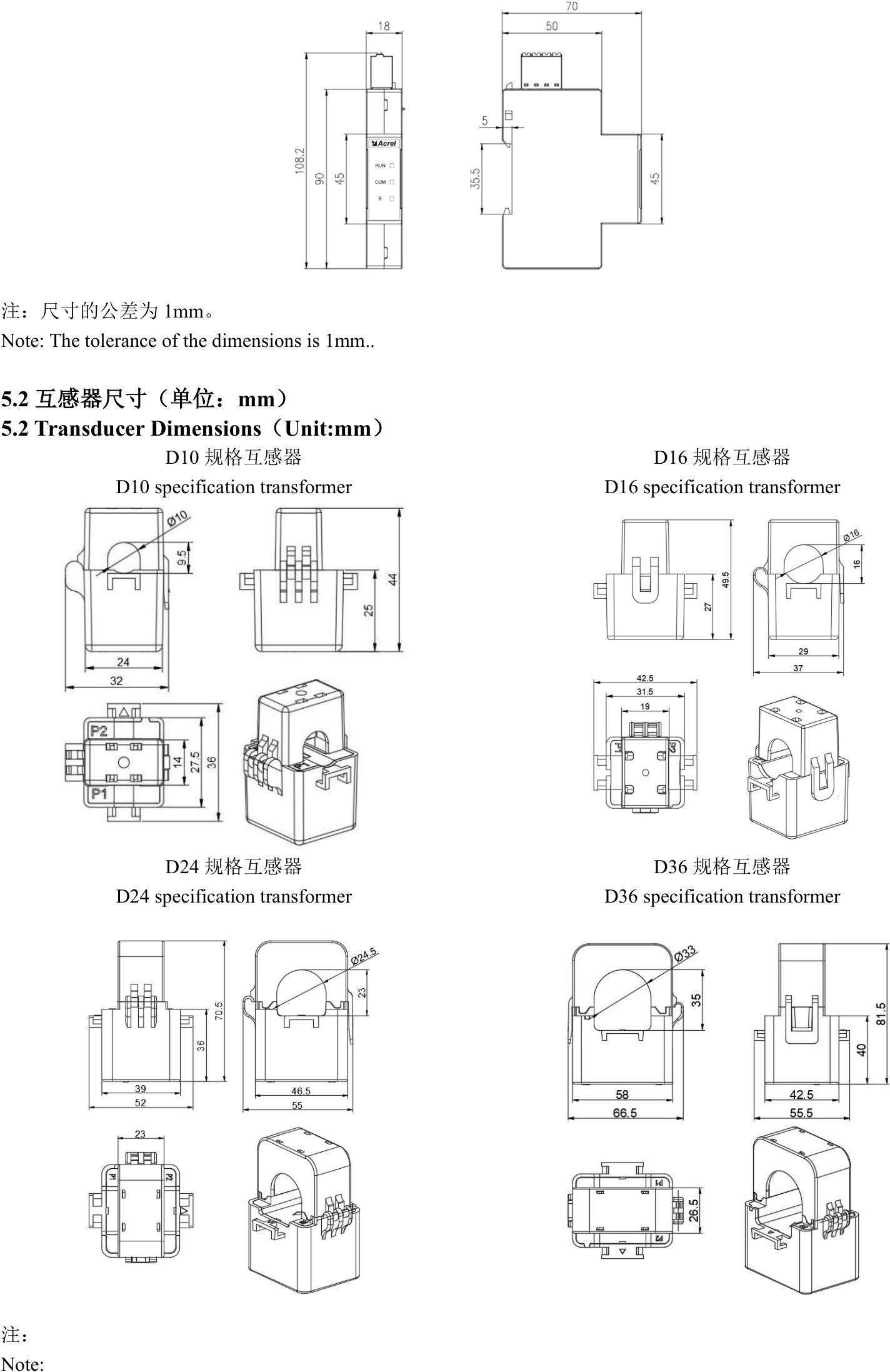

Installation
Typical connection
Dual-Circuit Metering Dual-Circuit Energy Metering Forward & Reverse Energy Metering U, I, P, Q, S, PF and Frequency
Frequency
±0.5%
Technical data
| Parameter | Value |
|---|---|
| Voltage | 230V Input Range: 0.8Unom–1.2Unom Current External CT Input D10: 80A D16: 120A D24: 200A D36: 300A Accuracy |
| Current | ±0.5% Power: ±1% Active Energy: Class 1 or B |
| Baud rate | 1200–38400bps Response Rate 50ms (Power) Environment Operating Temperature: -25℃ to +55℃ Extreme Operating Temperature: -40℃ to +70℃ |
| Storage temp. | -40℃ to +85℃ Relative |
| Humidity | ≤95%, Non-condensing |
| Altitude | ≤2000m Protection Installation Category: CAT III Overvoltage Category: OVC III Front: IP51 Overall: IP20 Pollution Degree: II Protection Class: Class II Indoor Use Safety Power Frequency Withstand |
Built-in functions
- Compact 1P Design Only 18mm Wide 1P DIN-Rail Design Compact and Space-Saving
- Fast Response Power Response Time: 50ms Real-Time Power Monitoring Suitable for Inverter & EMS Control
- Connection Single-phase Frequency 50Hz Voltage Nominal
- Communication RS485, Modbus RTU Address: 1–247
DIN-rail mounted. Send us the rated values of your circuit and the supply voltage; we confirm the ordering code, wiring diagram and register list within one working day.
| Item | Parameter |
|---|---|
| Grid | Single-phase |
| Nominal Voltage | 230V |
| Voltage Range | 0.8Unom ~ 1.2Unom |
| Voltage Accuracy | ±0.5% |
| Minimum Current | 0.3A |
| Transitional Current | 1.5A |
| Basic Current | 30A |
| Maximum Current | D10: 80A; D16: 120A; D24: 200A; D36: 300A |
| Current Accuracy | ±0.5% |
| Power Accuracy | ±1% |
| Frequency | 50Hz |
| Frequency Accuracy | ±0.5% |
| Response Rate | 50ms (Power) |
| Active Energy Accuracy | Class 1 or B |
| Communication | RS485 |
| Protocol | Modbus RTU |
| Communication Address | 1~247 |
| Baud Rate | 1200~38400bps |
| Operating Temperature | -25℃ ~ +55℃ |
| Storage Temperature | -40℃ ~ +85℃ |
| Relative Humidity | ≤95%, no condensation |
| Altitude | ≤2000m |
| Installation Category | CAT III |
| Overvoltage Category | OVC III |
| IP Rating | Front: IP51; Overall: IP20 |
| Installation Environment | Indoor |
| Protection Class | Class II |
| Function | Description |
|---|---|
| Active Energy | Forward and reverse active energy metering |
| Reactive Energy | Forward and reverse reactive energy metering |
| Measurement | U, I, P, Q, S, PF, F |
| Communication | RS485, Modbus RTU |
| Bidirectional Metering | Supports bidirectional power and energy measurement |
