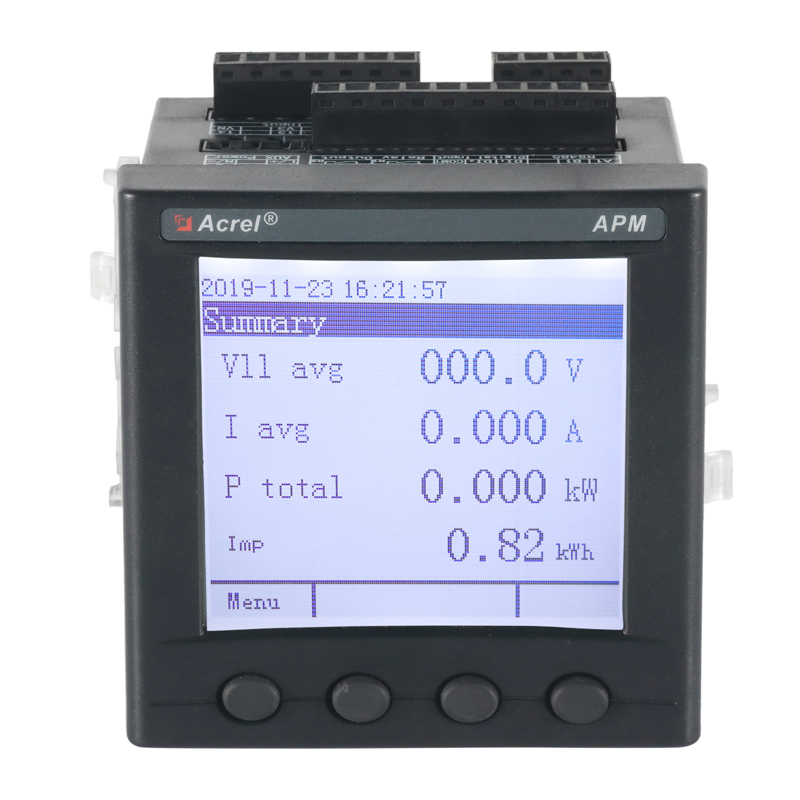

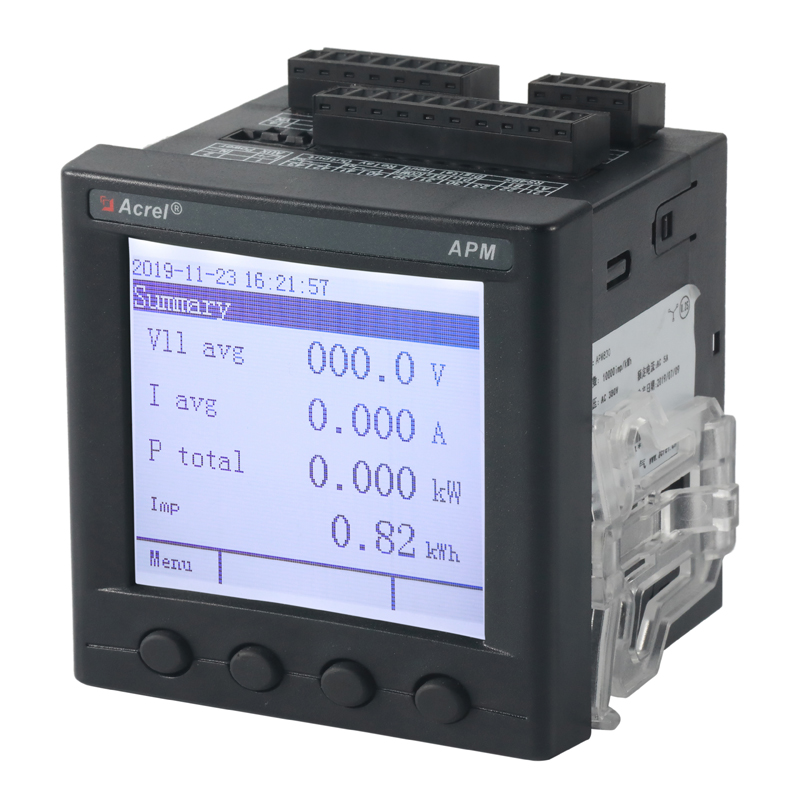

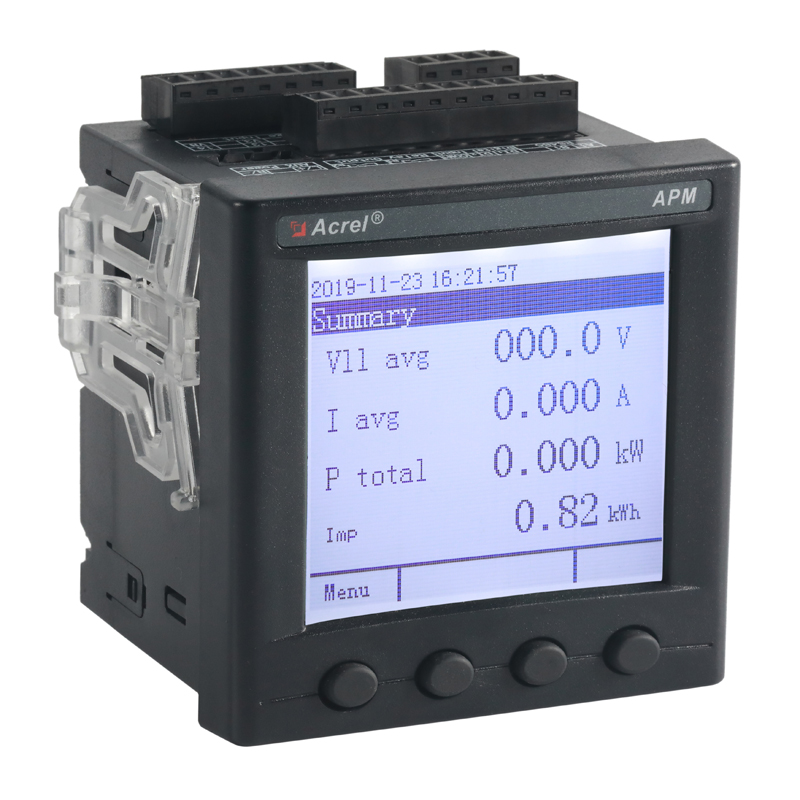

APM830 3-Phase Multifunction Power Quality Meter
Characteristic
Communication
Standard: RS485 (Modbus-RTU)
Optional: Ethernet (Modbus-TCP), Profibus-DP, Secondary RS485
Display
LCD displays voltage, current, power, power factor, frequency and energy, with power quality monitoring for harmonics, unbalance and other power quality parameters.
Rated U and l
Voltage: AC 100V, 110V, 400V, 690V
Current: AC 1A / 5A, CT connected
General
APM830 is a high-precision three-phase multifunction power quality meter designed for comprehensive power monitoring and energy management. It provides full electrical parameter measurement, energy statistics, demand monitoring, power quality analysis, harmonic measurement and network communication. Its modular design supports flexible expansion for communication, I/O and data storage, making it suitable for industrial power distribution, commercial buildings, utilities and energy management systems.
Function
Accuracy
Voltage, Current and Power: Class 0.2
Active Energy: Class 0.2S
Reactive Energy: Class 1.0
Frequency
45–65 Hz
Power Quality
Voltage and current unbalance
THD measurement
2nd–63rd individual harmonics
Phase angle measurement
Zero-sequence current
Maximum and real-time demand
Energy Measurement
Active and reactive energy
Four-quadrant energy
Multi-tariff energy
Maximum / minimum value recording
Communication
RS485 / Modbus-RTU
Optional Profibus-DP
Optional Ethernet / Modbus-TCP
Data Storage
Standard storage: 8G
TF Card: Up to 32G
Auxiliary Power Supply
AC/DC 85–265V
or AC/DC 115–415V
Protection Degree
Front Panel: IP54

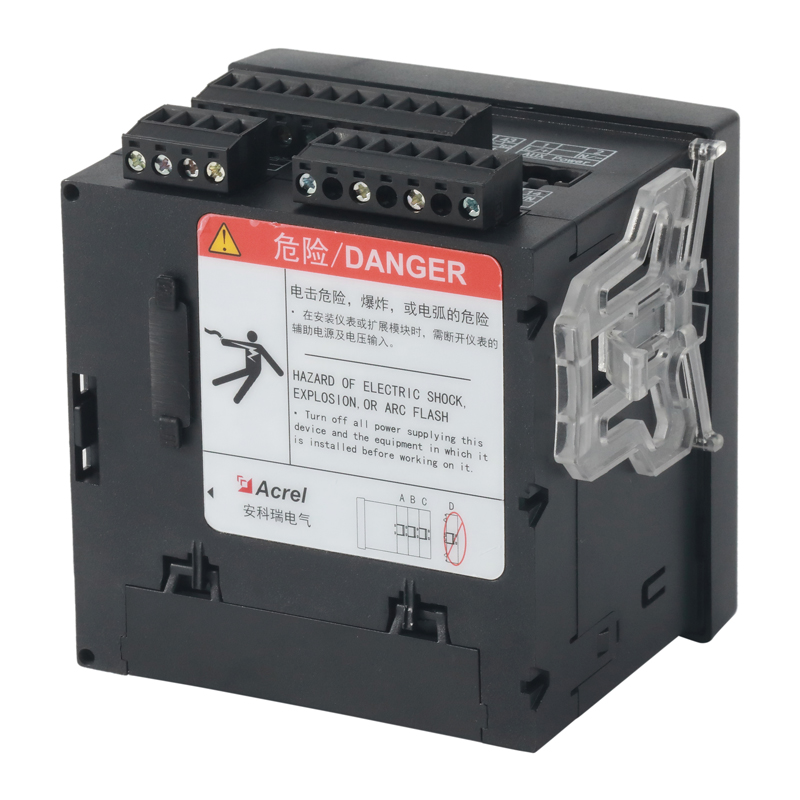

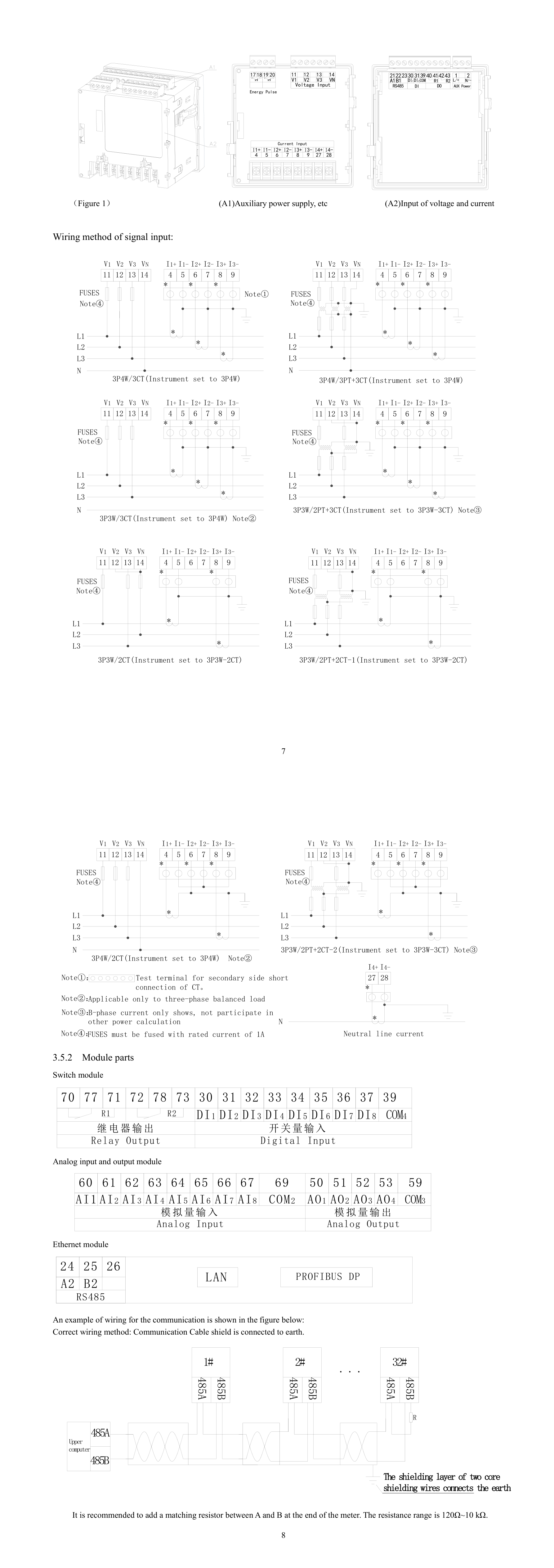

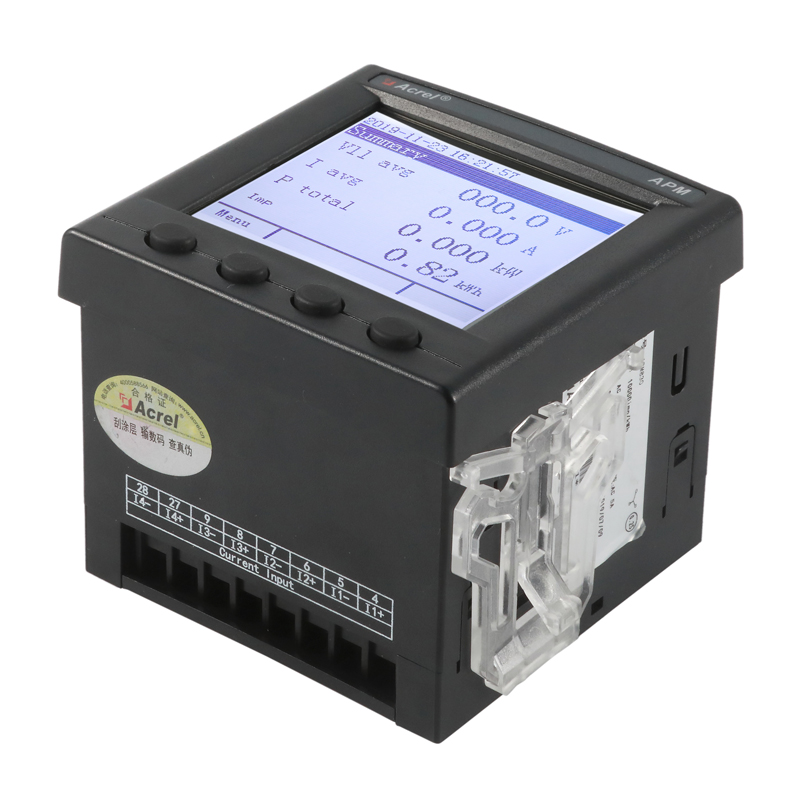

Wiring

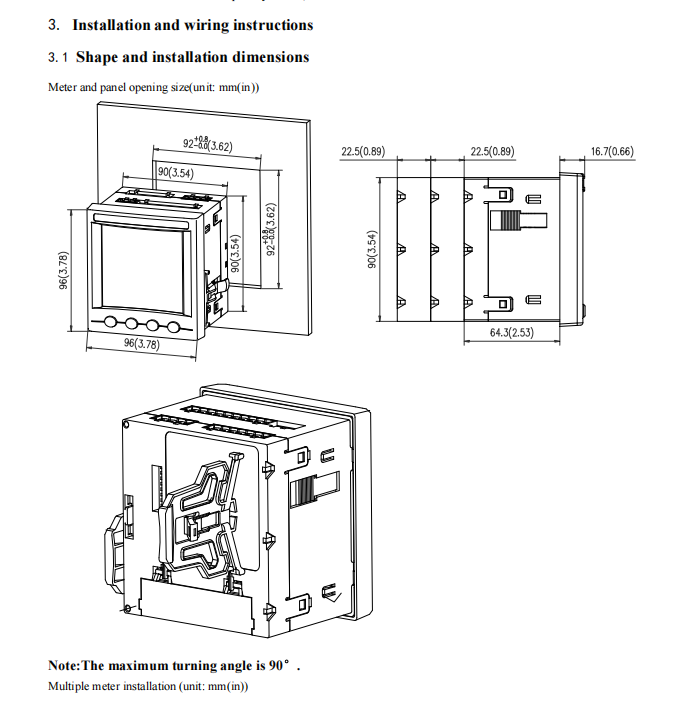

Installation
Typical connection
APM830 is a three-phase panel power quality analyser and multifunction energy meter designed to IEC standards. It measures full electrical parameters, four-quadrant and multi-rate energy, demand and harmonics, and records events, alarms and waveform transients for supply quality monitoring.
Voltage / current accuracy
IEC 61557-12 class 0.2
Harmonic analysis
order 2-63
Display
192 x 160 dot-matrix LCD
Plug-in modules
up to 3 per meter
Technical data
| Parameter | Value (from the product manual) |
|---|---|
| Network | Three-phase 3-wire, three-phase 4-wire |
| Frequency | 45-65 Hz |
| Voltage input (rated) | AC 3 x 57.7/100 V, 3 x 63.5/110 V, 3 x 230/400 V, 3 x 400/690 V |
| Voltage overload | 1.2 x rated continuous; 2 x rated for 1 s; under 0.5 VA per channel |
| Current input (rated) | AC 3 x 1(1.2) A or 3 x 5(6) A, 4 mm2 wire accept |
| Current overload | 1.2 x rated continuous; 10 x rated for 1 s; under 0.5 VA per channel |
| Voltage, current, frequency | IEC 61557-12 class 0.2 / 0.2s |
| Active power / reactive power | IEC 61557-12 class 0.2s / class 1s |
| Active energy | IEC 62053-22 class 0.2S |
| Reactive energy | IEC 62053-24 class 0.5S |
| Harmonics | IEC 61557-12 class 2; 2-45th within +/-1% (45-65 Hz), 46-63rd within +/-2% (50 Hz) |
| Waveform capture | 20 waves, 10 before and 10 after; 128 points per cycle |
| Event and alarm records | 128 events, 66 alarms, up to 800 transients |
| Switch inputs / relay outputs | 2 DI + 2 DO standard; dry contact, response under 300 ms |
| Relay contact capacity | AC 250 V / 3 A, DC 30 V / 3 A |
| Energy pulse output | Optocoupled open collector, 10000 imp/kWh default |
| Communication | Modbus-RTU, DL/T 645-2007, Profibus-DP, Ethernet Modbus-TCP |
| Auxiliary supply | AC/DC 85-265 V or AC/DC 115-415 V (option P2); main part under 15 VA |
| Withstand voltage | Case to supply AC 4 kV / 1 min; supply to I/O AC 2 kV / 1 min |
| Insulation resistance | Inputs and outputs to case over 100 MOhm |
| EMC | IEC 61000, level 4 |
| Environment | -25 to +70 C operating, -40 to +85 C storage, RH 75% or less, altitude 2000 m or less |
| Protection degree | IP54 front panel, with gasket |
Extension modules (max. 3, mixed)
| Code | Function |
|---|---|
| MD82 | 8 digital inputs + 2 digital outputs with changeover contact |
| MA84 | 8 analog inputs (class 0.5) + 4 analog outputs (class 0.5) |
| MLOG | TF card storage of alarm, event and electrical parameter records |
| MCM | 1 RS485 / Modbus-RTU, master or slave mode |
| MCP | 1 Profibus-DP (fits with MCM, referred to as MCMP) |
| MCE | 1 Ethernet: Modbus-TCP, http, SMTP, DHCP (fits with MCM, MCME) |
What it monitors
- Four-quadrant and complex-rate energy with internal temperature monitoring
- Real-time demand plus maximum demand with time stamp for current, P, Q, S
- Monthly and previous-month extreme values for U, I, P, Q, S, PF and frequency
- Voltage and current unbalance, phase angles, vector diagram and crest / K-factor
- Dual RS485 copies the master-station data, so no data exchange gateway is needed
- Modbus-RTU or DL/T 645-2007 register map supplied on request
Before you request a quote
- CT primary rating and burden, or 1 A / 5 A secondary
- Auxiliary supply: AC/DC 85-265 V or the 115-415 V option
- Which modules: more DI/DO, AI/AO, second RS485, Ethernet or Profibus-DP
MCP, MCE and MLOG cannot be duplicated in one meter, and MCP or MCE must be installed first. Send the CT and PT ratio, the auxiliary supply and the module codes you need and we confirm the ordering code, panel cut-out and register map within one working day.
| Item | Specification / Description |
| Electrical Network | Three-phase three-wire / Three-phase four-wire |
| Frequency | 45-65 Hz |
| Rated Voltage | AC 3×57.7/100V, AC 3×63.5/110V, AC 3×230/400V, AC 3×400/690V |
| Voltage Overload | 1.2x rated value continuously; 2x rated value for 1s |
| Rated Current | AC 3×1(1.2)A / AC 3×5(6)A |
| Current Overload | 1.2x rated value continuously; 10x rated value for 1s |
| Voltage / Current Accuracy | Class 0.2 |
| Active Power Accuracy | Class 0.2S |
| Reactive Power Accuracy | Class 1S |
| Active Energy Accuracy | Class 0.2S |
| Reactive Energy Accuracy | Class 0.5S |
| Harmonics | 2nd-63rd harmonics |
| Display | 192×160 dot matrix LCD |
| Communication | RS485 / Modbus-RTU / DL/T645 |
| Optional Communication | Ethernet / Modbus-TCP / Profibus-DP |
| TF Card | Standard 8GB, max. 32GB |
| Auxiliary Power | AC/DC 85-265V or AC/DC 115-415V (P2) |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | <=75%, non-condensing |
| Altitude | <=2000m |
| Protection Degree | Front panel IP54 |
| Item | Specification / Description |
| Electrical Measurement | Voltage, current, active power, reactive power, apparent power, power factor and frequency |
| Energy Measurement | Four-quadrant active and reactive energy |
| Multi-Tariff Energy | Total, sharp, peak, flat and valley energy statistics |
| Demand | Three-phase current, active power, reactive power and apparent power demand |
| Maximum Demand | Maximum demand with timestamp |
| Extreme Value Statistics | Current, voltage, power, power factor, frequency and harmonic maximum/minimum values with timestamp |
| Voltage / Current Unbalance | Supported |
| Phase Angle | Voltage and current phase angle |
| Harmonic Analysis | Total, odd and even harmonics; individual 2nd-63rd harmonics |
| Waveform Display | Voltage and current waveform |
| Fundamental Measurement | Fundamental voltage and current |
| Voltage Crest Factor | Supported |
| Current K-Factor | Supported |
| Event Recording | Latest 128 event records; expandable via TF card |
| Alarm Recording | 66 alarm types; up to 128 recent records per alarm type |
| Transient Recording | Up to 800 transient waveform records |
| Communication | Modbus-RTU and DL/T645-2007 |
| Standard I/O | 2DI + 2DO |
| Energy Pulse Output | Supported |
| MD82 Module | 8DI + 2DO |
| MA84 Module | 8AI + 4AO |
| MCM Module | Additional RS485 / Modbus-RTU |
| MCE Module | Ethernet / Modbus-TCP / HTTP / SMTP / DHCP |
| MCP Module | Profibus-DP |
| MLOG Module | TF card data storage |
| Expansion Capacity | Up to 3 expansion modules |
