Acrel Cloud-3100 Prepaid System for Thailand Shinawatra University

During their time at university, students primarily spend their activities within the campus dormitories. Effective management of electricity in dormitories is fundamental to ensuring orderly administration. There are three crucial aspects involved in managing dormitory electricity: safety management, electricity metering and billing, and energy conservation. Exploring the current state of electricity management in university dormitories and addressing the issues in these three areas is of significant importance. Developing effective strategies for these aspects is essential for improving the management of electricity in university dormitories.

Project Overview

1. Scope: 6 new dormitory buildings (initially 3). 7 floors per building, about 30 rooms per floor.

2. Objective: Efficient electricity management for safety, billing, and energy conservation.

3. Key Requirements: Overload trip, remote metering, prepaid recharge, API integration

Hardware

Key Components:

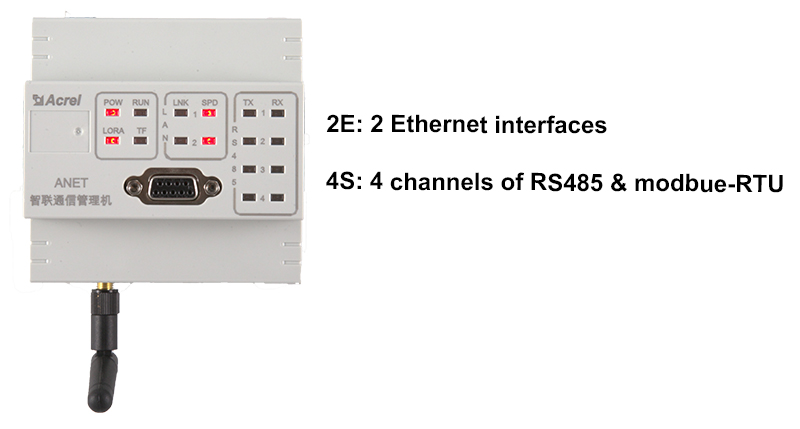

Gateways: 3× Anet-2E4SM.

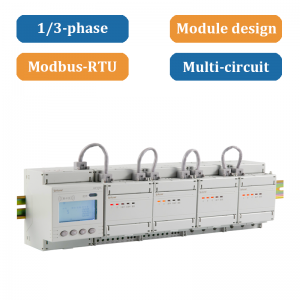

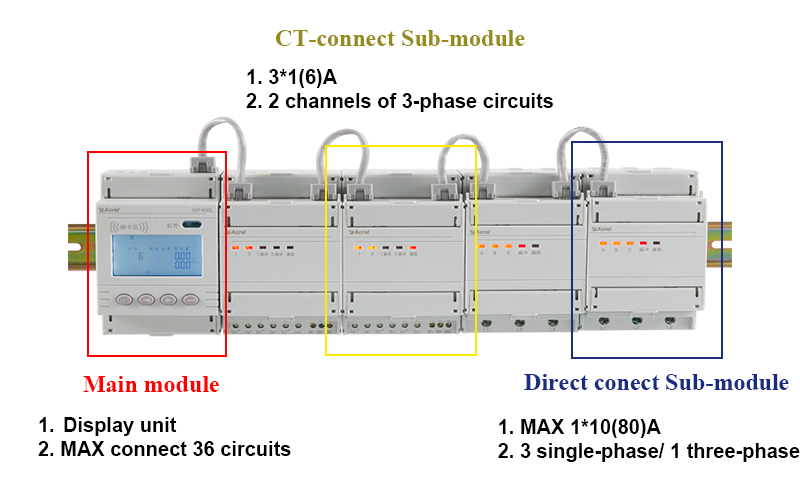

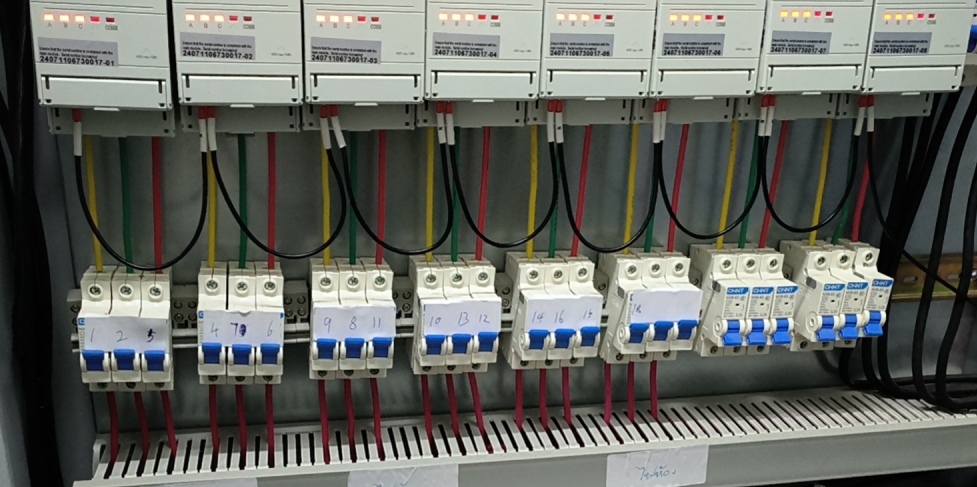

Meters: 15× ADF400L-30DY, 3× ADF400L-24DY, 3× ADF400L-1S30DY.

Server: R250 (6-core, 16GB RAM, 960GB SSD).

Gateway

Energy Meter

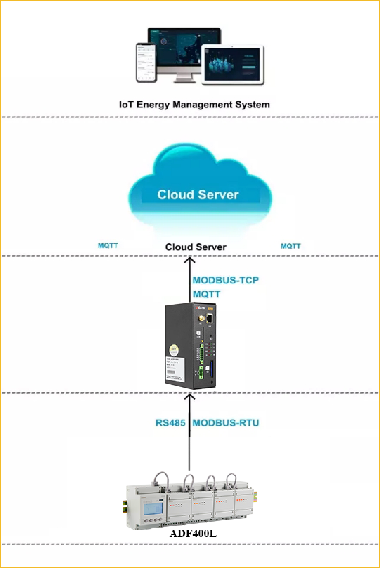

System Architecture

Dormitory Management

Room Information

Dormitory information management displays all dormitory room information under each project

Charge Plans

Custom billing
(fixed/area-based fees, periodic deductions)

Negative Control Alarms

Record page displays all dormitory room equipment records of over-power tripping and the number of alarms triggered after negative control event under each project
