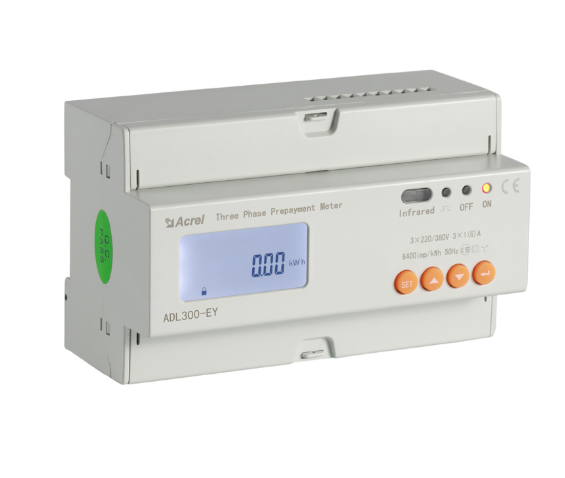

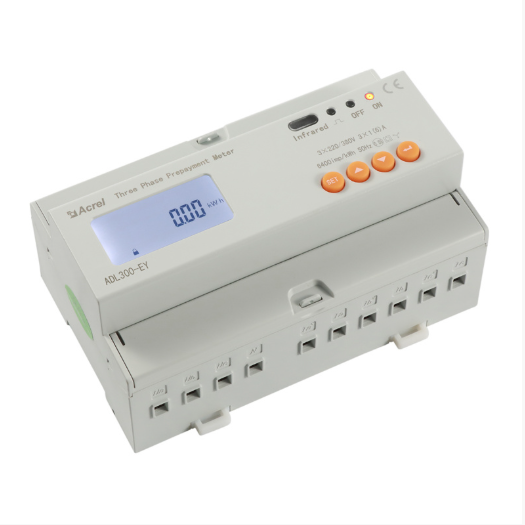

ADL300-EY Din-rail 3-Phase Prepaid Energy Meter
Overview
ADL300 three-phase prepaid energy meter are used to measure single- and three-phase AC active energy with a rated frequency of 50Hz respectively. They have functions such as prepayment control, load control, time control and RS485 communication. The performance indicators comply with GB/T 17215.321-2008 and GB/T 17215.321-2021 standards. It is an ideal meter to reform the traditional electricity consumption system and improve the level of electricity consumption management. The product complies with the requirements of the enterprise standard Q31/0114000129C035-2017 "Enterprise Standard for Rail-Mounted Electric Energy Meters".
Function
● Three phase four wires
● Rated voltage: 3*220V/380V;
● Rated current: 3*1(6)A, or 3*10(80)A
● Overload: 1.2 times rating (continuous)
2 times the rating for 1 second
● Accuracy of active energy：Class 0.5S
● Communication: RS485(Modbus-RTU)
Electricity Data Measurement
● kWh (positive and negative)
● kVarh (positive and negative)
● U, I, P, Q, S, PF, F, etc.
● Communication, and other parameters can be programmable by the key
● LCD dispaly: Segmented LCD display
● Active pulse output
● Prepaid function, remote switch on/off
● Grid frequency: 45~65Hz, error ±0.2%
● Standard & Certificate: CE;
● Pulse width: 80±20ms
● Pulse constant: 1600imp/kWh
● Mounted: DIN 35mm
● Baud rate: Support 1200bps-19200bps
● Operating temperature: -25℃～+55℃
● Storage temperature: -40℃～+70℃
● Relative humidity: ≤95℅ (without condensation)
Operation Instruction
Wiring
Typical diagram
1.Technical parameter
1.1 Electrical performance
|
Technical parameter |
ADL100-EY |
ADL300-EY |
|||
|
Voltage |
Reference voltage |
220V |
3×220/380V |
||
|
Reference frequency |
50Hz |
||||
|
Consumption |
<4VA(Each phase) |
||||
|
Current |
Input current |
10(60)A |
1(6)A ,10(80)A |
||
|
Starting current |
Connect directly: 0.004 Ib, connect via CT: 0.002In |
||||
|
Consumption |
<4VA (Maximum current) |
||||
|
Measurement performance |
Accuracy of measuring |
1 Class |
0.5s Class |
||
|
Clock accuracy |
Error ≤0.5s/d |
||||
|
Active pulse |
Pulse width |
80ms±20ms |
|||
|
Pulse constant |
1600imp/kWh |
6400imp/kWh,400 imp/kWh |
|||
|
Communication |
Interface |
RS485(A+、B-) |
|||
|
Connection mode |
Shielded twisted pair conductors |
||||
|
Protocol |
MODBUS-RTU |
||||
1.2 Work environment
|
Temperature range |
Work temperature |
-25℃~55℃ |
|
Storage Temperature |
-40℃~70℃ |
|
|
Relative humidity |
≤95%(No condensation) |
|
|
Altitude |
<2000m |
|
2. Functional Characteristic
2.1 Basic & Optional Function
|
Function name |
Function Description |
Function provide |
||
|
ADL100-EY |
ADL300-EY |
|||
|
Measurement of kWh |
Total active energy kWh (positive and negative in total) |
■ |
||
|
Measurement of electrical parameters |
U、I 、P、Q、S、PF、F |
■ |
||
|
Pre-paid mode |
Through RS485 communication prepaid recharge, data encryption |
■ |
||
|
Control |
Built-in high-capacity sub-holding relay to achieve load on-off control |
■ |
||
|
LCD display |
8 bits section LCD display |
■ |
||
|
Communication |
Communication interface: RS485, Communication protocol: MODBUS-RTU |
■ |
||
|
Multi-tariff |
4 tariff rates, 14 time interval by day |
4 tariff rates, 14 time interval by day |
□F |
|
■： means standard; □： means optional
